Biomorph Level 3Plus User manual
Level3Plus
Ground Support Equipment (US) ltd., DBA Biomorph, 11 Broadway, New York, NY 10004. Tel and Fax 888 302 3375
www.biomorph.com
Copywright S.Barlow-Lawson 2022
2
“Questions? Please call 917.328.8955 for support.
IMPORTANT: Any issues at site must be reported to Biomorph immediately at 917.328.8955, by text or phone and wait on site for response. Also, photos of
completed desk(s) must be sent to 917.328.8955 or [email protected] and wait ON SITE for approval. This will avoid potential revisits. Thank you.
Components
Hardware
Tools
4mm Wrench Drill Extension #1 Phillips Bit #2 Phillips Bit Hex Bit
M6 Flange Head Nut
Qty. 8
16mm PH Wd Screw
Qty. 12
M6 x 12 Screw
Qty. 48
45mm PH Wd Screw
Qty. 2
D - Glider
Qty. 4
5 x 25mm Wd Screw
Qty. 36
Leg
Qty 4
Wire Clips
Qty 20
Table Top
Qty 1
Cable Cab
Qty 1
45˚ Digital Readout
Switch and 45˚
Switch Bracket
Qty 1
Cable Chains
Qty 1
RH Adjustable
Crossbar Section
Qty 2
LH Adjustable
Crossbar Section
Qty 2
Adjustable
Crossbar
Qty 2
aLH Top Plate
Qty 2
bRH Top Plate
Qty 2
c
gh
i k l m
e f
Foot
Qty 2
d
4 Port Control Box
Qty 1
j
3
Assembly OverviewAssembly Overview
IMPORTANT:
DO NOT BUILD THIS TABLE UPSIDE DOWN. FRAME MUST BE BUILT RIGHT SIDE UP, IN PLACE, AND
TOPS THEN ATTACHED. If this procedure is not followed then tops will not line up with frame. DO NOT
REMOVE PROTECTIVE MATERIAL FROM TOPS UNTIL FINAL ASSEMBLY.
IMPORTANT:
When moving this desk, do not drag frame as it can cause leg actuators to bind and fail. Always lift o
floor using frame, not tops.
a
a
a
a
b
b
c
c
g
g
e
f
e
f
d
d
Align CPU Holder with Shroud
and secure using four (4) M6 x
8 Screws.
Slide CPU Support upward. Tighten screws using Allen
Wrench.
Note: These screws may be
loosened to re-adjust CPU
Support to accomodate
CPU.
Place Leg (A) being installed in
Step 3 into Shroud (e). Proceed
to Step 4.
Installing Leg-Mounted CPU Holder (optional)
e
f
a
M6 Flange
Head Nut
Qty. 4
M6 x 8 Screw
Qty. 4
4
Leg Assembly
M6 x 12 Screw
Qty. 16
Note: Longer end of
Foot must face toward
front (user) side.
a
a
a
a
a
a
a
a
d
d
ad
d
a
Glide
Qty. 4
M6 x 12 Screw
Qty. 16
2
3
b
b
c
c
bc
a
1
5
Crossbar Assembly
LH Side RH Side
LH Side RH Side
e
e
e f
f
Use these holes.
f
Use these holes.
e
Use these holes.
f
Use these holes.
M6 x 12 Screw
Qty. 8
Note: This assembly is identical for 60”, 72” and 84” models.
6
Crossbar Assembly (continued)
e
Use these holes. Use these holes.
k
60” LH Side 60” RH Side
k
f
Use these holes.
g
g
g
72” LH Side 72” RH Side
Use these holes.
Use these holes.
Use these holes.
84” LH Side 84” RH Side
f
f
e
e
M6 x 12 Screw
Qty. 8
M6 Flange
Head Nut
Qty. 8
g
e f
e f
g g
7
Top Assembly
h
h
5 x 25mm
Wood Screw
Qty. 62
8
Electrical Components
45˚ Digital Readout
Switch and 45˚
Switch Bracket
Qty 1
16mm PH
Wood Screw
Qty. 2
i
4 Port Control Box
Qty 1
45mm PH
Wood Screw
Qty. 2
j
i
j
9

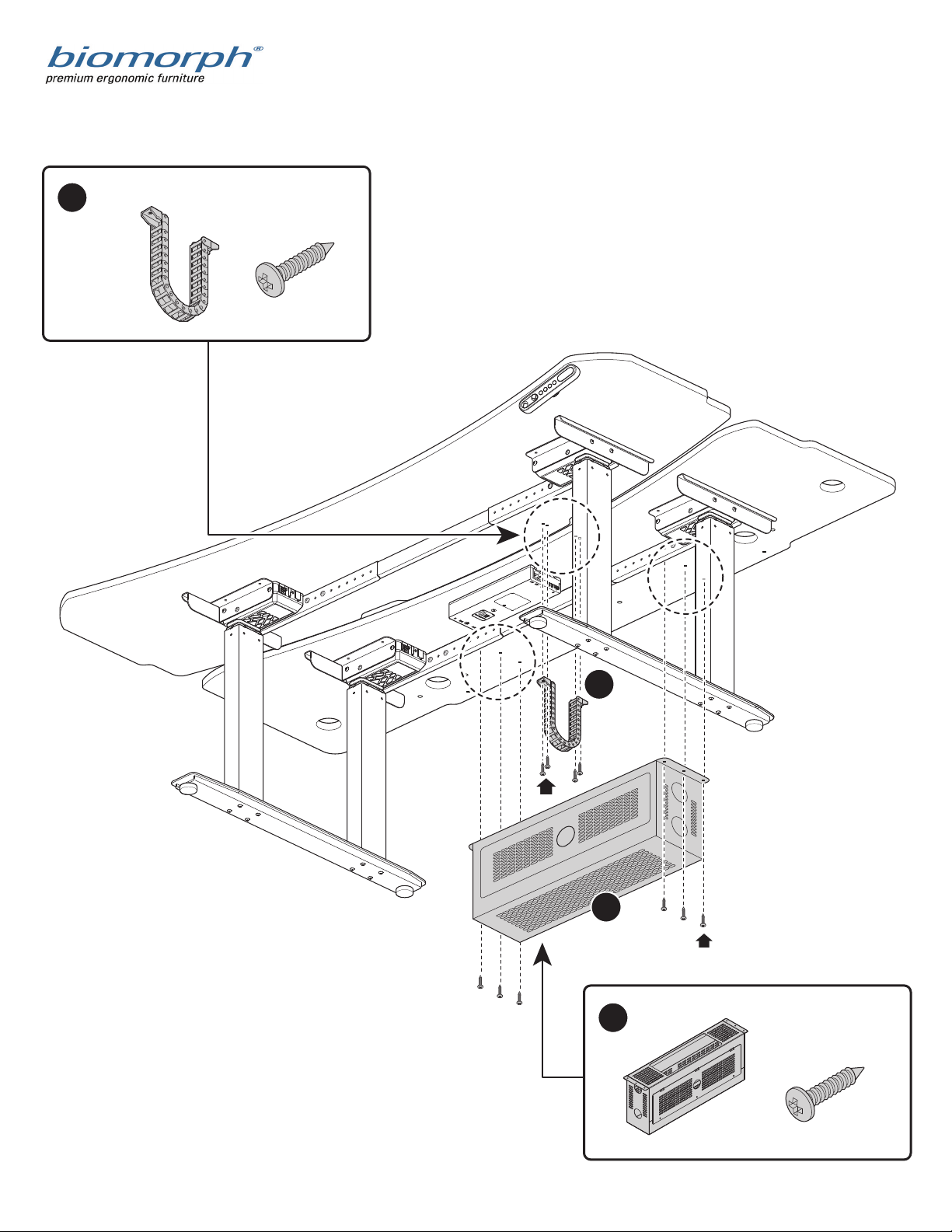

Cable Management
k
Cable Cab
Qty 1
l
Cable Chains
Qty 2
k
l
16mm PH
Wood Screw
Qty. 4
16mm PH
Wood Screw
Qty. 6
