Belkin F7D4550 User manual

UniversalWirelessAVAdapter

USERMANUAL

8820-00867 Rev.A00

F7D4550v1

Okmk7/27/11

TABLE OFCONTENTS

GettingStarted

What sintheBox

HowtoSetItUp

WheretoPlace YourUniversalWirelessAV Adapter

GettingtoKnowYourUniversalWirelessAV Adapter

FrontPanel

BackPanel

TechnicalDetails

TechnicalFeatures

SystemRequirements

UsingYourUniversalWirelessAV Adapter

UpdatingtheFirmwareviatheWebInterface

ResettingtheUniversalWirelessAVAdapter

RestoringyourUniversalWirelessAVAdaptertoFactoryDefaults

Troubleshooting, Support, andWarranty

Troubleshooting

TechnicalSupport

BelkinInternational, Inc., Limited2-YearProductWarranty

RegulatoryInformation

FCC Statement

GettingStarted

What sintheBox

UniversalWireless AV Adapter

Ethernet Cable

PowerSupply

Quick Installation Guide

BelkinCD withUserManual

How toSetItUp

Togetstarted, youwillneed:

Wirelessrouter, withitsnetworknameandpassword

PersonalComputer

WebBrowser

1) Connectyour Adapter sEthernetcable toyour PC sEthernet

port.Plugthe Adapter spower supplyintoawall outlet.

2) Openan Internetbrowser andtype: http://belkin.universal

intothe address bar.A “Welcome screen”will appear toguide

youthroughthe Adapter setup.

Browserssupported:Firefox®3.5andabove, InternetExplorer®6andabove,

GoogleChrome™7andabove, Safari®4andabove

Note:Defaultlanguage isEnglish.Youmay change languages

by clickingon the language iconandchoosingfromthe

available options.

a. Clickthe “GetStarted”buttontobeginthesetup process.

b. Followthedirectionsonyourbrowsertosetupyourdevice.

3) Once the Adapter hassuccessfully joinedthe wireless

network,disconnectit fromthe PC,andunplugthe power

supply.

4) Connectyour Adapter sEthernetcable toyour TV sEthernet

port*.Plugthe Adapter spower supply intoawall outlet.

*Youcanconnectup to4Ethernet-enableddevices.

WheretoPlace YourUniversal Wireless AVAdapter

For the bestresults,place the UniversalWireless AV Adapter (the

Adapter)nexttoyour TV or AV equipmentinan openlocation

away fromlarge metalobjectsandmagnetssuchasthose foundin

speakers.Raisingthe Adapter above floor level can improve the

strengthofyour wireless signal.

Note:Oncesetup,thedeviceneedstobe restored tofactorydefaults

(eitherviafirmware GUIor viaholding the reset button for10seconds,

andthen repeatingthesetupprocess).

Getting toKnowYourUniversalWireless AVAdapter

FrontPanel

Modifythe diagramtoremove thelinebelow A”

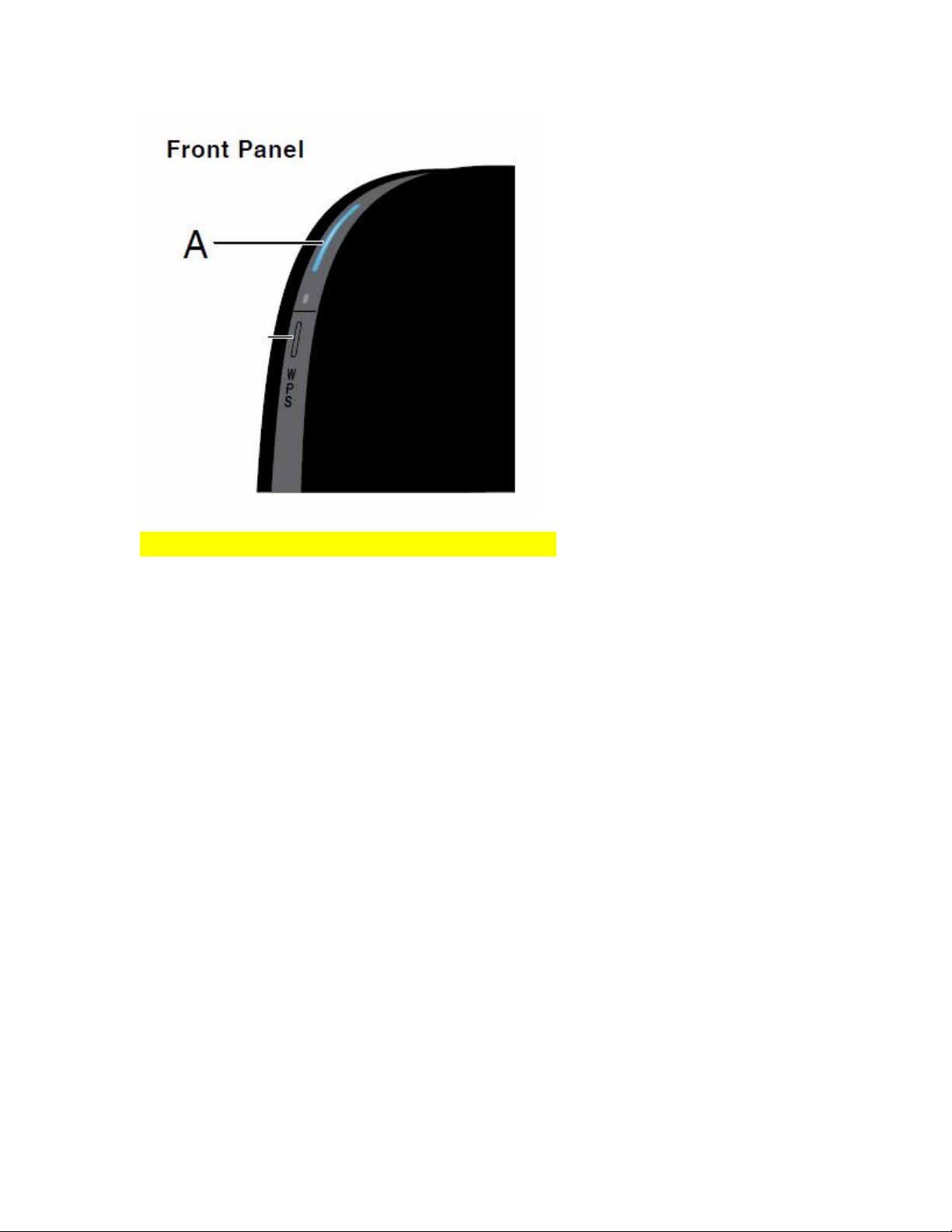

A)Universal Wireless AVAdapter StatusLight

Your Adapter sstatus isshownby the lighton the front.

Off:TheAdapteris notpluggedintoapowersource.

Blinking Blue:TheAdapteris starting up.

Blinking Blue/Amber:IndicatestheAdapterneedstobesetup.

SolidBlue:TheAdapteris connectedtotheWi-Fi network.

SolidAmber: TheAdapteris connectedtotheWi-Finetwork,but thesignal

is weak.Youmayexperienceperformanceproblems.Considermoving the

Adapterclosertothewireless router.

Blinking Amber:

TheAdapteris notconnectedtotheWi-Finetwork.Checktomake sure

thatyourwireless routeris functioning properly,and/ormove the

Adapterclosertothewireless router.

BackPanel

Modifythe diagramto

•Remove the dot”above USBport(C)

•Remove connectorsA,Cand re-label

A)Wired(LAN)Connectors

Connectup tofour AV devicessuchasInternet-EnabledTVs.Blu-

ray™players,gamingconsoles,or other Ethernet-enableddevices

tothese portsusingEthernetcables.

B)ResetButton

Thisbutton isusedtorestartyour Adapter inrare caseswhenit

functionsincorrectly.Resettingthe Adapter will preserve your

settings.Thisbutton may alsobe usedtorestore the factory default

settings.Please see the “Troubleshooting”section for more

information.

C)Power Connector

Connectthe includedpower supply tothisjack.

Technical Details

Technical Features

Integrated 802.11n Wireless Bridge:

Utilizes Dual-Band network technology (2.4GHz and 5GHz), allowing

interference-free bandwidth to all your connected AV devices

Integrated 4-Port 10/100 Switch

Your Adapter has a built-in, 4-port network switch to connect your

wired AV devices to the Internet.

System Requirements

Universal Wireless AV Adapter

Wireless router

At least one computer with an installed network interface adapter

RJ45 Ethernet networking cable

Internet browser

Using yourUniversal Wireless AVAdapter

Updating theAdapter sFirmwareviatheWebInterface

Note:YourPCneedstobewiredtotheAdapterinordertoaccess thewebinterface.

OpenanInternetbrowserandtype: http://belkin.universal intotheaddress bar.

The following stepsshowyou howtoupdateyourAdapter sfirmwareusing itsweb

interface.

ResettingtheUniversalWireless AV Adapter

RestartyourAdapter

ResetButton

The “Reset”button isused inrarecaseswhen the Adaptermayfunction improperly. Resetting

the Adapterwill restorethe Adapter snormaloperation whilemaintaining the programmed

settings. You can alsorestorethe factorydefaultsettingsbyusing the “Reset”button.

ResettingtheUniversal Wireless AVAdapter

Pushand releasethe “Reset”button. The light on the Adapterwillmomentarilyflashand then

becomesolidagain, indicating the reset iscomplete.

RestoringYourAdaptertoFactoryDefaults

Press andholdthe “Reset”button foratleast 10 seconds, and then releaseit.Thelighton the

Adapterwillbecomeblue/amberinan alternating flashpatternindicating that theAdapterisready

tobe set up again.

Troubleshooting,Support, and Warranty

Troubleshooting

BelkinSetup cannotfind myUniversal Wireless AVAdapter.

IfBelkinSetup isnotable tocommunicate withyour Adapter

duringthe installation process,pleasemake sure thatthe wireless

router isturnedon andhasInternetconnectivity.

The Adapter ishavingtroubleconnectingtomywireless network.

BlinkingAmber LED:

Thisindicatesthat theAdapterisnotconnectedtoyourwireless

network. PleasemovetheAdapterclosertoyourrouter.
