Barco TLD(2.8-5.0):1 User manual
BARCO PROJECTION SYSTEMS
Date:16.11.2000
INSTALLATION MANUAL
LENS TLD(2.8 - 5.0):1 for SLM Series projectors
R9840690
Art. No.: R5976222Rev : 00
TLD(2.8-5.0):1
Kit
BARCO 1 Projection Systems
TLD(2.8-5.08):1 Lens R9840690
What has to be
done
This new lens has to be installed on the SLM series projector
Necessary Tools no tool necessary
To be continued on next page.
Warning ! Risk of personal injury. Instructions for lens installation must be followed thoroughly.

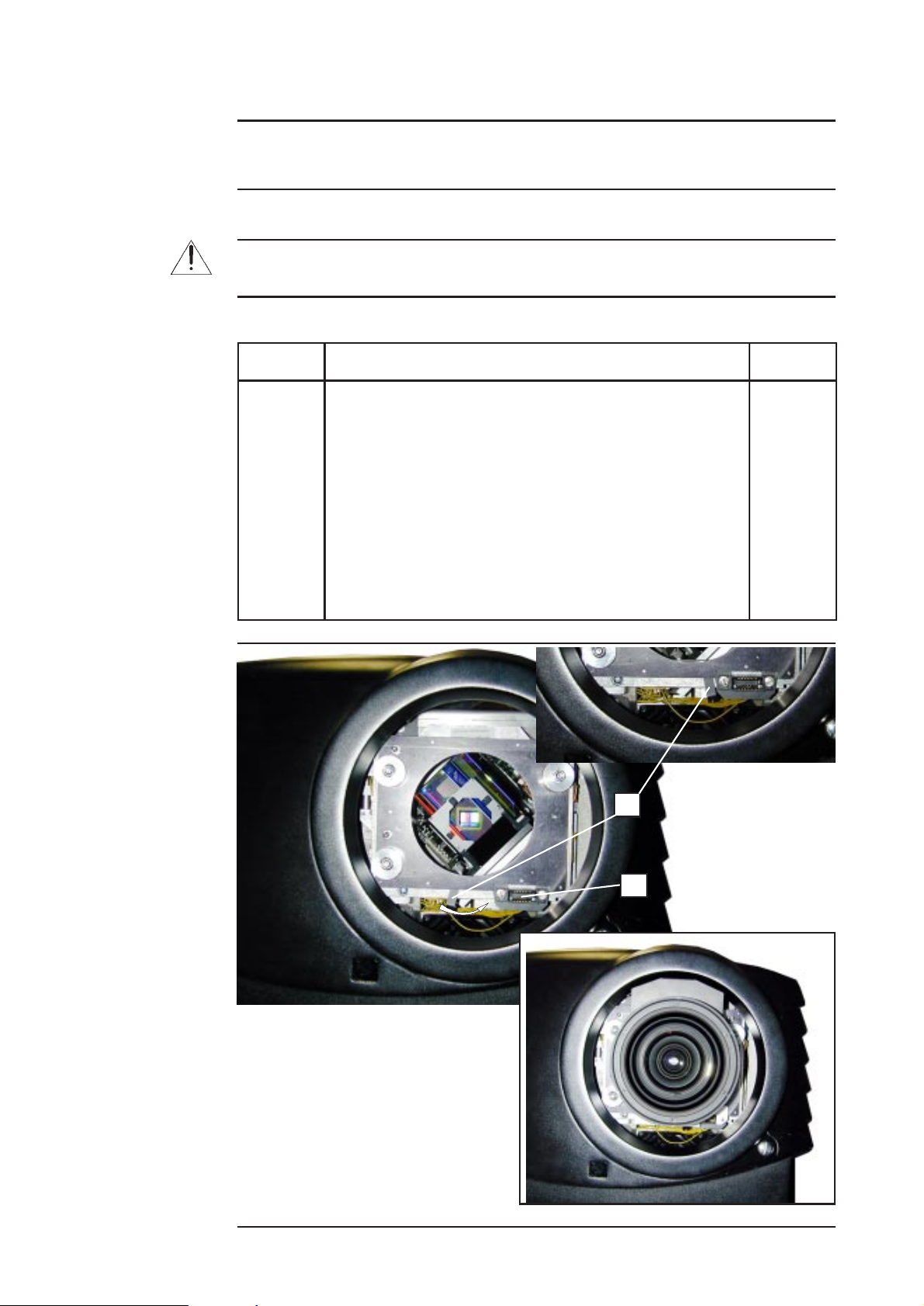

Installing the
Lens
To install the lens, follow the next procedure:
1
2
3
-
1&2
3
Take the lens assembly out of its packing material and
remove the lens caps on both sides.
Move the handle (A) of the lens anchor system to the right.
Push the lens, motors at the top, in the lens block gap
horizontally, lining up the motor connector on the lens with
the connector on the lens block (B), until the lens clicks in
the lens anchor system.
Attention: for a table mounted projector, hold the projector
when pushing the lens into the lens block to avoid sliding
off from the table.
Step Action Image
Illustrations
Image 1
Image 2
A
Image 3
B
BARCO 2 Projection Systems
TLD(2.8-5.08):1 Lens R9840690 (Continued)
What has to be
done
Removing the lens on the SLM series projector
Necessary Tools no tool necessary
Warning ! Risk of personal injury. Instructions for lens installation must be followed thoroughly.
To be continued on next page.
Illustrations
Image 1
Image 2
Image 3
A

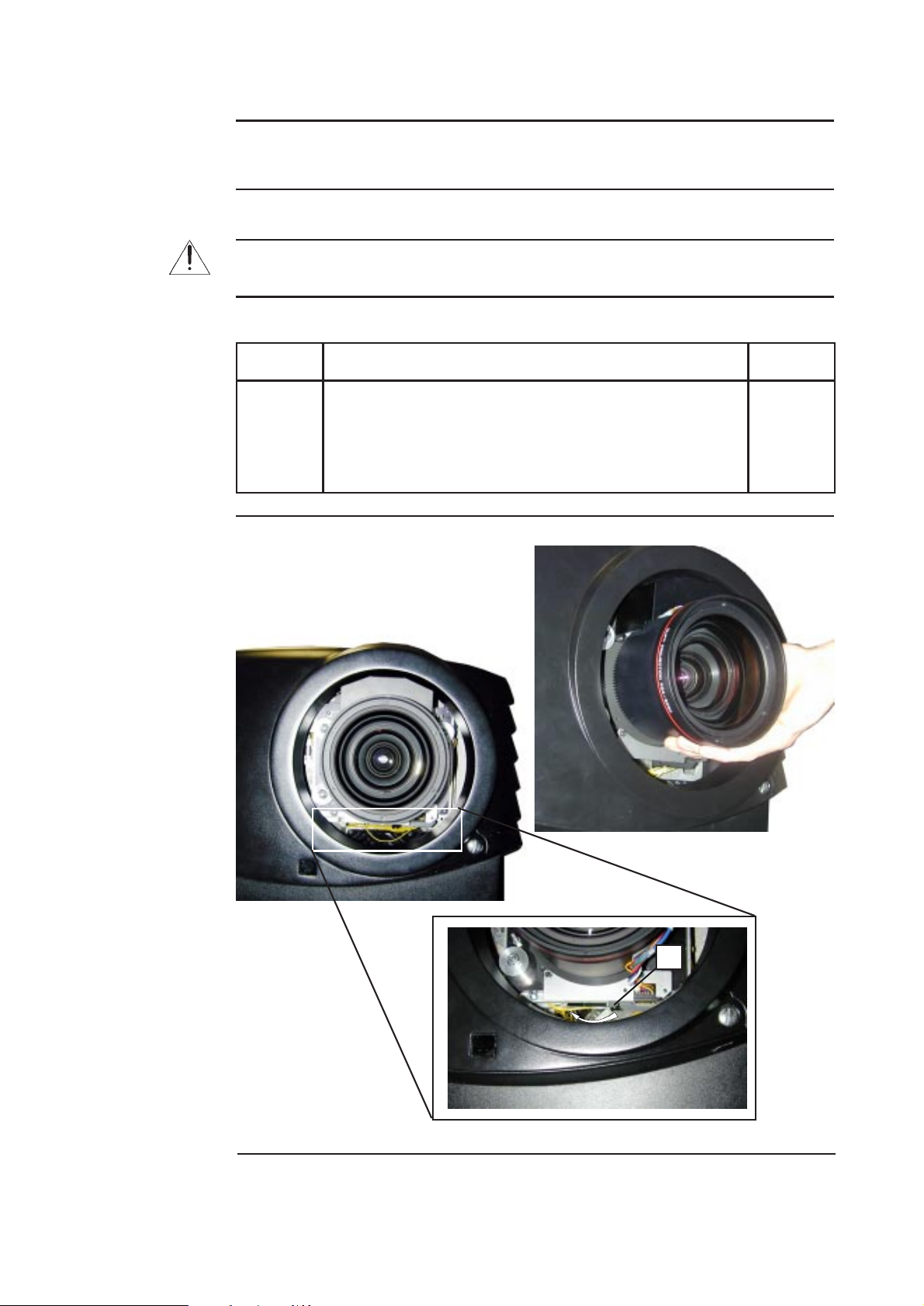

Removing the
lens
To remove the lens, follow the next procedure:
1
2
3
1
2&3
1
Support the lens with one hand.
Move the handle (A) of the lens anchor system to the left
Take the lens unit out of the lens block.
Step Action Image
BARCO 3 Projection Systems
TLD(2.8-5.08):1 Lens R9840690 (Continued)
Zoom/focus
Adjustment of the
Lens
To adjust the lens, follow the next procedure :
1
2
Press the BARCO key on the RCU to display the zoom/focus menu on
the screen.
To focus or zoom the image :
a Push the cursor keys éor êto zoom and çor èto focus the
center of the image.
b When finished, press exit key.
See also owners manual of the projector, chapter Controlling, item
The selection key.
Step Action
To be continued on next page.
Lens Formula To calculate the distance (range) between the projector frontside and the screen (PD)
(see also the manual of the projector) for a given screen width (SW), use the following
formula for:
Barco projector SLM G5 & R6:
Metric system (PD and SW in meter) :
PDWIDE = 2.84 x SW - 0.15
PDTELE = 5.18 x SW - 0.37
Inch system (PD and SW in inches) :
PDWIDE = 111.81 x SW - 5.91
PDTELE = 203.94 x SW - 14.57
Barco projector SLM G5
Metric system (PD and SW in meter) :
PDWIDE = 2.88 x SW - 0.15
PDTELE = 5.26 x SW - 0.37
Inch system (PD and SW in inches) :
PDWIDE =113.39 x SW - 5.91
PDTELE = 207.09 x SW - 14.57
Barco projector SLM R6
PD
BARCO 4 Projection Systems
Lens Cleaning
Procedure
To minimize the possibility of damaging the optical coating or scratching exposed lens
surface, we have developed recommendations for cleaning the lens.
FIRST, we recommend you try to remove any material from the lens by blowing it off
with clean, dry deionized air. DO NOT use any liquid to clean the lenses.
A TorayseeTM cloth is included with the lens kit.
Proceed as follows :
1
2
3
5
5
6
Always wipe lenses with a CLEAN TorayseeTM cloth.
Always wipe lenses in a single direction. Do not wipe back and for-
wards across the lens surface as this tends to grind dirt into the coating.
Do not leave cleaning cloth in either an open room or lab coat pocket,
as doing so can contaminate the cloth.
If smears occur when cleaning lenses, replace the cloth. Smears are
the first indication of a dirty cloth.
Do not use fabric softener when washing the cleaning cloth or softener
sheets when drying the cloth.
Do not use liquid cleaners on the cloth as doing so will contaminate the
cloth.
Step Action
Order number for a new TorayseeTM cloth : R379058.
Toraysee Cloth
Order Number
TLD(2.8-5.08):1 Lens R9840690
