Barco R9802352 User manual
ENABLING BRIGHT OUTCOMES
Installation manual
UDX Bottom filter
3R5914789 /00 UDX Bottom filter
1.1 Safety instructions ..........................................................................................................................4
1.2 Safety precautions Hazardous Chemicals ........................................................................................4
About this chapter
Read this chapter attentively. It contains important information to prevent damage to the projector. Ensure that
you understand and follow all safety instructions mentioned in this chapter before installing the bottom filter.
After this chapter, additional “warnings”and “cautions”are given depending on the installation procedure.
Read and follow these “warnings”and “cautions”as well.
Safety 1
R5914789 /00 UDX Bottom filter4
1.1 Safety instructions
WARNING: Before Mounting and removing the bottom filter, disconnect the power to the unit mains
appliance inlet.
Installation personnel
This assembly of the frame and installation of the projector must be performed by authorized and qualified
technical personnel only.
Transportation of the frame
Never transport the multifunctional frame in portrait position with a projector mounted. Failure to do so can
cause damage the multifunctional frame. Refer to Image 1–1for a bad and good example of transportation.
Image 1–1 Transportation method of the frame
This limitation only counts for transportation of a rigging frame with projector mounted. You can
still install the projector in portrait position while in the rigging frame.
1.2 Safety precautions Hazardous Chemicals
Cleansing agent: sodium carbonate crystals (Na2CO3)
Handling the cleansing agent:
•Conserve the product in the original container in a cool, well ventilated place.
•Keep away from Incompatible materials: sources of ignition, direct sunlight.
•Keep container closed when not in use.
•After handling: Wash hands and other exposed areas with mild soap and water.
Personal protection rules:
•Handle the cleansing agent in a well ventilated area.
•Do not eat, drink or smoke during use.
•Wear gloves (Butyl rubber, PVC....) and goggles.
•Wear suitable protection clothing.
WARNING: Before handling Hazardous Chemicals ensure that you have read and understood the
safety instructions provided by the supplier of the chemical in the Safety Data Sheet.
Safety
7R5914789 /00 UDX Bottom filter
2.1 Overview .......................................................................................................................................8
2.2 Mounting the filter on UDX with rigging frame....................................................................................8
2.3 Mounting the filter on UDX without rigging frame .............................................................................10
2.4 Maintenance of the filters .............................................................................................................. 11
2.5 Washing and drying the dust filters.................................................................................................12
Bottom filter 2
R5914789 /00 UDX Bottom filter8
2.1 Overview
Purpose of the UDX series bottom filter
The UDX series bottom filters are exclusively designed for the Barco UDX projectors and can thus not be used
on any other equipment.
The filters has are designed to help protect the LDMs present in UDX projectors, while mounted in
environments with polluted air.
Two types of filters
The UDX projectors have several variants in the field, and thus two types of filter have been designed:
Product number R9802352 R9802353
Description Filter for UDX projector with rigging
frame (either with or without
motorization)
Filter for UDX projector without rigging
frame
Kit content Filter holder and three types of filter
pieces (1 piece of each type)
Filter holder and one filter piece
Image of kit content
2.2 Mounting the filter on UDX with rigging frame
Required tools
•Allen wrench 3 mm
•Allen wrench 5 mm
•Allen wrench 6 mm
How to prepare the UDX
1. Place the UDX with rigging frame upside down.
2. If the UDX motorization is installed on the rigging frame, temporary release the Skew actuator from the
rigging frame.
Tip: For detailed instructions on the removal and installation of the skew actuator, refer to the
motorization installation manual (R5906146).
Tip: The filter will be mounted partially underneath the skew actuator. If not removed, the
installation will be quite cumbersome.
Bottom filter
9R5914789 /00 UDX Bottom filter
3
4
5
6
Image 2–1 Location of the skew actuator
3. Release two of the M8 screws and washers mounted into the bottom of the rigging frame, as indicated in
the following picture (reference 1, Image 2–2). Use a 6 mm Allen wrench.
4. Release two of the M4 screws on the bottom plate of the projector as indicated in the following picture
(reference 2, Image 2–2). Use a 3 mm Allen wrench
1
2
Image 2–2 Location of the screws to be removed

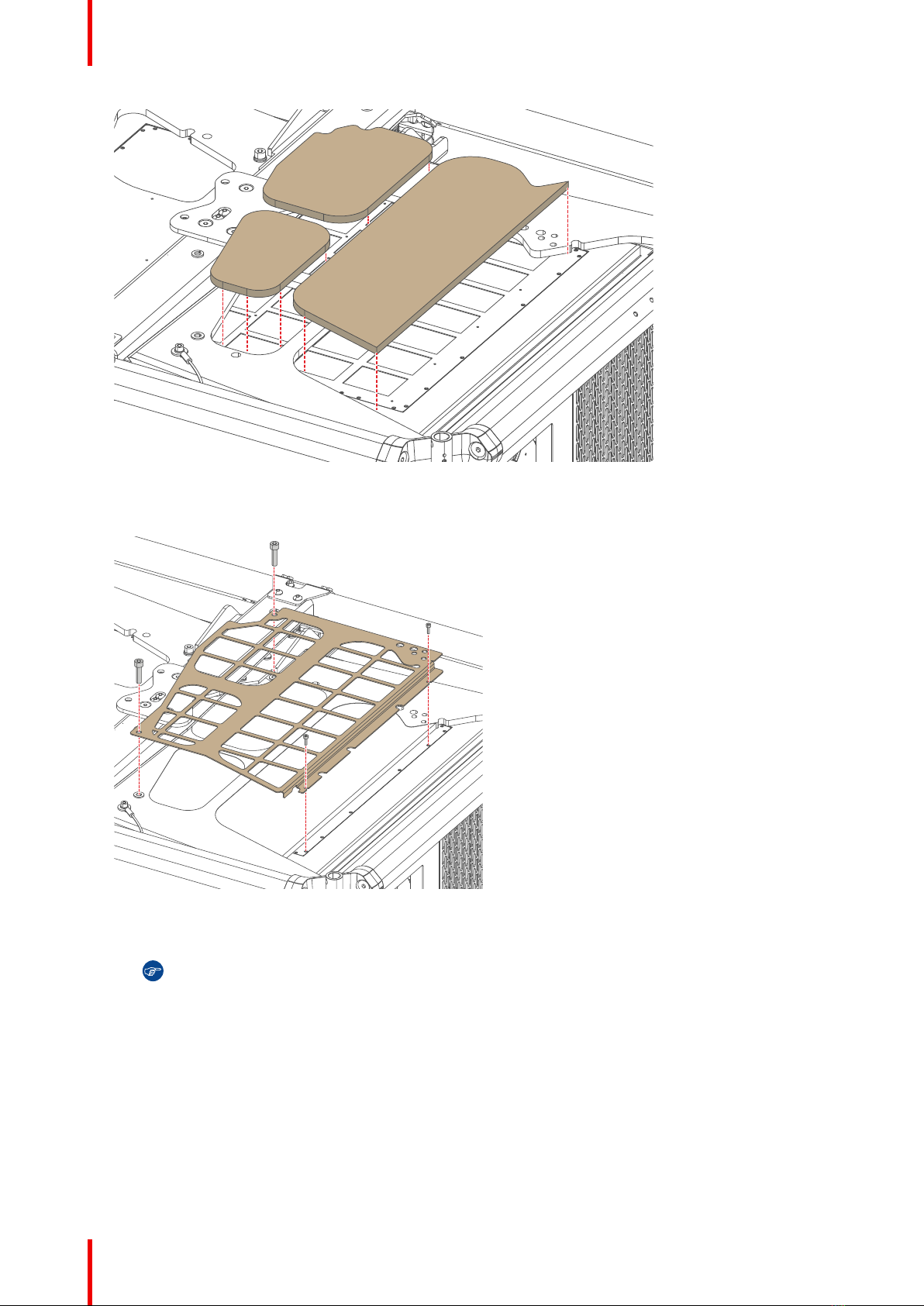

5. Place the three filter foam pieces in the appropriate openings, as indicated in the following picture
(Image 2–3).
Bottom filter
R5914789 /00 UDX Bottom filter10
Image 2–3 Placing the filter foam pieces
6. Place the filter frame on the projector bottom plate as illustrated and drive the previously released screws
back in.
Image 2–4
7. If the UDX motorization is installed on the rigging frame, mount back the Skew actuator from the rigging
frame.
Tip: For detailed instructions on the removal and installation of the skew actuator, refer to the
motorization installation manual (R5906146).
2.3 Mounting the filter on UDX without rigging
frame
Required tools
Allen wrench 3 mm
Bottom filter
