Barco R817211K User manual

BARCO PROJECTION SYSTEMS

Date :

151101

INSTALLATION MANUAL

KIT ANALYSER FOR 6500/6400I, RSIM6(HB/HBMLA/LL) & HELIOS PROJECTORS

R817211K R8172112K

R820349K R8172122K

R8172121K R817214K

R821060K R8172132K

Art. No. :

R5976207

Rev :

ANALYSER

6500 Kit

Due to constant research, the information in this manual is subject to change without notice.

Produced by BARCO NV, November 2001.

Trademarks are the rights of their respective owners.

BARCO n.v./Projection Systems

Noordlaan 5

B-8520 Kuurne

Belgium

Tel : +32/56/368211

Fax : +32/56/351651

E-mail : [email protected]

Visite Barco at the web : http://www.barco.com

Printed in Belgium

BARCO  3  Projection Systems

Safety

Who This procedure is intended for use only by qualified service technicians who have been

trained and authorized by BARCO !

Hot Surface Switch the projector to stand by and let it cool down for at least 15 minutes before

starting with the Analyser replacement.

Risk of Electrical

Shock

Power down the projector and unplug the power cord from the wall outlet.

Once the projector is cooled down and the power is off, continue with the replacement

procedure.

Antistatic

Protection Steps

Wear a wrist band which is connected to the ground while handling the static sensitive

parts.

Sensitive Device LCD panels are very sensitive devices. Observe full precautions for handling electro-

static devices. Do not touch the glass surface. Hold only by the surrounding metal

parts.

BARCO  4  Projection Systems

Contents of the Kit

Type The kit contains one analyser depending on the color. As the built-in procedure is the

same for red, green or blue, the installation instructions will only be explained once.

Part Listing The kit contains one analyser depending on the color :

R817211 or

R8172112

R820349 or

R8172122

R8172121 or

R817214

R821060 or

R8172132

and

R5976207

Analyser red

Analyser green

Analyser green for SSS cube

Analyser blue

Manual ins analyser 6500/RSIM6 & Helios

Part Number Description Qty

Antistatic

Protection Steps

Wear a wrist band which is connected to the ground while handling the static sensitive

parts.

Analyser Kits &

Where used

Analyser Red:

R817211K

Analyser Green:

R820349K

Analyser Gr SSS:

R8172121K

Analyser Bleu:

R821060K

Analyser Red:

R8172112K

Analyser Green:

R8172122K

Analyser Gr SSS:

R817214K

Analyser Bleu:

R8172132K

Where used

6300/6400 6500/6400i SIM6 SIM6MLA SIM6HB SIM6HB MLA SIM6LL HELIOS

[

Kit number

BARCO  5  Projection Systems

Access to the LCD+X-cube

Necessary Tools Screwdriver 8 mm.

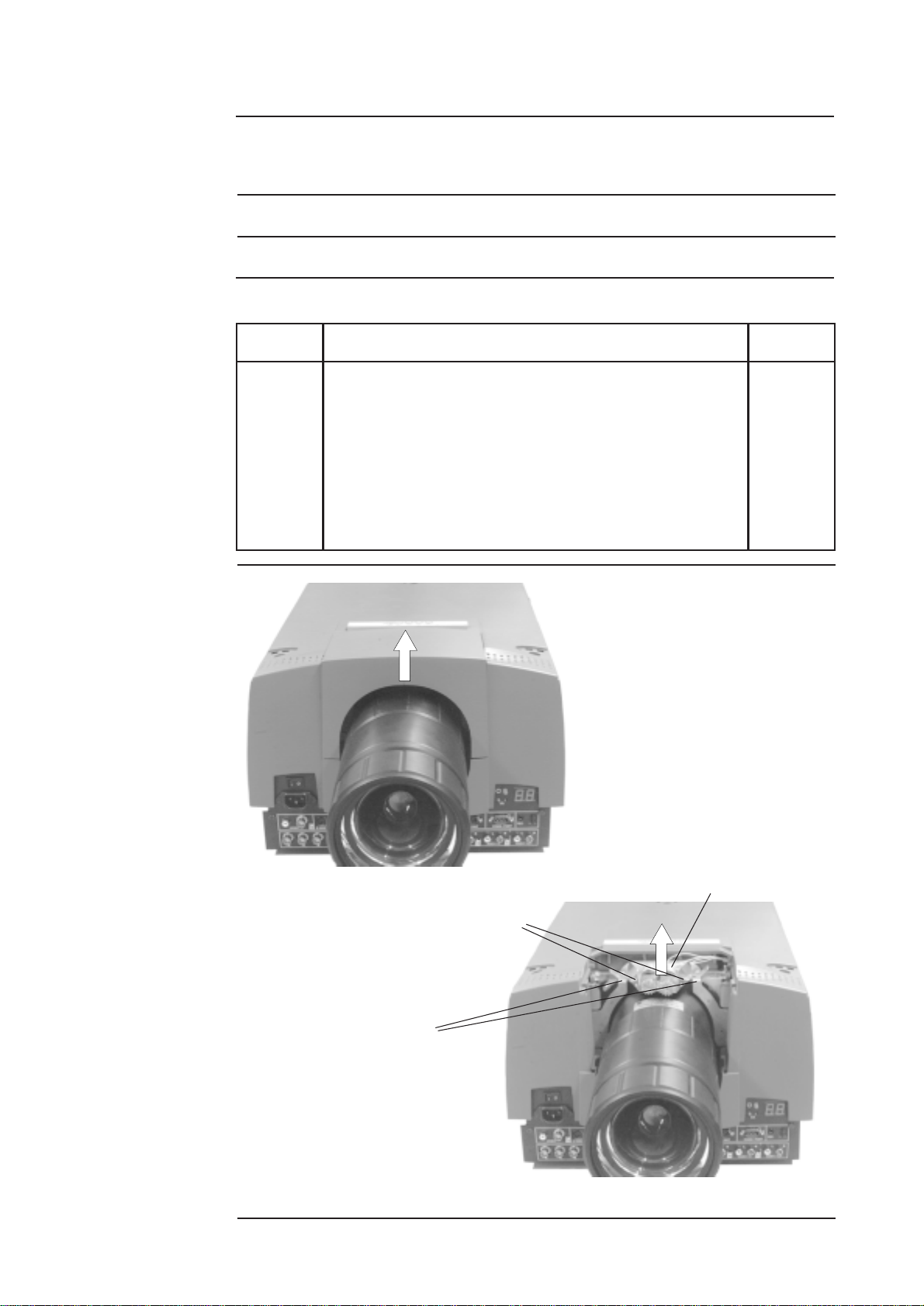

Removing the

Lens

To remove the lens, follow the next procedure:

Open the lens cover by pivoting it backwards and hook it

of.

Loosen the fixation screws of the motor part and pivote it

upwards.

Open both lens locks by pulling them backwards.

Take the lens out of the lens house.

Step Action Image

To be continued on next page.

Necessary Parts None

Illustrations on

Removing the

Lens

Image 2

Image 1

Lens lockings

Motor part

Fixation screws

What has to be

done

The lens has to be removed and the top cover has to be opened.

For projectors with a black cover it is not necessary to remove the lens, remove only

the top cover (see next page).

BARCO  6  Projection Systems

Access to the LCD + X-cube (Continued)

Removing the

Top Cover

Pull the 3 rubber sealing pieces.

Turn out the 3 fixing screws.

Take off the top cover.

Step Action Image

To remove the top cover, follow the next procedure:

Illustrations on

Top Cover

Removal

Image 1

Image 2

BARCO  7  Projection Systems

Removing the EMC Plate (when present).

Image 2

What has to be

done

The EMC plate covering the Pixel Map Processor has to be removed.

Necessary Tools Philips screwdriver

Necessary Parts None

Begin with unscrewing the screw B retaining the elecrical

conductor.

Turn out the screws retaining the little plate A

Remove the little plate

Turn carefuly the remaining screws out , be aware not to

drop these screws into the apparatus.

Remove the EMC plate

Step Action Image

Removing the

plate

Illustrations

Image 1

BARCO  8  Projection Systems

Removing the LCD + X-CUBE Assembly

What has to be

done

The LCD + X-Cube assembly has to be removed out of the projector.

Necessary Tools Philips screwdriver

Electrical

disconnection of

the X-Cube.

Before removing the X-Cube, it must be electrically disconnected from the driver board.

Follow the next procedure:

Press very carefully on both sides of the

indicated points to unlock.

Pull out the cable.

Step Action Illustration

Press to lock

Press to unlock

Connector connector

cable

Necessary Parts None

Removing the X-

Cube Adjustment

Unit

To remove the LCD + X-cube unit together with the adjustment unit, follow the next

procedure:

Unplug the power cable.

Loosen both fixing screws down under by inserting Philips

screwdriver with a shaft of minimum 150 mm.

Slide out the assembly very carefully.

Step Action Image

Illustration

Cable connectors

Power cable

BARCO  9  Projection Systems

Disassembling the LCD + X-CUBE Assembly

What has to be

done

The LCD + X-Cube assembly has to be disassembled.

Necessary Tools Screwdriver 8 mm.

Nutdriver 5.5

Philips screwdriver

Electrical

disconnection of

the X-Cube.

Before disassembling the X-Cube assembly, it must be electrically disconnected from

the adjustment board. Follow the next procedure:

Press very carefully on both sides of the

indicated points to unlock.

Pull out the cable (see image 1).

Step Action Illustration

Press to lock

Press to unlock

Connector connector

cable

Necessary Parts None

Tip While removing the screws and the parts, put them on a row to find them back the

correct assembling order.

To be continued on next page.

Illustration

BARCO  10  Projection Systems

Disassembling the LCD + X-CUBE Assembly (Continued)

Illustration

Image 1

Image 2

Image 3

Disassembling

the X-cube

Assembly

To disassemble the X-cube assembly, follow the next procedure:

Turn out the 4 fixing screws with Philips screwdriver.

Take off the unit.

Turn out the 4 fixing screws with a nutdriver 5.5 o flat

screwdriver

Take off the metal holder

Step Action Image
