PEERLESS PE 1120 Guide
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
ISSUED: 07-11-06 SHEET #: 055-9462-1
Installation and Assembly:
Projector Enclosure
Models: PE 1120, PE 1120-W
2 of 7 ISSUED: 07-11-06 SHEET #: 055-9462-1
Note: Read entire instruction sheet before you start installation and assembly.
For customer care call (800) 729-0307 or (708) 865-8870.
Applications:
Suspended Ceiling.......................................................................................................................................... page 4
Extension Column ........................................................................................................................................... page 5
Flush Mount ..................................................................................................................................................... page 6
IMPORTANT! Turn to the appropriate page for your ceiling installation.
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please
call Peerless customer care at 1-800-729-0307.
• This product should only be installed by a qualified professional.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
WARNING
Tools Needed for Assembly
•open-end 8 mm wrench
•open-end 1/2" wrench
3 of 7 ISSUED: 07-11-06 SHEET #: 055-9462-1
PE 1120 PE 1120-W
Description Qty. Part # Part #
Aprojector cage 1 055-1690 055-2690
Btop plate 2 055-0695 055-0697
Cpole clamp 1 055-0694 055-0696
D.5" dia. X 12" rod 8 580-1163 580-2163
EM5 x 10 mm penta pin screw 4 505-9010 500-2001
FM5 x 1" penta pin driver 1 520-9249 520-9249
G5/16-18 nylock nut 1 530-1009 530-1009
HM5 x 10 mm hex screw 3 520-1324 520-2324
Parts List
CD
A
B
E
G
F
H
4 of 7 ISSUED: 07-11-06 SHEET #: 055-9462-1
Suspended Ceiling Application
1
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
WARNING
Note: If flush mount tube has been installed in suspended ceiling mount, remove it before proceeding with this step.
From the bottom up, thread extension column (EXT 006, not included) up through retaining collar in adjustable collar
mount plate. Align notch in extension column with hole in collar and fasten using M5 x 10 mm security screw as
shown in detail 1.
continue to extension column application on page 5 for attachment of projector enclosure...
DETAIL 1
FLUSH MOUNT TUBE
CEILING MOUNT
M5 X 10 MM
SCREW
5 of 7 ISSUED: 07-11-06 SHEET #: 055-9462-1
B
H
C
Note: Refer to projector mount instruction sheet for attachment of projector mount to extension column.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
WARNING
Extension Column Application
Wrap pole clamp (C) around extension column (not
included) and secure with nylock nut (G). Hand
tighten all nylock nuts on pole clamp (C).
Note: Pole clamp (C) will work with 1" to 1-1/2"
NPT pipe.
1Slide top plates (B) together over pole clamp (C).
Slide M5 screws into keyhole slots and tighten as
shown in detail 1.
Note: If M5 screws are inaccessible from the top,
remove them from top plates and insert from the
bottom using bottom holes and keyhole slots.
Align slots in top plates (B) with holes in pole clamp (C) and insert three M5 x 10 mm hex screws (H). Tighten
screws using open-end 8 mm wrench (not provided).
C
G
EXTENSION
COLUMN
(NOT INCLUDED) B
M5 SCREW
KEYHOLE SLOT
C
DETAIL 1
1-3
1-1
1-2
BOTTOM HOLE
BOTTOM
KEYHOLE SLOT
Rotate top plates (B) and pole clamp (C) until top plates are parallel with projector. Then, tighten nylock nuts on pole
clamp using an open-end 1/2" wrench (not provided).
continue to step 2 on page 7...
6 of 7 ISSUED: 07-11-06 SHEET #: 055-9462-1
Note: Refer to projector mount instruction sheet for attachment of projector mount to ceiling.
1-2 Following projector mount instructions for flush mount applications, attach projector mount to ceiling through slots
indicated in figure 1.2.
B
CEILING
fig 1.2
PROJECTOR
MOUNT
B
fig 1.1
CEILING
Flush Mount Application
Remove M5 penta pin screws from top plates (B).
1Attach top plates (B) to ceiling using outer holes
indicated in figure 1.1.
Note: It is the responsibility of the installer to
provide fasteners appropriate for the mounting
surface.
1-1
M5 PENTA PIN
SCREW
B
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
WARNING
7 of 7 ISSUED: 07-11-06 SHEET #: 055-9462-1
Secure projector cage (A) to top plates (B) using
four M5 x 10 mm penta pin screws (E). Tighten
screws using penta pin driver (F).
Insert pegs on one side of projector cage (A) into
slots of one top plate (B) and slide all the way to
last notch. Insert pegs on other side of projector
cage into slots of other top plate and slide over until
all pegs are resting on middle notches of slots.
3
Slide rods (D) into holes of projector cage (A). Use
as many rods as necessary to prevent projector
from being removed from projector cage.
Note: Position rods where projector lens will not be
obstructed.
2
D
A
3-1
© 2006 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
E
A
B
PEG
B
SLOT
A
Note: Padlock may be
used for added security.
This manual suits for next models
1
Table of contents
Other PEERLESS Projector Accessories manuals
PEERLESS
PEERLESS PRS 274 Instruction Manual
PEERLESS

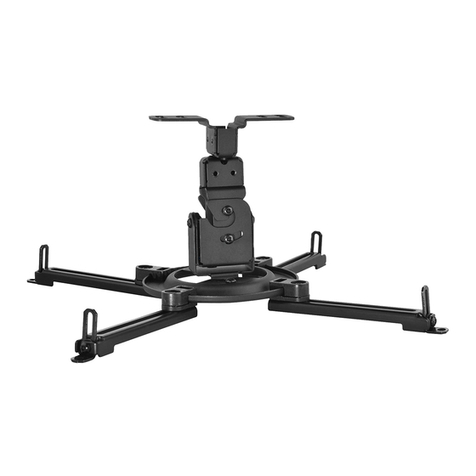

PEERLESS PARAMOUNT I-PPF Guide
PEERLESS
PEERLESS CMJ455 Guide
PEERLESS
PEERLESS PRS Series Guide
PEERLESS
PEERLESS Paramount PPA Guide
PEERLESS
PEERLESS PARAMOUNT ACC-EXC Guide
PEERLESS
PEERLESS ELPMBPJF Guide
PEERLESS

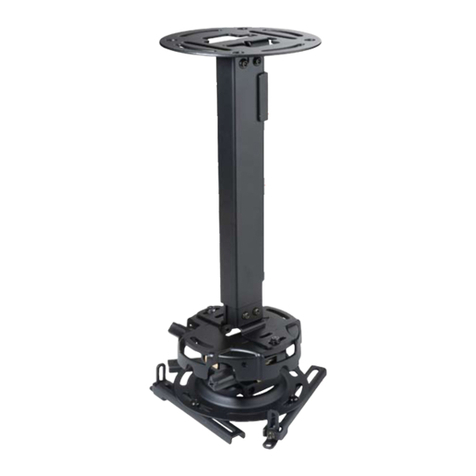

PEERLESS EXA and assembly Guide
