Avocent SwitchView 1000 Installation and maintenance instructions
590-656-501A
For Technical Support:
www.avocent.com/support
Avocent Corporation
4991 Corporate Drive
Huntsville, AL 35805-6201 USA
Tel: +1 256 430 4000
Fax: +1 256 430 4031
Avocent Asia Pacific
Singapore Branch Office
100 Tras Street, #15-01
Amara Corporate Tower
Singapore 079027
Tel: +656 227 3773
Fax: +656 223 9155
Avocent Canada
20 Mural Street, Unit 5
Richmond Hill, Ontario
L4B 1K3 Canada
Tel: +1 877 992 9239
Fax: +1 877 524 2985
Installer/User Guide
SwitchView® 1000 Switch
Avocent International Ltd.
Avocent House, Shannon Free Zone
Shannon, County Clare, Ireland
Tel: +353 61 715 292
Fax: +353 61 471 871
Avocent Germany
Gottlieb-Daimler-Straße 2-4
D-33803 Steinhagen
Germany
Tel: +49 5204 9134 0
Fax: +49 5204 9134 99
SwitchView®1000
Switch
Installer/User Guide
Avocent, the Avocent logo, The Power of Being There and
SwitchView are registered trademarks of Avocent Corporation.
All other marks are the property of their respective owners.
© 2006 Avocent Corporation. All rights reserved. 590-656-501A
Instructions
This symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
Dangerous Voltage
This symbol is intended to alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
Power On
This symbol indicates the principal on/off switch is in the on position.
Power Off
This symbol indicates the principal on/off switch is in the off position.
Protective Grounding Terminal
This symbol indicates a terminal which must be connected to earth ground
prior to making any other connections to the equipment.
iii
Table of Contents
Chapter 1: Installation...............................................................1
Introduction.............................................................................................1
Getting Started........................................................................................1
Installation.......................................................................................2
Rack Mounting Your SwitchView 1000 Switch.......................................3
Accessing and using the OSD menus...............................................4
Upgrading firmware ........................................................................6
Daisy-chaining your SwitchView 1000 switch.................................7
Appendices ................................................................................9
Appendix A: Quick Reference Guide ......................................................9
TABLE OF CONTENTS
iv SwitchView 1000 Switch Installer/User Guide
1
CHAPTER
1Installation
Introduction
The SwitchView®1000 switch is a 4, 8 or 16-port keyboard, video and
mouse (KVM) appliance that supports both USB and PS/2 interfaces.
With the capacity to daisy-chain up to 16 levels, the SwitchView 1000
switch also allows direct channel selection via three different methods:
on-screen display (OSD), front-panel push-buttons or keyboard hotkeys.
Time-out and password protection offer secure access to the
SwitchView 1000 switch, while the hot-plug feature allows for
uninterrupted switching and usage.

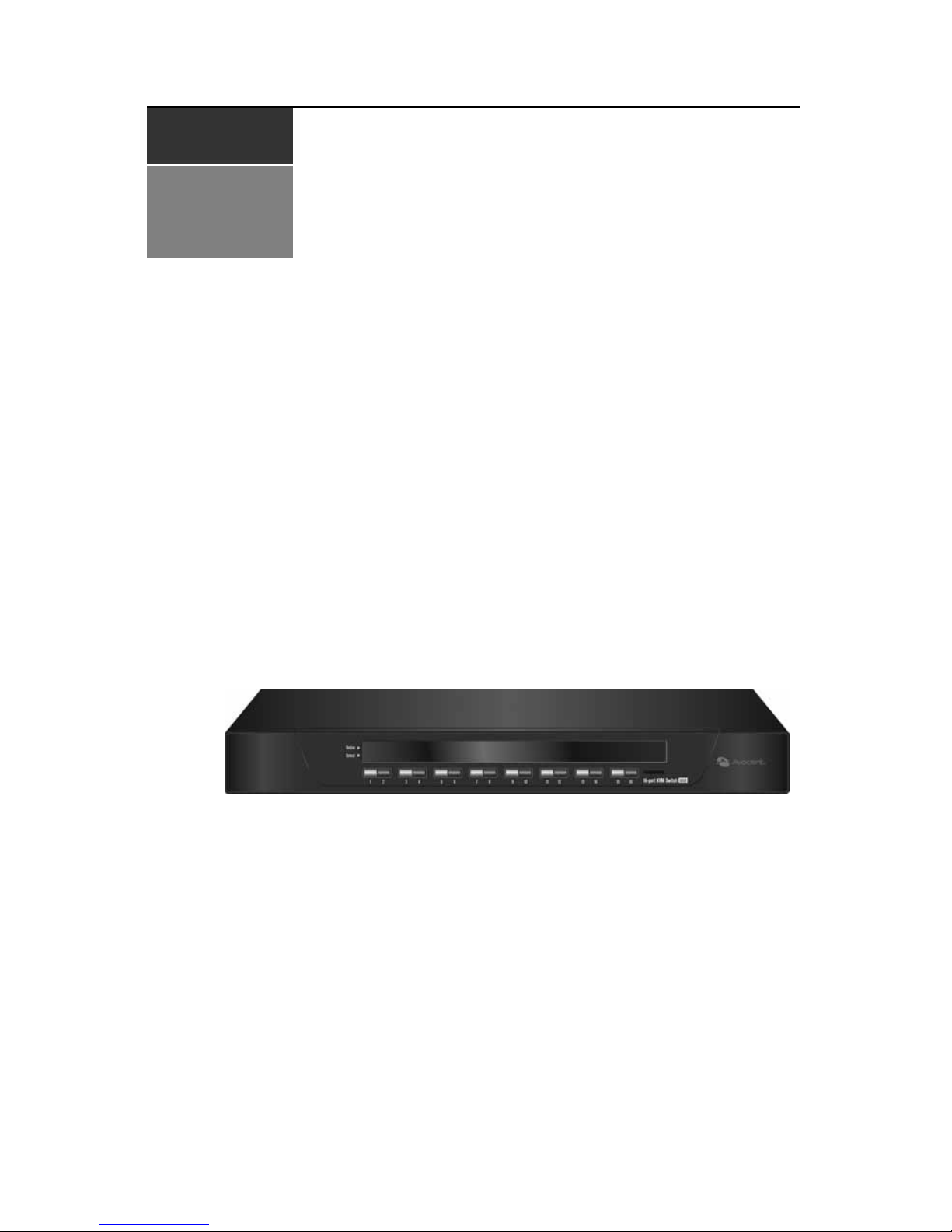

Figure 1.1: SwitchView 1000 Switch
Getting Started
Before installing your SwitchView 1000 switch, refer to the following
list to ensure you have all items that shipped with the appliance, as well
as other items necessary for proper installation.
Supplied with the SwitchView 1000 switch
• SwitchView 1000 switch
• Rack mount kit
• Power supply
• Daisy-chain cable
2SwitchView 1000 Switch Installer/User Guide
• Upgrade cable
• Ground terminator
Installation
If you are installing your SwitchView 1000 switch to a PS/2 interface,
you must power down all servers before connecting your switch to a
server to ensure proper installation. USB interfaces do not need to be
powered down before installation.
NOTE: Linux users may experience mouse failure if hot-plugging directly to the
SwitchView 1000 switch. If your mouse becomes locked, use the mouse reset
hotkeys (see Appendix A) to reset your mouse, or turn the Linux server off before
connecting it to the SwitchView 1000 switch.
Plug one end of the supplied power cord into the back of the switch and
the other end into an appropriate power source. Connect the local
keyboard, monitor and mouse cables to the appropriate ports on the rear
of your SwitchView 1000 switch.
Connect your servers to an available port on the rear of your
SwitchView 1000 switch using the cable appropriate for your interface.
Power up all connected servers. Keyboard and mouse recognition is
now activated and your SwitchView 1000 switch is ready for operation.
Figure 1.2 on page 3 shows a basic configuration for the SwitchView
1000 switch.
Chapter 1: Installation 3
Figure 1.2: Basic SwitchView 1000 Switch Configuration
CAUTION: To reduce the risk of electric shock or damage to your equipment:
- Plug the power cord into a grounded (earthed) outlet that is easily accessible at
all times.
- Disconnect the power from the unit by unplugging the power cord from either the
electrical outlet or the unit.
Rack Mounting Your SwitchView 1000 Switch
Your SwitchView 1000 switch may be rack mounted using brackets.
Before installing the appliance, stabilize the rack in a permanent
location. Install your equipment starting at the bottom of the rack, then
work to the top.
CAUTION: Rack Loading - Overloading or uneven loading of racks may result in
shelf or rack failure, causing damage to equipment and possible personal injury.
Stabilize racks in a permanent location before loading begins. Mount components
beginning at the bottom of the rack, then work to the top. Do not exceed your rack
load rating.
Power
PS/2 KVM
User
Server
SwitchView 1000 Switch
Connection
USB KVM
Connection
NOTE: PS/2 and USB
interfaces cannot be used
simultaneously.
4SwitchView 1000 Switch Installer/User Guide
Accessing and using the OSD menus
The OSD menus allow you to easily access and edit such features as
server name, setup functions, time-outs, autoscan capabilities and
firmware upgrades. The following table lists basic OSD functions.
NOTE: The two consecutive ScrLk keystrokes should be pressed within two
seconds and the following command key(s) should also be pressed within two
seconds. Otherwise, the hotkey sequence will not be validated.
Figure 1.3: Main OSD Window (8-port SwitchView 1000 Switch)
The following options will be selectable via the Main OSD window.
Table 1.1: Navigating the OSD menu
To do this: Use this hotkey sequence:
Activate OSD ScrLk + ScrLk + Spacebar
Deactivate OSD ESC (Escape key)
Change Value Left/right arrow keys
Select Item Up/down arrow keys
Table 1.2: Main OSD Menu Functions
Function Description
Select server Use up/down arrow key to navigate and
press PgUp/PgDn to scroll page. Press
Enter to select.
Edit server name Pressing Insert allows you to change a
server name. Enter confirms the change.
