Avocent AutoView 1515 Manual

USB and PS/2 KVM Switching Built for SMB Server Room Environments

If you are tasked with providing multi-platform support but have limited rack space in your SMB

server room, help has arrived. A new series of Avocent KVM switches provides support for your

USB and/or PS/2 keyboards and mice. The AutoView switch also provides support for USB, PS/2,

Sun®, and serial target devices.

Designed to ﬁt your SMB server room environment are the 8-port AutoView 1415 single-user

switch, and the multi-user 8-port AutoView 1515 and 16-port AutoView 2015 and AutoView

2030 switches. Each switch includes a convenient On-Screen Display (OSD) that allows easy

conﬁguration and quick server selection.

The AutoView series includes two unique cabling options. Integrated access cables offer

server room environments ﬂexible cabling lengths of 7, 10 and 15 feet between the target

device and the switch. Integrated access cables provide PS/2 and USB support. The server

interface module, with PS/2, USB, Sun and Serial support provides up to 100 feet between

the target device and the switch with your existing cabling infrastructure. Both cabling options

automatically assign and retain unique server names for each attached server, which simpliﬁes

installation and eases reconﬁguration.

Beneﬁts

Local Port. Support for USB and/or

PS/2 user keyboards and mice.

Single Solution. Support for USB,

PS/2, Sun and serial target devices

in a single solution.

Graphical, Multilingual OSD.

Advanced, graphical OSD eases

system conﬁguration and server

selection.

Space-saving. CAT 5, thin cabling

saves space in the rack and allows

up to a 100-foot distance between

the server and the switch.

Intelligent Cabling. Server interface

modules and integrated access

cables automatically assign and

retain unique server names for each

attached server.

Powerful User Access Control.

An administrator can grant KVM

access to only certain users. The

administrator can also limit KVM

access to only speciﬁc targets

on the switch. The AutoView

2030 supports Smart Card/CAC

authentication to target devices

enabling the extension of 2 factor

authentication requirements.

AutoView 1415, 1515, 2015 and 2030 KVM switches are designed

for SMB server rooms. They include multi-platform support,

space saving CAT 5 cabling and an advanced OSD with multiple

language support.

AutoView® KVM Switches USB and PS/2 KVM Switching

Avocent, the Avocent logo and AutoView are registered trademarks of

Avocent Corporation or its afﬁliates in the U.S. and other countries. All other

marks are the property of their respective owners.

www.avocent.com/contacts

0109-AV-DS-EN

The AutoView switching solution provides support for USB and/or PS/2 user

keyboards and mice and USB, PS/2, Sun or serial target devices in a single solution.

Part Number Description

Ordering Details

AV1415-XXX AutoView 1415 1x8 CAT 5 KVM switch with USB and PS/2 local user and multi-

platform target device support

AV1515-XXX AutoView 1515 2x8 CAT 5 KVM switch with USB and PS/2 local user and multi-

platform target device support

AV2015-XXX AutoView 1515 2x16 CAT 5 KVM switch with USB and PS/2 local user and multi-

platform target device support

AV2030-XXX AutoView 2030 16-port dual user, PS2/USB KVM switch with on-screen display.

Includes virtual media

For country-speciﬁc availability, please contact an Avocent sales representative.

Speciﬁcations

Mechanical

Size: 1.75” (4.45 cm)H, 17”

(43.18 cm)W, 11” (27.94 cm)D

Weight: 8 lbs (3.6 Kg) without cables

Style: Rack mount

Environmental

Operating Temperature: AutoView 1415,

1515, 2015: -50 to 122 F (10 to 50 C);

AutoView 2030: 32 to 122 F (0 to 50 C)

Storage Temperature: -4 to 140 F (-20

to 60 C)

Power

Operating Voltage: 100-240 VAC

autosensing

Power Consumption: 50-60 Hz

Input: 40 W maximum

Supported Hardware

Computers: PS/2, Sun, USB and serial

Monitors: VGA, SVGA (XGA, XGA-II with

adaptor), 1600x1200 @ 75 Hz

Peripherals: USB and/or PS/2 keyboard

and mouse, Microsoft® Explorer mouse,

Microsoft IntelliMouse® family, IBM®

Scrollpoint®, Logitech® Mouseman®

Wheel, Logitech Trackman® Marble

Wheel, Logitech Marble® FX and

Kensington 4-button mouse, Microsoft

PS/2 tilt wheel mouse

Standards

Approved Agency:

UL, FCC Class A, cUL, ICES Class A,

CE, N, GS, IRAM, GOST, VCCI, Class A,

MIC Class A, C-Tick

Warranty

Two Year

PS/2, USB, Sun and Serial

target devices

AutoView 2015 Appliance

Local Analog

Connections

Integrated Access

Cable (IAC)

AVRIQ Server

Interface Module

Other manuals for AutoView 1515

This manual suits for next models

Other Avocent Switch manuals

Avocent

Avocent Cybex SwitchView SC8 DVI User manual

Avocent

Avocent AutoView 2000 Installation and maintenance instructions

Avocent

Avocent DSR4010 User manual

Avocent

Avocent SwitchView User manual

Avocent

Avocent SwitchView User manual

Avocent

Avocent AMX Switch Series Installation and maintenance instructions

Avocent

Avocent DSR Series DSR1020 Installation and maintenance instructions

Avocent

Avocent DS1800 User manual

Avocent

Avocent 120 User manual

Avocent

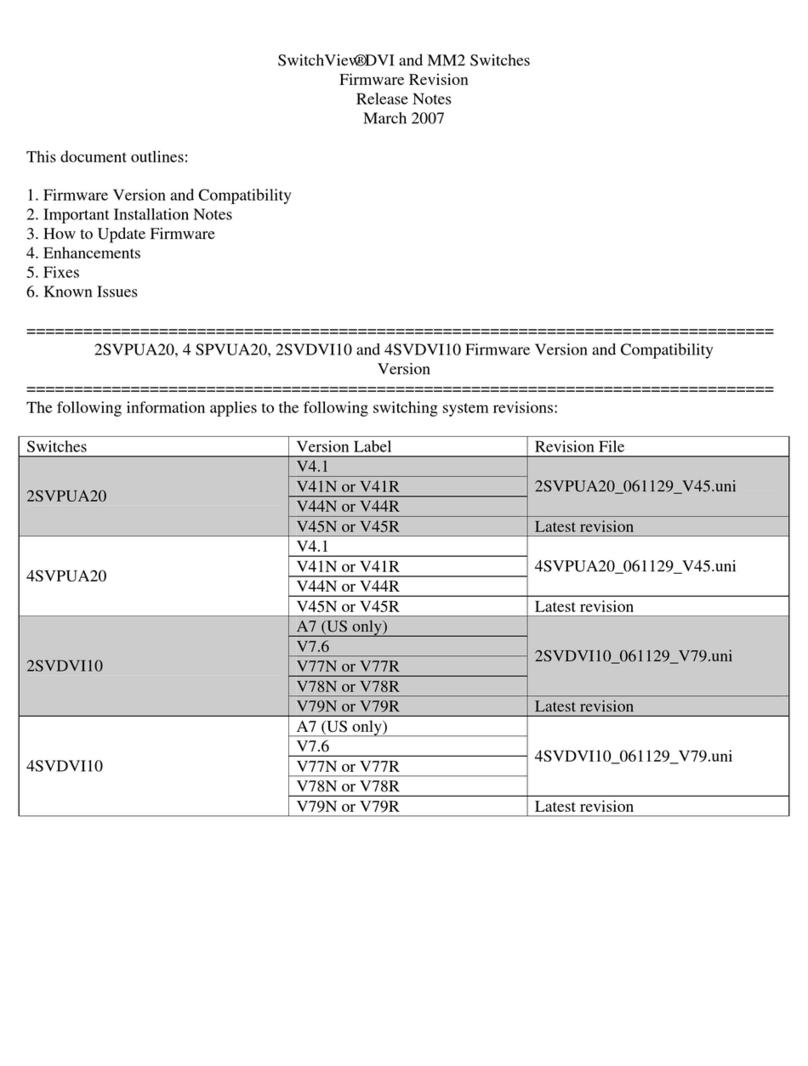

Avocent SwitchView SwitchView DVI How to use
