Avalue Technology MPC-21W3 User manual

Part No. E201721W3A1R

MPC 21” Series

21” Multifunctional Touch Panel PC

Quick Reference Guide

1st Ed – 28 october 2010

MPC 21” Series

2 MPC 21W Series Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

z1 x MPC 21" Series Panel PC

z1 x Quick Reference Guide

z1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—WiFi drivers and utilities

—Touch controller drivers and utilities

—Chipset drivers and utilities

z1 x Power Adapter (12V/7A)

z4 x screws for VESA (M4 x 6mm)

z4 x screws for 2.5" HDD device (M3 x 5mm)

z4 x screws for mPCIe device (M2 x 4mm)

Quick Reference Guide

MPC 21W Series Quick Reference Guide 3

1.3 System Specifications

Panel

Model MPC-21W3 MPC-21W5

LCD size 21.6”, 16:9

Display type Full HD

Resolution 1920 x 1080

Color 16.7M

Pixel pitch 0.248mm(H) x 0.248mm(V)

Luminance 300 cd/m²

Contrast ratio 1000

Viewing angle 80(U), 80(D), 85(L), 85(R)

Response time 5 ms

Backlight CCFL

Touch type (Optional) Optional 5 Wires resistive

Touch interface USB

System

Board EBM-945GSE EBM-PNV

CPU Onboard Intel Atom N270 1.6GHz

(2.5W)

Onboard Intel® Atom™ Dual Core 1.8GHz

CPU

BIOS Award 8 Mbit Flash BIOS AMI 8Mbit Flash BIOS

System Chipset Intel 945GSE + ICH7-M Intel® ICH8M Chipset (2.4 W)

I/O Chipset ITE 8712F Winbond W83627DHG-P

System Memory Onboard 1GB DDR2, extra one

SODIMM supports up to 2GB 400/533

SDRAM

Onboard 1GB, one 200-pin SODIMM

supports up to 3GB

SSD One CF socket supports Type I / II Compact Flash Card.

HDD Optional 2.5” SATA HDD or 44-pin

enhanced IDE HDD 1 x 2.5" SATA HDD

WiFi Optional USB WiFi 802.11b/g Optional USB WiFi 802.11b/g/n

Watchdog Timer Reset: 1 ~ 65535 sec./min. and 1 min./step

Display Intel 945GSE GMCH integrated

GMA950 graphics Intel Pineview integrated, Gen3.5 + GFX

Core @ 400MHz

Audio Realtek ALC 655 supports 5.1-CH Audio Realtek ALC888 supports 5.1-CH Audio

Ethernet Dual Realtek RTL8111C Gigabit LAN,

supports wake on LAN Intel® 82574L Gigabit LAN (optional dual

82574L Gigabit LAN)

MPC 21” Series

4 MPC 21W Series Quick Reference Guide

External I/O Ports

COM Port 1 x RS-232/422/485 setting by BIOS*, optional extra 1 x RS-232/422/485

Ethernet Port 2 x RJ-45 1 x RJ-45

VGA / LCD Port 1 x DB-15

Audio Port Line-out Line-out

USB Port 2 x USB 2.0

Power Supply Unit

Power Input 12V

Power Output 7A (84W)

Environment & Mechanical

Operating Temperature 0~50°C (32~122°F) 0 to 50°C (32 to 122°F)

Storage Temperature -20 to +75°C (-4~167°F)

Relative Humidity 5 to 90% @ 40°C (104°F), relative humidity, non-condensing

Dimension (W x D x H) 508 x 301 x 49 mm

Weight 6 Kgs

Mounting Desktop (VESA Compliance)

Note: *To know more detail of RS232/422/485 setting by BIOS, please refer to chapter 2.1.

Quick Reference Guide

MPC 21W Series Quick Reference Guide 5

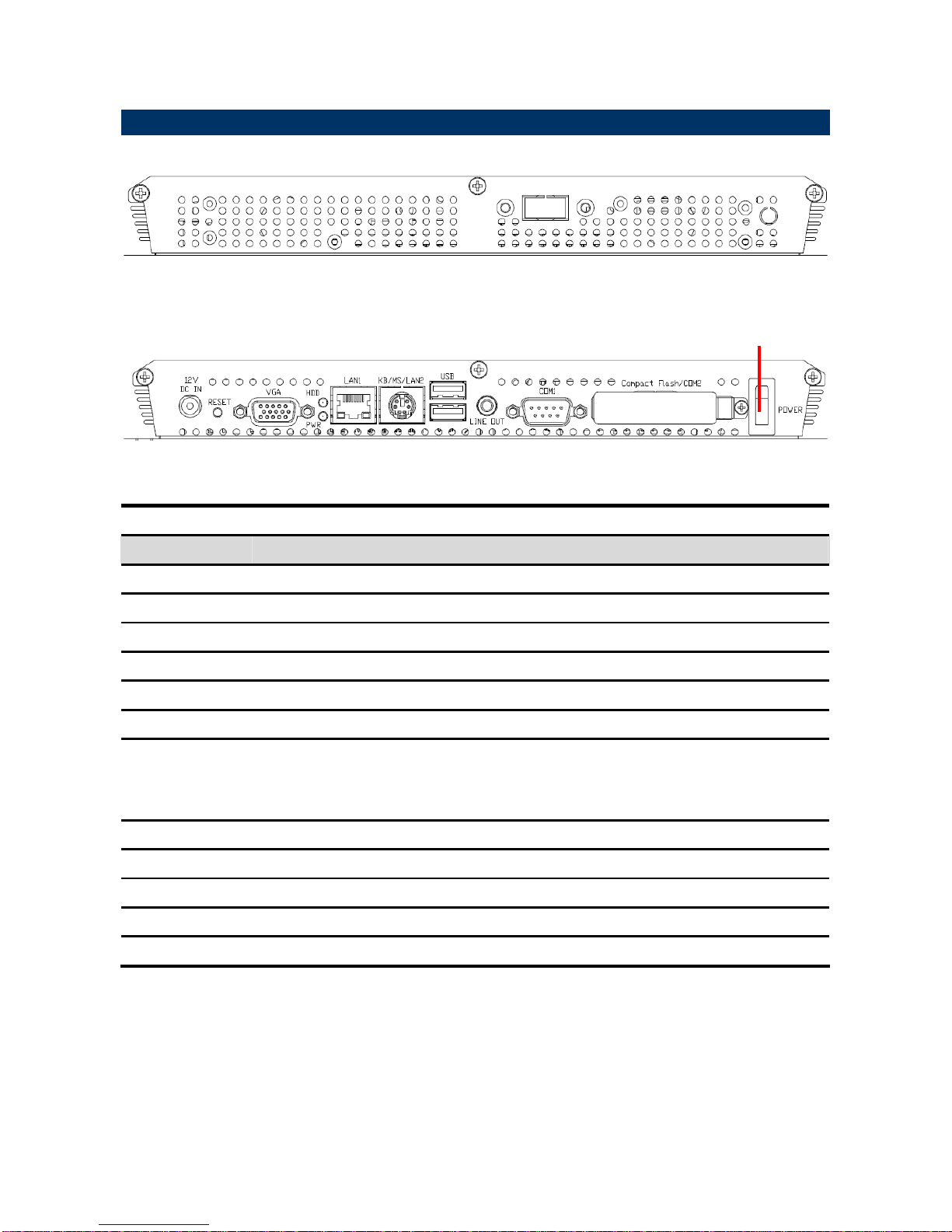

1.4 System Overview

1.4.1 Front View

1.4.2 Rear View

Connectors

Label Function Note

POWER Power on button

CF CF Type I/II Socket with Ejector Optional for 2nd COM port

COM Serial port DB-9 male connector

LINE OUT Line-out audio jack

USB 2 x USB 2.0 connector Dock USB

LAN1 RJ-45 Ethernet connector 1

LAN2

(KB/MS) RJ-45 Ethernet connector 2

(LAN2 is default for MPC-21W3, KB/MS is

default for MPC-21W5)

HDD HDD indicator

PWR System power indicator

VGA CRT connector DB-15 female connector

RESET Reset button

DC-IN DC Power-in connector

POWER

MPC 21” Series

6 MPC 21W Series Quick Reference Guide

1.5 System Dimensions

Quick Reference Guide

MPC 21W Series Quick Reference Guide 7

2.Hardware

Configuration

Note: If you need more information, please visit our website:

http://www.avalue.com.tw

MPC 21” Series

8 MPC 21W Series Quick Reference Guide

2.1 BIOS settings

2.1.1 MPC-21W3 RS232/422/485 setting by BIOS

The COM port setting of MPC-21W3, which applies for EBM-945GSE M/B, can be

configured by BIOS; the path is shown as below.

[BIOS Menu] Æ[Integrated Peripherals] Æ[Super IO Device]

Æ[COMPORT 232/422/485]

The panel backlight of MPC-21W3, which applying EBM-945GSE M/B, can as well be

configured by;

[BIOS Menu] Æ[Advanced Chipset Features] Æ[LVDS Back Light]

To know more about other settings, please refer to EBM-945GSE Quick Installation Guide

or User’s Manual.

Quick Reference Guide

MPC 21W Series Quick Reference Guide 9

2.1.2 MPC-21W5 backlight control setting by BIOS

The Backlight control setting for MPC-21W5, which applies for EBM-PNV M/B, can be

configured by BIOS; the path is shown as below.

[Chipset] Æ[North Bridge Configuration] Æ[Video Function Configuration]

Panel 2 Back light mode: PWM mode

Panel 2 Back light control: 100%

Note:

Panel 1 Back light mode : DC mode

Panel 1 Back light control : 50%

Panel 1 control for 18bit LVDS panel.

To know more about other settings, please refer to EBM-PNV Quick Installation Guide or

User’s Manual.

MPC 21” Series

10 MPC 21W Series Quick Reference Guide

2.2 Installing Hard Disk & Memory

Step 1. Memory Installation: Unfasten 6 screws from the case to take off the top chassis.

Step 2. Insert the SODIMM into the memory socket.

Step 3-1. HDD Installation: Unfasten 2 screws of the HDD bracket and take it off.
