Avalue Technology MPC-OPC12 User manual

MPC-OPC12 & -15

Fanless Intel® CoreTM E3845 QuadCore CPU

Rugged Embedded Computer for All-Weather Conditions

Quick Reference Guide

1ST Ed –4 December 2018

MARINE PC

12.1” & 15” LED/LCD Touch Screen Panel PC

2 MPC-OPC12/15 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

A Message to the Customer

Avalue Customer Services

Each and every MarinePC product is built to the most exacting speci cations to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments.

Your satisfaction is our primary concern. Here is a guide to MarinePC customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.marinepc.com

Quick Reference Guide

ARC-1209/1509 Quick Reference Guide

Content

1. Getting Started ........................................................................................................4

1.1 Safety Precautions ....................................................................................................4

1.2 Packing List...............................................................................................................4

1.3 System Specifications ...............................................................................................5

1.4 System Overview .................................................................................................... 7

1.4.1 I/O View ................................................................................................................................. 7

1.5 System Dimensions ................................................................................................ 8

1.5.1 MPC-OPC12 ......................................................................................................................... 8

1.5.2 ............................................................................................................. 8

2. BIOS SETUP...........................................................................................................10

2.1 Introduction..............................................................................................................11

2.2 Starting Setup..........................................................................................................11

2.3 Using Setup.............................................................................................................12

2.4 Getting Help.............................................................................................................13

2.5 In Case of Problems................................................................................................13

2.6 BIOS Setup..............................................................................................................14

MPC-OPC15 ............

2.6.1 ............................................................................................................. 14Advanced Menu........

4 MPC-OPC12/15 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x MPC-OPC12/15 Panel PC

1 x Power Adapter (if ordered)

1 x Power cord (for DC cord, White is +, Black is -)

1 Set Mounting Hardware for Flush Mount

MPC-OPC12/15 Quick Reference Guide

1.3 System Specifications

Panel MPC-OPC12 MPC-OPC15

LCD Size 12.1", 4:3 15", 4:3

Display Type XGA

Resolution 1024 x 768

Pixel pitch 0.1905 mm (H) x 0.1905 mm (V) 0.297mm(H) x 0.297mm(V)

Luminance 600 cd/m² 400 cd/m²

Contrast ratio 700

Viewing angle 80 (U), 80 (D), 80 (L), 80 (R) 70 (U), 70 (D), 80 (L), 80 (R)

Response time 16ms

Backlight LED

Touch Type 5 Wires resistive (Standard)

Projected Capacitive (Optional)

Touch Light

Transmission

80% (Resistive)

89% (PCAP)

Touch Controller Onboard USB touch (PenMount)

EETI (PCAP)

System

SBC ARC-BYT

Processor Intel® Atom™ E3845 4 -Core 1.91GHz (Standard)

Intel® Celeron® J1900 4-Core 2.0Ghz (Optional)

I/O Chipset EC ITE IT8528E

System Memory 1 x 204-Pin DDR3L 1333MHz SO-DIMM up to 8 GB

Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step

H/W Status Monitor Monitoring SYSTEM Temperature and Voltage with Auto Throttling Control

Expansion 1 x Mini PCIe Support mSATA

1 x Optional 80-pin Expansion

Storage 1 x 2.5” Drive Bay

I/O

USB 1 x USB 3.0, 3 x USB 2.0

SATA 1 x SATA II

Com Port 1 x RS-232/422/485 (Factory Optional)

1 x RS-232

Other 3 x Knockouts for Antenna Mounting

Display

Chipset Intel® Valleyview SoC integrated Graphics

Supports optional dual display

Resolution HDMI: Max. resolution 1920x1200 @ 60Hz (by IET module)

Dual Display HDMI + LVDS

Audio

Audio Codec Realtek ALC892

Audio Interface Speaker Out

Speaker Output 2 x 2W

Ethernet

Chipset 2 x Intel® I210IT (A Model)

2 x Intel® I2101AT (B Model)

Ethernet Interface 10/100/1000 Base-Tx GbE compatible

Lan Port 2 x RJ-45

Power Requirement

Power Connector Lockable DC Jack

Power Requirement +12V ~ +26V

Power Type AT/ATX (ATX is default setting)

Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W Adapter (12V @ 5A Adapter)

Mechanical &

Environmental

System Fan Fanless

Construction - Front Silver Aluminum

Construction –Rear Black

Dimension

294 x 226.3 x 51 mm

350.5 x 274.5 x 53 mm

Weight 2.4 Kgs 3.7 Kgs

Operating

Temperature

-20°C ~ 60°C (-4°F ~ 140°F) (A Model)

-10C ~ 50°C (-14°F ~ 122°F) (B Model)

Storage Temperature -30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing

Vibration Test

MPC-OPC12

With SSD/mSATA : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis

MPC-OPC12 PCAP, MPC-OPC15

With SSD/mSATA : 3Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis

Shock Test Operating with SSD/CFast/mSATA : MIL-STD-810G, Method 516.6,

Procedure I, functional shock=20G

Certifications CE, FCC Class B

OS Information

Win 10,

Linux

Ordering Information/

Description

ACC-ARC-USB-1R 4 x USB3.0 (ARC-BYT DB-A)

MPC-OPC12/15 Quick Reference Guide

MPC-OPC12 MPC-OPC15

1.4 System Overview

1.4.1 I/O View

Connectors

Label Function Note

DC-IN DC Power-in connector Default: Lockable DC Jack

Option: Phoenix Connector(MOQ apply)

COM1/2 Serial port 1/2 connector DB-9 male connector

USB 3 x USB 2.0 connector

1 x USB 3.0 connector

LAN1/2 RJ-45 Ethernet 1/2

LED HDD/Power LED indicator

Power Switch Power on button

MPC-OPC12/15 Quick Reference Guide

1.5 System Dimensions

1.5.1 MPC-OPC12

(Unit: mm)

8 MPC-OPC12/15 Quick Reference Guide

MPC-OPC12/15 Quick Reference Guide

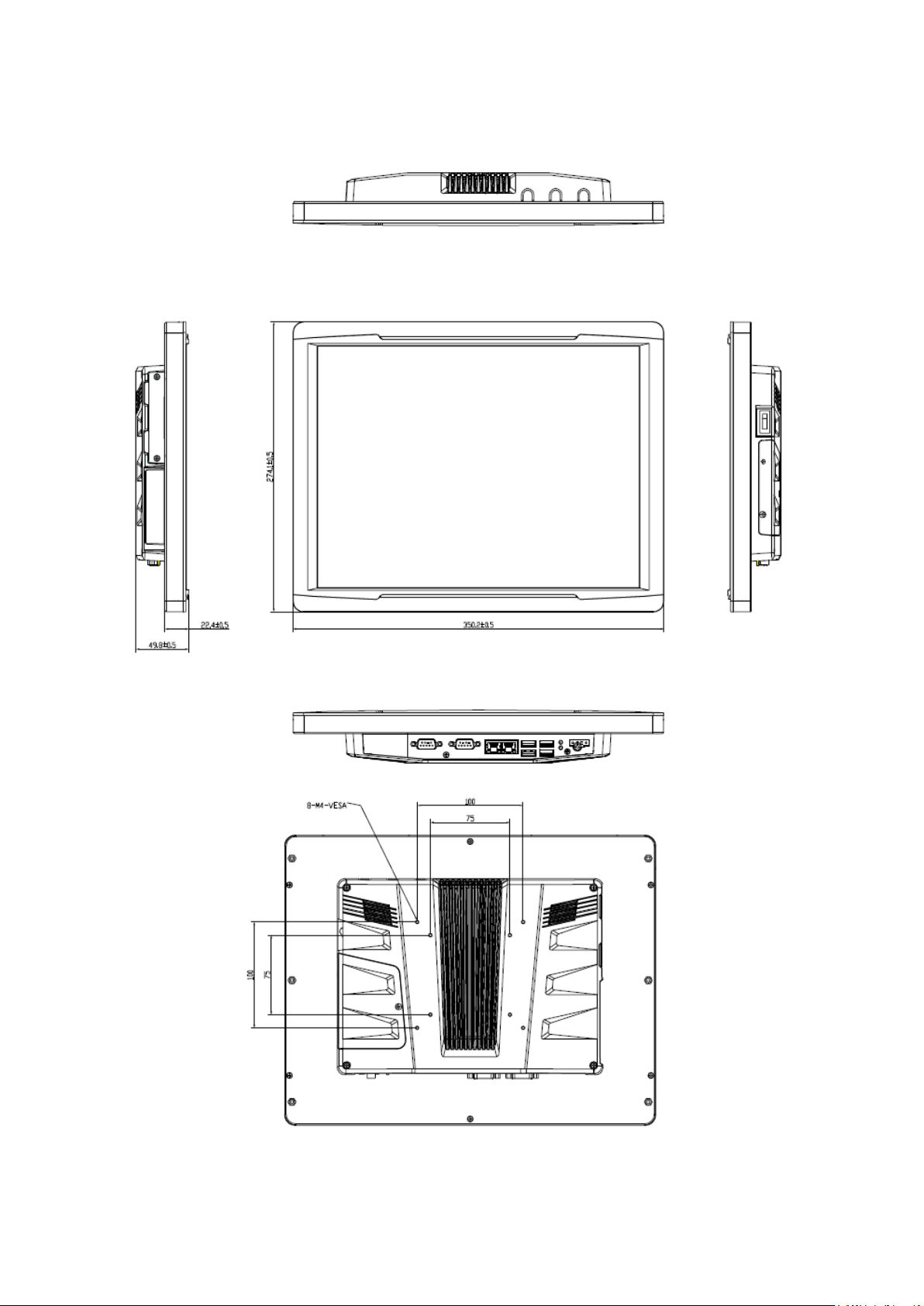

1.5.2 MPC-OPC15

(Unit: mm)

2.BIOS Setup

10 MPC-OPC12/15 Quick Reference Guide
