Avalue Technology ASM-CDV User manual

Part No. E20175820A2R

ASM-CDV

Fanless Intel® Atom™D2550 1.86GHz CPU

Ultra Slim PC with Intel® NM10 Express Chipset

Quick Reference Guide

2nd Ed –9 August 2013

ASM-CDV

2 ASM-CDV Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Notice

This guide is designed for experienced users to setup the system within the shortest time.

For detailed information, please always refer to the electronic user's manual.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective

owners.

Disclaimer

Avalue Technology Inc. reserves the right to make changes, without notice, to any product,

including circuits and/or software described or contained in this manual in order to improve

design and/or performance. Avalue Technology assumes no responsibility or liability for the

use of the described product(s), conveys no license or title under any patent, copyright, or

masks work rights to these products, and makes no representations or warranties that

Quick Reference Guide

ASM-CDV Quick Reference Guide

these products are free from patent, copyright, or mask work right infringement, unless

otherwise specified. Applications that are described in this manual are for illustration

purposes only. Avalue Technology Inc. makes no representation or warranty that such

application will be suitable for the specified use without further testing or modification.

Life Support Policy

Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN

LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL

OF Avalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform,

when properly used in accordance with instructions for use provided in the labeling, can

be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure

to perform can be reasonably expected to cause the failure of the life support device or

system, or to affect its safety or effectiveness.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

ASM-CDV

4 ASM-CDV Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x ASM-CDV (with EBM-CDV inside)

1 x Quick Reference Guide

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—Chipset drivers and utilities.

1 x packing set includes the followings:

—1 x AC to DC Adapter

—1 x Power cord

—1 x Screw kit for 2.5” HDD/SSD fixing

Quick Reference Guide

ASM-CDV Quick Reference Guide

1.3 System Specifications

System

Board

EBM-CDV

CPU

Onboard Intel® Atom™ D2550 1.86GHz CPU

BIOS

AMI 16Mbit SPI BIOS

System Chipset

Intel® NM10 Express Chipset

System Memory

One 204-pin SODIMM Supports Up to 4GB DDR3 1066MHz SDRAM

SSD

One CompactFlash Type I/II Socket

Audio

Realtek ALC892 Support 5.1-CH Audio

Ethernet

Dual Intel® 82574L Gigabit Ethernet

System Indicators

4 LED Indicators Show Power and HDD Status

Drive Bay

Mounting Kit for One 2.5” SATA HDD/ SSD (Hidden)

Expansion Interface

1 x Mini PCIe Slot (mSATA Supported)

External I/O

COM

2 x RS-232 (COM2 RS-232/422/485 Setting by JP & SW)

LAN

2 x RJ-45

WiFi

1 Knockouts for Antenna Mounting

VGA

1 x VGA

HDMI

1 x HDMI

Audio

1 x Mic-in, 1 x Line-in, 1 x Line-out

USB

4 x USB 2.0 (Rear 2; Front 2)

Power Supply Unit

Power Input

100 ~ 240Vac/ 50 ~ 60Hz

Power OutPut

+12Vdc/ 5A (60W)

Environmental

Power Requirement

+12Vdc ~ +26Vdc (Lockable DC Jack)

Operating Temperature

0 ~ 50°C (32 ~ 122°F)

Storage Temperature

-40 ~ 75°C (-40 ~ 167°F)

Relative Humidity

0% ~ 90% Relative Humidity, Non-condensing

Vibration Protection

With CF/ SSD: 1.5Grms, IEC 60068-2-64, Random,

5 ~ 500Hz, 30min/axis

Shock Protection

With CF/ SSD: 10G, IEC 60068-2-27, Half Sine,11ms

Dimension (W x D x H)

7.2” x 10.1” x 1.0” (182mm x 257mm x 25mm)

Weight

3.3lbs (1.5Kgs)

Mounting

VESA 100 & 75

ASM-CDV

6 ASM-CDV Quick Reference Guide

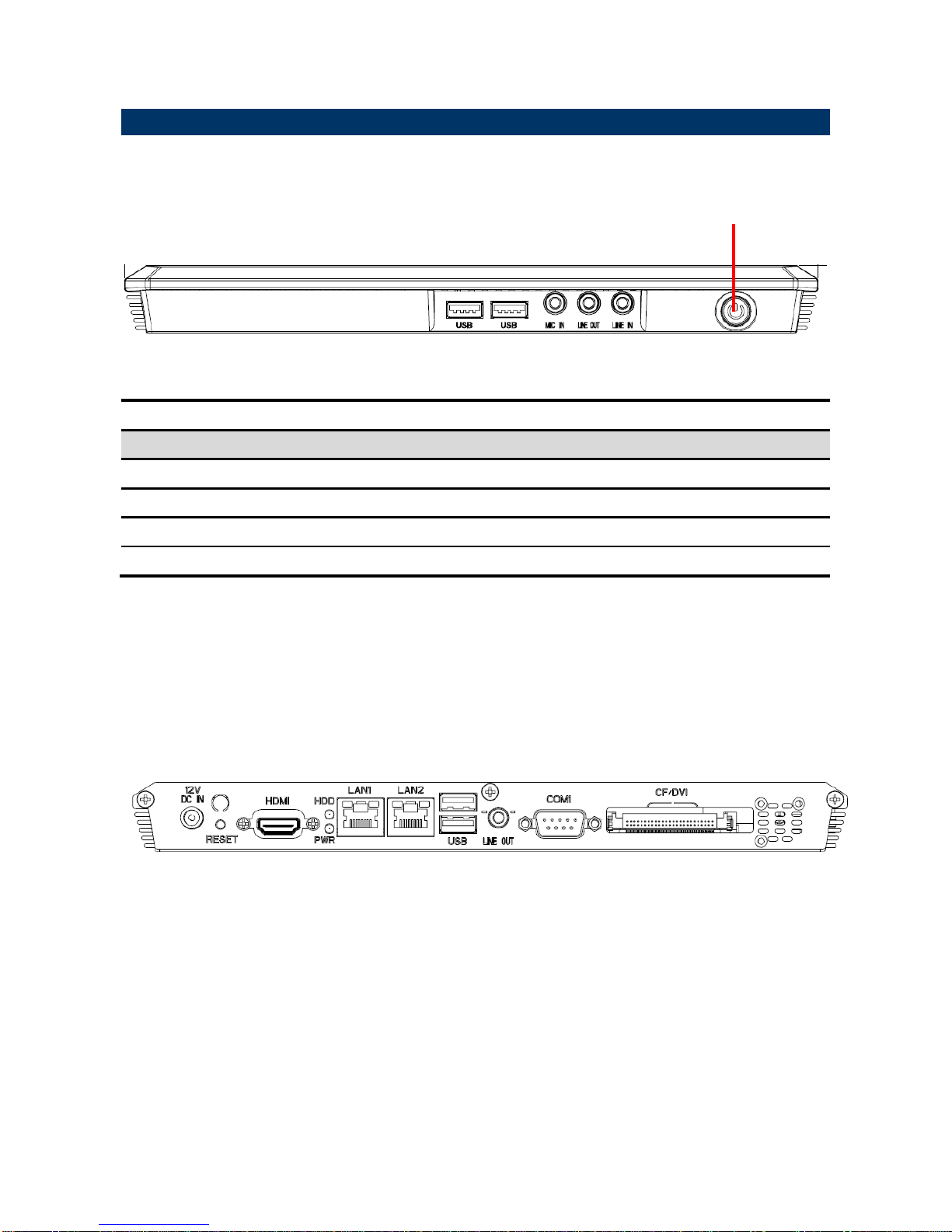

1.4 System Overview

1.4.1 Front View

Connectors

Label

Function

Note

POWER

Power on button

LINE IN

Line-in audio jack

LINE OUT

Line-out audio jack

MIC IN

Mic-in audio jack

1.4.2 Rear View

POWER

Quick Reference Guide

ASM-CDV Quick Reference Guide

Connectors

Label

Function

Note

CF Type I/II Socket with Ejector

COM1

Serial port 1

DB-9 male connector

COM2

Serial Port 2

DB-9 male connector

LINE OUT

Line-out audio jack

USB

2 x USB 2.0 connector

Dock USB

LAN1

2 x 10/100Base-Tx Ethernet connector

RJ-45

LAN2

2 x 10/100Base-Tx Ethernet connector

RJ-45

HDD

HDD indicator

VGA

CRT connector

DB-15 female connector

RESET

Reset button

DC-IN

DC Power-in connector

HDD

HDD indicator

HDMI

HDMI connector

PWR

System power indicator

Wi-Fi

USB Wi-Fi Module (optional)

RESET

Reset button

USB

2 x USB 2.0 connector

VGA

CRT connector

DB-15 female connector

ASM-CDV

8 ASM-CDV Quick Reference Guide

1.5 System Dimensions

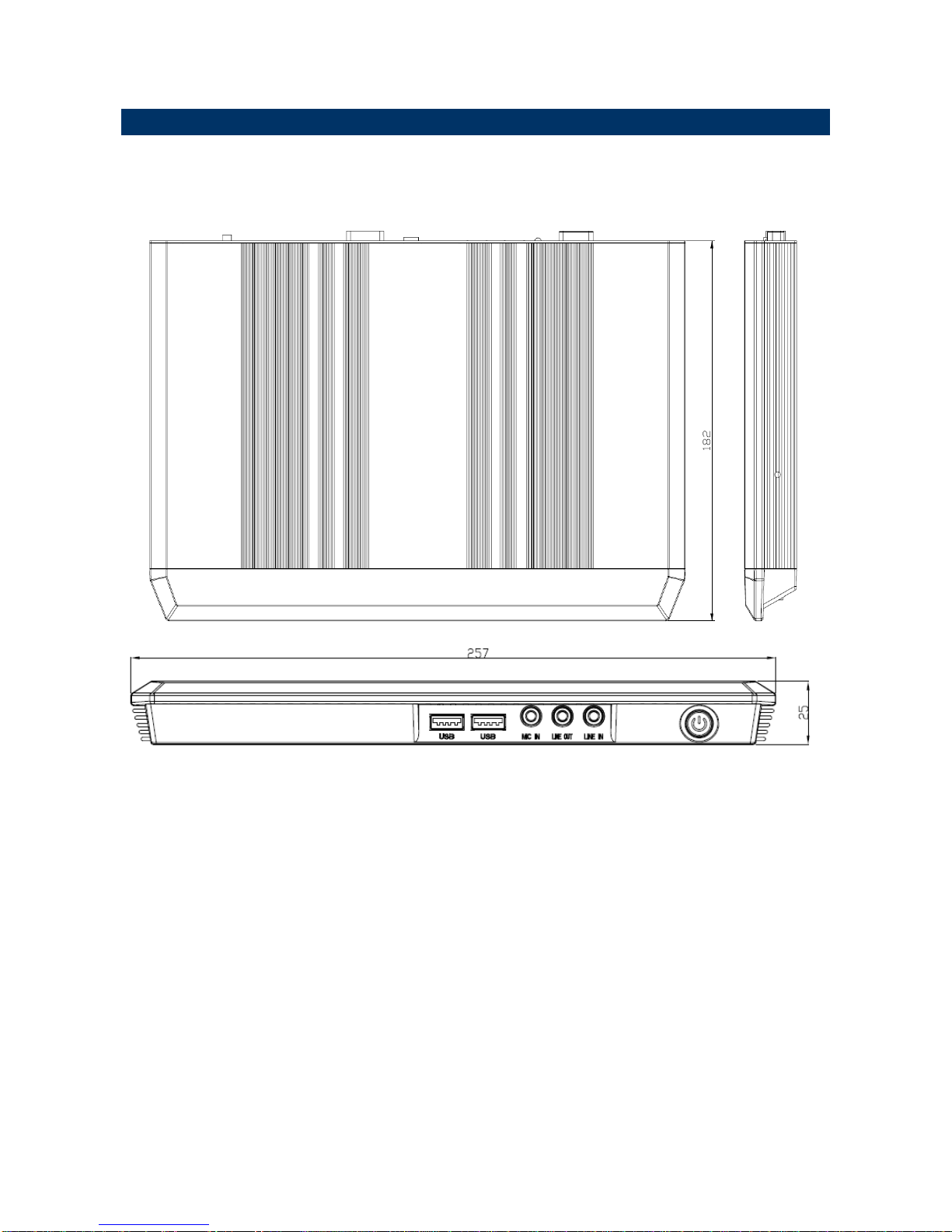

1.5.1 Top and Front

(Unit: mm)

Quick Reference Guide

ASM-CDV Quick Reference Guide

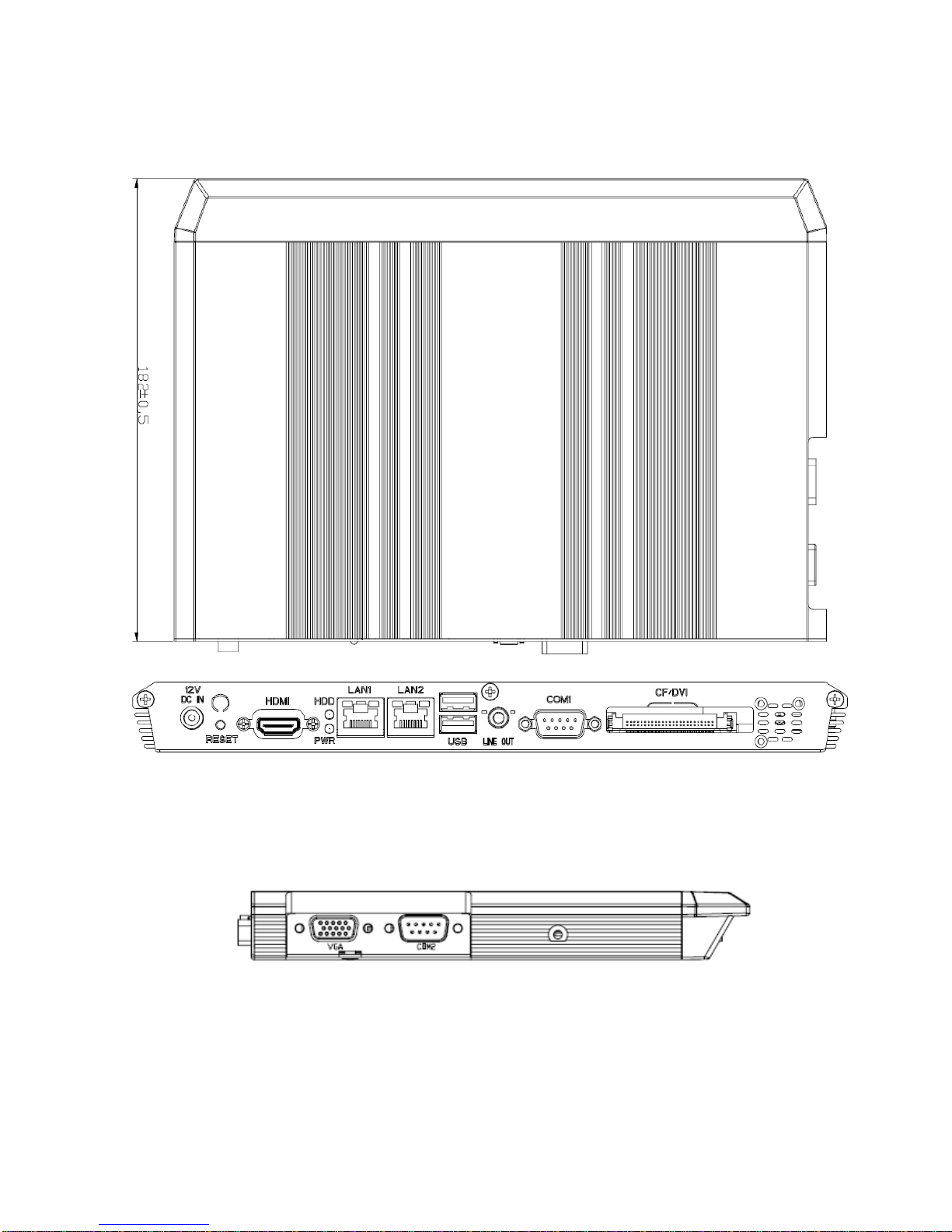

1.5.2 Bottom and Rear

Side view

(Unit: mm)

ASM-CDV

10 ASM-CDV Quick Reference Guide

2.Hardware

Configuration

2.1 Connector Setting, Driver and BIOS Installing

Please refer to EBM-CDV Quick Installation Guide or User’s Manual.

Note: If you need more information, please visit our website:

http://www.avalue.com.tw
