Asus T5 Series User manual

English

T5-Series

ASUS PC (Desktop Barebone)

Installation manual

Download the latest manual from the ASUS website: www.asus.com

u5335_T5_series_qsg.indb 1 1/29/10 3:55:42 PM

2 Installation manual

English

Front/Rear panel features

1. Optical drive bay cover

2. Optical drive eject button ( )

3. Front I/O ports cover

4. Power button ( )

5. HDD LED ( )

(lights up when

the hard disk drive operates)

6. USB 2.0 ports ( )

7. MultiMediaCard / Secure Digital /

Memory Stick card slot ( )

8. Headphone port ( )

9. Microphone port ( )

10. Expansion slot metal brackets

11.* Optical S/PDIF Out port ( )

12.** Voltage selector switch

13. Power connector

14.* • PS/2 keyboard port ( )

• PS/2 mouse port ( )

• VGA port ( )

• HDMI port ( )

• LAN (RJ-45) port ( )

• USB 2.0 ports ( )

• 6-pin IEEE 1394a port ( )

• Coaxial S/PDIF Out port ( )

 •Audioportscongurations:

• 6-channel

LINE

ONT

MIC IN

• 8-channel

REAR

SPK

LINE

ONT

MIC IN

SIDE

SPK

CTR

BASS

NOTE: *The front/rear panel ports and their locations may vary, depending on the

model of your system. For detailed descriptions, refer to the system User Guide.

NOTE:**Thesystem’spowersupplyunithasa115V/230Vvoltageselectorswitch

located beside the power connector. Use this switch to select the appropriate system

input voltage according to the voltage supply in your area.

SATA

SPDIF OUT

Front (Close)

Front (Slide open)

Rear

u5335_T5_series_qsg.indb 2 1/29/10 3:55:54 PM

3Installation manual

English

Removing the cover

1. Remove the three cover screws on

the rear panel. Keep the screws for

later use.

2. Pull the cover toward the rear panel.

3. Lift the cover, then set it aside.

Internal components

NOTE: The illustration below shows the internal view of the system when you remove

the cover and lift the power supply unit.

1. 5.25-inch optical drive cage

2. 3.5-inch hard disk drive cage

3. Power supply unit

4. DIMM sockets

5. CPU socket

6.* ASUS motherboard

7. PCI Express x16 slot

8. PCI slot

NOTE: *Refer to the system User Guide for motherboard details.

u5335_T5_series_qsg.indb 3 1/29/10 3:55:55 PM

4 Installation manual

English

Lifting the power supply unit

1. Locate and remove the two screws.

2. Remove the 4-pin ATX 12V power

cable.

3. Lift the PSU in the direction of the

arrow to a 90º angle.

CAUTION: When removing the PSU,

makesuretoholdorsupportitrmly.

The unit might accidentally drop and

damage the other system components.

Installing a CPU

Installing an Intel®CPU

1. Locate the CPU socket on the

motherboard.

2. Press the load lever with your

thumb (2A), then move it to the left

(2B) until it is released from the

retention tab.

3. Lift the load lever in the direction of

the arrow to a 135º angle.

4. Lifttheloadplatewithyourthumbandforengertoa100ºangle(4A),then

push the PnP cap from the load plate window to remove (4B).

5. Position the CPU over the socket, making sure that the gold triangle is on the

bottom-left corner of the socket. Fit the socket alignment key into the CPU

notch.

6. Close the load plate (6A), then push the load lever (6B) until it snaps into the

retention tab.

Load lever

Retention tab

CAUTION: Incorrect installation of the CPU into the socket may bend the pins and

severely damage the CPU.

Gold

triangle

mark

Alignment key

Load plate

PnP cap

u5335_T5_series_qsg.indb 4 1/29/10 3:55:58 PM

5Installation manual

English

Installing an AMD CPU

1. Locate the CPU socket, then lift the socket lever to a 90º angle.

2. Install the CPU to the socket, making sure that the CPU corner with the gold

triangle matches the socket corner with a small triangle.

3. Push down the socket lever to secure the CPU.

CAUTION. Do not forget to connect the CPU fan connector! Hardware monitoring error

can occur if you fail to plug this connector.

Installing the CPU fan and heatsink assembly

Installing an Intel®CPU heatsink and fan

1. Place the heatsink on top of the installed

CPU, making sure that the four fasteners

match the holes on the motherboard.

2. Push down two fasteners at a time in a

diagonal sequence to secure the heatsink

and fan assembly in place.

3. When the fan and heatsink assembly is in

place, connect the CPU fan cable to the

connector on the motherboard.

CAUTION: Incorrect installation of the CPU into the socket may bend the pins and

severely damage the CPU.

u5335_T5_series_qsg.indb 5 1/29/10 3:56:01 PM

6 Installation manual

English

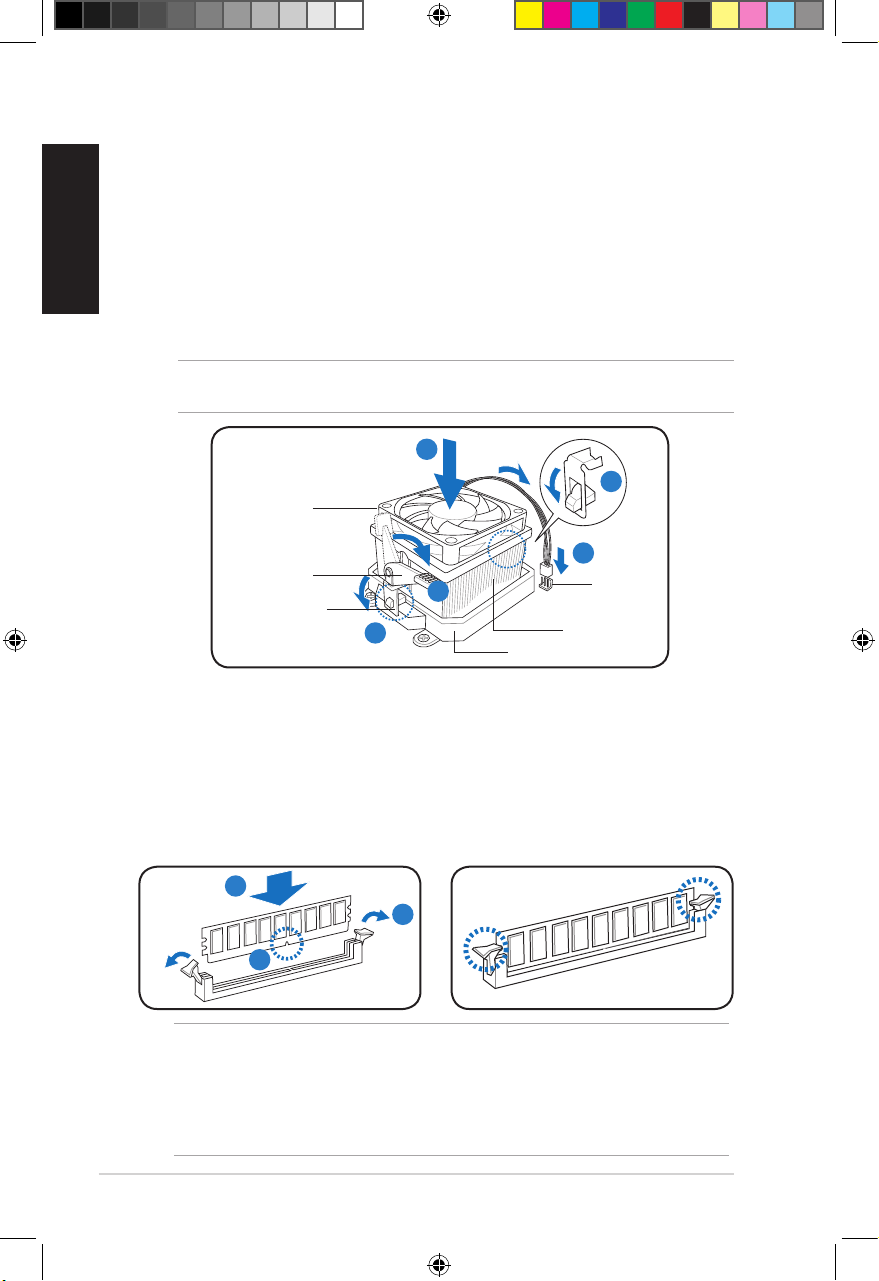

Installing an AMD CPU heatsink and fan

1. Place the heatsink on top of the installed CPU.

2. Attach one end of the retention bracket to the retention module base.

3. Attach the other end of the retention bracket (near the retention bracket lock)

to the retention module base until it clicks in place.

4. Push down the retention bracket lock on the retention mechanism to secure

the fan and heatsink to the module retention module base.

5. Connect the CPU fan cable to the connector on the motherboard.

CAUTION. Do not forget to connect the CPU fan connector! Hardware monitoring error

can occur if you fail to plug this connector.

Installing a DIMM

1. Locate the DIMM sockets in the motherboard.

2. Unlock a DIMM socket by pressing the retaining clips outward.

3. Align a DIMM on the socket such that the notch on the DIMM matches the

break on the socket.

4. Push the DIMM to the socket until the retaining clips snap inward.

CAUTION:

• Unplug the power supply before adding or removing DIMMs. Failure to do so may

cause damage to the motherboard and/or components.

 • ADDRDIMMiskeyedwithanotchsothatittsinonlyonedirection.Donotforce

a DIMM into a socket to avoid damaging the DIMM.

Retention module base

CPU heatsink

CPU fan

Retention

bracket lock

Retention bracket

CPU fan

connector

u5335_T5_series_qsg.indb 6 1/29/10 3:56:03 PM

7Installation manual

English

Installing an expansion card

1. Locate and remove one metal bracket lock screw.

2. Remove the metal bracket lock.

3. Alignthecardconnectorwiththeslot,thenpressrmly.

4. Secure the card with one screw.

5. Replace the metal braket lock, then secure it with one screw.

Installing a hard disk drive

1. Connect the SATA signal (1A) and power (1B) plugs to the connectors at the

back of the SATA hard disk drives.

2. Locate the HDD tray.

3. Insert a hard disk drive (with the HDD PCB facing the top of the chassis) to

the tray, then secure it with four screws.

4. Connect the SATA signal cable to the SATA connector on the motherboard, and

tighten all the cables with the plastic coils.

SATA

IMPORTANT. This chassis supports PCI Express x 16 cards with 192mm x 19mm or

smaller dimensions only.

u5335_T5_series_qsg.indb 7 1/29/10 3:56:06 PM

8 Installation manual

English

Installing an optical drive

1. Place the chassis upright.

2. Insert the SATA optical drive to

the upper 5.25 in drive bay, then

carefully push the drive until its

screw holes align with the holes on

the bay.

3. Secure the optical drive with four

screws on both sides of the bay.

4. Connect the SATA signal (4A) and

power plugs (4B) to the connectors

at the back of the SATA drive.

Reinstalling the cover

1. Fit the cover tabs with the chassis rail

and the front panel tabs (1A), then

lower the rear edge of the cover as

shown (1B).

2. Secure the cover with three screws.

SATA

u5335_T5_series_qsg.indb 8 1/29/10 3:56:09 PM

Français

Séries T5

ASUS PC (Système Barebone)

Manuel d’installation

Téléchargez les derniers manuels sur le site Web d'ASUS : www.asus.com

u5335_T5_series_qsg.indb 9 1/29/10 3:56:11 PM

10 Manueld’installation

Français

Caractéristiques du panneau avant/arrière

1. Cache de la baie pour lecteur

optique

2. Boutond’éjectiondulecteur

optique ( )

3. Cachedumoduled’E/Savant

4. Boutond’alimentation( )

5. LED disque dur ( )

(s’allume

lorsque le disque dur lit/écrit des

données)

6. Ports USB 2.0 ( )

7. Slot carte MultiMediaCard /

Secure Digital /

Memory Stick ( )

8. Port casque ( )

9. Port microphone ( )

10. Supports métalliques pour cartes

d’extension

11.* Port de sortie S/PDIF optique

( )

12.** Interrupteur de sélection du voltage

13. Connecteurd’alimentation

14.* • Port clavier PS/2 ( )

• Port souris PS/2 ( )

• Port VGA ( )

• Port HDMI ( )

• Port réseau (RJ-45) ( )

• Ports USB 2.0 ( )

• Port IEEE 1394a 6 broches ( )

• Port de sortie S/PDIF optique ( )

 •L’unedescongurationsdeports

audio suivantes :

• 6 canaux

LINE

ONT

MIC IN

• 8 canaux

REAR

SPK

LINE

ONT

MIC IN

SIDE

SPK

CTR

BASS

REMARQUE : *Les ports du panneau arrière ainsi que leur emplacement, peuvent

varierenfonctiondesmodèles.Voirlemanueld’utilisationpourplusdétails.

REMARQUE :**Leblocd’alimentationdusystèmeintègreuninterrupteurdesélection

duvoltage(115V/230V)localiséàcôtéduconnecteurd’alimentation.Utilisezcet

interrupteur pour sélectionner le voltage en fonction de votre région.

SATA

SPDIF OUT

Avant (Fermé)

Avant (Ouvert)

Arrière
