ASROCK P4V88 User manual

ASRock P4V88/P4V88+ Motherboard

No part of this installation guide may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any

kind, either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

Published April 2005

EnglishEnglish

English

ASRock P4V88/P4V88+ Motherboard

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 16 Floppy Connector (FLOPPY1)

2 CPU Fan Connector (CPU_FAN1) 17 System Panel Header (PANEL1)

3 CPU Heatsink Retention Module 18 Chassis Speaker Header (SPEAKER 1)

4 CPU Socket 19 Chassis Fan Connector (CHA_FAN1)

5 North Bridge Controller 20 USB 2.0 Header (USB67, Blue)

6 2 x 184-pin DDR DIMM Slots 21 Infrared Module Header (IR1)

(Dual Channel A: DDR1, DDR3; Blue) 22 Game Connector (GAME1)

7 ATX 12V Connector (ATX12V1) 23 5 x PCI Slots (PCI1- 5)

8 Secondary IDE Connector (IDE2, Black) 24 Flash Memory

9 Primary IDE Connector (IDE1, Blue) 25 JL1 Jumper

10 2 x 184-pin DDR DIMM Slots 26 JR1Jumper

(Dual Channel B: DDR2, DDR4; Black) 27 Front Panel Audio Header (AUDIO1)

11 AGP Slot (1.5V_AGP1) 28 Internal Audio Connector: AUX1 (White)

12 Secondary Serial ATA Connector (SATA2) 29 Internal Audio Connector: CD1 (Black)

13 Primary Serial ATA Connector (SATA1) 30 Shared USB 2.0 Header (USB4_5, Blue)

14 South Bridge Controller 31 ATX Power Connector (ATXPWR1)

15 Clear CMOS Jumper (CLRCMOS1)

EnglishEnglish

English

ASRock P4V88/P4V88+ Motherboard

ASRock I/O PlusASRock I/O Plus

ASRock I/O PlusTMTM

TMTM

1 Parallel Port 7 USB 2.0 Ports (USB0, USB1)

2 RJ-45 Port 8 USB 2.0 Ports (USB2, USB3)

3 Line In (Light Blue) 9 Serial Port: COM1

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 USB 2.0 Ports (USB4, USB5)

EnglishEnglish

English

ASRock P4V88/P4V88+ Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock P4V88/P4V88+ motherboard, a reliable mother-

board produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change

without notice. In case any modifications of this manual occur, the

updated version will be available on ASRock website without further

notice. You may find the latest memory and CPU support lists on

ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock P4V88/P4V88+ Motherboard

(ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm)

ASRock P4V88/P4V88+ Quick InstallationGuide

ASRock P4V88/P4V88+ Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Cable

One SerialATA (SATA) HDD Power Cable(Optional)

OneASRock I/O PlusTM Shield

EnglishEnglish

English

ASRock P4V88/P4V88+ Motherboard

1.2 Specifications1.2 Specifications

1.2 Specifications

Platform: ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm

CPU: Socket 478, supports Intel®Pentium® 4(Prescott, Northwood,

Willimate) / Celeron®processor

Chipsets: North Bridge:

VIA PT880, FSB @ 800/533/400 MHz,

with Intel®Hyper-Threading Technology ready

(see CAUTION 1)

South Bridge:

VIAVT8237, supports USB 2.0, ATA 133, SATA1.5Gb/s

Memory: 4DDRDIMMslots:DDR1,DDR2,DDR3, andDDR4

2DDRDIMM Slots Support PC3200 (DDR400), Max. 2GB,

4DDRDIMM Slots Support PC2700 (DDR333) /

PC2100 (DDR266), Max. 3.5GB,

Dual Channel Memory Technology support

(see CAUTION 2)

IDE: IDE1:ATA133 / Ultra DMAMode 6

IDE2:ATA133 / Ultra DMAMode 6

Support up to 4 IDE devices

Serial ATA: 2 SATA connectors, support up to 1.5Gb/s data transfer rate

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing,

Chassis temperature sensing,

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 3),

CPU fan tachometer,

Chassis fan tachometer,

Voltage monitoring: +12V, +5V, +3V, Vcore

PCI slots: 5 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 4)

USB 2.0: 8 USB 2.0 ports:

include 6 ready-to-use USB 2.0 ports on the rear panel,

plus one on-board header supporting 2 extra USB 2.0 ports

(see CAUTION 5)

EnglishEnglish

English

ASRock P4V88/P4V88+ Motherboard

ASRock I/O PlusTM:1 PS/2 mouse port, 1 PS/2 keyboard port,

1 serial port: COM1,

1 parallel port: ECP/EPP support,

6 ready-to-use USB 2.0 ports,

1 RJ 45 port,

Audio Jack: Line In / Line Out / Microphone

BIOS: AMIBIOS,

Supports “Plug and Play”,

ACPI 1.1 compliance wake up events,

Supports jumperfree,

SMBIOS 2.3.1 support,

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 6)

OS: Microsoft®Windows®98SE / ME / 2000 / XP compliant

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page 25

in the Support CD.

2. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 8 for proper installation.

3. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

4. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

5. Power Management for USB 2.0 works fine under Microsoft®Windows® XP

SP1/2000 SP4. It may not work properly under Microsoft®Windows®98/

ME.

6. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

EnglishEnglish

English

ASRock P4V88/P4V88+ Motherboard

2. Installation2. Installation

2. Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static electricity,

NEVER place your motherboard directly on the carpet or the like. Also

remember to use a grounded wrist strap or touch a safety grounded

object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

2.1 CPU Installation2.1 CPU Installation

2.1 CPU Installation

STEP1: Unlock the socket by lifting the lever up to a 90oangle.

STEP2: Position the CPU directly above the socket such that its marked

corner matches the base of the socket lever.

STEP3: Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

STEP4: When the CPU is in place, press it firmly on the socket while you

push down the socket lever to secure the CPU. The lever clicks on

the side tab to indicate that it is locked.

STEP5: Install CPU fan and heatsink. For proper installation, please kindly

refer to the instruction manuals of your CPU fan and heatsink vendors.

EnglishEnglish

English

ASRock P4V88/P4V88+ Motherboard

2.2 Installation of Memory Modules (DIMM)2.2 Installation of Memory Modules (DIMM)

2.2 Installation of Memory Modules (DIMM)

P4V88/P4V88+ motherboard provides four 184-pin DDR (Double Data Rate) DIMM

slots, and supports Dual Channel Memory Technology. For dual channel configuration,

you always need to install identical (the same brand, speed, size and chip-type)

DDR DIMM pair in the slots of the same color. In other words, you have to install

identical DDR DIMM pair in Dual Channel A (DDR1 and DDR3; Blue slots; see p.2

No. 6) or identical DDRDIMM pair in Dual Channel B (DDR2 andDDR4; Black slots;

see p.2 No. 10), so that Dual Channel Memory Technology can be activated. This

motherboard also allows you to install fourDDRDIMMs for dual channel configuration,

and please install identical DDR DIMMs in all four slots. You may refer to the Dual

Channel Memory Configuration Table below.

Dual Channel Memory Configurations

DDR1 DDR2 DDR3 DDR4

(Blue Slot) (Black Slot) (Blue Slot) (Black Slot)

(1) Populated - Populated -

(2) - Populated - Populated

(3) Populated Populated Populated Populated

1. If you want to install two memory modules, for optimal compatibility

and reliability, it is recommended to install them in the slots of the

same color. In other words, install them either in the set of blue slots

(DDR1 and DDR3), or in the set of black slots (DDR2 and DDR4).

2. If only one memory module or three memory modules are installed

in the DDR DIMM slots on this motherboard, it is unable to activate

the Dual Channel Memory Technology.

3. If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules in DDR1

and DDR2, it is unable to activate the Dual Channel Memory

Technology.

EnglishEnglish

English

ASRock P4V88/P4V88+ Motherboard

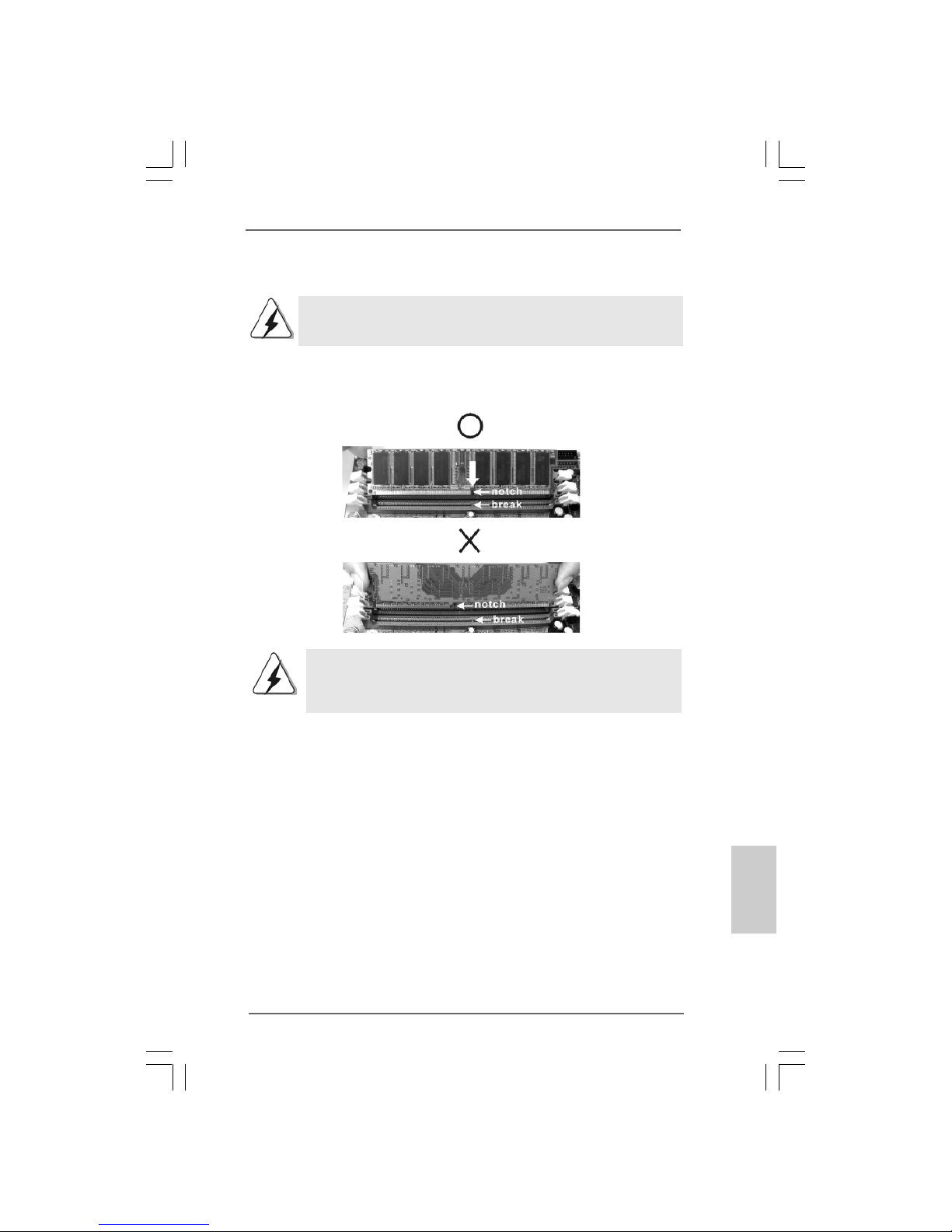

Installing a DIMMInstalling a DIMM

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

STEP1: Unlock a DIMM slot by pressing the retaining clips outward.

STEP2: Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

The DIMM only fits in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into the

slot at incorrect orientation.

STEP3: Firmly insert theDIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

EnglishEnglish

English

ASRock P4V88/P4V88+ Motherboard

1010

2.3 Expansion Slots (PCI and AGP Slots)2.3 Expansion Slots (PCI and AGP Slots)

2.3 Expansion Slots (PCI and AGP Slots)

There are 5 PCI slots and 1 AGP slot on P4V88/P4V88+ motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

AGP slot: TheAGP slot is used to install a graphics card. TheASRock AGP slot has

a special design of clasp that can securely fasten the inserted graphics

card.

Please do NOT use a 3.3V AGP card on theAGP slot of this

motherboard! It may cause permanent damage! For the voltage

information of your AGP card, please check with the AGP card

vendors.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

STEP1: Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

STEP2: Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

STEP3: Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

STEP4: Fasten the card to the chassis with screws.

EnglishEnglish

English

Other manuals for P4V88

This manual suits for next models

Table of contents

Languages:

Other ASROCK Motherboard manuals

ASROCK

ASROCK WOLFDALE1333-GLAN User manual

ASROCK

ASROCK P43ME - V1.1 User manual

ASROCK

ASROCK H55DE3 User manual

ASROCK

ASROCK X99 Extreme4 User manual

ASROCK

ASROCK Z370M-ITX/ac User manual

ASROCK

ASROCK Fatal1ty 990FX Killer User manual

ASROCK

ASROCK B550 STEEL LEGEND User manual

ASROCK

ASROCK 775i945GZ User manual

ASROCK

ASROCK Fatal1ty Z370 Gaming K6 Series User manual

ASROCK

ASROCK C70M1 R2.0 User manual

ASROCK

ASROCK P55 PRO/USB3 - User manual

ASROCK

ASROCK K10N7SLI User manual

ASROCK

ASROCK Z97 OC Formula User manual

ASROCK

ASROCK Z77 WS User manual

ASROCK

ASROCK Z68 Extreme4 Gen3 User manual

ASROCK

ASROCK AD2550B-ITX User manual

ASROCK

ASROCK Velocita Z490 PG User manual

ASROCK

ASROCK 775i65GV User manual

ASROCK

ASROCK Q170M vPro+ User manual

ASROCK

ASROCK H310CM-ITX/ac User manual

ASROCK

ASROCK B660M Pro RS/D5 User manual

ASROCK

ASROCK WRX90 WS EVO User manual

ASROCK

ASROCK K7S41GX2 User manual

ASROCK

ASROCK AD2550B-ITX User manual

Popular Motherboard manuals by other brands

DFI

DFI SD170 user manual

Asus

Asus P2L97A user manual

Winmate

Winmate IC70 user manual

Asus

Asus MES-B user manual

Grantech

Grantech SYS8F377VGGA-3OMN user manual

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR user guide

Gigabyte

Gigabyte GA-9IVDT user manual

Texas Instruments

Texas Instruments ADS8372EVM user guide

Commell

Commell MS-C73 user manual

IBT Technologies

IBT Technologies MB860 user manual

Nvidia

Nvidia TEGRA DG-04927-001_V01 user guide

Biostar

Biostar M7VIT Bravo Description

Intel

Intel D33217CK specification

Asus

Asus F1A55-M LX PLUS R2.0 user manual

EPC

EPC EPC9147C quick start guide

Asus

Asus EX-B760M-V5 D4 quick start guide

EPOX

EPOX MU-8KHA0010 user manual

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 user guide
