ASRock K7S41 / K7S41GX Motherboard

No part of this installation guide may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any

kind, either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the guide or product.

ASRock Website: http://www.asrock.com

EnglishEnglish

English

Published December 2003

2ASRock K7S41 / K7S41GX Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout (K7S41)(K7S41)

(K7S41)(K7S41)

(K7S41)

1 PS2_USB_PWR1 Jumper 16 Chassis Speaker Connector (SPEAKER 1)

2 CPU Fan Connector (CPU_FAN1) 17 Floppy Connector (FLOPPY1)

3 CPU Socket 18 USB 2.0 Connector (USB45, Blue)

4 North Bridge Controller 19 Infrared Module Connector (IR1)

5 184-pin DDR DIMM Slots (DDR 1- 2) 20 AMR Slot (AMR1)

6 ATX Power Connector (ATXPWR1) 21 Flash Memory

7 Secondary IDE Connector (IDE2, Black) 22 Serial Port Connector (COM1)

8 Primary IDE Connector (IDE1, Blue) 23 JL1 Jumper

9 AGP Slot (1.5V_AGP1) 24 JR1 Jumper

10 South Bridge Controller 25 Front Panel Audio Connector (AUDIO1)

11 Clear CMOS (CLRCMOS1, solder points) 26 PCI Slots (PCI 1- 2)

12 Clear CMOS (CLRCMOS2, 2-pin jumper) 27 FSB Select Jumpers (FSB_SEL0/FSB_SEL1/FSB_SEL2)

13 Chassis Fan Connector (CHA_FAN1) 28 Internal Audio Connector: CD1 (Black)

14 Power LED Connector (PWR_LED1) 29 Internal Audio Connector: AUX1 (White)

15 System Panel Connector (PANEL1) 30 FID Jumpers (FID0, FID1, FID2, FID3, FID4)

ASRock K7S41 / K7S41GX Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout (K7S41GX)(K7S41GX)

(K7S41GX)(K7S41GX)

(K7S41GX)

1 PS2_USB_PWR1 Jumper 16 Chassis Speaker Connector (SPEAKER 1)

2 CPU Fan Connector (CPU_FAN1) 17 Floppy Connector (FLOPPY1)

3 CPU Socket 18 USB 2.0 Connector (USB45, Blue)

4 North Bridge Controller 19 Infrared Module Connector (IR1)

5 184-pin DDR DIMM Slots (DDR 1- 2) 20 AMR Slot (AMR1)

6 ATX Power Connector (ATXPWR1) 21 Flash Memory

7 Secondary IDE Connector (IDE2, Black) 22 Serial Port Connector (COM1)

8 Primary IDE Connector (IDE1, Blue) 23 JL1 Jumper

9 AGP Slot (1.5V_AGP1) 24 JR1 Jumper

10 South Bridge Controller 25 Front Panel Audio Connector (AUDIO1)

11 Clear CMOS (CLRCMOS1, solder points) 26 PCI Slots (PCI 1- 2)

12 Clear CMOS (CLRCMOS2, 2-pin jumper) 27 FSB Select Jumpers (FSB_SEL0/FSB_SEL1)

13 Chassis Fan Connector (CHA_FAN1) 28 Internal Audio Connector: CD1 (Black)

14 Power LED Connector (PWR_LED1) 29 Internal Audio Connector: AUX1 (White)

15 System Panel Connector (PANEL1) 30 FID Jumpers (FID0, FID1, FID2, FID3, FID4)

4ASRock K7S41 / K7S41GX Motherboard

ASRock I/OASRock I/O

ASRock I/OTMTM

TMTM

TM (K7S41 / K7S41GX)(K7S41 / K7S41GX)

(K7S41 / K7S41GX)(K7S41 / K7S41GX)

(K7S41 / K7S41GX)

1 Parallel Port 6 Line Out (Lime)

2 RJ-45 Port 7 USB 2.0 Ports

3 Game Port 8 VGA Port

4 Microphone (Pink) 9 PS/2 Keyboard Port (Purple)

5 Line In (Light Blue) 10 PS/2 Mouse Port (Green)

EnglishEnglish

English

ASRock K7S41 / K7S41GX Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock K7S41 / K7S41GX motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It

delivers excellent performance with robust design conforming to ASRock’s com-

mitment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-

by-step installation guide. More detailed information of the motherboard can be

found in the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice.

You may find the latest memory and CPU support lists on ASRock

website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock K7S41 or K7S41GX Motherboard

(Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm)

ASRock K7S41 / K7S41GX Quick Installation Guide

ASRock K7S41 / K7S41GX Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

OneASRock I/OTM Shield

One COM Port Bracket

OneASRock MR Card (Optional)

EnglishEnglish

English

6ASRock K7S41 / K7S41GX Motherboard

1.2 Specifications1.2 Specifications

1.2 Specifications

Platform: Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm

CPU: Supports Socket A (462 pins) for

AMDAthlonTM XP / DuronTM processor

Chipsets: North Bridge (K7S41):

SiS 741, FSB@400 MHz,AGP 8X/4X

North Bridge (K7S41GX):

SiS 741GX, FSB@333 MHz,AGP 8X/4X

South Bridge:

SiS 963L, supports USB 2.0, ATA 133

Memory: 2DDRDIMMSlots:DDR1 andDDR2

K7S41:

PC3200(DDR400)/PC2700(DDR333)/ PC2100(DDR266),

Max. 2GB;

* For PC3200 (DDR400), please refer to the latest memory

support lists on ASRock website: http://www.asrock.com

K7S41GX:

PC2700 (DDR333) / PC2100 (DDR266), Max. 2GB

IDE: IDE1:ATA133 / UltraDMA Mode 6,

IDE2:ATA133 / UltraDMA Mode 6,

Supports up to 4 IDE devices

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing,

Chassis temperature sensing,

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 1),

CPU fan tachometer, Chassis fan tachometer,

Voltage monitoring: +12V, +5V, +3V, Vcore

PCI slots: 2 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 2)

AMR slot: 1 slot, supports ASRock MR card (Optional)

USB 2.0: 6 USB 2.0 ports:

includes 4 default USB 2.0 ports on the rear panel,

plus one connector to support 2 additional USB 2.0 ports

(see CAUTION 3)

EnglishEnglish

English

ASRock K7S41 / K7S41GX Motherboard

ASRock I/OTM:1 PS/2 mouse port, 1 PS/2 keyboard port,

1 VGA port, 1 parallel port: ECP/EPP support,

1 RJ 45 port, 4 default USB 2.0 ports,

1Game port,

Audio Jack: Line Out / Line In / Microphone In

BIOS: AMI legal BIOS, “Plug and Play” support,

ACPI 1.1 compliance wake up events,

SMBIOS 2.3.1 support,

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 4)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. While CPU overheat is detected, the system will automatically shutdown.

Please check if the CPU fan on the motherboard functions properly before

you resume the system. To improve heat dissipation, remember to spray

thermal grease between the CPU and the heatsink when you install the PC

system.

2. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

3. Power Management for USB 2.0 works fine under Microsoft®Windows®

XP SP1/2000 SP4. It may not work properly under Microsoft®Windows®

98/ME. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

4. Although this motherboard offers stepless control, it is not recommended

to perform over clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU. The CPU host frequency of this motherboard is determined by the

jumper-setting. You must set the FSB jumper according to yourAMDCPU

before you use the “Manual” option as the FSB setting in BIOS setup to

perform over clocking. Please check page 24 of the User Manual in the

Support CD for details.

EnglishEnglish

English

8ASRock K7S41 / K7S41GX Motherboard

2. Installation2. Installation

2. Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

2.1 CPU Installation2.1 CPU Installation

2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90° angle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

Step 5. Install CPU fan and heatsink. For proper installation, please kindly refer to

the instruction manuals of your CPU fan and heatsink vendors.

EnglishEnglish

English

ASRock K7S41 / K7S41GX Motherboard

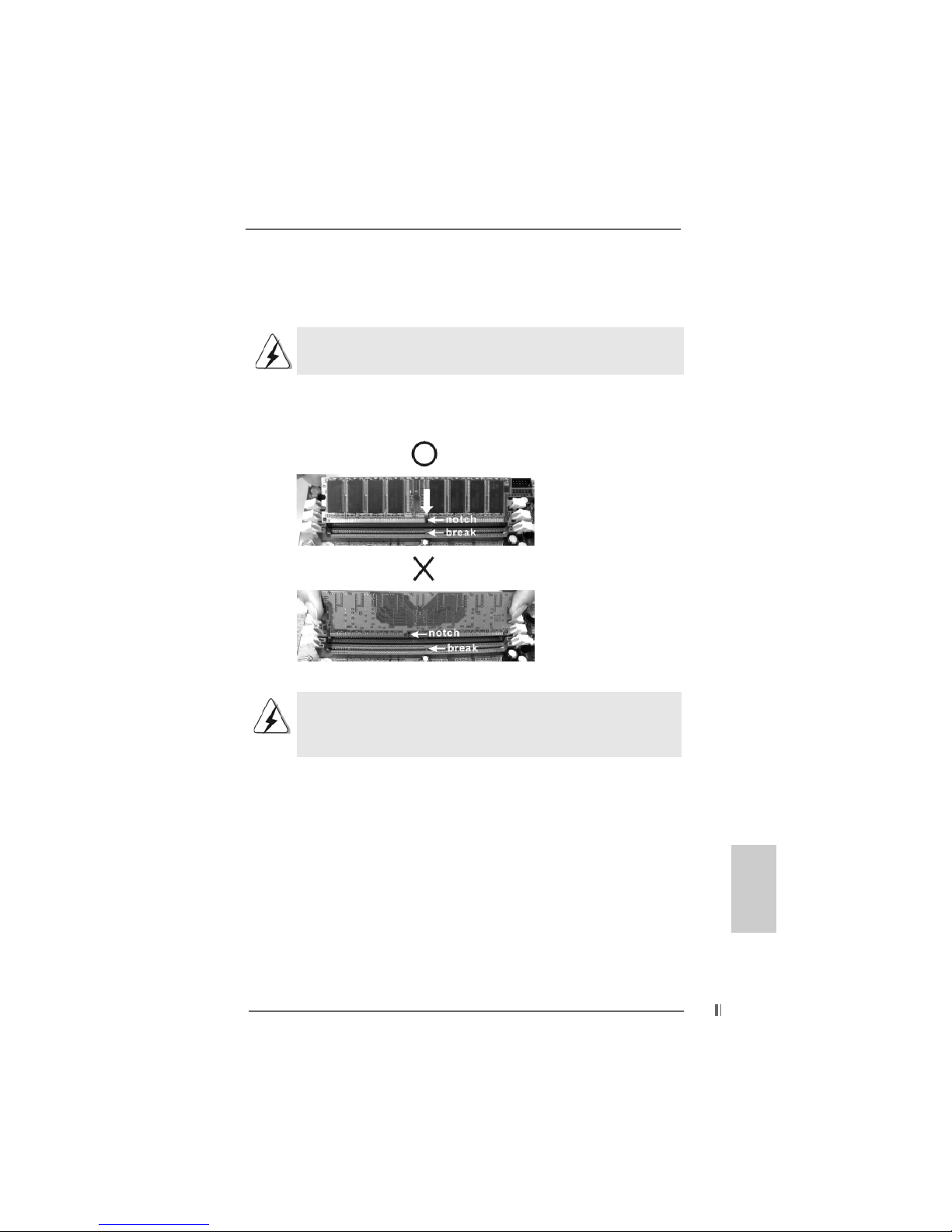

2.2 Installation of Memory Modules (DIMM)2.2 Installation of Memory Modules (DIMM)

2.2 Installation of Memory Modules (DIMM)

K7S41 / K7S41GX motherboard provides two 184-pinDDR (DoubleData Rate) DIMM

slots.

Please make sure to disconnect power supply before adding or removing

DIMMs or the system components.

Step 1. Unlock aDIMM slot by pressing the retaining clips outward.

Step 2. Align aDIMM on the slot such that the notch on the DIMM matches the break

on the slot.

The DIMM only fits in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into the

slot at incorrect orientation.

Step 3. Firmly insert theDIMM into the slot until the retaining clips at both ends fully

snap back in place and the DIMM is properly seated.

EnglishEnglish

English

1010

10 ASRock K7S41 / K7S41GX Motherboard

2.3 Expansion Slots (PCI, AMR, and AGP Slots)2.3 Expansion Slots (PCI, AMR, and AGP Slots)

2.3 Expansion Slots (PCI, AMR, and AGP Slots)

There are 2 PCI slots, 1AMR slot, and 1 AGPslot on K7S41 / K7S41GX motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

AMR slot: TheAMR slot is used to insert an ASRock MR card (optional) with

v.92 Modem functionality.

AGP slot: TheAGP slot is used to install a graphics card. TheASRock AGP slot has

a special design of clasp that can securely fasten the inserted graphics

card.

Please do NOT use a 3.3VAGPcard on theAGP slot of this motherboard!

It may cause permanent damage! For the voltage information of your

graphics card, please check with the graphics card vendors.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the bracket facing the slot that you intend to use. Keep the screw

for later use.

Step 3. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 4. Fasten the card to the chassis with screws.

EnglishEnglish

English

Other manuals for K7S41

This manual suits for next models

Table of contents

Languages:

Other ASROCK Motherboard manuals

ASROCK

ASROCK FM2A88X+ BTC User manual

ASROCK

ASROCK Z590 Taichi User manual

ASROCK

ASROCK B550M Steel Legend User manual

ASROCK

ASROCK 4CoreDual-SATA2 User manual

ASROCK

ASROCK P45DE User manual

ASROCK

ASROCK X470 Taichi User manual

ASROCK

ASROCK IMB-130 User instructions

ASROCK

ASROCK P4I45D User manual

ASROCK

ASROCK FM2A88M-DG3+ User manual

ASROCK

ASROCK H110M-G/M.2 User manual

ASROCK

ASROCK IMB-391 User manual

ASROCK

ASROCK 880G EXTREME3 - V1.0 User manual

ASROCK

ASROCK ALIVENF5-VST User manual

ASROCK

ASROCK Z87M OC Formula User manual

ASROCK

ASROCK ALIVESATA2-GLAN User manual

ASROCK

ASROCK K8NF4G-VSTA User manual

ASROCK

ASROCK 90-MXB150-A0UAYZ User manual

ASROCK

ASROCK Z68 Pro3 User manual

ASROCK

ASROCK Z390 Phantom Gaming 9 User manual

ASROCK

ASROCK AD2700-ITX User manual

ASROCK

ASROCK H170M-ITX/DL User manual

ASROCK

ASROCK B75M-DGS User manual

ASROCK

ASROCK IMB-A160 User manual

ASROCK

ASROCK G41C-GS User manual

Popular Motherboard manuals by other brands

DFI

DFI SD170 user manual

Asus

Asus P2L97A user manual

Winmate

Winmate IC70 user manual

Asus

Asus MES-B user manual

Grantech

Grantech SYS8F377VGGA-3OMN user manual

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR user guide

Gigabyte

Gigabyte GA-9IVDT user manual

Texas Instruments

Texas Instruments ADS8372EVM user guide

Commell

Commell MS-C73 user manual

IBT Technologies

IBT Technologies MB860 user manual

Nvidia

Nvidia TEGRA DG-04927-001_V01 user guide

Biostar

Biostar M7VIT Bravo Description

Intel

Intel D33217CK specification

Asus

Asus F1A55-M LX PLUS R2.0 user manual

EPC

EPC EPC9147C quick start guide

Asus

Asus EX-B760M-V5 D4 quick start guide

EPOX

EPOX MU-8KHA0010 user manual

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 user guide
