ASROCK IBOX-345-DL User manual

iBOX-420-DL

iBOX-345-DL

User Manual

Version 1.0

Published March 2021

Important Safety Instructions

Pay close attention to the following safety instructions before performing any of

the operation. Basic safety precautions should be followed to protect yourself from

harm and the product from damage:

• Operation of the product should be carried out by suitably trained, qualied, and

certied personnel only to avoid risk of injury from electrical shock or energy hazard.

• Disconnect the power cord from the wall outlet when installing or removing main

system components, such as the motherboard and power supply unit.

• Place the system on a stable and at surface.

• Use extreme caution when working with high-voltage components.

• When handling parts, use a grounded wrist strap designed to prevent static discharge.

• Keep the area around the system clean and clutter-free.

• Keep all components and printed circuit boards (PCBs) in their antistatic bags when

not in use.

• Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or contacts.

e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Product Specications 2

Chapter 2 Product Overview 4

2.1 Front View 4

2.2 Rear View 5

2.3 Inside View 6

Chapter 3 Hardware Installation 7

3.1 How to Remove the Bottom Case 7

3.2 How to Install the WiFi Module (Optional) 8

3.3 How to Install the mSATA SSD 9

3.4 How to Install the 2.5-inch Hard Drive 10

3.5 How to Install the Memory Modules

(DDR3 Low Voltage (1.35V)) 12

3.6 How to Install the VESA Bracket 13

3.7 Positions of the iBOX-420-DL / iBOX-345-DL 14

Chapter 4 Motherboard 15

4.1 Motherboard Layout 15

4.2 Motherboard Specications 16

4.3 Jumpers Setup 18

4.4 Onboard Headers and Connectors 19

4.5 Expansion Slots (M.2 Sockets) 21

Chapter 5 UEFI SETUP UTILITY 22

5.1 Introduction 22

5.1.1 UEFI Menu Bar 22

5.1.2 Navigation Keys 23

5.2 Main Screen 24

5.3 Advanced Screen 25

5.3.1 CPU Conguration 26

5.3.2 Chipset Conguration 28

5.3.3 Storage Conguration 30

5.3.4 Super IO Conguration 31

5.3.5 ACPI Conguration 32

5.3.6 Trusted Computing 33

5.4 Hardware Health Event Monitoring Screen 34

5.5 Security Screen 35

5.6 Boot Screen 36

5.7 Exit Screen 38

Chapter 6 Software Support 39

6.1 Install Operating System 39

6.2 Support CD Information 39

iBOX-420-DL / iBOX-345-DL

PB 1

English

Chapter 1 Introduction

1.1 Package Contents

• iBOX-420-DL / iBOX-345-DL Barebone System with:

iBOX-420-DL / iBOX-345-DL Chassis

Motherboard (pre-installed)

*e barebone system does not include memory, hard drive and mSATA SSD.

• Power Adapter (36W/12V) & Power Plug

• SATA Data and Power Cable

• mSATA Screw

• VESA Mount Bracket & Screw Package

• Support CD

• Quick Installation Guide

Because the hardware specications might be updated, the content of this documentation

will be subject to change without notice.

If any items are missing or appear damaged, contact your authorized dealer.

2 3

English

1.2 Product Specications

iBOX-420-DL

iBOX-345-DL Barebone

CPU Intel® Apollo Lake N4200/N3350/J3455 Processor

OS N/A

Chipset Intel® N4200/N3350/J3455 SoC

Memory Supports DDR3L, 2 x SO-DIMM slots, Max. 8GB

HDD

N/A

Optional

Supports 1 x 2.5" SATA HDD*

LAN Gigabit LAN

WiFi Optional

Front I/O 1 x USB 3.0, 1 x Audio-out with MIC-In

Rear I/O 1 x HDMI, 2 x DP, 2 x USB 3.0, 2 x LAN, 1 x Kensington lock

Power Unit 36W/12V Adapter

Dimension 135mm (W) x 44.5mm (H) x 110mm (D)

VESA Bracket included , supports 75 x 75 and 100 x 100 mm

eMMC

mSATA

slot

2.5”HDD

iBOX-420-DL / iBOX-345-DL

2 3

English

* For iBOX-420-DL/iBOX-345-DL, it is not recommended to install 2.5” HDD. If you install the 2.5” HDD, please

keep the iBOX-420-DL/iBOX-345-DL in a vertical position to ensure better cooling performance.

Volume

(Liters) 0.6L

Operating

Temperature 0°C~50°C

4 5

English

Chapter 2 Product Overview

is chapter provides diagrams showing the location of important components of

the iBOX-420-DL/iBOX-345-DL.

2.1 Front View

No. Description

1Headphone & Microphone

2 USB 3.0 (Type A)

iBOX-420-DL / iBOX-345-DL

4 5

English

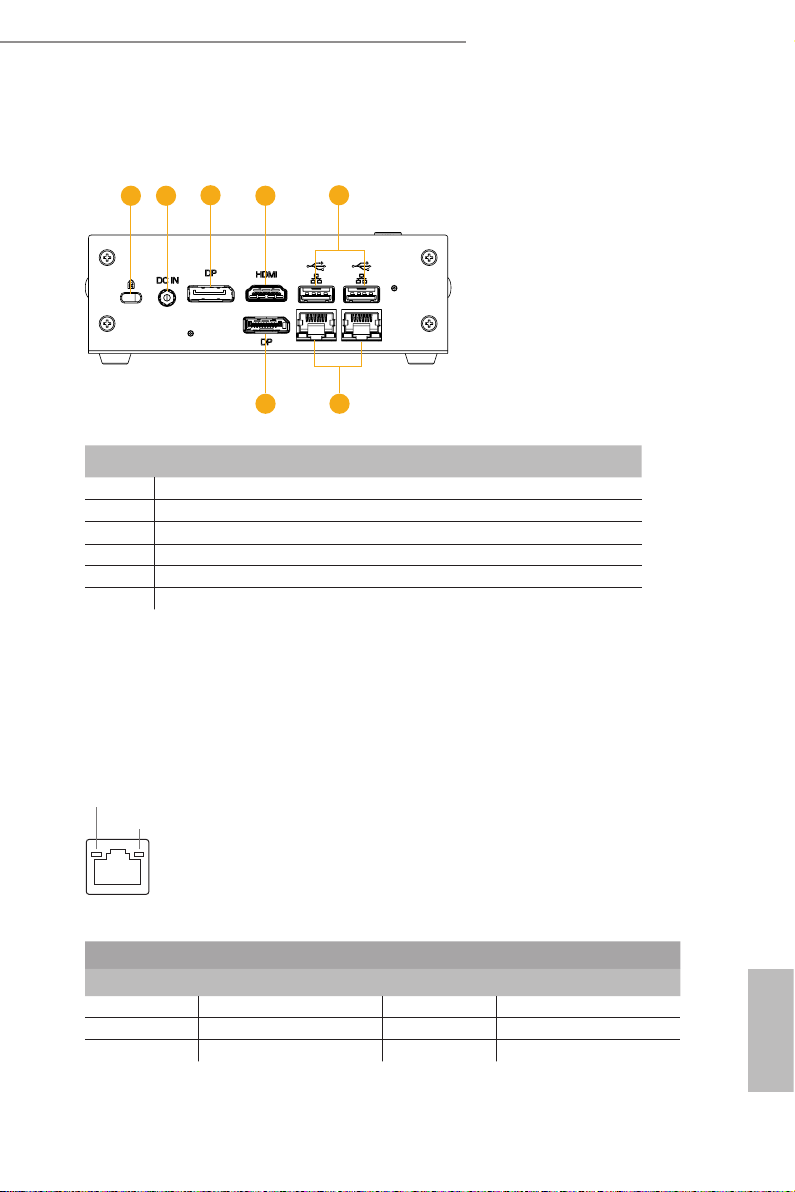

2.2 Rear View

No. Description

1 Kensington Lock Slot

2DC-In

3*DisplayPort

4HDMI

5 USB 3.0 (Type A)

6RJ-45

*To use DisplayPort as a display output, please connect your monitor/display to

HDMI Port when installing OS system.

is DisplayPort only supports DP to D-Sub dongle and does not support DP to

HDMI dongle and DP to DVI dongle.

* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

1 2 345

6 PB

English

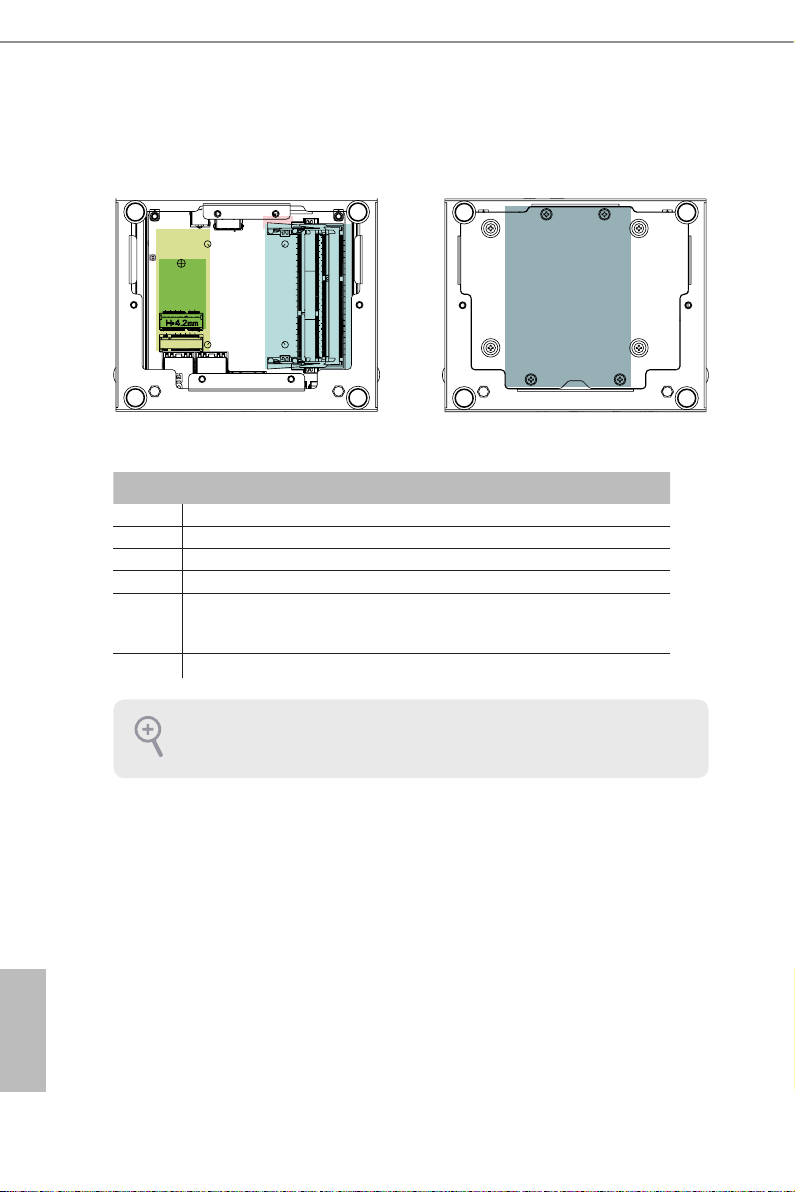

2.3 Inside View

No. Description

1 WiFi Module Slot

2mSATA Slot

3SO-DIMM Slots

4 SATA 3.0 Connector

5 Clear CMOS Pad

*Clear CMOS Pad allows you to clear the data in CMOS. To clear CMOS, disconnect the

power supply and short the Clear CMOS Pad.

6 Hard disk drive tray (compatible with 2.5" SATA HDD)

SO-DIMM memory, hard drive and mSATA SSD are not included with this system.
