Anzzi FR-AZ273 User manual

RECOMMENDED TOOLS

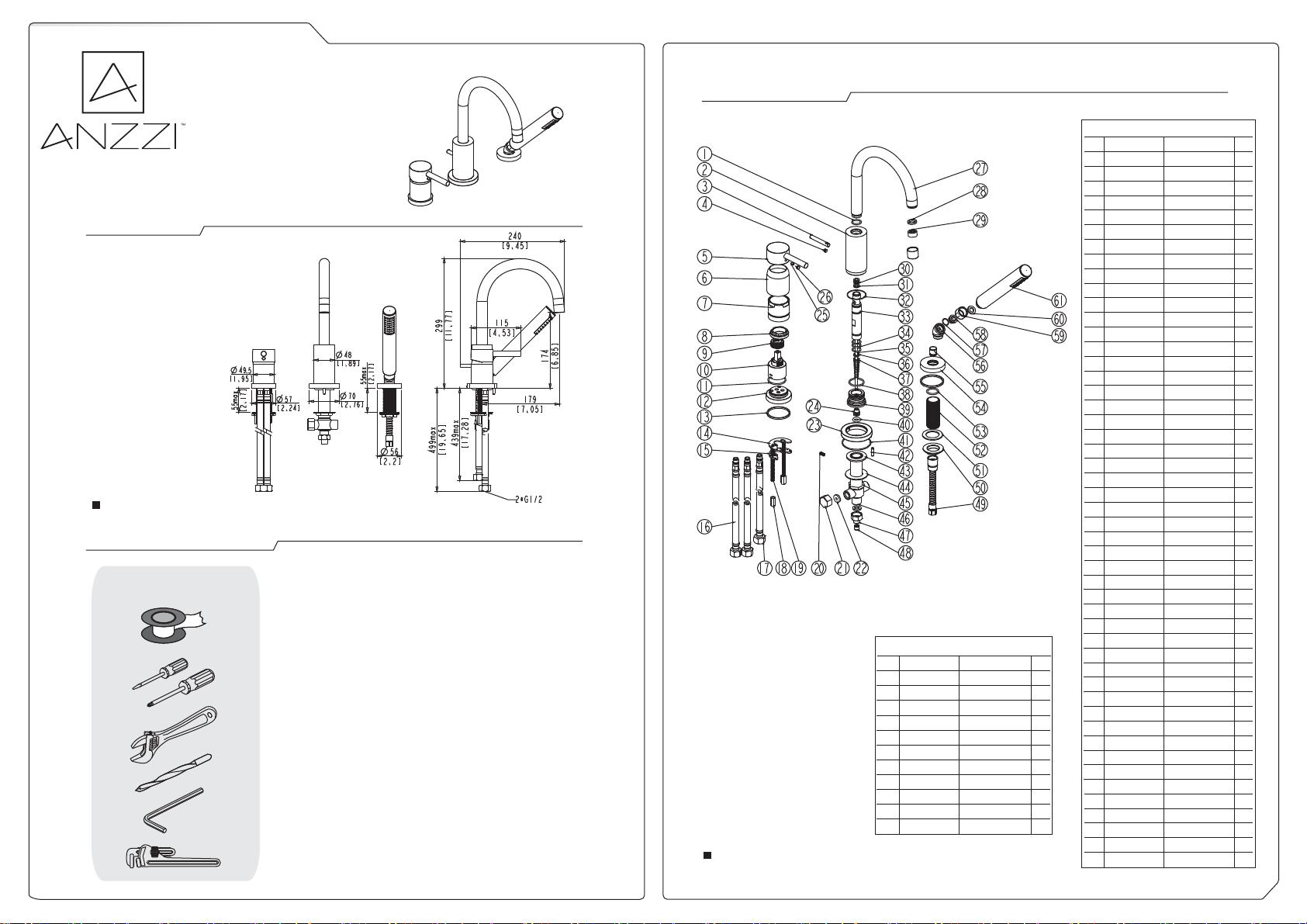

EXPLODED DRAWING

Notes For reference only. We reserve the right

to make changes without any notice.

Please read the followings before installing and usage.

[inch]For Reference only (unit = mm )

DIMENSIONS

FAUCET MAINTENANCE

CARE INSTRUCTIONS

To keep your faucet looking its best, please follow

these simple care instructions:

1. Remove as much surface dirt and film using

clear water and a soft cotton cloth.

2. Use any of the following to remove tough

surface film and build-up:

- Mild liquid detergent

- Non-acidic, non-abrasive gentle liquid cleanser

- Non-abrasive liquid polisher.

3. Once clean, rinse faucet with clear water to

thoroughly remove cleaner or polish and blot

dry with soft cotton cloth.

1. Use abrasive cleansers, cloths, or paper towels.

2. Use any cleaning agents containing acids, polish,

waxes, alcohol, ammonia, bleach, solvents or any

other corrosive or harsh chemical cleansers.

NO.

Part No Qty

CTRR0098

CTYB0522

CTMB0588

CTST0153

ATBH0072

CTCB0031

CTCT0046

CTKB0065

CTCP0363

ATBA0042

CTRR0091

CTDB0436

CTWR0114

CTWR0282

CTWT0071

ATBP0001

ATBP0071

CTNB0063

CTST0013

CTST0224

CTTB0014

CTWR0088

CTDB0423

CTDB0133

CTST0117

CTCP0072

ATBP0267

CTWR0024

CTQP0029

CTWB0048

CTRR0138

CTRR0215

CTPB0468

CTRR0082

CTMB0593

CTRP0067

CTBT0077

CTRR0137

CTDB0424

CTRR0139

CTRR0113

CTBB0026

CTWR0217

CTWT0038

CTNB0156

CTPB0188

CTMB0709

ATBA0100

ATBP0070

CTNB0016

Part Desc

O-RING

BODY

KNOB

SCREW

HANDLE

COVER

NUT

LIMIT RING

CARTRIDGE

O-RING

BASE

WASHER

HOSE

NUT

SCREW

PLUG

WASHER

BASE

HEAD

SCREW

CAP

SPOUT

WASHER

AERATOR

WASHER

O-RING

PIPE

O-RING

LIFT ROD

O-RING

SPRING

O-RING

BASE

O-RING

WASHER

NUT

PIPE

ADAPTOR

CHECK VALVE

HOSE

NUT

NO.

Part No

CTWR0061

CTPB0499

CTRR0142

CTDB0488

ATBA4028

CTPB0573

CTRR0009

CTSB0157

CTNB0338

CTWR0341

ATBE0141

Qty

Part Desc

WASHER

PIPE

O-RING

BASE

CHECK VALVE

PIPE

O-RING

SCREW

NUT

WASHER

SHOWER

DO:

DO NOT:

FR-AZ273

Installation Guide

For more information visit

www.ANZZI.com or call

1-844-44-ANZZI

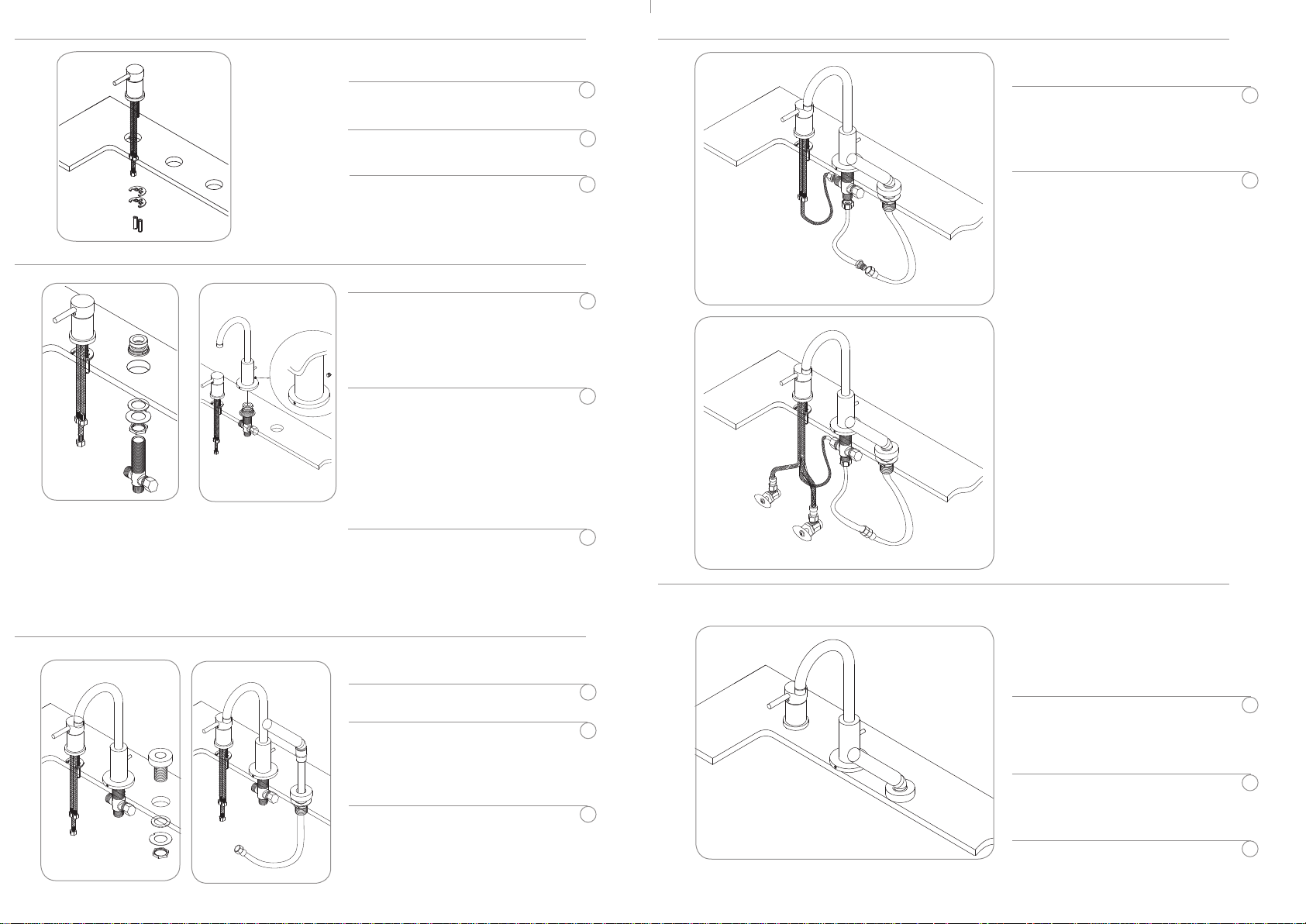

Ｈａｎｄｌｅｉｎｓｔａｌｌａｔｉｏｎ

Place the base of the handle ﬂange kit

on the left hole. Insert the braided ﬂex

connectors through the hole.

From underneath, place metal washer

and locknut on each threaded stud and

tighten gently by hand.

Now, position and properly align the

handle on top. Tighten the locknuts with

a ﬂat head screwdriver or appropriate

tool. Do not overtighten.

Ｓｐｏｕｔｉｎｓｔａｌｌａｔｉｏｎ

Unscrew the Allen screw in back of

the spout. Pull apart the spout from its

connector (do not unscrew). Separate

the spout ﬂange from the spout. Place

o-ring underneath the spout ﬂange and

place the ﬂange over the center hole

between the handle and hand shower.

Unscrew the superior spout locknut of

the spout connector. Make sure that the

locknut and the metal and rubber

washers are in place on the spout

connector. From underneath the

bathtub, insert the top of the

connector in the hole between the

handle and hand shower. From over

the bathtub, screw the superior spout

locknut to secure the connector and the

ﬂange in place.

Install the spout on the connector and

align the spout with the ﬂange, making

sure to insert the anti-rotation pin in

the stop hole. Tighten spout in place by

screwing the Allen screw in front of

the spout.

Ｈａｎｄｓｈｏｗｅｒｈｏｌｄｅｒｉｎｓｔａｌｌａｔｉｏｎ

Unscrew the locknut and take off metal

and rubber washers.

Insert the hand shower holder in the

hole making sure to place the o-ring

underneath the ﬁx holder. From under,

screw the rubber and metal washers,

as well as the retainer ring to the holder

in place.

Connect the hose to the hand shower

hole, making sure that the

rubber washer is in place.

From above, slide the hose through the

holder to sit the hand shower on its

base.

Ｓｔｅｐ１

Ｓｔｅｐ２

Ｓｔｅｐ３

Ｓｔｅｐ４

Ｓｔｅｐ５

Ｖａｌｖｅａｎｄｗａｔｅｒｓｕｐｐｌｙｃｏｎｎｅｃｔｉｏｎ

Using the ﬂexible connectors included

(5), connect the valve to the spout

connector. Use the extra ﬂexible

connector (14) to join the spout to the

hand shower hose.Tighten using

appropriate tool. (ill. A)

Connect hot and cold valves to the

corresponding water supply lines using

ﬂexible connectors and tighten. (ill.B)

Ｔｅｓｔｉｎｇｃｏｎｎｅｃｔｉｏｎｓ

WARNING: Remove aerator before

testing connections. Place the

appropriate wrench on the ﬂat edges

and unfasten. Use a cloth to not

damage the part. Do not overtighten.

Verify that there are no leaks by slowly

opening the hot and cold water. In case

of a leak, shut off the water supply and

tighten connectors 1⁄4 turn using the

appropriate tool. Repeat if necessary.

Turn on the faucet and leave both hot

and cold water running for at least one

minute to evacuate the air trapped in

the pipes. Turn off water.

Assemble the aerator as illustrated and

insert into the spout, tightening by hand.

You can now turn on water supply.

ill. A

ill. B
