DAS-T0804-SIG / DAS-T0808-SIG DATA SHEET

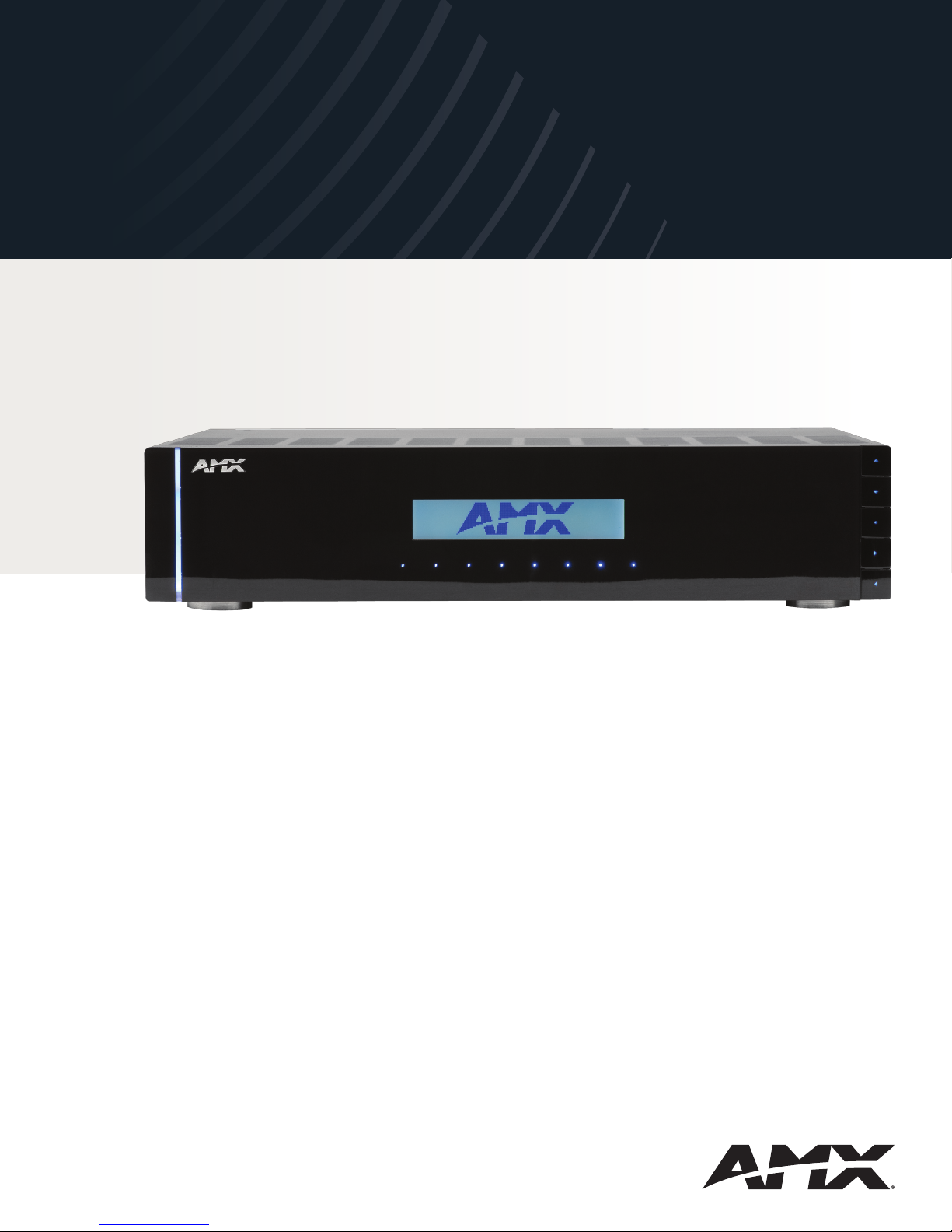

The Tango Audio Controller integrates all of your audio sources and makes them easily accessible from

a single, centrally managed location. Whether you want to access your favorite CD, a playlist of MP3s or

a game on satellite radio – Tango delivers it to you in warm, rich, room-ﬁlling sound. And Tango looks as

good as it sounds. Its showroom styling and ultra-sleek design allow it to be located visibly within the

listening environment.

WHAT DO YOU WANT TO LISTEN TO?

With support for eight independent audio sources, Tango’s got your listening needs covered. iPod audio, DVDs and CDs,

AM/FM radio, cable/satellite television, Sirius satellite radio and more – if it has an audio output, we can deliver it to you.

And rest assured, no matter what you’re listening to, it will sound as good in eight zones as it does in the room the source

is located in.

ROOM TO GROW

While Tango is tailored to support a variety of current distributed audio needs, its modular design allows it to grow with you

to accommodate future technologies via replaceable device, tuner and interface cards. While it can inherently support 8

sources and 4 or 8 zones, up to 7 Tango Zone Expanders can be added to the system to add up to 64 rooms/zones.

• Cancontrol8sourcesanddistributeto4or8rooms/zones

• Expandableto64zoneswithTangoZoneExpander

• 40wattsperchannelofstereosounddeliveredtoeachzone

• IncludesAM/FMtuner

• Macrocapable/Softwareadjustableinputattenuation/outputgain

• RS-232communicationandcontrolportandRJ-11expansionports

• DedicatedIRoutputs,8audioinputs/outputs(buffered)

• StandardSRS/WOW®technology enhances performance of ampliﬁers

Distributed Audio

Tango Audio Controller

DAS-T0804-SIG / DAS-T0808-SIG DATA SHEET

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com

Technical Drawing Forthcoming

DAS-T0804-SIG (FG1103-01)

DAS-T0808-SIG (FG1103-02)

POWER

960W max (actual average usage = 300W)

DIMENSIONS (HWD)

4” x 17” x 13 1/2” (including feet) (10.2 cm x 43.2 cm x 34.3 cm)

WEIGHT

31 lbs (14.06 kg)

FRONT PANEL COMPONENTS

•Navigation Buttons allow for front panel programming, selection of

sources, and tuning AM/FM radio stations (when controller is ﬁtted with

the optional tuner board). The same array appears on the Matrix KP-4e

navigational keypad

•IR Receiver - Where you must aim the remotes from your audio source

components so the Controller can learn and emulate those commands

•LCD Display - Displays information necessary during the programming

steps and afterward is the display to indicate information about the source

input and zone activity

REAR PANEL COMPONENTS

•Power Switch & Receptacle - The master power switch will remain in the

ON position normally

•Paging In/Out Ports - RCA jacks to connect to paging devices (any audio

input can be used as a paging device). The paging device connects to the

Controller via the “paging in” connector. The “paging out” connector is

used to carry the page to zone expander(s)

•RJ 45 Port - Ethernet Port for future expansion

•RS-232 Port 9-pin D connector to interface with NetLinx control systems

•AM/FM Antenna Inputs - Connections for the AM and FM Antennas

•Audio Inputs - Stereo Inputs, 47K impedance, buffered

•Audio Outputs - Stereo looping outputs, buffered

•IR Outputs - Eight IR 3.5mm mono output jacks

•Zone Outputs - Connections for up to 8 zone outputs that connect to

the keypads

•Expansion Port - RJ 11 port connects main Controller with zone expanders

STEREO OUTPUT

40 Watts/CH stereo (20Hz to 20Khz @ .1% THD)

ZONE SUPPORT

•Four (DAS-T0804-SIG) or eight (DAS-T0808-SIG) independent zones

•Each zone is protected thermally

•Zone grouping

•Independent volume, bass, treble, balance and SRS® controls in each zone

STEREO AMPLIFIERS

•40 Watts/CH stereo ampliﬁers (20Hz to 20Khz @ .1% THD)

•Ampliﬁers are protected from overload and thermal runaway

SRS/WOW®

Standard SRS/WOW® audio enhancement technology by SRS Labs, on

all zones

(Note: SRS/WOW is a registered trademark of SRS labs, inc.)

PRELIMINARY SPECS - SUBJECT TO CHANGE
