AMX AXF-S Master User manual

axcess cardframe

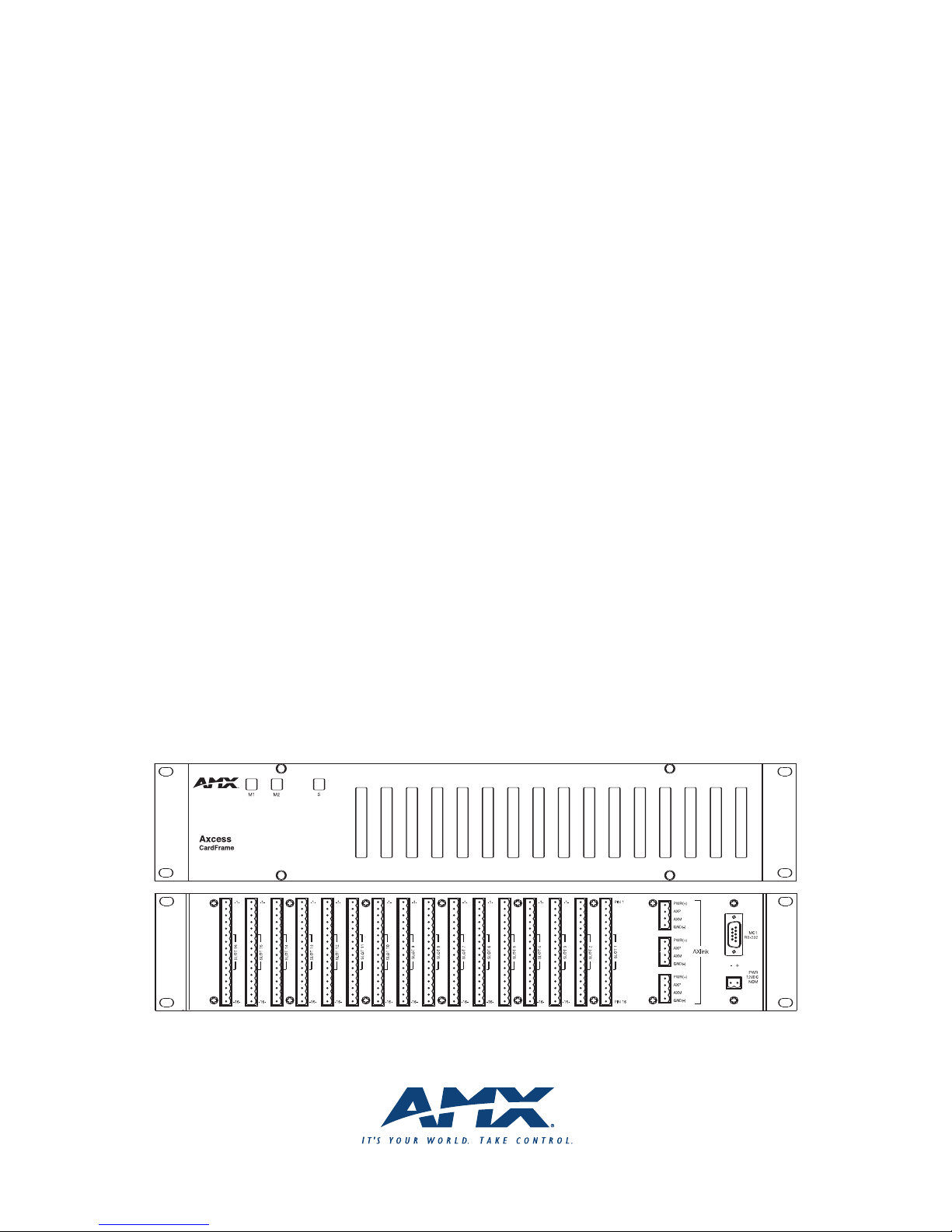

The Axcess CardFrame (AXF-M/S and AXF-S) is an ideal solution for

simplified system design, adaptation and support. Front-access cardslots

hold up to two Enhanced System Master cards, one Server card, and up to

16 device-specific control cards.

The AXF-M/S Master CardFrame includes an AXC-EM Enhanced System

Master Cardand acts as a central Axcess controller. A second AXC-EM

cardcan be used in the Master Card2slot, providing automatic backup of

the primary Master Card.

The AXF-S Server CardFrame acts as an AXLink Bus Controller, adding 16

control ports to any Axcess Central Controller.

Axcess CardFrame

axcess cardframe

ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN

LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA

ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com

AXF-M/S MASTER & AXF-S SERVER (FG 701-K, FG702-K)

•Enables flexible, modular system design, installation, and

support

•Accepts slide-in AXC control cards for removal or replacement

without disturbing existing wiring

•Provides viewing of LED status indicators on AXC cards to

simplify system testing

•Allows use of optional extender card for front-access testing and

adjustment of cards while in operation

•Expands control using AXC control cards, AXLink Server

CardFrames, Mini-CardFrames, and Bus Controllers

FRONT PANEL

M1: AXLink LED from main Enhanced Master Card

M2: AXLink LED from backup Enhanced Master Card

S: AXLink LED from Server Card

REAR PANEL

Slot 1–16: Sixteen 16-pin control jacks

MC1/RS-232: DB-9 male connector to MC1 Master Card program

port

AXLink: Three 4-pin jacks for AXLink data/power bus,

electrically identical

PWR: 2-pin jack for +12 VDC power input

ENCLOSURE

Metal with black matte finish; includes rack-mount brackets

Dimensions (HWD)

3.5" x 19.0" x 14.0"

(89 mm x 483 mm x 356 mm)

(width includes mounting ears)

WEIGHT

5.5 lbs (2.5 kg)

POWER

12 VDC, 130 mA mimimum (AXF-M/S)

12 VDC, 30 mA mimimum (AXF-S)

Additional power required as cards and accessories added

INCLUDES

One AXC-EM Enhanced Master Card(AXF-M/S)

One AXC-S Server Card (AXF-M/S and AXF-S)

Two 4-pin AXLink connectors

OPTIONS

EXM-256KB Extended Memory (AXC-EM)

CC- Series Control Cables

PS 2.8 12 VDC Power Supply 110/220 VAC, 2.8 A

PSN 6.5 12 VDC Power Supply 110/220 VAC, 6.6 A

This manual suits for next models
