Ameriwood HOME 3717348COM User manual

3717348COM

TV Stand

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B343717348COM1

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 2

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight. Failure

to do so may result in stripping the screw.

Press CAM BOLT into hole.

Press parts together so CAM BOLT inserts

into edge hole.

End hole

Press CAM LOCK into hole.

Arrow to point towards end

hole in edge of part.

Using a screwdriver, turn the CAM LOCK clockwise to

lock the CAM LOCK and CAM BOLT into their holes

and fastening parts together.

Please Note:

You may need to lightly tap the wood dowels into the holes during

your assembly process.

Board Identification

Not actual size

Left Panel

33717348010 Right Panel

33717348020 Upper Partition

33717348030 Lower Partition

33717348040

Top

33717348050 Bottom

33717348060

Shelf

33717348070

Top Rail

33717348080

Front Rail

33717348090

Rear Rail

33717000100

Left Rail

33717348110

Board Identification

Not actual size

This part is paperboard construction.

It is not made from wood, but is

required for the assembly of your

unit.

Right Rail

33717348120 Left Outer Door

33717355130

Right Outer Door

33717355140

Left Inner Door

33717355150

Right Inner Door

33717355160

Back Panel

K371734800

LMN O

Part List

Actual Size

Note: Your model may have

extra hardware included.

(x8)

#A23030

confirmat screw

(x16)

#A21670

wood dowel

(x16)

#A22760

quickloc

(x4)

#A89370

door bumper

(x9)

#A12120

#8 x 7/16"

panhead screw

(x17)

#A21110

nail

(x18)

#A22700

cam lock

(x18)

#A22710

cam bolt

Not Actual Size

(x4)

#A65640

hinge

(x1)

#B64357

TV Warning Label

(x4)

#A65615

hinge

STEP1

(x8)

STEP2

(x2) (x4)

Proper orientation of CAM LOCK

Tip

Assembly

Quick

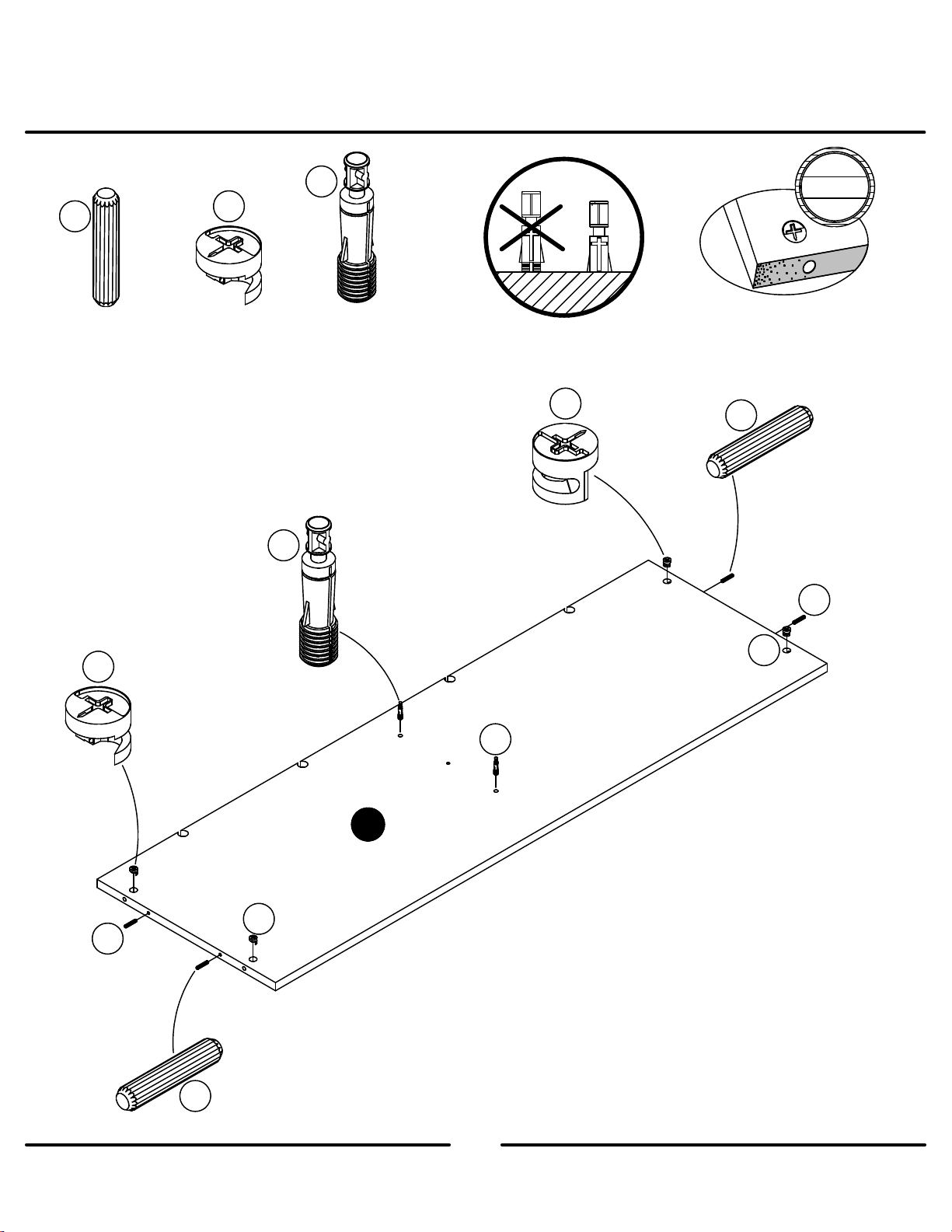

STEP3

(x4) (x4) (x2)

Proper orientation of CAM LOCK

Tip

Assembly

Quick
