Ameriwood HOME 3391348COM User manual

B343391348COM00GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

3391348COM

NIGHTSTAND

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR

Helpful Hints

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Tube

You

Tube

You

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

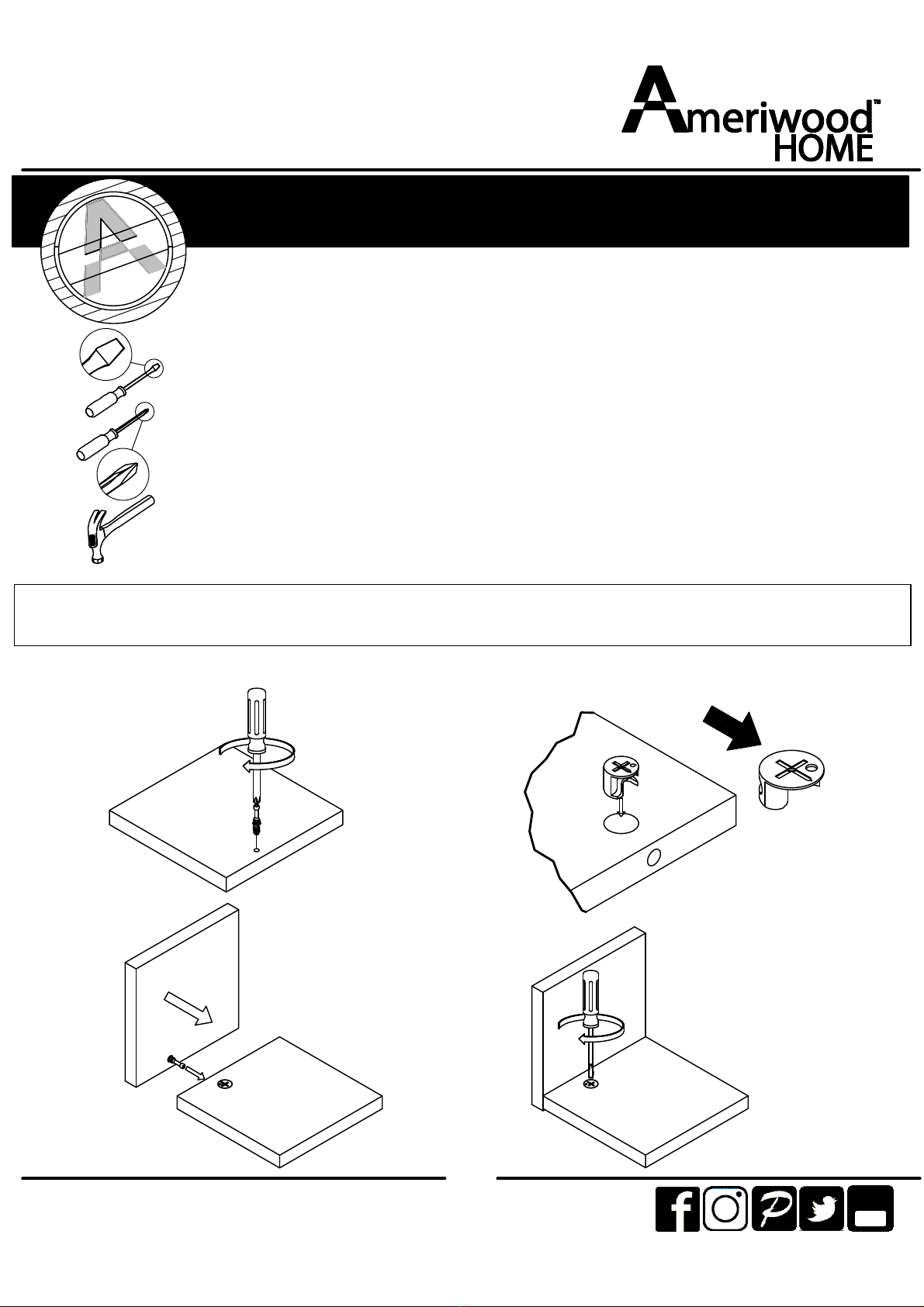

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

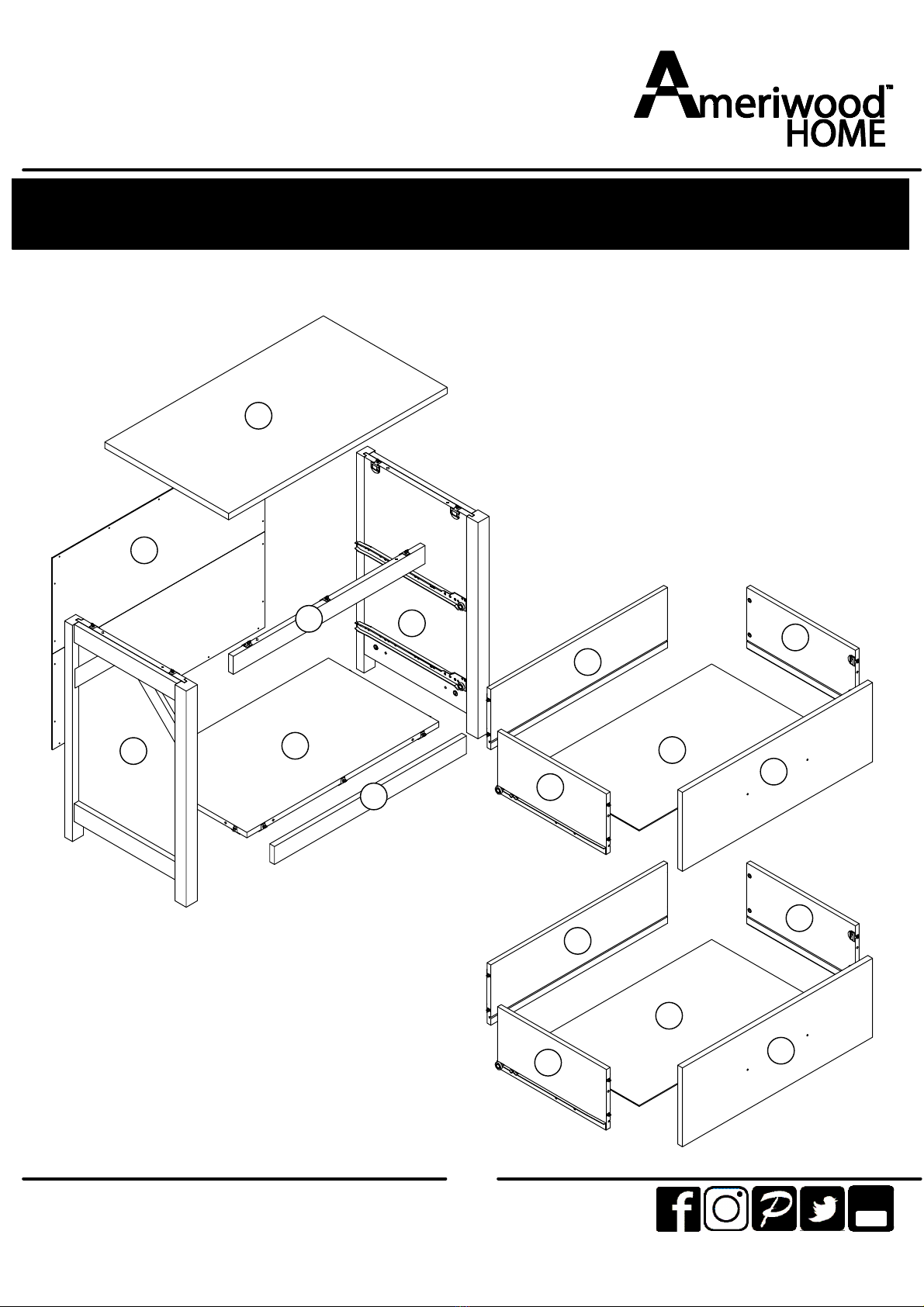

Board Identification

Not actual size

ameriwoodhome.com

TOP

T3391348010GO

QTY: 1 PC

Tube

You

LEFT SIDE

T3391348020GO

QTY: 1 PC

RIGHT SIDE

T3391348030GO

QTY: 1 PC

TOP RAIL

T3391348040GO

QTY: 1 PC

BOTTOM RAIL

T3391348050GO

QTY: 1 PC

BOTTOM

T3391348060GO

QTY: 1 PC

BACK PANEL

T3391348070GO

QTY: 1 PC

DRAWER FRONT

T3391348080GO

QTY: 2 PCS

DRAWER LEFT SIDE

T3391348090GO

QTY: 2 PCS

DRAWER RIGHT SIDE

T3391348100GO

QTY: 2 PCS

DRAWER BACK PANEL

T3391348110GO

QTY: 2 PCS

DRAWER BOTTOM

T3391348120GO

QTY: 2 PCS

JKL

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

Part List

ameriwoodhome.com

Hardware Bag Reference number:

23391348COM0GO

Actual Size

Tube

You

×16

WOOD DOWEL

TGO2903

Ø6 x 30mm

1 ×18

Ø3 x 12mm

SCREW

TGO1301

Not Actual Size

×4

M4 x 19mm

BOLT

TGO1608

×2

HANDLE

TGO5518

210*35*18 mm

ameriwoodhome.com

STEP

1.1 Insert (1) into (D) as illustrated.

1.2 Attach (D) into (A) with dial button as illustrated.

Tube

You

×2

FINISHED EDGE

UNLOCK LOCK

ameriwoodhome.com

STEP

Tube

You

2.1 Insert (1) into (F) as illustrated.

2.2 Attach (E) into (F) with dial button as illustrated.

×6

FINISHED EDGE

UNLOCK LOCK

ameriwoodhome.com

STEP

Tube

You

3.1 Insert (1) into (B), (C) as illustrated.

1 ×4

ameriwoodhome.com

STEP

Tube

You

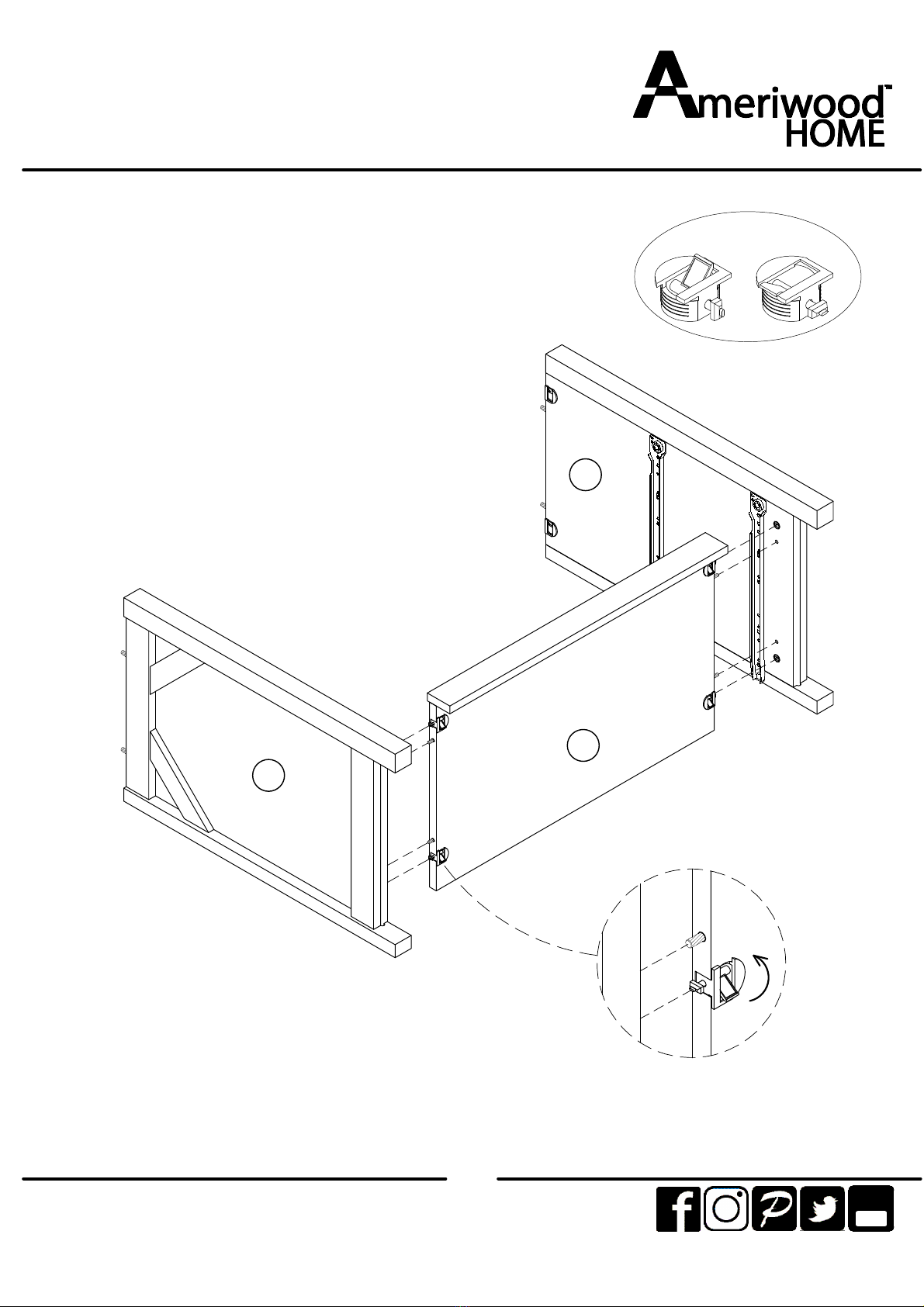

4.1 Attach (B), (C) into (F) with dial button as illustrated.

UNLOCK LOCK
