American Standard Link UX360 User manual
Model AHUI2360A200U 012-5063-01B-EN
American Standard® Link UX360 Thermostat User Guide
One System.
Limitless Potential.
Complete Control.
TM
page 2 UX360 User Guide
Introducing your new American
Standard® Link system.*
Communicating technology enabling
remote system monitoring and peace
of mind.
This guide will introduce you to many of the
features of your new American Standard Link
system.
To enjoy the full benets of your system, it should
be connected to a American Standard Home
account.
For online support go to www.asairhome.com.
Scroll to the bottom of the page and select Help.
*SC360 System Controller (TSYS2C60A2VVU) is required.
Features Include:
• Wi-Fi Conguration for SC360
• Allergy Clean/Quick Clean Cycles
• Humidity Sensor
• Programmable Scheduling
• One Touch Presets
• System Alerts
• Screen Saver
• Color Themes
• System Software Upgrades
• Diagnostics
• Sensor Averaging
Congratulations!
012-5063-01B-EN page 3
Home Screen................................................... 4
Menu ............................................................... 5
Settings ........................................................... 6
Wireless Technician Access ............................ 7
Thermostat Settings....................................... 8
Temperature Scale................................................................8
Setpoint Deadband..............................................................8
Indoor Sensor Calibration..................................................8
Screen Settings ............................................... 9
Display ......................................................................................9
Access Restrictions............................................................. 10
Weather ......................................................... 11
Current................................................................................... 11
5-day Forecast..................................................................... 11
Postal Code........................................................................... 11
Indoor Humidity ........................................... 12
System Info ................................................... 13
1-Touch Presets............................................. 14
Scheduling .................................................... 16
Changing the Schedule................................ 17
Adding Periods ................................................................... 19
Deleting Periods................................................................. 20
Network Connection .................................... 21
Mobile App Registration.............................. 22
Bridge for Z-Wave® Devices
Adding/Removing Devices............................................. 24
Adding Devices (via mobile app)................................. 25
Advanced Bridge Settings .............................................. 27
Other Features .............................................. 28
Contents
American Standard Home Remote Climate Access is included with the purchase of American Standard smart connected controls. Up
to eight American Standard smart controls, of any combination, may be connected to an American Standard Home account without
a monthly service fee. Additional smart controls and home automation devices may require a monthly subscription for remote
access via most web-enabled smartphones, tablets and computers. Internet service and American Standard Home registration
required. Ask your American Standard dealer for details.
American Standard Home Benets
The UX360 is designed to work in concert
with American Standard Home to provide the
convenience and advantages of a Smart Home.
Simplied Scheduling
Log into the American Standard Home website.
Simply point and click and your customized
schedule is set straight away.
Runtime History
Keep track of your system by downloading the
cooling and heating system runtime history from
American Standard Home.
Diagnostics
With your approval, Diagnostics allows your local
dealer to remotely monitor your home’s heating
and cooling system using real-time performance
data, ensuring you receive the highest possible
level of Customer Service from American
Standard and your American Standard Dealer.
Ask your dealer about Diagnostics.
page 4 UX360 User Guide
Home Screen
Alerts/Notications appear across banner
Date/ Time
appear across
banner
System Mode
Fan Mode
Schedule
Mode
Air Eects
Mode
Cooling Mode
Set Point
Network
Status
Desired Set
Point
Heating Mode
Set Point
Menu/Back
Ventilation Dehumidifying
Current Indoor
Temperature
Wireless Sensor
Status
System StatusEmergency HeatingSchedule
Status
012-5063-01B-EN page 5
Menu
Screen Settings
System Alerts,
Notications and
About Info
Press to access
all user settings
Temp Scale,
Deadband and
Calibration
One Touch
Presets
Service/ Tech
Access Menu
Bridge for
Z-Wave®Devices
Scheduling Humidity ControlWeather and
5-Day Forecast
Exit Menu
page 6 UX360 User Guide

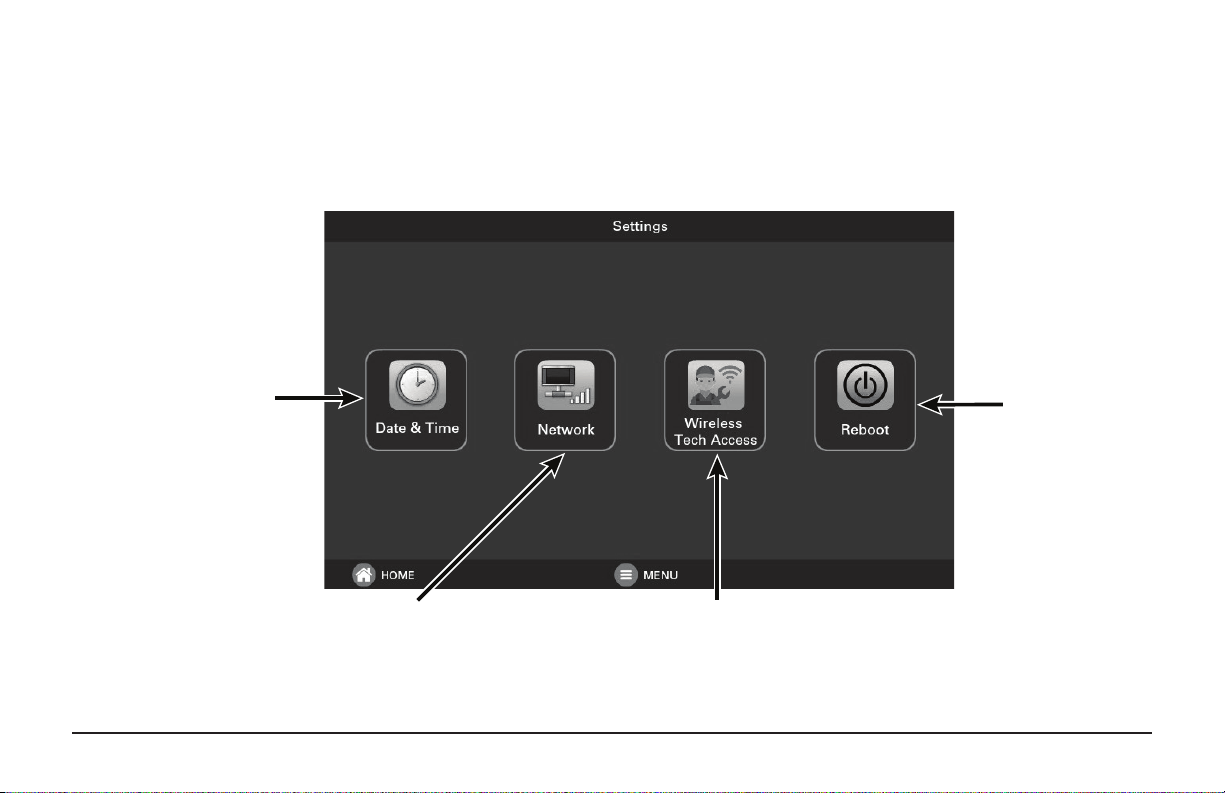

Settings
Restart the
thermostat and all
communicating
equipment on the
system
Connect to a Wi-Fi network. Enable/Disable
wireless connection, access Advanced Setup,
Network Properties and Diagnostics
Enable/Disable wireless access
to equipment for technician
Manually set the
Date & Time. No need
to update when
connected to American
Standard Home
Navigate to Settings by selecting: Home Screen > Menu > Settings
012-5063-01B-EN page 7

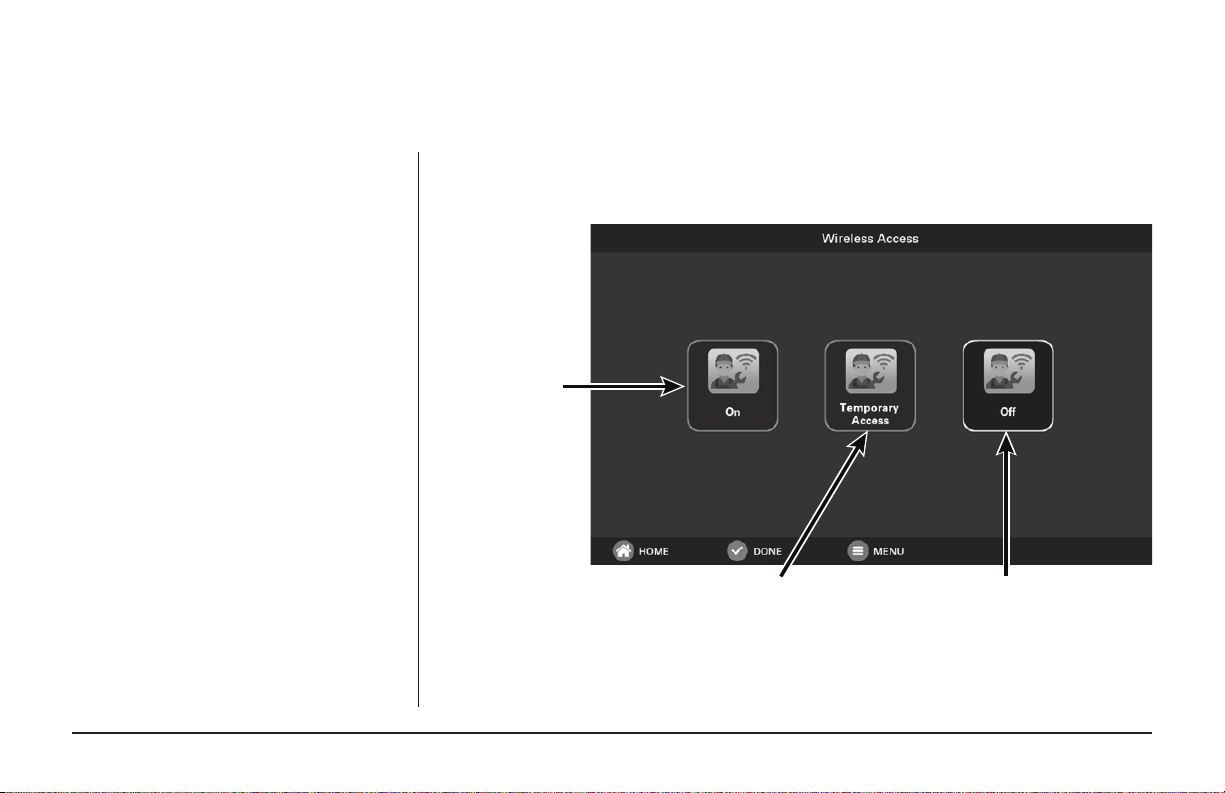

Wireless access is enabled
temporarily for 24 hours. After 24
hours, access will be disabled
Wireless access is disabled
Wi
reless access is
always enabled
Wireless technician access allows the
technician to wirelessly connect to the
communicating equipment on the system.
Wireless Technician Access
page 8 UX360 User Guide

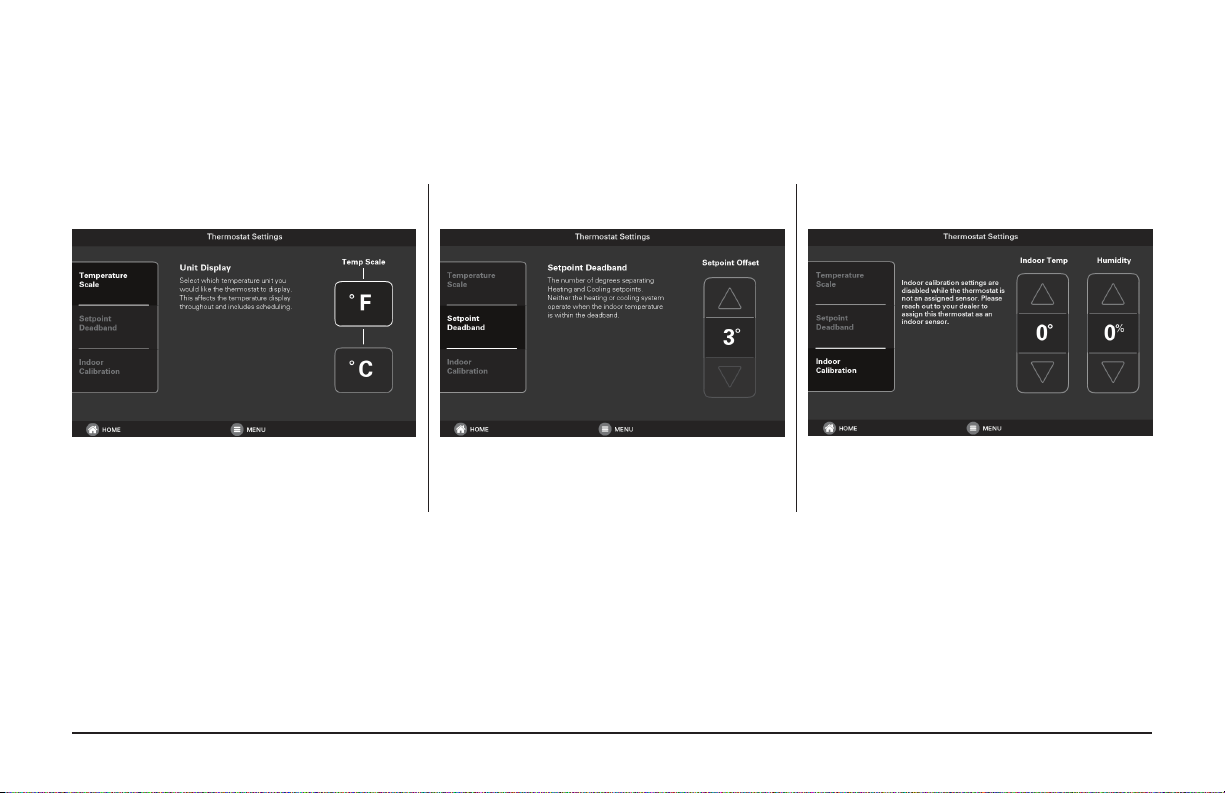

Temperature Scale Setpoint Deadband Indoor Sensor Calibration
NOTE: Indoor sensor calibration settings are
disabled when the thermostat is not enabled as an
indoor sensor. Please contact your dealer for help.
Thermostat Settings
Navigate to Thermostat Settings by selecting: Home Screen >Menu >Thermostat
012-5063-01B-EN page 9

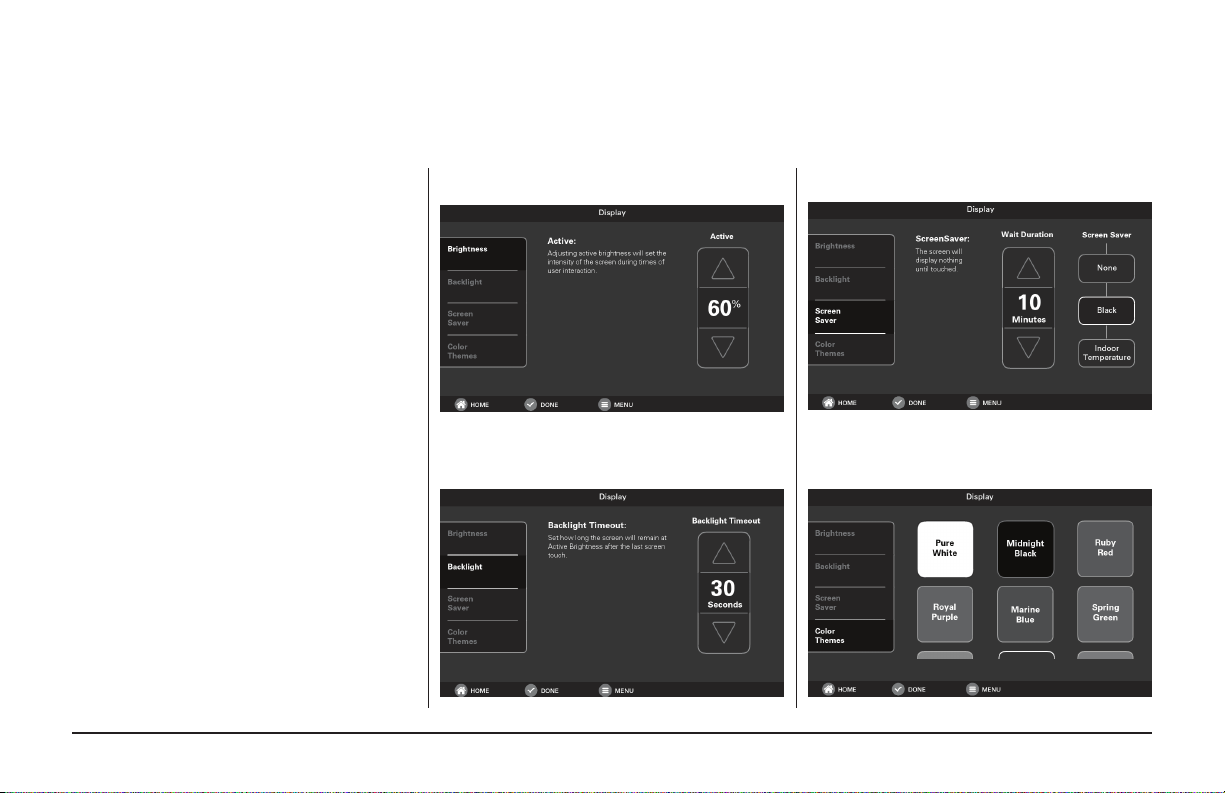

Display
Navigate to Display Settings by selecting:
Home Screen >Menu >Screen Settings >
Display
Select your preferred display brightness,
backlight, screen saver and color theme
settings and press Done.
Brightness
Backlight
Screen Saver
Color Themes
Screen Settings
page 10 UX360 User Guide
Access Restrictions
Navigate to Access Restrictions by selecting:
Home Screen >Menu >Screen Settings >
Access Restrictions
The UX360 features several levels to restrict
access to functionality. Select the desired level
of access restriction and select Done.
Applying an access restriction will cause the
screen to lock when inactive for one minute.
Restriction Description
None No restrictions applied
Low Menu access is disabled
Medium
- Menu access is disabled
- Congurable limit for
adjusting heating and cooling
setpoints
High
Access is disabled for all settings
Screen Settings (Cont.)
