American Dynamics DeltaDrone II User manual

Installation Guide

8000-2684-01, Rev. C (2 pages) CCTV PRODUCTS 1

1DeltaDrone™ II

Fixed Camera

AD614 Series

The DeltaDrone fixed camera is housed inside a

DeltaDrone housing. Two camera types are

available: NTSC (60Hz color) and PAL (50Hz color).

Each camera has manually positioned pan and tilt

(the pan has 370° of travel) and manually set

zoom, focus, and iris. The drone camera comes

fully assembled and is simple to install.

IMPORTANT! Anytime you are using a VM96

video controller, and the SpeedDome Ultra Drone

II camera dome is:

•New: Reset the VM96 to update the

configuration form to a fixed camera.

•A replacement for the SpeedDome Ultra

camera dome: Delete the SpeedDome Ultra

configuration form as explained in the VM96

Administrator’s Manual 8000-0756-05. Then

reset the VM96 to update the configuration

form to a fixed camera.

Procedure

The following steps refer to figures opposite:

1. Attach camera dome to base containing a

pigtail connector or I/O board.

a. Align recessed dimple on cap of dome with

red dot on base (pigtail) or logo visible on

I/O board.

b. Mate housing and eyeball assembly to base

and turn it clockwise until you hear a click.

Notes:

This is a fixed camera, no data lines are required.

If connecting to a pigtail base, an LED at top of

dome housing indicates 12V power. This LED

cannot be seen after connection to the I/O board.

2. As shown on page 2, turn eyeball if necessary

to access slot cover containing lens. Unsnap

this cover by gently tugging it away from

eyeball.

3. You now have access to the camera set screw.

To access lens adjustments, loosen set screw

and gently pull camera out until screw reaches

front end of slot. Retighten set screw.

Pigtail Connections (9-pin connector)

Pin Color Designation

1–2 N/A Not used.

3 Black 24Vac

4 Red Ground

5 White 24vac

6–9 N/A Not used.

I/O Board Connections (connector P7)

Pin Color Designation

1 Black 24Vac

2 Red Ground

3 White 24vac

Power

LED

2 INSTALLATION GUIDE DELTADRONE FIXED CAMER

8000-2684-01, REV.

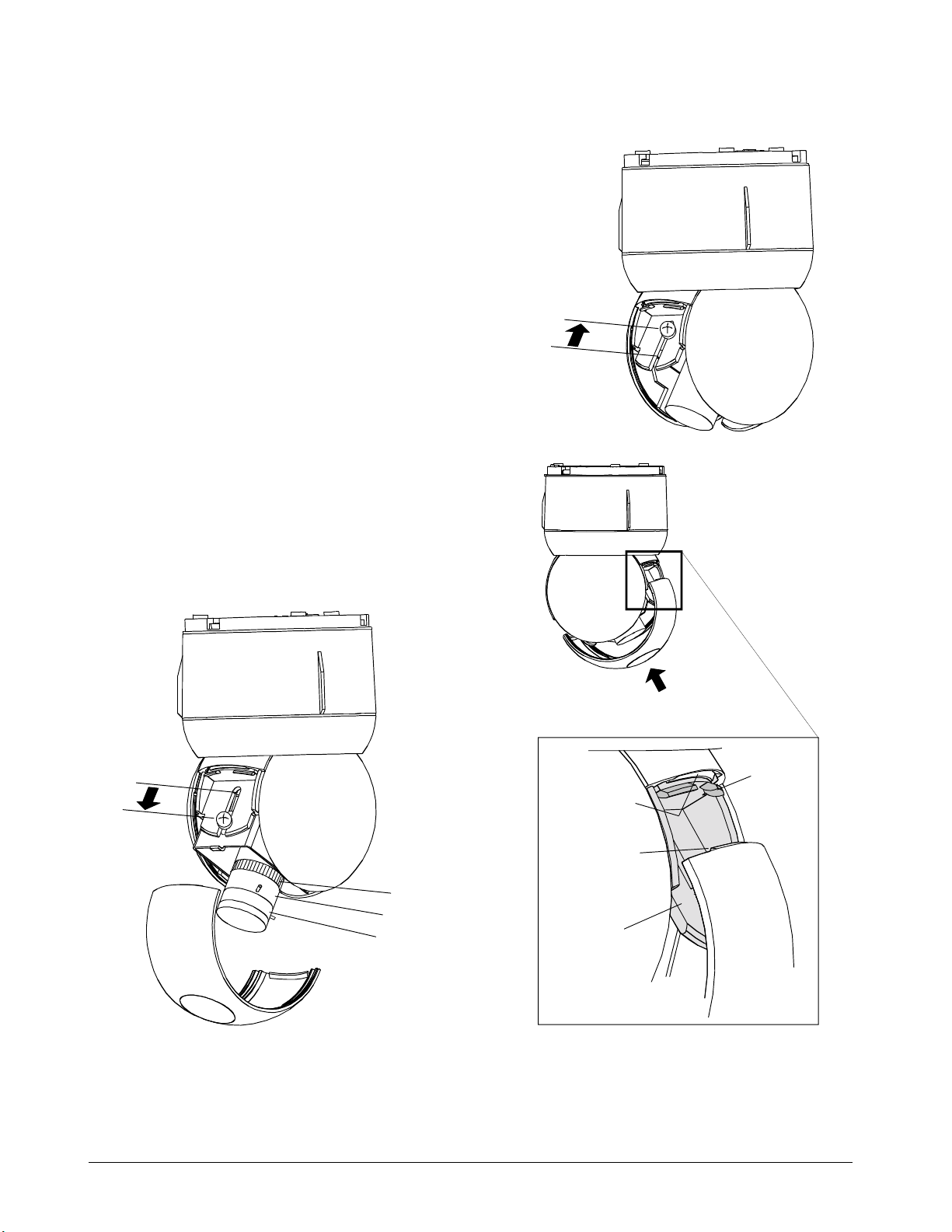

4. Adjust camera as follows:

a. Attach a hand-held camera monitor to video

cable entering mounting base, or have a

second person view the remote monitor

while you adjust the camera.

b. Adjust pan and tilt to point camera at target,

then adjust zoom, focus, and iris as desired.

c. Do not adjust the back focus ring on lens.

d. Combine zoom and focus ring adjustments

to achieve the desired view.

5. Loosen set screw and push camera in until

screw contacts rear end of slot. Retighten set

screw.

6. Ensuring that tongue and grooves of slot cover

already attached to dome are centered over

tabs of the yoke, reattach lens slot cover by

mating tongue and grooves together and gently

pressing until you feel a snap.

WARNING: The tongue and grooves must be

centered over tabs of yoke. Failure to properly

insert cover could result in it falling off during

operation. Tug on cover to ensure it is secure.

Focus

Zoom

Iris

Tongue

Groove

Tabs

Yoke
