American Dryer Corp. CG20 User manual

SL20/CG20 Parts Manual

Phase 7

COIN & NON-COIN (OPL)

ADCPartNo.450222

AmericanDryerCorporation

88Currant Road

FallRiver,MA02720-4781

Telephone: (508) 678-9000 / Fax: (508) 678-9447

E-mail:techsupport@amdry.com

www.amdry.com

Retain This Manual In ASafe Place For Future Reference

American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is

properly maintained, it will provide many years of safe, efficient, and trouble free operation.

ONLY qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with

the dryer.

The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.

We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make

changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or

discontinue models.

Important

For your convenience, log the following information:

DATE OFPURCHASE ____________________________ MODELNO. __________________________________________

RESELLER’SNAME _______________________________________________________________________________________

Serial Number(s) ________________________________________________________________________________________

________________________________________________________________________________________

Replacement parts can be obtained from your reseller or the ADCfactory. Whenordering replacement parts from thefactory,

you can FAX your order to ADC at (508) 678-9447 or telephone your order directly to the ADC Parts Department at (508)

678-9000. Pleasespecify the dryermodel numberand serialnumberin addition to thedescriptionand partnumber,so that

your order is processed accurately and promptly.

The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the

various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.

“IMPORTANTNOTETOPURCHASER”

Informationmustbeobtainedfromyourlocalgassupplierontheinstructions

tobefollowedifthe user smells gas. Theseinstructionsmustbeposted in a

prominentlocationnearthedryer.

FORYOUR SAFETY

Donot store or use gasolineor

otherflammablevaporsand

liquidsinthevicinityofthisor

anyotherappliance.

POURVOTRESÉCURITÉ

Nepasentreposer ni utiliser d’essence

nid’autresvapeursou liquides

inflammablesàproximitédecet

appareiloude tout autreappareil.

Table of Contents

Phase7 OPLTop PanelAssembly

ForTopControl Models..................................................................................................................... 2

Phase7CoinTopPanelAssembly

ForTopControl Models..................................................................................................................... 3

Phase7TopPanelAssembly

ForBottomControl Models ............................................................................................................... 4

FrontBottomPanelAssembly ................................................................................................................. 5

MainDoorAssemblies............................................................................................................................ 6

MiddleFrontPanelAssembly ................................................................................................................. 7

LintDrawerAssembly ............................................................................................................................ 8

Basket(Tumbler)Assembly .................................................................................................................... 9

FrontBasket(Tumbler)/SupportPanelAssembly................................................................................... 10

RearSupportPanelAssembly ............................................................................................................... 11

Basket(Tumbler)RollerWheelAssemblies ........................................................................................... 12

S.A.F.E.SystemPipingAssembly ......................................................................................................... 13

TemperatureSensorAssemblies ............................................................................................................ 14

MotorDriveAssembly.......................................................................................................................... 15

DirectSparkIgnition(DSI) BurnerAssembly .................................................................................. 16, 17

ElectricOvenAssembly ........................................................................................................................ 18

LintBox/BlowerMotorAssembly ......................................................................................................... 19

BlowerAssembly ................................................................................................................................. 20

BlowerMotorAssembly ....................................................................................................................... 21

RearElectricalPanelAssembly

ForGas ModelsOnly ..................................................................................................................... 22

RearElectricalPanelAssembly

ForElectricModelsOnly................................................................................................................ 23

HeatDuctAssembly ............................................................................................................................. 24

SailSwitchAssembly ............................................................................................................................ 25

Base/Top/Sides/BackGuardAssemblies ............................................................................................... 26

PedestalBoxOption............................................................................................................................. 27

AdditionalPartsAvailable ..................................................................................................................... 28

2Phase 7 OPL Top Panel Assembly

Illus. No. Part No. Qty.Description

1 112579 1 Phase 7 Keyboard

2 137250 1 Phase 7 Ribbon Cable

3 137270 1 16” x 1” Large Character Display

4 150005 4 #6-32 x 1/4” Phillips Round Head Machine Screw

5 153010 4 #6 Star Washer

6 883434 1 Phase 7 Board with Sensor Activated Fire Extinguishing (S.A.F.E.) System

7 818173 1 SL-20 Black Control Panel

818196 1 CG-20 Black Control Panel

8 153603 8 Snap Top Standoff

9 -------* 1 Logo ONLY

10 818206 1 Magnetic SwitchAssembly

* Contact reseller for logo.

ForTopControlModels

Phase 7 Coin Top Panel Assembly

ForTop ControlModels

Illus. No. Part No. Qty.Description

1 137270 1 16” x 1” Large Character Display

2 152015 4 8-32 Hex Nut

3 153010 4 #6 Internal and External Star Washer Zinc

4 150005 4 6-32 x 1/4” Phillips Round Head Machine Screw

5 112579 1 Phase 7 Keypad

6 137250 1 Phase 7 Ribbon Cable

7 887007 1 Phase 7 Coin Board (without S.A.F.E.)

887009 1 Phase 7 Coin Board (with S.A.F.E.)

8 152016 5 4-40 1/4” Hex Nut

9 153045 5 4 Split Lock Washer

10 883783 1 $0.25 US Coin Acceptor

883784 1 $0.25 Canadian Coin Acceptor

883785 1 0.880 x 0.062 Token Optic CoinAcceptor

883786 1 0.880 x 0.07 Token Optic CoinAcceptor

883787 1 100 Yen Optic Coin Acceptor

11 818181 1 Upper Control Panel (Black)

12 818132 1 CoinVault

13 318538 1 Faceplate for US Coin

14 818206 1 Magnetic Switch

15 883774 1 Optic Switch

4Phase 7 Top Panel Assembly

ForBottom ControlModels

Illus. No. Part No. Qty.Description

1 818431 1 SL-20 Black Control Panel

2 150005 4 #6-32 x 1/4” Phillips Round Head Machine Screw

3 153010 4 #6 Star Washer

4 887009 1 Phase 7 Board with Sensor Activated Fire Extinguishing (S.A.F.E.) System

5 153603 4 Snap Top Standoff

6 818206 1 Magnetic SwitchAssembly

7 -------* 1 Logo ONLY

* Contact reseller for logo.

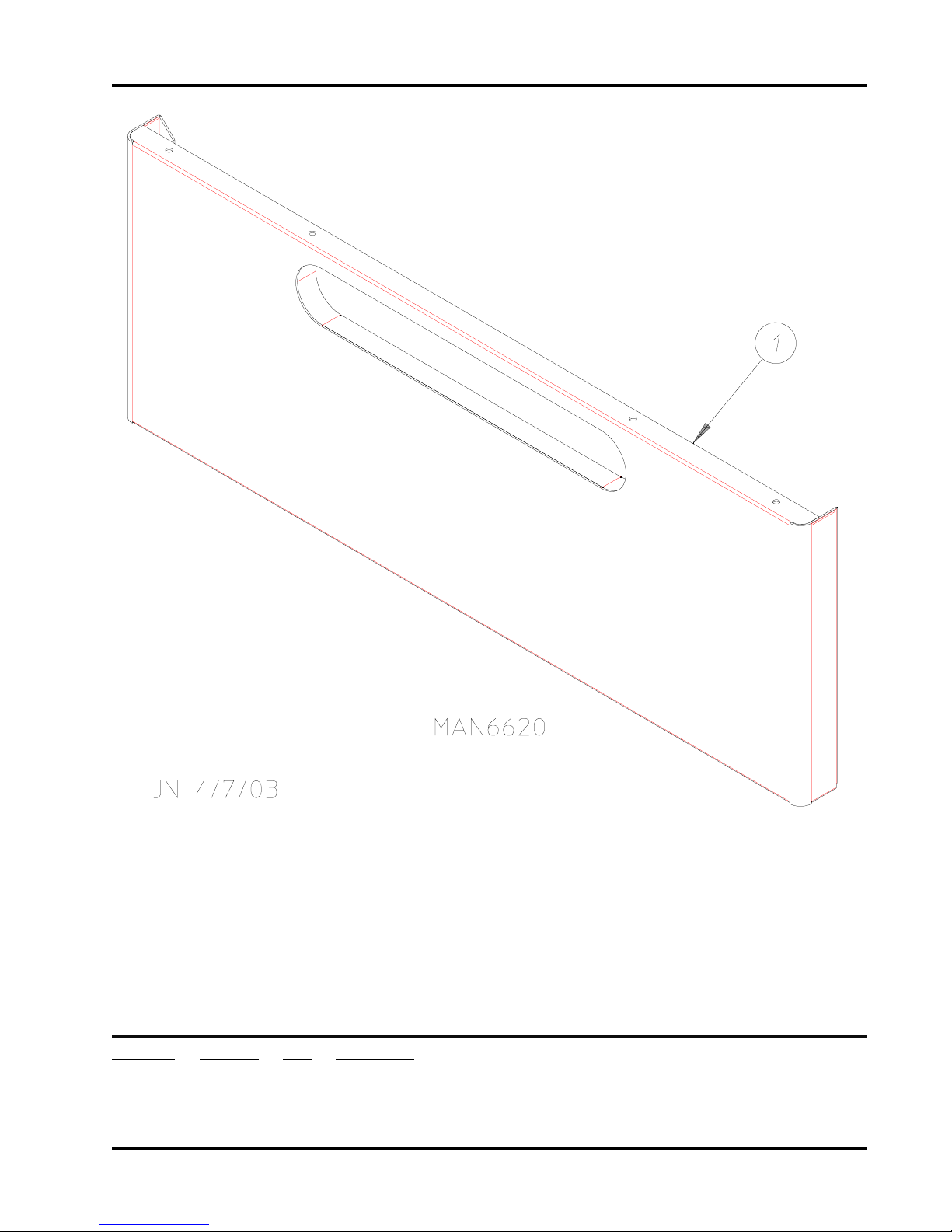

Front Bottom Panel Assembly

Illus. No. Part No. Qty.Description

1 818165* 1 Front Bottom PanelAssembly

* Specify color when ordering.

6Main Door Assemblies

Illus. No. Part No. Qty.Description

1 883824 1 Door Pan with Glass

2 883823 1 Door (left hinge)

(includes illus. nos. 2, 13 and 14)

883825 1 Door (right hinge)

(includes illus. nos. 2, 13 and 14)

3 102313 1 Door Gasket (fiberglass)

4 151016 4 #8-32 Acorn Nut

5 150322 8 #6 x 1/2” Self-Drilling Screw

6 102314 1 Door Gasket (rubber)

7 153000 4 #8 Flat Washer

8 153012 4 #8 Star Washer

9 150327 2 #6 x 1/2” Phillips Flat Head Screw

10 170230 1 Door Handle

11 103079 2 Door Hinge

12 150328 2 1/4-20 x 1” Stainless Steel Phillips Head Screw

13 102384 2 Rubber Bumper

14 170608 1 Magnet

818159 1 DoorAssembly Complete (left hinge)

(includes illus. nos. 1 through 14)

818178 1 DoorAssembly Complete (right hinge)

(includes illus. nos. 1 through 14)

401010 1 Adhesive for Item (6) Door Gasket (5 oz. tube)...Not Illustrated

Middle Front Panel Assembly

Illus. No. Part No. Qty.Description

1 150322 32 #6 x 1/2” Self-Drilling Screw

2 318146 2 Door Catch Holder

3 818104 1 Middle Front PanelAssembly Complete (specify left or right hinged)

(includes illus. nos. 1 through 9)

4 318249 1 Door Catch Cover

5 150531 1 #6 x 1-1/4” Phillips Pan Sheet Metal Screw

6 170228 1 Door Catch

7 150399 4 #8 x 1/2” Phillips Self-Drilling Screw (for models without hinge studs)

8 150301 4 #8 x 7/16” Phillips Pan Head TEK Screw

9 150329 2 #4 x -3/8 Phillips Pan Head Machine Screw

10 151016 4 #8 Acorn Nut (for models with hinge studs)

11 153000 4 #8 Flat Washer (for models with hinge studs)

12 153012 4 #8 Star Washer (for models with hinge studs)

Illus. No. Part No. Qty.Description

1 883751 1 Lint Drawer Handle

(includes illus. nos. 1 through 5)

2 151010 2 #10-32 Hex Acorn Lock Nut

3 153420 2 #10 Split Lock Washer

4 318541 2 Offset Washer

5 117605 2 Gasket (sold by the foot)

6 883752 1 Lint Drawer Assembly

(includes illus. nos. 6 and 7)

7 116054 1 Lint Drawer Felt

818166 1 Lint Draw Complete with Handle

(includes illus. nos. 1 through 7)

LintDrawerAssembly
