Amana NED5100TQ0 User manual

TOP AND CONSOLE PARTS

For Model: NED5100TQ0

(Designer White)

1−08 Litho in U.S.A. (LT) Part No. W10183677 Rev. A

29" ELECTRIC DRYER

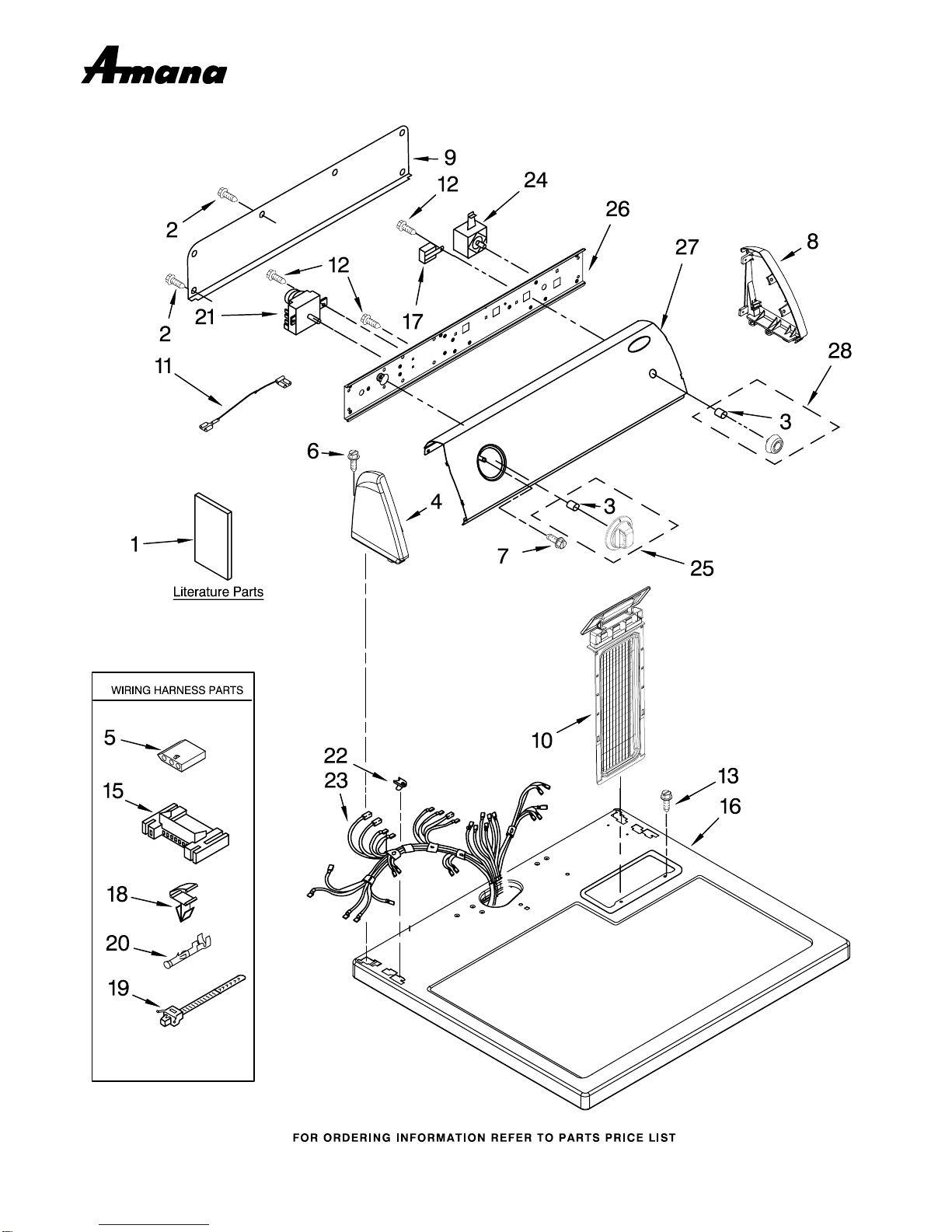

TOP AND CONSOLE PARTS

For Model: NED5100TQ0

(Designer White)

W10183677

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10150620

Guide, Use & Care

W10150612

Instructions,

Installation

W10150656

Sheet,

Cycle Feature

8576793 Wiring Diagram

2 693995 Screw, Hex Head

3 8536939 Spring, Clip Knob

4 8271365 Cap, End (L.H.)

5 3936144 Connector

6 388326 Screw, Console

7 8533951 Screw, Grounding

8 8271359 Cap, End (R.H.)

9 8274261 Panel, Rear

Console

10 8558467 Screen, Lint

11 3393815 Wire, Jumper

12 8533971 Screw, 8−18 x 5/16

13 688983 Screw, 8−18 x 5/8

15 3395683 Connector

(Motor)

16 8557930 Top

17 694419 Mini−Buzzer

18 3394427 Clip, Harness

19 3391249 Tie, Cable

20 94614 Terminal

21 8299781 Timer, 60 Hz.

22 357213 Nut, Push−In (2)

23 8576500 Harness, Wiring

24 3977456 Switch,

Push−To−Start

W10110048

Timer Knob

Assembly

26 8271418 Bracket, Control

W10182636

Panel, Control

W10110049

Knob,

Push−To−Start

CABINET PARTS

For Model: NED5100TQ0

(Designer White)

W10183677

CABINET PARTS

For Model: NED5100TQ0

(Designer White)

W10183677

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8541400 Bracket, Cabinet

2 3393008 Screw, 10−16 x 1/2

3 3397659 Block, Terminal

4 343641 Screw, 10−16 x 1/2

5 3396795 Cover, Terminal

Block

6 8066217 Hinge, Top (2)

7 3396807 Panel, Rear

8 342055 Screw, 8−18 x 1/2

9 3404413 Plug, Hinge

Holes (4)

10 3406104 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

12 691366 Idler & Pulley

Assembly

13 693995 Screw, Hex

Washer Head

W10131364

Belt Drive

15 348780 Base, Motor

16 3392100 Foot, Dryer (4)

17 3400500 Bolt,

5/16 − 18 x 3/4

18 8530603 Cabinet

(Includes

Illus. 1)

19 98234 Clip, Ground

20 690363 Lock, Front

Top (2)

21 3403571 Panel Front

Assembly

22 8066184 Pulley, Motor

23 685203 Clip, Felt Pad

24 690081 Catch, Door

25 8066206 Assembly, Motor

26 660658 Clamp, Motor

27 3404162 Clamp, Motor

W/Shield

28 3405514 Hinge and Pin

Assembly (2)

29 3394083 Clip, Front

Panel (2)

30 3405245 Seal, Door

31 697776 Screw, 10−32 x 5/8

(External Ground)

32 279318 Terminal, Tinned

& Brass (3)

(Includes

Item. 38 )

33 696144 Strike, Door

34 3403371 Door, Rear

35 3403361 Door Front

36 3405184 Handle, Door

37 8066124 Seal & Bearing

Assembly

38 279393 Terminal Block

Kit For

Terminal Block

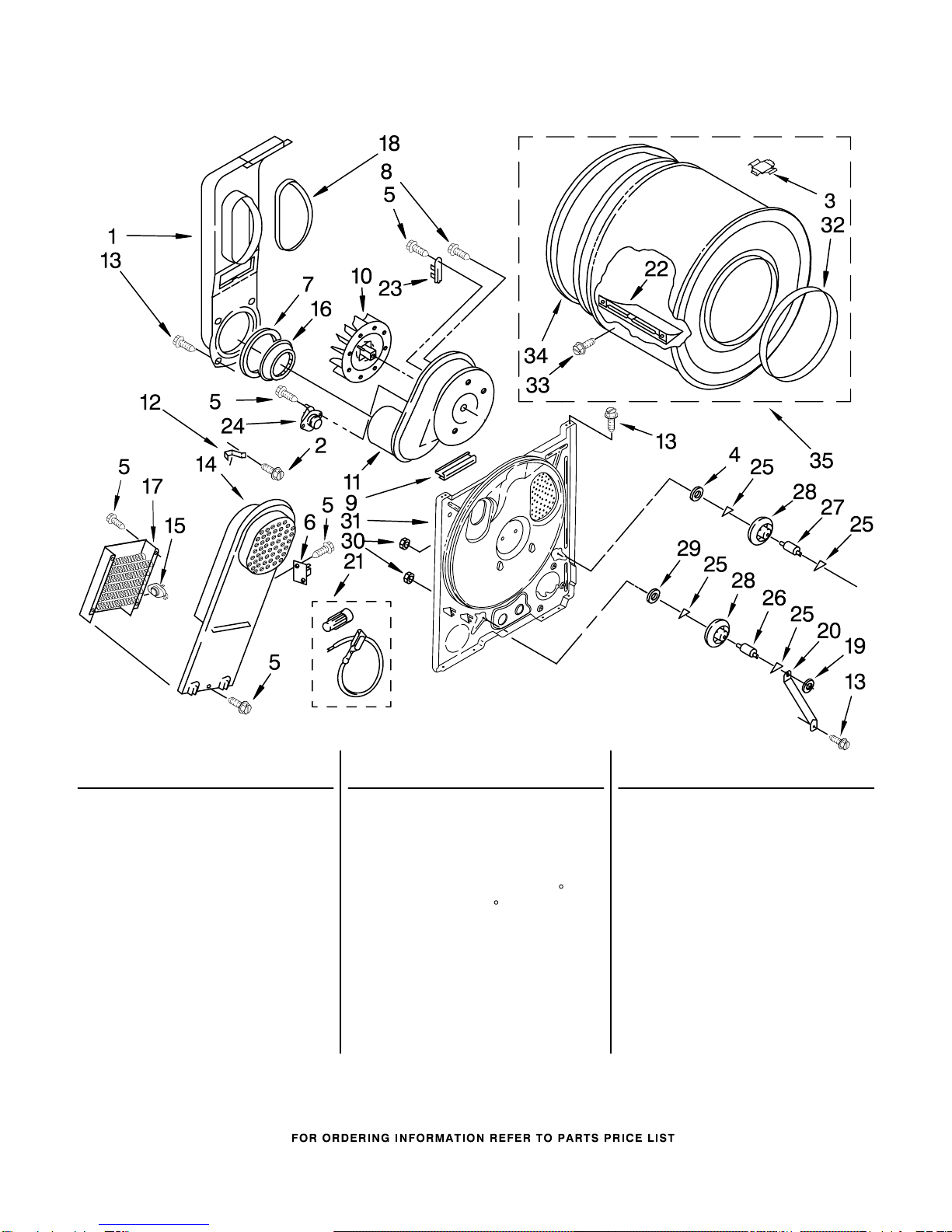

BULKHEAD PARTS

For Model: NED5100TQ0

(Designer White)

W10183677

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute Assembly

2 489463 Screw, 8−18 x 5/8

3 8066086 Drum Hole

Plug

4 3388703 Washer, Support

5 90767 Screw, 8−18 x 3/8

6 3977393 Thermal Cut−Off

(Includes

Illus. 15)

7 347139 Seal, Lint

Chute

8 3390647 Screw, 8−18 x 1/2

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

11 8577230 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8541818 Box, Heater

15 3977767 Thermostat,

High Limit 221 F

(105 C)

16 696302 Shield, Exhaust

17 3403585 Element, Heater

18 339956 Seal

19 90296 Clip

20 3976435 Bracket, Support

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

22 342847 Baffle, Drum

23 3392519 Fuse, Thermal

24 3387134 Thermostat,

Internal Bias

25 690997 Ring, Tri

26 3399506 Shaft, L.H.

27 3399507 Shaft, R.H.

28 3397590 Roller, Support

29 348197 Washer, Support

30 3359452 Nut, 3/8−16

31 8529955 Bulkhead

32 3394509 Ring, Bearing

W10109200

Screw, 11−16 x 3/4

34 8066085 Seal, Rear Drum

35 3396777 Drum Assembly

OPTIONAL PARTS (NOT INCLUDED)

For Model: NED5100TQ0

(Designer White)

W10183677

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

689790 Dry Rack

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
