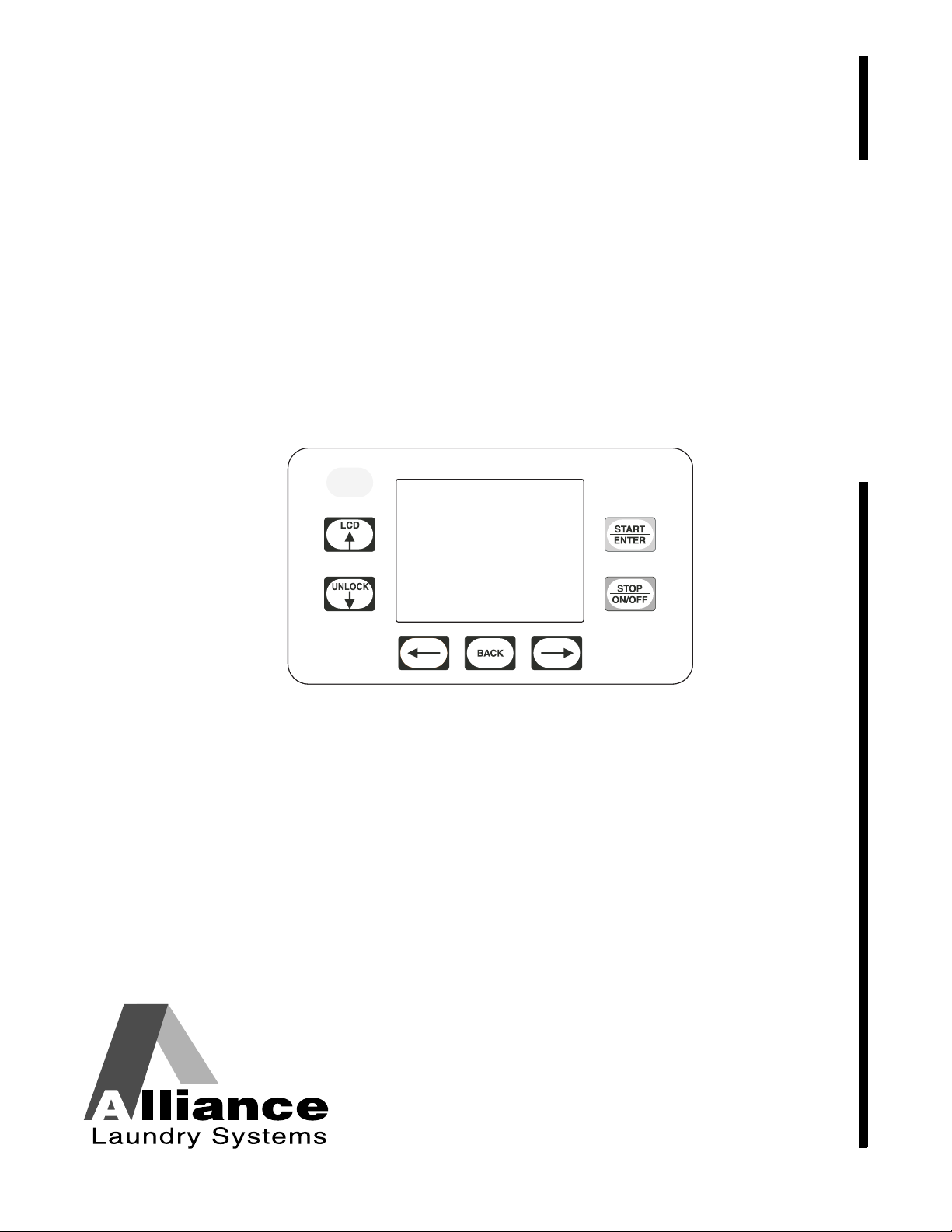

Alliance Laundry Systems PHM1401C Owner's manual

Programming

www.comlaundry.com

Washer-Extractor

Pocket Hardmount

UniLinc Control

Refer to Page 10 for Model Identification

PHM1401C

Part No. F8138801R3

September 2009

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

means without the expressed written consent of the publisher.

F8138801 1

Table of

Contents

Safety Information.............................................................................. 4

Explanation of Safety Messages........................................................... 4

Important Safety Instructions ............................................................... 4

Safety Decals........................................................................................ 6

Operator Safety..................................................................................... 7

Safe Operating Environment ................................................................ 7

Environmental Conditions ............................................................... 7

Machine Location ............................................................................ 8

Input and Output Services................................................................ 8

AC Inverter Drive ............................................................................ 9

Introduction......................................................................................... 10

Model Identification ............................................................................. 10

Nameplate Location.............................................................................. 11

Replacement Parts ................................................................................ 11

Customer Service.................................................................................. 11

Preliminary Information.................................................................... 13

About the Control................................................................................. 13

Power Failure Recovery................................................................... 13

Communications .............................................................................. 13

Audit Information ........................................................................... 13

IR Communications Menu............................................................... 14

IR Communications Error Menu ..................................................... 14

Restore to Factory Defaults ............................................................ 14

Entering Program Mode................................................................... 15

UniLinc Identification........................................................................ 16

Operational Keypad.............................................................................. 16

Operation Modes .................................................................................. 17

General Modes of Operation............................................................ 17

Power-up Mode................................................................................ 17

Idle Mode......................................................................................... 17

Run Mode......................................................................................... 17

Stop Mode........................................................................................ 17

Error Mode....................................................................................... 17

Delayed Start Countdown Mode...................................................... 17

Communication Mode ..................................................................... 17

Entering Diagnostic Mode From Idle Mode.................................... 17

Machine Cycle Definition and Operation......................................... 18

Machine Cycle Operation..................................................................... 18

Rotation Sensor Equipped Machines.................................................... 18

Delayed Start Feature ........................................................................... 18

Jog Feature UW150 Only..................................................................... 18

Cycle Menu........................................................................................... 18

To Start a Cycle ............................................................................... 19

Run Menu ............................................................................................. 20

Contrast/Backlight Menu...................................................................... 22

Close Door Menu.................................................................................. 22

Lubricate Bearings Menu ..................................................................... 23

2F8138801

Run Diagnostic Menu........................................................................... 23

Speed, Temp and Water Level Menu................................................... 24

Cycle Aborted Retry Menu................................................................... 24

Cycle Aborted Fatal Menu.................................................................... 25

Cycle Stopped Menu............................................................................. 25

Delayed Start Menu.............................................................................. 25

Delayed Start Countdown Menu .......................................................... 26

Delayed Start Final Countdown Menu................................................. 26

Menu Navigation................................................................................. 27

The UniLinc.......................................................................................... 27

Menu Navigation on a Single Screen ................................................... 27

Menu Navigation with Parameters ....................................................... 27

Screen to Screen Navigation using the Arrow Keypads....................... 27

Navigation............................................................................................. 27

Display Screen Maps............................................................................ 28

System Menu Map Tree................................................................... 28

Run Menu Map Tree........................................................................ 29

Service Menu Map Tree................................................................... 29

Programming UniLinc ....................................................................... 30

System Menu........................................................................................ 30

Save Changes Menu ............................................................................. 30

Program Menu.................................................................................... 31

Program Menu...................................................................................... 31

Modify Cycle........................................................................................ 31

Available Characters........................................................................ 32

Cycle, Segment and Step Programming Flow Diagram....................... 33

Step Menu Navigation ..................................................................... 33

Reuse Fill Step Menu....................................................................... 34

Fill Step Menu.................................................................................. 34

Heater Option................................................................................... 35

Supply A and B Step Menu ............................................................ 35

Agitate Step Menu ........................................................................... 36

Cool Down Step Menu..................................................................... 36

Drain Step Menu ............................................................................. 37

Spray Rinse Extract Step Menu....................................................... 37

Extract Step Menu............................................................................ 38

End of Segment Audio Signal Step Menu....................................... 38

Global Setup........................................................................................ 39

Global Setup Menu............................................................................... 39

Language Menu.................................................................................... 39

Date/Time Menu................................................................................... 39

Water Level Menu................................................................................ 40

Temperature Menu................................................................................ 40

Audio Menu.......................................................................................... 41

Balance Retry Menu............................................................................. 41

Water Management Menu .................................................................... 42

Alarms Program Menu ......................................................................... 44

F8138801 3

Rapid Advance Menu........................................................................... 44

Shakeout Menu..................................................................................... 45

Banners Menu....................................................................................... 45

Factory Defaults Menu......................................................................... 45

Water Level Confirmation Menu.......................................................... 46

Water Temperature Confirmation Menu.............................................. 46

Alarms Confirmation Menu.................................................................. 46

Audio Confirmation Menu ................................................................... 47

Reset All Factory Defaults Confirmation Menu................................... 47

Factory Defaults Second Confirmation Menu...................................... 47

Diagnostic ............................................................................................ 48

Diagnostic Menu................................................................................... 48

Test Menu............................................................................................. 48

Test Cycle ........................................................................................ 49

Factory Valve Purge Menu................................................................... 51

Test Balance Weight Menu .................................................................. 51

Inputs Outputs Menu ............................................................................ 52

Water Leak Detection Diagnostic......................................................... 54

Alarms................................................................................................... 55

Machine Identification ....................................................................... 56

Machine Errors ..................................................................................... 56

Door Lock Error .............................................................................. 56

Door Open Error ............................................................................. 56

Drain Alarm Error ........................................................................... 56

Drive Balance Switch Error............................................................. 56

Drive Fault Error.............................................................................. 57

Fill Alarm Error ............................................................................... 57

Frame Balance Switch Error............................................................ 57

Open Temperature Sensor Error ..................................................... 57

Rotation Sensor Error ...................................................................... 57

Shorted Temperature Sensor Error ................................................. 57

SPI Error .......................................................................................... 57

Unbalance Error............................................................................... 58

Heat Alarm Error ............................................................................. 58

Water Level Sensor Error ................................................................ 58

PDA Communications Error............................................................ 58

Water Leak Detection Error............................................................. 58

Slow Drain Detected During A Machine Cycle Error..................... 59

Laundry Management........................................................................ 60

Total Number of Machine Cycle Counters........................................... 61

Total Number of Operating Minutes Counters..................................... 61

Last 10 Machine Cycles Rapid Advanced or Stopped ......................... 61

Maintenance........................................................................................ 62

Service Schedule Menu ........................................................................ 62

Daily Menu (Service)....................................................................... 62

Weekly Menu (Service)................................................................... 62

Monthly Menu (Service).................................................................. 63

Quarterly Menu (Service) ................................................................ 63

Cycle Charts........................................................................................ 64

4F8138801

Safety Information

Explanation of Safety Messages

Precautionarystatements(“DANGER,” “WARNING,”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer, and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the washer.

3. Do not wash textiles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, kerosene, waxes, cooking oils, dry-

cleaning solvents, or other flammable or

explosive substances as they give off vapors that

could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas

is flammable, do not smoke or use an open flame

during this time.

6. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This is a safety

rule for all appliances.

7. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

8. Do not reach into the washer if the wash drum is

moving.

DANGER indicates the presence of a

hazard that will cause severe personal

injury, death, or substantial property

damage if the danger is ignored.

DANGER

WARNING indicates the presence of a

hazard that can cause severe personal

injury, death, or substantial property

damage if the warning is ignored.

WARNING

CAUTION indicates the presence of a

hazard that will or can cause minor

personal injury or property damage if the

caution is ignored.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions: W023

WARNING

Safety Information

F8138801

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out.

12. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power

source.

13. Use washer only for its intended purpose,

washing textiles.

14. Never wash machine parts or automotive parts in

the machine. This could result in serious damage

to the basket.

15. ALWAYS disconnect the washer from electrical

supply before attempting any service. Disconnect

the power cord by grasping the plug, not the cord.

16. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

grounding must comply with local codes and be

made by licensed personnel when required.

17. To reduce the risk of fire, textiles which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc., or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

18. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

19. Keep washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have washer checked by a

qualified service person.

20. Replace worn power cords and/or loose plugs.

21. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

22. Loading door MUST BE CLOSED any time the

washer is to fill, tumble or spin. DO NOT bypass

the loading door switch by permitting the washer

to operate with the loading door open.

23. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

24. Always follow the fabric care instructions

supplied by the textile manufacturer.

25. Never operate the washer with any guards and/or

panels removed.

26. DO NOT operate the washer with missing or

broken parts.

27. DO NOT bypass any safety devices.

28. Failure to install, maintain, and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNINGS and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Any problems or conditions not understood should be

reported to the dealer, distributor, service agent or the

manufacturer.

Safety Information

F8138801

Safety Decals

Safety decals appear at crucial locations on the

machine. Failure to maintain legible safety decals

could result in injury to the operator or service

technician.

To provide personal safety and keep the machine in

proper working order, follow all maintenance and

safety procedures presented in this manual. If

questions regarding safety arise, contact the

manufacturer immediately.

This machine must be installed, adjusted,

and serviced by qualified electrical

maintenance personnel familiar with the

construction and operation of this type of

machinery. They must also be familiar

with the potential hazards involved.

Failure to observe this warning may result

in personal injury and/or equipment

damage, and may void the warranty. SW004

WARNING

Ensure that the machine is installed on a

level floor of sufficient strength and that

the recommended clearances for

inspection and maintenance are provided.

Never allow the inspection and

maintenance space to be blocked. SW020

CAUTION

Be careful around the open door,

particularly when loading from a level

below the door. Impact with door edges

can cause personal injury. SW025

CAUTION

Never touch internal or external steam

pipes, connections, or components.

These surfaces can be extremely hot and

will cause severe burns. The steam must

be turned off and the pipe, connections,

and components allowed to cool before

the pipe can be touched. SW014

WARNING

Safety Information

F8138801

Operator Safety

To ensure the safety of machine operators, the

following maintenance checks must be performed

daily:

1. Prior to operating the machine, verify that all

warning signs are present and legible. Missing or

illegible signs must be replaced immediately.

Make certain that spares are available.

2. Check door interlock before starting operation of

the machine:

a. Attempt to start the machine with the door

open. The machine should not start with the

door open.

b. Close the door without locking it and attempt

to start the machine. The machine should not

start with the door unlocked.

c. Close and lock the door and start a cycle.

Attempt to open the door while the cycle is in

progress. The door should not open.

If the door lock and interlock are not functioning

properly, call a service technician.

3. Do not attempt to operate the machine if any of

the following conditions are present:

a. The door does not remain securely locked

during the entire cycle.

b. Excessively high water level is evident.

c. Machine is not connected to a properly

grounded circuit.

Do not bypass any safety devices in the machine.

Safe Operating Environment

Safe operation requires an appropriate operating

environment for both the operator and the machine. If

questions regarding safety arise, contact the

manufacturer immediately.

Environmental Conditions

•Ambient Temperature. Water in the machine will

freeze at temperatures of 32°F (0°C) or below.

Temperatures above 120°F (50°C) will result in

more frequent motor overheating and, in some

cases, malfunction or premature damage to solid

state devices that are used in some models.

Special cooling devices may be necessary.

Water pressure switches are affected by increases

and decreases in temperature. Every 25°F (10°C)

change in temperature will have a 1% effect on

the water level.

•Humidity. Relative humidity above 90% may

cause the machine’s electronics or motors to

malfunction or may trip the ground fault

interrupter. Corrosion problems may occur on

some metal components in the machine.

If the relative humidity is below 30%, belts and

rubber hoses may eventually develop dry rot.

This condition can result in hose leaks, which

may cause safety hazards external to the machine

in conjunction with adjacent electrical

equipment.

•Ventilation. The need for make-up air openings

for such laundry room accessories as dryers,

ironers, water heaters, etc., must be evaluated

periodically. Louvers, screens, or other

separating devices may reduce the available air

opening significantly.

•Radio Frequency Emissions. A filter is available

for machines in installations where floor space is

shared with equipment sensitive to radio

frequency emissions.

•Elevation. If the machine is to be operated at

elevations of over 3280 feet (1000 m) above sea

level, pay special attention to water levels and

electronic settings (particularly temperature) or

desired results may not be achieved.

•Chemicals. Keep stainless steel surfaces free of

chemical residues.

NEVER insert hands or objects into

basket until it has completely stopped.

Doing so could result in serious injury.

SW012

WARNING

Never operate the machine with a

bypassed or disconnected balance

system. Operating the machine with

severe out-of-balance loads could result

in personal injury and serious equipment

damage. SW039

WARNING

Safety Information

F8138801

•Water Damage. Do not spray the machine with

water. Short circuiting and serious damage may

result. Repair immediately all seepage due to

worn or damaged gaskets, etc.

Machine Location

•Foundation. The concrete floor must be of

sufficient strength and thickness to handle the

floor loads generated by the high extract speeds

of the machine. Refer to Installation manual.

•Service/Maintenance Space. Provide sufficient

space to allow comfortable performance of

service procedures and routine preventive

maintenance.

Consult installation instructions for specific details.

Input and Output Services

•Water Pressure. Best performance will be

realized if water is provided at a pressure of

30 – 80 psi (2.0 – 5.4 bar). Although the machine

will function properly at lower pressure,

increased fill times will occur. Water pressure

higher than 100 psi (6.7 bar) may result in

damage to machine plumbing. Component

failure(s) and personal injury could result.

•Steam Heat (Optional) Pressure. Best

performance will be realized if steam is provided

at a pressure of 30 – 80 psi (2.0 – 5.4 bar). Steam

pressure higher than 125 psi (8.5 bar) may result

in damage to steam components and may cause

personal injury.

For machines equipped with optional steam heat,

install piping in accordance with approved

commercial steam practices. Failure to install the

supplied steam filter may void the warranty.

•Drainage System. Provide drain lines or troughs

large enough to accommodate the total number of

gallons that could be dumped if all machines on

the site drained at the same time from the highest

attainable level. If troughs are used, they should

be covered to support light foot traffic.

•Power. For personal safety and for proper

operation, the machine must be grounded in

accordance with state and local codes. The

ground connection must be to a proven earth

ground, not to conduit or water pipes. Do not use

fuses in place of the circuit breaker. An easy-

access cutoff switch should also be provided.

Always disconnect power and water supplies before a

service technician performs any service procedure.

Where applicable, steam and/or compressed air

supplies should also be disconnected before service is

performed.

Do not place volatile or flammable fluids

in any machine. Do not clean the machine

with volatile or flammable fluids such as

acetone, lacquer thinners, enamel

reducers, carbon tetrachloride, gasoline,

benzene, naptha, etc. Doing so could

result in serious personal injury and/or

damage to the machine. SW002

DANGER

Replace all panels that are removed to

perform service and maintenance

procedures. Do not operate the machine

with missing guards or with broken or

missing parts. Do not bypass any safety

devices. SW019

CAUTION

Ensure that a ground wire from a proven

earth ground is connected to the ground

lug near the input power block on this

machine. Without proper grounding,

personal injury from electric shock could

occur and machine malfunctions may be

evident. SW008

WARNING

This manual suits for next models

Table of contents

Other Alliance Laundry Systems Washer manuals

Alliance Laundry Systems

Alliance Laundry Systems UW POCKET HARDMOUNT UW35B2 User manual

Alliance Laundry Systems

Alliance Laundry Systems WFF100 User manual

Alliance Laundry Systems

Alliance Laundry Systems 100 User manual

Alliance Laundry Systems

Alliance Laundry Systems CHM1772C User manual

Alliance Laundry Systems

Alliance Laundry Systems HF455 User manual

Alliance Laundry Systems

Alliance Laundry Systems H002C User manual

Alliance Laundry Systems

Alliance Laundry Systems FLW1526C User manual

Alliance Laundry Systems

Alliance Laundry Systems CPD6C Installation and operation manual

Alliance Laundry Systems

Alliance Laundry Systems CCN020HNF User manual

Alliance Laundry Systems

Alliance Laundry Systems HTE517xE2802 User manual

Alliance Laundry Systems

Alliance Laundry Systems D1627ENR5 Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems Cygnus Premium User manual

Alliance Laundry Systems

Alliance Laundry Systems LWS01A*C series User manual

Alliance Laundry Systems

Alliance Laundry Systems FLW1527C Guide

Alliance Laundry Systems

Alliance Laundry Systems 805413R1 Guide

Alliance Laundry Systems

Alliance Laundry Systems WF150 User manual

Alliance Laundry Systems

Alliance Laundry Systems F8437801 User manual

Alliance Laundry Systems

Alliance Laundry Systems H011C User manual

Alliance Laundry Systems

Alliance Laundry Systems HF150 User manual

Alliance Laundry Systems

Alliance Laundry Systems HX User manual

Alliance Laundry Systems

Alliance Laundry Systems SVN255P User manual

Alliance Laundry Systems

Alliance Laundry Systems FLW63H User manual

Alliance Laundry Systems

Alliance Laundry Systems LTS95A*N User manual

Alliance Laundry Systems

Alliance Laundry Systems 802733R4 Guide

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
