Alliance Laundry Systems Metered models User manual

Installation/Operation

www.alliancelaundry.com

Automatic

Washers

Metered and Nonmetered

W446I

Part No. 201940R3

September 2012

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

REMARQUE : Le

guide est rédigé en

anglais et en français.

La version française

figure à la suite de la

version anglaise.

201940 1

IMPORTANT: Read the complete

INSTALLATION/OPERATION INSTRUCTIONS

before using the washer.

For your safety and to reduce the risk of

fire or an explosion, do not store or use

gasoline or other flammable vapors and

liquids in the vicinity of this or any other

appliance.

W022

WARNING

means without the expressed written consent of the publisher.

2201940

Table of

Contents

Safety Information.............................................................................. 4

Explanation of Safety Messages........................................................... 4

Important Safety Instructions ............................................................... 4

Installation........................................................................................... 6

Dimensions and Specifications............................................................. 6

Before You Start................................................................................... 7

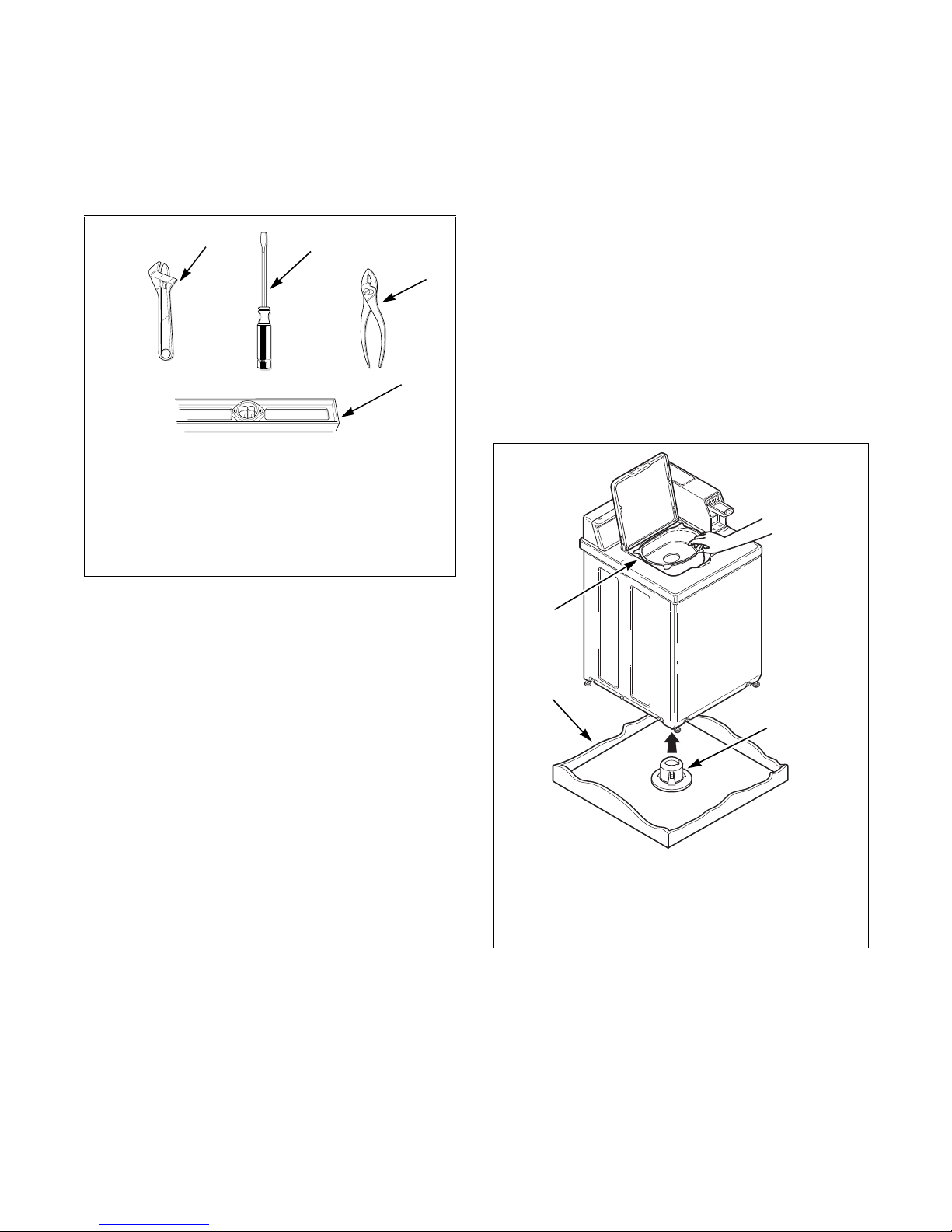

Tools ................................................................................................ 7

Installing the Washer ............................................................................ 7

Step 1: Remove the Shipping Brace and Shipping Plug.................. 7

Step 2: Wipe Out Inside of Washtub ............................................... 8

Step 3: Connect Fill Hoses............................................................... 8

Step 4: Connect Drain Hose to Drain Receptacle............................ 10

Step 5: Position and Level the Washer ............................................ 11

Step 6: Plug In the Washer............................................................... 12

Step 7: Add Water to the Washer .................................................... 13

Step 8: Check Lid Switch ................................................................ 14

Step 9: Check Installation ................................................................ 14

Vending................................................................................................. 15

Meter Case ....................................................................................... 15

Slide Extension Assembly – Models through Serial No. 1211........ 15

Slide Extension Assembly – Models Starting Serial No. 1211 ....... 16

Models Prepped for Card Reader..................................................... 18

Additional Washer Security............................................................. 18

Operation............................................................................................. 20

Operation Instructions for Coin Slide Operated and

Nonmetered Washers ......................................................................... 20

Step 1: Add Detergent...................................................................... 20

Step 2: Load Laundry....................................................................... 20

Step 3: Close Lid.............................................................................. 20

Step 4: Set Wash Temperature and Fabric/Cycle Selector .............. 21

Step 5: Start Washer......................................................................... 22

Indicator Lights................................................................................ 22

Control Modes ................................................................................. 23

Rapid Advance................................................................................. 24

Setting Dipswitch............................................................................. 24

Operation Instructions for MDC Washers............................................ 25

Step 1: Add Detergent...................................................................... 25

Step 2: Load Laundry....................................................................... 25

Step 3: Close Lid.............................................................................. 25

Step 4: Choose Small Load, if Desired............................................ 26

Step 5: Set Fabric Selector and Wash Temperature......................... 26

Step 6: Insert Money or Card........................................................... 26

Step 7: Start Washer......................................................................... 27

Indicator Lights................................................................................ 27

201940 3

Maintenance ........................................................................................ 28

User-Maintenance Instructions............................................................. 28

Cold Weather Care........................................................................... 28

Care of Your Washer ....................................................................... 28

Replacing Hoses............................................................................... 28

Filter Screens ................................................................................... 28

Reinstallation of Shipping Materials ............................................... 28

Motor Overload Protector..................................................................... 28

Troubleshooting .................................................................................. 29

Contact Information........................................................................... 31

Installer Checklist................................................................ Back Cover

Safety Information

Explanation of Safety Messages

Throughout this manual and on machine decals, you

will find precautionary statements (“DANGER,”

“WARNING,” and “CAUTION”) followed by specific

instructions. These precautions are intended for the

personal safety of the operator, user, servicer, and

those maintaining the machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

Save These Instructions

1. Read all instructions before using the washer.

2. Install the washer according to the

INSTALLATION INSTRUCTIONS. Refer to the

GROUNDING INSTRUCTIONS in the

INSTALLATION manual for the proper

grounding of the washer. All connections for

water, drain, electrical power and grounding must

comply with local codes and be made by licensed

personnel when required. Do not do it yourself

unless you know how!

3. Do not install or store the washer where it will be

exposed to water and/or weather.

4. Do not add the following substances or textiles

containing traces of the following substances to

the wash water: gasoline, kerosene, waxes,

cooking oils, vegetable oils, machine oils, dry-

cleaning solvents, flammable chemicals, thinners

or other flammable or explosive substances.

These substances give off vapors that could

ignite, explode or cause the fabric to catch on fire

by itself.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. THE

GAS IS FLAMMABLE, DO NOT SMOKE OR

USE AN OPEN FLAME DURING THIS TIME.

6. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power

source.

Indicates an imminently hazardous

situation that, if not avoided, will cause

severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not

avoided, could cause severe personal

injury or death.

WARNING

Indicates a hazardous situation that, if not

avoided, may cause minor or moderate

personal injury or property damage.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions:

W023

WARNING

Safety Information

201940

7. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This appliance

is not intended for use by persons (including

children) with reduced physical, sensory or

mental capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning the use of

the appliance by a person responsible for their

safety. This is a safety rule for all appliances.

8. Do not reach into the washer if the washtub or

agitator is moving.

9. Never operate the washer with any guards, panels

and/or parts removed or broken. DO NOT tamper

with the controls or bypass any safety devices.

10. DO NOT operate individual units if they have

been separated from a stack unit.

11. Use your washer only for its intended purpose,

washing clothes. Always follow the fabric care

instructions supplied by the garment

manufacturer.

12. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. To reduce the risk of poisoning or chemical

burns, keep them out of the reach of children at

all times (preferably in a locked cabinet). Heed

all warnings or precautions.

13. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

14. Lid MUST BE CLOSED any time the washer is

to agitate or spin. DO NOT bypass the lid switch

by permitting the washer to agitate or spin with

the lid open. A brake will stop the washtub

within seconds if the lid is opened during

spinning. If the washtub does not stop when the

lid is opened, remove the washer from use and

call the service person.

15. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

16. Keep your washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have your washer checked by a

qualified service person.

17. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out. ALWAYS disconnect the

washer from electrical supply before attempting

any service.

18. Disconnect the power cord by grasping the plug,

not the cord. If the supply cord is damaged, it

must be replaced by a special cord or assembly

available from the manufacturer or its service

agent.

19. Before the washer is removed from service or

discarded, remove the lid or door to the washing

compartment.

20. Failure to install, maintain, and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNING and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Always contact your dealer, distributor, service agent

or the manufacturer about any problems or conditions

you do not understand.

Installation

Dimensions and Specifications

1Pilot Hole TLW2051N

TLW2051N

65.1 cm (25.63 in.)

74.47 cm (30.5 in.)

108.59 cm (42.75 in.)

1.12 cm

(0.44 in.) 66.04 cm (26 in.)

73.02 cm (28.75 in.)

109.22 cm (43 in.)

91.44 cm (36 in.)

129.54 cm (51 in.)

71.12 cm (28 in.)

Coin Slide Models

102.56 cm (40.38 in.)

Electronic Control Models

97 cm (38.19 in.)

Coin Slide Models

54.76 cm (21.56 in.)

Electronic Control Models

57 cm (22.44 in.)

METERED MODELS

TLW2050N

65.1 cm (25.63 in.)

74.47 cm (30.5 in.)

71.12 cm (28 in.)

1.12 cm

(0.44 in.) 66.04 cm (26 in.)

NONMETERED MODELS

109.22 cm (43 in.)

91.44 cm (36 in.)

129.54 cm (51 in.)

73.02 cm (28.75 in.)

102.56 cm (40.38 in.)

54.76 cm (21.56 in.)

Installation

201940

Before You Start

Tools

For most installations, the basic tools you will need

are:

Figure 1

NOTE: If the washer is delivered on a cold day

(below freezing), or is stored in an unheated room

or area during the cold months, do not attempt to

operate it until the washer has had a chance to

warm up.

IMPORTANT: Install dryer before washer. This

allows room for attaching exhaust duct.

Installing the Washer

Step 1: Remove the Shipping Brace and

Shipping Plug

Remove the shipping brace from under the lid.

The shipping plug will be released from the base of the

washer when removing the cardboard base from the

washer. Refer to Figure 2.

The shipping brace and plug should be saved and must

be reinstalled whenever washer is moved or

transported to a new location. This will prevent

damage to washer components.

Do not tilt washer to front or sides when moving.

Refer to User-Maintenance section for instructions on

reinstalling shipping brace and shipping plug.

Figure 2

D074I

1Wrench

2Screwdriver

3Pliers

4Level

D074I

TLW2052N

1Shipping Brace

2Shipping Plug

3Cardboard Base

TLW2052N

Installation

201940

Step 2: Wipe Out Inside of Washtub

Prior to first wash, use an all purpose cleaner or a

detergent and water solution and a damp cloth to

remove shipping dust from inside of washtub.

Figure 3

Step 3: Connect Fill Hoses

Table 1

Table 2

Water Supply Requirements

Water supply faucets must fit standard 19.1 mm

(3/4 inch) female garden hose couplings. DO NOT

USE SLIP-ON OR CLAMP-ON CONNECTIONS.

NOTE: Water supply faucets should be readily

accessible to permit turning them off when washer

is not being used.

Water level in washer is controlled by a water level

switch.

W396I

Mixing Valve Flow Rates - MDC Models without

Small Load Switch

Pressure

(psi)

HOT

gallons per

minute

(liters per

minute)

COLD

gallons per

minute

(liters per

minute)

WA R M

gallons per

minute

(liters per

minute)

35 2.4

(9.1)

4.5

(17.0)

7.15

(27.1)

55 3.5

(13.2)

6.2

(23.5)

9.2

(34.8)

Mixing Valve Flow Rates - Coin Slide Operated,

Nonmetered, MDC Model with Small Load Switch

Pressure

(psi)

HOT

gallons per

minute

(liters per

minute)

COLD

gallons per

minute

(liters per

minute)

WA R M

gallons per

minute

(liters per

minute)

35 4.22

(15.97)

5.37

(20.33)

8.65

(32.74)

55 5.24

(19.84)

6.85

(25.93)

10.83

(41)

Under certain conditions, hydrogen gas

may be produced in a hot water system

that has not been used for two weeks or

more. HYDROGEN GAS IS EXPLOSIVE. If

the hot water system has not been used

for such a period and before using the

washer, turn on all hot water faucets and

let the water flow from each for several

minutes. This will release any

accumulated hydrogen gas. The gas is

flammable. Do not smoke or use an open

flame during this time.

W029

WARNING

This manual suits for next models

Table of contents

Languages:

Other Alliance Laundry Systems Washer manuals

Alliance Laundry Systems

Alliance Laundry Systems 38903R6 User manual

Alliance Laundry Systems

Alliance Laundry Systems Commercial Automatic Washer Use and maintenance manual

Alliance Laundry Systems

Alliance Laundry Systems NX18BVPA6 Guide

Alliance Laundry Systems

Alliance Laundry Systems TLW12C SVG Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems FLW39H Series User manual

Alliance Laundry Systems

Alliance Laundry Systems LWB19A*-1109 series User manual

Alliance Laundry Systems

Alliance Laundry Systems CHM160C Troubleshooting guide

Alliance Laundry Systems

Alliance Laundry Systems Frontload Washer User manual

Alliance Laundry Systems

Alliance Laundry Systems CHM1772C User manual

Alliance Laundry Systems

Alliance Laundry Systems HCT020QC User manual

Alliance Laundry Systems

Alliance Laundry Systems FLW1511C User manual

Alliance Laundry Systems

Alliance Laundry Systems SF135PV Maintenance and service guide

Alliance Laundry Systems

Alliance Laundry Systems F232182R1 Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems NetMaster HC18NC2 Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems FLW1525C Guide

Alliance Laundry Systems

Alliance Laundry Systems UWL035K12 Operating instructions

Alliance Laundry Systems

Alliance Laundry Systems SFNBXFSP122DW01 User manual

Alliance Laundry Systems

Alliance Laundry Systems H2641 Guide

Alliance Laundry Systems

Alliance Laundry Systems F8354001 User manual

Alliance Laundry Systems

Alliance Laundry Systems TLW12C SVG Guide

Alliance Laundry Systems

Alliance Laundry Systems 802749R2 User manual

Alliance Laundry Systems

Alliance Laundry Systems 801455R2 User manual

Alliance Laundry Systems

Alliance Laundry Systems SH180-QED-SELECT Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems UW35PV Series User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
