Alliance Laundry Systems TMB795C User manual

Installation

www.comlaundry.com

Tumble Dryers

50 Pound Capacity

75 Pound Capacity

Starting Serial No. 0904004427

Refer to Page 5 for Model Identification

TMB795C

Part No. 70420301ENR8

July 2012

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

TMB795C

70420301 (EN) 1

Installation must conform with local codes or, in the absence of local codes, with:

In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/

NFPA 54 “National Fuel Gas Code” and Standard ANSI/NFPA 70 “National Electric Code.”

In Canada, installation must comply with Standards CAN/CSA-B149.1 or Natural Gas and Propane

Installation Code and CSA C22.1, latest edition, Canadian Electric Code, Part I.

In Australia and New Zealand, installation must comply with the Gas Installations Standard AS/NZS 5601

Part 1: General Installations.

IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the

user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the

above safety information must be posted in a prominent location near the tumble dryer for customer use.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do not use any phone in your building.

– Clear the room, building or area of all occupants.

– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

– If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency or the gas

supplier.

W052

FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk

of fire or explosion or to prevent property damage, personal injury or death.

W033

WARNING

270420301 (EN)

The following information applies to the state of Massachusetts, USA.

•This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.

•This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.

•A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance.

•This appliance must not be installed in a bedroom or bathroom.

• Installation of unit must be performed by a qualified installer.

• Install tumble dryer according to manufacturer’s instructions and local codes.

• DO NOT install a tumble dryer with flexible plastic venting materials. If flexible metal (foil

type) duct is installed, it must be of a specific type identified by the appliance manufacturer

as suitable for use with tumble dryer. Refer to section on connecting exhaust system.

Flexible venting materials are known to collapse, be easily crushed, and trap lint. These

conditions will obstruct tumble dryer airflow and increase the risk of fire.

W752R1

WARNING

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

W053

70420301 (EN) 3

means without the expressed written consent of the publisher.

Table of

Contents

Introduction......................................................................................... 5

Model Identification ............................................................................. 5

Customer Service.................................................................................. 7

Wiring Diagram .................................................................................... 7

Serial Plate Location............................................................................. 7

Safety Information.............................................................................. 8

Important Safety Instructions ............................................................... 9

Specifications and Dimensions........................................................... 11

Cabinet Dimensions.............................................................................. 12

Exhaust Outlet Locations...................................................................... 13

Gas Connection Locations.................................................................... 14

Electrical Connection Locations........................................................... 15

Steam Connection Locations ................................................................ 16

Installation........................................................................................... 17

Pre-Installation Inspection .................................................................... 17

Location Requirements......................................................................... 18

Position and Level the Tumble Dryer................................................... 19

Bolt-On Angle Option .......................................................................... 19

To Reverse the Loading Door............................................................... 21

Before Placing Tumble Dryer into Service .......................................... 24

Required for CE Models Only.............................................................. 25

Installing CE Gas Drying Tumble Dryers ............................................ 25

General Information......................................................................... 25

Basic Configuration ......................................................................... 27

Specific Conversion Procedures ...................................................... 27

Exhaust Requirements ....................................................................... 30

Layout ................................................................................................... 30

Make-Up Air......................................................................................... 30

Venting ................................................................................................. 30

Individual Venting ........................................................................... 31

Manifold Venting............................................................................. 31

Gas Requirements............................................................................... 35

Gas Supply Pipe Sizing and Looping ................................................... 37

High Altitude Burner Orifice Sizing..................................................... 39

Electrical Requirements..................................................................... 40

Grounding Instructions ......................................................................... 41

For CE Models Only........................................................................ 41

Service/Ground Location ................................................................. 42

To Connect Electrical Service To The Tumble Dryer.......................... 43

Jumper Configuration Instructions ....................................................... 44

Ferrite Ring Installation........................................................................ 44

50 Pound Gas and Steam Models ......................................................... 45

75 Pound Gas and Steam Models ......................................................... 46

50 and 75 Pound Electric Models......................................................... 47

470420301 (EN)

Steam Requirements........................................................................... 48

Piping Recommendations ..................................................................... 49

Installing Steam Trap and Making Condensate

Return Connections ............................................................................ 49

Thermal Oil Prep .................................................................................. 49

Single Drop Timer .............................................................................. 51

Power-Up Mode.................................................................................... 51

Ready Mode.......................................................................................... 51

Start Mode ............................................................................................ 51

Run Mode ............................................................................................. 51

Setting Dry Time Dipswitches.............................................................. 51

Resetting Cycle Time to Zero............................................................... 51

Dipswitch Settings ................................................................................ 52

Adjustments......................................................................................... 54

Gas Burner Air Shutter ......................................................................... 54

Airflow Switch...................................................................................... 55

Loading Door Switch............................................................................ 55

Loading Door Catch ............................................................................. 55

Drive Belt.............................................................................................. 56

Nonreversing Models....................................................................... 56

Reversing Models ............................................................................ 56

Removing Tumble Dryer from Service............................................. 59

70420301 (EN)

Introduction

Model Identification

Information in this manual is applicable to these models:

Gas Steam/Thermal Oil Electric

50 Pound

CA050L

CA050N

CT050L

CT050N

CU050L

CU050N

DR50G2-BA050L

DR50G2-BA050N

DR50G2-BT050D

DR50G2-BT050L

DR50G2-BT050N

DR50G2-BU050L

DR50G2-BU050N

DR55G2-BA050L

DR55G2-BA050N

DR55G2-BT050D

DR55G2-BT050L

DR55G2-BT050N

DR55G2-BU050L

DR55G2-BU050N

HA050L

HA050N

HT050D

HT050L

HT050N

HU050L

HU050N

IPD50G2-IT050L

IPD50G2-IT050N

SA050L

SA050N

ST050D

ST050L

ST050N

SU050L

SU050N

UA050L

UA050N

UT050L

UT050N

UU050L

UU050N

YT050L

YT050N

YU050L

YU050N

CT050S

CT050T

CU050S

CU050T

DR50S2-BT050S

DR50S2-BT050T

DR50S2-BU050S

DR50S2-BU050T

DR55S2-BT050S

DR55S2-BT050T

DR55S2-BU050S

DR55S2-BU050T

HT050S

HT050T

HU050S

HU050T

IPD50S2-IT050S

IPD50S2-IT050T

ST050S

ST050T

SU050S

SU050T

UT050S

UT050T

UU050S

UU050T

YT050S

YT050T

YU050S

YU050T

CT050E

CU050E

DR50E2-BT050E

DR50E2-BU050E

DR55E2-BT050E

DR55E2-BU050E

HT050E

HU050E

IPD50E2-IT050E

ST050E

SU050E

UT050E

UU050E

YT050E

YU050E

75 Pound

CA075L

CA075N

CT075L

CT075N

CU075L

CU075N

DR75G2-BA075L

DR75G2-BA075N

DR75G2-BT075D

DR75G2-BT075L

DR75G2-BT075N

DR75G2-BU075L

DR75G2-BU075N

DR80G2-BA075L

DR80G2-BA075N

DR80G2-BT075D

DR80G2-BT075L

DR80G2-BT075N

DR80G2-BU075L

DR80G2-BU075N

HA075L

HA075N

HT075D

HT075L

HT075N

HU075L

HU075N

IPD75G2-IT075L

IPD75G2-IT075N

SA075L

SA075N

ST075D

ST075L

ST075N

STF75L

STF75N

SU075L

SU075N

UA075L

UA075N

UT075L

UT075N

UTF75L

UTF75N

UU075L

UU075N

YT075L

YT075N

YU075L

YU075N

CT075S

CT075T

CU075S

CU075T

DR75S2-BT075S

DR75S2-BT075T

DR75S2-BU075S

DR75S2-BU075T

DR80S2-BT075S

DR80S2-BT075T

DR80S2-BU075S

DR80S2-BU075T

HT075S

HT075T

HU075S

HU075T

IPD75S2-IT075S

IPD75S2-IT075T

ST075S

ST075T

SU075S

SU075T

UT075S

UT075T

UU075S

UU075T

YT075S

YT075T

YU075S

YU075T

CT075E

CU075E

DR75E2-BT075E

DR75E2-BU075E

DR80E2-BT075E

DR80E2-BU075E

HT075E

HU075E

IPD75E2-IT075E

ST075E

SU075E

UB075E

UT075E

UU075E

YT075E

YU075E

(see next page for control suffixes)

Introduction

70420301 (EN)

Includes models with the following control suffixes:

3B – reversing DX4 vended

3O – DX4 OPL

3V – DX4 vended

3W – reversing DX4 prep for coin

3X – DX4 prep for coin

BB– reversing basic electronic, coin

BC – basic electronic, coin

BL – basic electronic, central pay

BW – reversing basic electronic, prep

for coin

BX – basic electronic, prep for coin

BY – basic electronic, prep for card

BZ – reversing basic electronic, prep

for card

DO – DMP OPL

DV – DMP vended

DX – DMP prep for coin

EO – OPL electronic

KB – reversing single coin

KC – single coin

KW – reversing prep for coin

KX – prep for coin

KY – prep for card

KZ – reversing prep for card

LB – reversing network adaptable coin

LC – network adaptable coin

LW – reversing network adaptable,

prep for coin

LX – network adaptable, prep for coin

LY – network adaptable, prep for card

LZ – reversing network adaptable,

prep for card

OM – OPL micro

QT – dual digital timer

R3 – reversing DX4 OPL

RD – reversing DMP OPL

RE – reversing OPL electronic

RM – reversing OPL micro

RQ – reversing dual digital timer

RU – reversing UniLinc OPL

SD – single drop

SX – single drop, prep for coin

UO – UniLinc OPL

WB – reversing network ready coin

WC – network ready coin

WW – reversing network ready, prep

for coin

WX – network ready, prep for coin

WY – network ready, prep for card

WZ – reversing network ready, prep

for card

Introduction

70420301 (EN)

Customer Service

If literature or replacement parts are required, contact

the source from which the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

For technical assistance, call (920) 748-3121.

Wiring Diagram

The wiring diagram is located in the junction or

contactor box.

The wiring diagram part number is in the lower

portion of the electrical data on the serial plate.

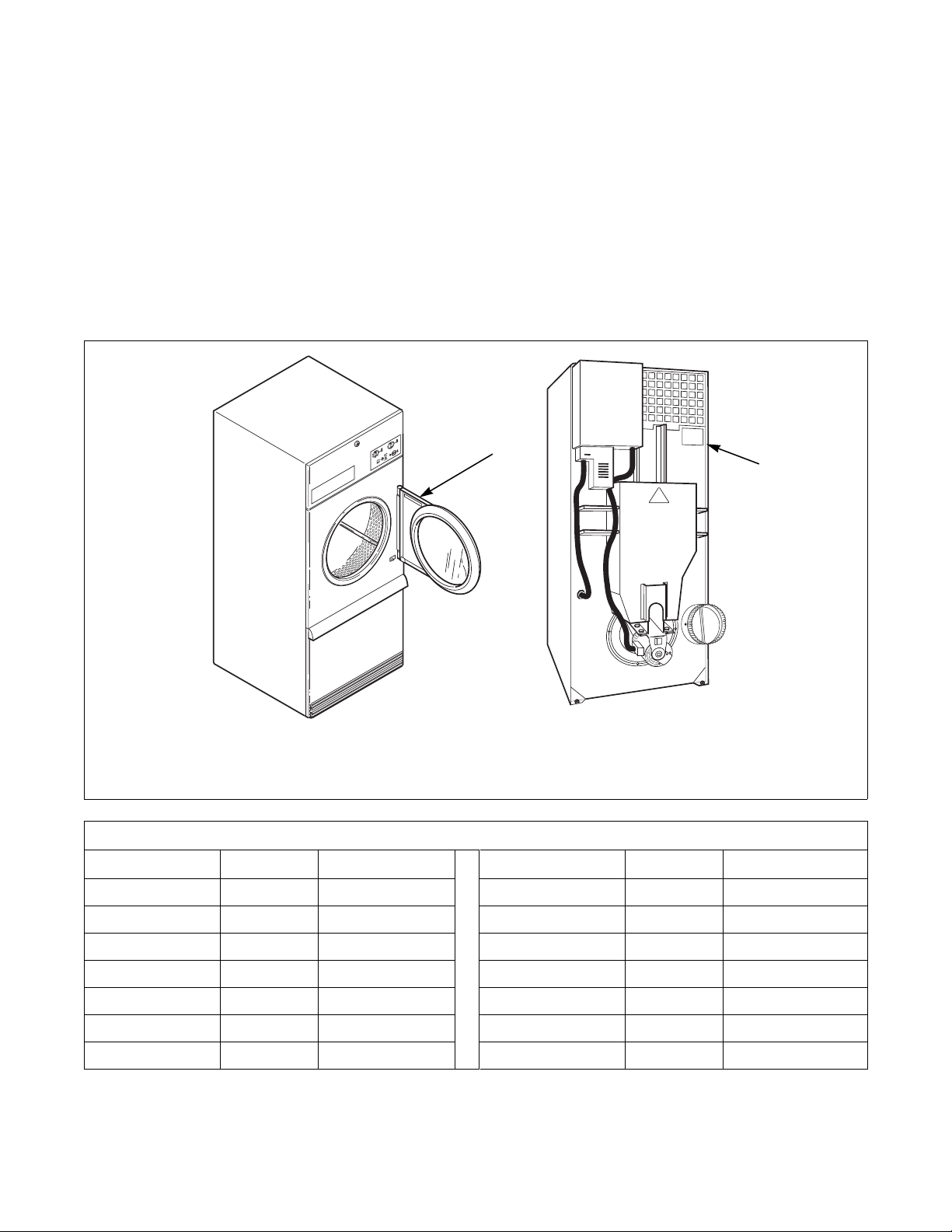

Serial Plate Location

When calling or writing for information about your

product, be sure to mention model and serial numbers.

Model and serial numbers are found on serial plate on

the rear of machine and inside door.

TMB2235N

1Serial Plate

4030

PUSH

START

HEAT COOL

DOWN

HIGH

TEMPERATURE

LOW

Conversion Table

Multiply By To Obtain Multiply By To Obtain

Btu 0.252 kCal Pounds/sq. inch 0.06895 Bars

Btu 1055 Joules Pounds/sq. inch 0.070 kg/sq. cm

Inch 25.4 Millimeters Pounds (lbs.) 0.454 Kilograms

Inches W.C. 0.036 Pounds/sq. inch Boiler Horsepower 33,479 Btu/hr.

Inches W.C. 0.249 kPa Boiler Horsepower 34.5 lbs. steam/hr.

lb./inch2(psi) 6.895 kPa CFM 0.471 liters/second

ft328.32 Liters kW 3414 Btu/hr.

70420301 (EN)

Safety Information

Precautionary statements (“DANGER,” “WARNING,”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer, and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

NOTE: The WARNING and IMPORTANT

instructions appearing in this manual are not

meant to cover all possible conditions and

situations that may occur. It must be understood

that common sense, caution and carefulness are

factors which CANNOT be built into this tumble

dryer. These factors MUST BE supplied by the

person(s) installing, maintaining or operating the

tumble dryer.

Always contact your dealer, distributor, service agent

or the manufacturer on any problems or conditions you

do not understand.

Indicates an imminently hazardous

situation that, if not avoided, will cause

severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not

avoided, could cause severe personal

injury or death.

WARNING

Indicates a hazardous situation that, if not

avoided, may cause minor or moderate

personal injury or property damage.

CAUTION

Failure to install, maintain, and/or operate

this machine according to manufacturer’s

instructions may result in conditions which

can produce serious injury, death and/or

property damage.

W051R1

WARNING

Other manuals for TMB795C

This manual suits for next models

187

Table of contents

Other Alliance Laundry Systems Dryer manuals

Alliance Laundry Systems

Alliance Laundry Systems 512685R5 Guide

Alliance Laundry Systems

Alliance Laundry Systems DV6010WE Guide

Alliance Laundry Systems

Alliance Laundry Systems DV6000WG Guide

Alliance Laundry Systems

Alliance Laundry Systems DRY725C User manual

Alliance Laundry Systems

Alliance Laundry Systems 504522R3 Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems DRY725C_SVG User manual

Alliance Laundry Systems

Alliance Laundry Systems AT170FG User manual

Alliance Laundry Systems

Alliance Laundry Systems JT30XG Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DR5003WG User manual

Alliance Laundry Systems

Alliance Laundry Systems LES37A*F Troubleshooting guide

Alliance Laundry Systems

Alliance Laundry Systems LTS97A*N User manual

Alliance Laundry Systems

Alliance Laundry Systems SE5130 Assembly instructions

Alliance Laundry Systems

Alliance Laundry Systems HE-HG Seies Assembly instructions

Alliance Laundry Systems

Alliance Laundry Systems Stacked Drying Tumbler Operating manual

Alliance Laundry Systems

Alliance Laundry Systems 513218R5 User manual

Alliance Laundry Systems

Alliance Laundry Systems HSA030N User manual

Alliance Laundry Systems

Alliance Laundry Systems DRY710C Guide

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DR7004WE User manual

Alliance Laundry Systems

Alliance Laundry Systems DRY688C Operating instructions

Alliance Laundry Systems

Alliance Laundry Systems 512042R4 User manual

Alliance Laundry Systems

Alliance Laundry Systems FES17AxF Assembly instructions

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers 175 Pound Capacity Operating instructions

Alliance Laundry Systems

Alliance Laundry Systems LES37AW User manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
