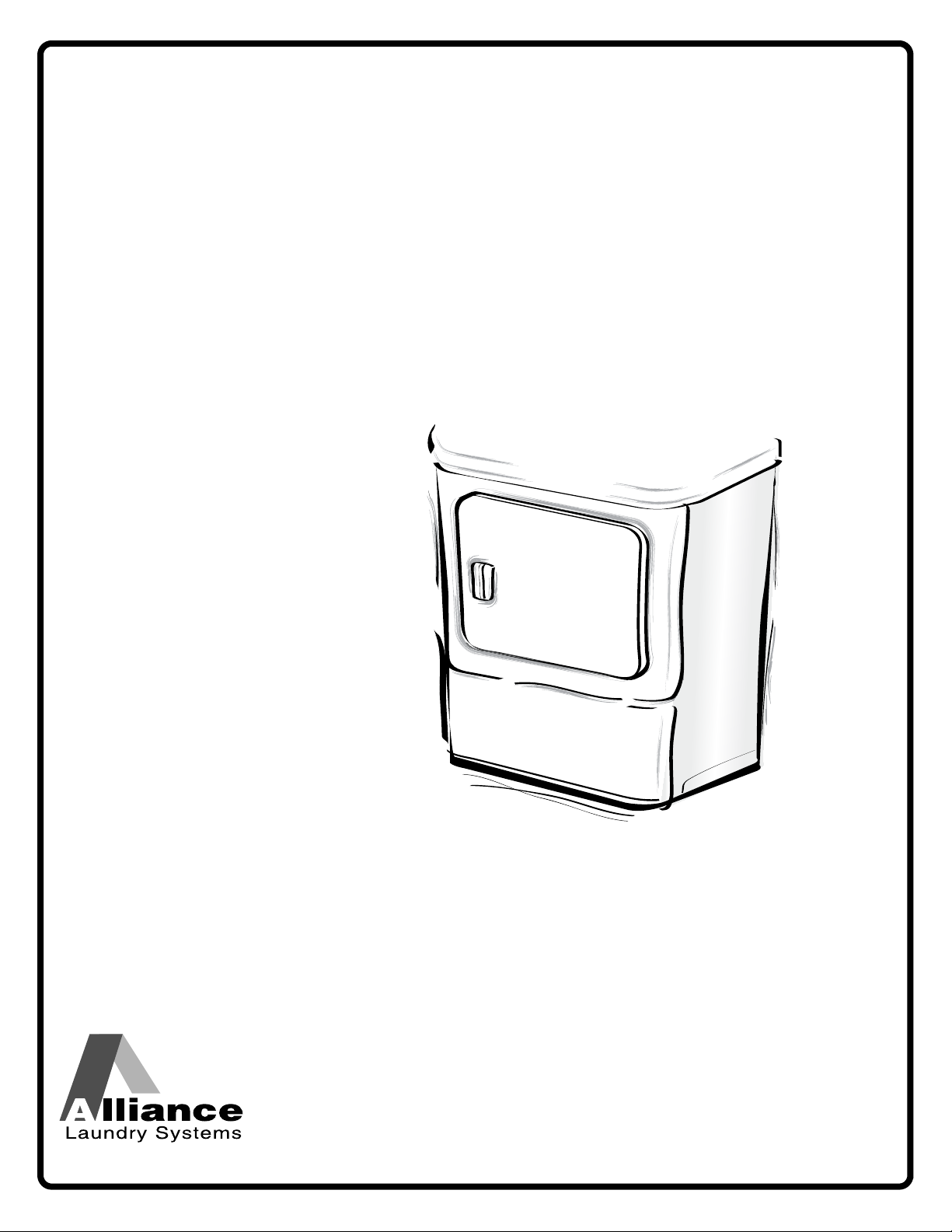

Alliance Laundry Systems ADEE9BSS User manual

User's Guide

for Dryers

DRY725C_SVG

Original Instructions

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

www.alliancelaundry.com Part No. 514473R2

November 2014

Front Matter

WARNING

Risk of fire. Highly flammable material.

W881

IMPORTANT: The electrical installation in the site shall

comply with the Australian Electrical Standards,

AS3000, SAA wiring rules, and such local regulations

that might apply. In Australia and New Zealand, installa-

tion must comply with the Gas Installations Standard

AS/NZS 5601 Part 1: General Installations.

The maximum drying load (dry weight) shall not exceed 8.2 kg [18

pounds].

Read all instructions before using unit.

WARNING

FOR YOUR SAFETY, the information in this manual

must be followed to minimize the risk of fire or explo-

sion or to prevent property damage, personal injury or

death.

W033

WARNING

• Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any oth-

er appliance.

• WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use

any phone in your building.

• Clear the room, building or area of all occu-

pants.

• Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s in-

structions.

• If you cannot reach your gas supplier, call the

fire department.

• Installation and service must be performed by a

qualified installer, service agency or the gas suppli-

er.

W052

IMPORTANT: Purchaser must consult the local gas sup-

plier for suggested instructions to be followed if the dryer

user smells gas. The gas utility instructions plus the

SAFETY and WARNING note directly above must be

posted in a prominent location near the dryer for cus-

tomer use.

WARNING

• Installation of unit must be performed by a qualified

installer.

• Install clothes dryer according to manufacturer’s

instructions and local codes.

• DO NOT install a clothes dryer with flexible plastic

venting materials. If flexible metal (foil type) duct is

installed, it must be of a specific type identified by

the appliance manufacturer as suitable for use with

clothes dryers. Refer to section on connecting ex-

haust system. Flexible venting materials are known

to collapse, be easily crushed, and trap lint. These

conditions will obstruct clothes dryer airflow and in-

crease the risk of fire.

W729R1

Front Matter

Part No. 514473R2 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 3

WARNING

To reduce the risk of severe injury or death, follow all

installation instructions. Save these instructions.

W894

WARNING

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liq-

uids in the vicinity of this or any other appliance.

W053

This product uses FreeRTOS V7.2.0 (www.freertos.org).

NOTE: For Australian models, the energy consumption

is measured as used once per week using the Perm

Press Automatic cycle with High Temperature and Dry-

ness Dry.

Front Matter

4 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 514473R2

Table of Contents

Safety Information.............................................................................6

Explanation of Safety Messages................................................................. 6

Important Safety Instructions....................................................................6

Before Drying.................................................................................... 8

Energy Saving Tips....................................................................................8

Helps and Hints....................................................................................... 8

Sort......................................................................................................8

Load......................................................................................................8

Operating Your Dryer........................................................................10

Control Panel........................................................................................ 10

Digital Display....................................................................................... 10

Cycles................................................................................................. 10

Selections............................................................................................11

Options................................................................................................11

Status................................................................................................ 11

To Dry Clothes.......................................................................................11

Optional Drying Rack...............................................................................12

Maintenance...................................................................................14

Lubrication........................................................................................... 14

Care of Your Dryer..................................................................................14

Motor Overload Protector....................................................................... 14

Lint Filter............................................................................................. 14

Troubleshooting...............................................................................16

Contact Information...............................................................................17

consent of the publisher.

Part No. 514473R2 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 5

Safety Information

Explanation of Safety Messages

Precautionary statements (“DANGER,” “WARNING,” and “CAU-

TION”), followed by specific instructions, are found in this manual

and on machine decals. These precautions are intended for the per-

sonal safety of the operator, user, servicer, and those maintaining

the machine.

DANGER

Indicates an imminently hazardous situation that, if

not avoided, will cause severe personal injury or

death.

WARNING

Indicates a hazardous situation that, if not avoided,

could cause severe personal injury or death.

CAUTION

Indicates a hazardous situation that, if not avoided,

may cause minor or moderate personal injury or prop-

erty damage.

Additional precautionary statements (“IMPORTANT” and “NOTE”)

are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used to inform

the reader of specific procedures where minor machine

damage will occur if the procedure is not followed.

NOTE: The word “NOTE” is used to communicate in-

stallation, operation, maintenance or servicing informa-

tion that is important but not hazard related.

Important Safety Instructions

Save These Instructions

WARNING

To reduce the risk of fire, electric shock, serious injury

or death to persons when using your dryer, follow

these basic precautions:

W130

• Read all instructions before using the dryer.

• Install this dryer according to the INSTALLATION INSTRUC-

TIONS. Refer to the EARTH/GROUND INSTRUCTIONS in the IN-

STALLATION manual for the proper earth/ground connection of

the dryer. All connections for electrical power, earth/ground

and gas supply must comply with local codes and be made by

licensed personnel when required. Do not do it yourself.

• Do not install or store the dryer where it will be exposed to wa-

ter and/or weather.

• Do not dry articles that have been previously cleaned in, washed

in, soaked in, or spotted with gasoline or machine oils, vegetable

or cooking oils, cleaning waxes or chemicals, dry-cleaning sol-

vents, thinner, anything containing chemicals such as in mops

and cleaning cloths, or other flammable or explosive substances

as they give off vapors that could ignite, explode or cause fabric

to catch on fire by itself.

• Items that have been soiled with substances such as cooking

oil, acetone, alcohol, petrol, kerosene, spot removers, turpen-

tine, waxes and wax removers, should be washed in hot water

with an extra amount of detergent before being dried in the

tumble dryer.

• To reduce the risk of fire, DO NOT DRY plastics or articles con-

taining foam or latex rubber or similarly textured rubberlike ma-

terials, such as shower caps, water proof textiles, rubber-

backed articles, and clothes or pillows filled with foam rubber

pads.

• Do not tumble fiberglass curtains and draperies unless the la-

bel says it can be done. If they are dried, wipe out the cylinder

with a damp cloth to remove particles of fiberglass.

• Do not allow children to play on or in the dryer. Close supervision

of children is necessary when the dryer is used near children.

This appliance is not intended for use by persons (including chil-

dren) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning the use of the appliance

by a person responsible for their safety. This is a safety rule for

all appliances.

• Cleaning and user maintenance shall not be made by children

without supervision.

• Children less than three years should be kept away unless con-

tinuously supervised.

• Do not reach into the dryer if the cylinder is revolving.

Safety Information

Part No. 514473R2 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 6

• Use the dryer only for its intended purpose, drying clothes. AL-

WAYS follow the fabric care instructions supplied by the gar-

ment manufacturer and only use the dryer drum to dry textiles

that have been washed in water.

• Always read and follow manufacturer’s instructions on pack-

ages of laundry and cleaning aids. Heed all warnings or precau-

tions. To reduce the risk of poisoning or chemical burns, keep

them out of reach of children at all times (preferably in a locked

cabinet).

• Remove laundry immediately after the dryer stops.

• DO NOT operate the dryer if it is smoking, grinding or has miss-

ing or broken parts or removed guards and/or panels. DO NOT

tamper with the controls or bypass any safety devices.

• DO NOT operate individual units if they have been separated

from a stack unit.

• Dryer will not operate with the loading door open. DO NOT by-

pass the door safety switch by permitting the dryer to operate

with the door open. The dryer will stop tumbling when the door

is opened. Do not use the dryer if it does not stop tumbling

when the door is opened or starts tumbling without pressing

the START mechanism. Remove the dryer from use and call the

service person.

• ALWAYS clean the lint filter after every load. A layer of lint in

the filter reduces drying efficiency and prolongs drying time.

Keep area around the exhaust opening and adjacent surround-

ing area free from the accumulation of lint, dust and dirt. The

interior of the dryer and the exhaust duct should be cleaned

periodically by qualified service personnel.

• Do not repair or replace any part of the dryer, or attempt any

servicing unless specifically recommended in the user-mainte-

nance instructions or in published user-repair instructions that

you understand and have the skills to carry out. ALWAYS dis-

connect the electrical power to the dryer before attempting

service. Disconnect the power cord by grasping the plug, not

the cord.

• If supply cord is damaged, it must be replaced by the manufac-

turer, its service agent or similarly qualified persons in order to

avoid a hazard.

• Before the dryer is removed from service or discarded, remove

the door to the drying compartment.

• Failure to install, maintain, and/or operate this machine accord-

ing to the manufacturer’s instructions may result in conditions

which can produce bodily injury and/or property damage.

NOTE: The WARNING and IMPORTANT SAFETY IN-

STRUCTIONS appearing in this manual are not meant to

cover all possible conditions and situations that may oc-

cur. Observe and be aware of other labels and precau-

tions that are located on the machine. They are intended

to provide instruction for safe use of the machine. Com-

mon sense, caution and care must be exercised when in-

stalling, maintaining, or operating the dryer.

Always contact your dealer, distributor, service agent or the man-

ufacturer about any problems or conditions you do not under-

stand.

Safety Information

Part No. 514473R2 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 7

Before Drying

Energy Saving Tips

• Make sure the lint filter is always clean.

• Do not overload the dryer.

• Do not overdry items.

• Remove items to be ironed while still damp.

• Large loads of similar fabrics dry the most efficiently. However,

dry permanent press in smaller loads to prevent wrinkling.

• Use the correct cycle for the type of fabric being dried.

• Locate your dryer so the exhaust duct is as short and straight

as possible.

• Do not open the door during the drying cycle.

• Plan to do your laundry on low humidity days; your clothes will

dry faster.

• Dry multiple loads of clothes one right after another so dryer

interior does not have to be reheated for each load.

Helps and Hints

WARNING

To reduce the risk of fire, explosion, serious injury or

death, clothes which have traces of any flammable

substances such as cooking oil, machine oil, flamma-

ble chemicals, thinner, etc. must not be put into the

dryer.

W131

• The directions for installation and proper exhausting are given

in the Installation Instructions which are included with the dry-

er.

• Static electricity may cause garments of synthetic fibers (as

in lingerie) to cling together, especially if they are overdried. The

use of a liquid fabric softener in the rinse water of the washer,

or a fabric softener sheet in the dryer, will soften clothes and

reduce static electricity.

• Do not wash or dry clothes that shed lint in the same load with

permanent press or knit garments.

• Remove permanent press loads immediately after dryer stops.

• Follow the care labels on FLAME RETARDANT, SCOTCH-

GUARD™, etc., garments for proper washing and drying.

• If loads should be damp for ironing, use the Damp Dryness set-

ting, in an Automatic cycle.

Sort

If you have correctly sorted the items for washing, they should be

properly sorted for drying too.

1. Sort by color.

2. Separate lint shedding fabrics and lint receiving fabrics. Towels,

flannels, chenille, cottons, rugs, etc., shed lint. Corduroys, knits

(including socks), permanent press, and synthetics attract lint.

3. Separate no heat, low heat and high heat items.

In any kind of drying, lightweight fabrics will dry faster than heavy-

weight fabrics. If mixed loads are dried together (such as sheets

and towels), remove the lighter weight fabrics when they are dry to

prevent overdrying and wrinkling. The best method is to dry clothes

which require the same time, temperature or dryness level in the

same load.

TLW1991N_SVG

Load

WARNING

Do not wash or dry items soiled with vegetable or

cooking oils. Some oils may remain after washing and

may cause the fabric to catch on fire by itself.

W527

• Do not overload your dryer. Bulk, not weight, determines the

load size. If the dryer is overloaded, it could cause discoloration

or permanent heat damage to the load.

• There should be space in the dryer for the clothes to tumble

freely and help to reduce wrinkles.

• Large and small pieces together make up loads which will tumble

well. Permanent press loads should be smaller to provide room

for tumbling. Proper tumbling allows for fewer wrinkles.

• A load can be too small. Just a few small pieces will not tumble

properly. They will take longer to dry and they may be wrinkled.

For small loads, add a couple of large towels or non lint shedding

items to aid in tumbling.

• The following illustrations show the ideal load sizes for fabrics.

The average load will fill the cylinder one third to half full when

wet.

Before Drying

Part No. 514473R2 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 8

Cylinder with wet linens and cottons

DRY2031N_SVG

Cylinder with wet permanent press items

DRY2032N_SVG

Before Drying

Part No. 514473R2 ©Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 9

Operating Your Dryer

WARNING

To reduce the risk of fire, electric shock, serious injury

or death to persons, read the Safety Information sec-

tion before operating the dryer.

W520

Control Panel

Preset Cycles

DRY2577N_SVG

Door Open

Status

Heating

Cooling

Low Medium

AUTO-SENSING

MANUAL

HighNo Heat

Temp

Moisture

Level

Dryness

Less Dry Near Dry DryDamp

Wet Damp DrySensing Control Lock

Selections

Extended

Anti-

Wrinkle

EcoDry

Options

Signal

Regular

Heavy

Duty Delicate

Time

Dry

Favorite Quick

Dry

Prem

Press

Fluff

Power

Cancel

Start

Pause

Digital Display

The two-digit display is used to show the time remaining in a cycle.

The display also shows diagnostic codes.

Idle Mode

If no keypads have been pressed for five minutes after a cycle is fin-

ished, the control will enter Idle Mode. A light in the lower right cor-

ner of the digital display will flash once each minute. Press the Pow-

er/Cancel keypad to exit this mode.

Cycles

The following cycle descriptions will help determine which cycle to

choose depending on the type of laundry being dried. The cycle set-

tings may be modified using the Selections and Options.

Auto-Sensing

The Auto-Sensing drying cycle operation is determined by the type

of cycle selected as well as the moisture sensing system, which can

be set by changing the Dryness setting. Auto-Sensing cycles are

Energy Saver cycles that help prevent over-drying.

When a wet load is put into the dryer it takes a certain amount of

time to reach the desired dryness level. The time will vary with load

size, type of fabric, amount of moisture in the load, air flow and the

laundry room environment. The estimated time will be shown in the

digital display.

Cycle Use

Heavy Duty Dry heavy items such as blan-

kets on this cycle.

Regular Use for sturdy items like play or

work clothes.

Perm Press Use for permanent press items

and synthetics.

Delicate Dry delicate items on this cy-

cle.

Manual

There are three manual cycles: Time Dry, Quick Dry and Fluff Up.

These cycles will run for the set number of minutes shown on the

digital display. The cycle time can be increased or decreased using

the up and down arrow keypads. The time and temperature selec-

tion may be adjusted manually at any time before or during the cy-

cle.

Operating Your Dryer

This manual suits for next models

Table of contents

Other Alliance Laundry Systems Dryer manuals

Alliance Laundry Systems

Alliance Laundry Systems 75 User manual

Alliance Laundry Systems

Alliance Laundry Systems UT025 Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems AT170FG User manual

Alliance Laundry Systems

Alliance Laundry Systems FES17AxF Assembly instructions

Alliance Laundry Systems

Alliance Laundry Systems LWS01M series User manual

Alliance Laundry Systems

Alliance Laundry Systems 512685R2 User manual

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers none Operating manual

Alliance Laundry Systems

Alliance Laundry Systems DRY724C_SVG Guide

Alliance Laundry Systems

Alliance Laundry Systems continuity Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers none User manual

Alliance Laundry Systems

Alliance Laundry Systems DCB50EG User manual

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DR5003WG User manual

Alliance Laundry Systems

Alliance Laundry Systems 70444901R3 Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems ADE3SRGS173CW01 User manual

Alliance Laundry Systems

Alliance Laundry Systems 50 Pound Series User manual

Alliance Laundry Systems

Alliance Laundry Systems DR5000WG User manual

Alliance Laundry Systems

Alliance Laundry Systems 510988R3 Guide

Alliance Laundry Systems

Alliance Laundry Systems HA025E User manual

Alliance Laundry Systems

Alliance Laundry Systems LES33A User manual

Alliance Laundry Systems

Alliance Laundry Systems LGS19A-1188 User manual

Alliance Laundry Systems

Alliance Laundry Systems HAT30N Operating instructions

Alliance Laundry Systems

Alliance Laundry Systems LES33 User manual

Alliance Laundry Systems

Alliance Laundry Systems 800795 User manual

Alliance Laundry Systems

Alliance Laundry Systems 25 Pound Capacity User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
