AEG L61271 WDB1 User manual

Operating Instructions - Washer/dryer AEG L61271 WDB1

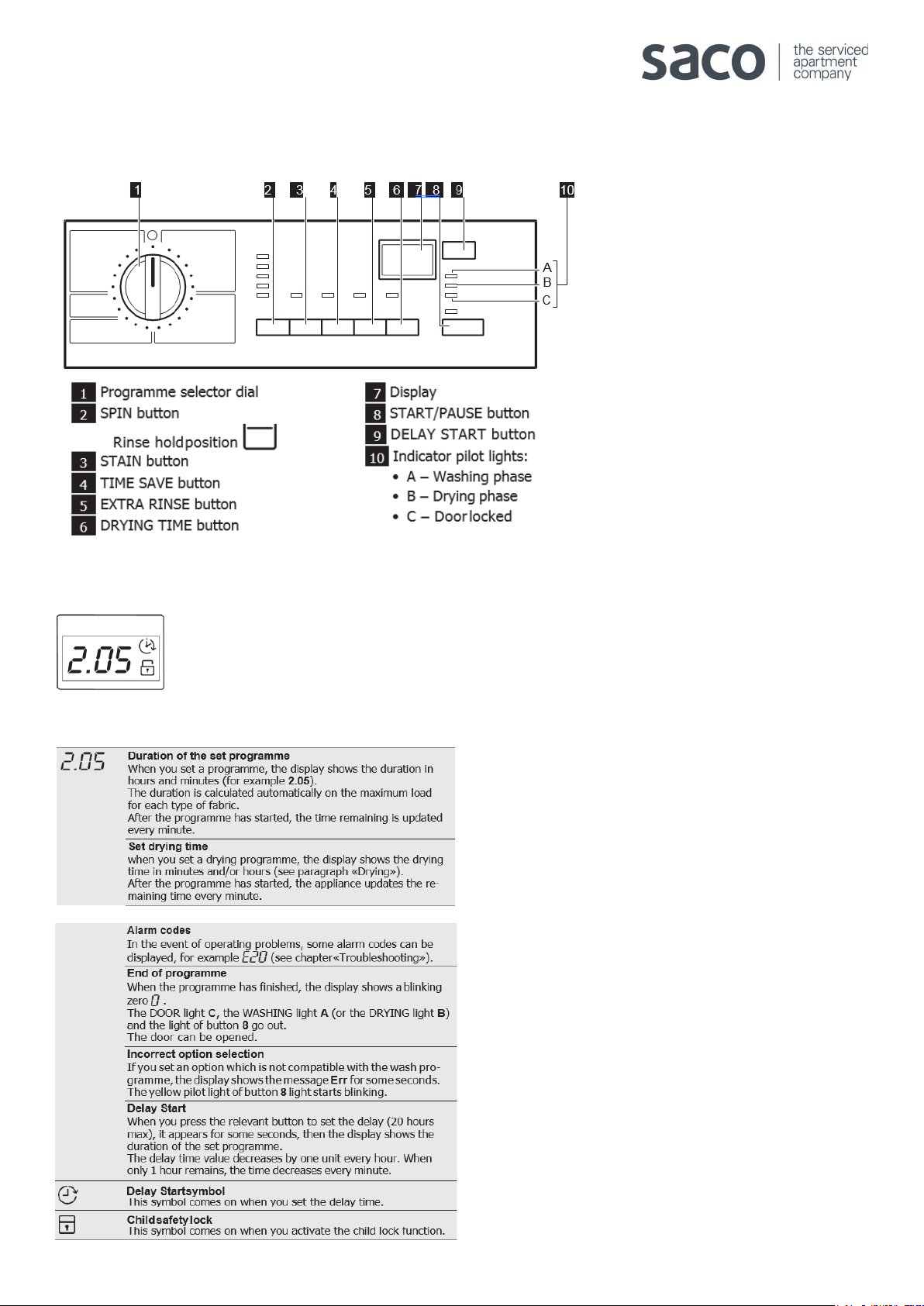

Control panel

Display

The display shows the following information:

Indicator pilot lights

After you have pressed the button 8, the WASHING light (A) comes on. The machine is operating.

When you set a drying programme, the DRYING light (B) illuminates and stays on during the drying phase.

The DOOR light (C) indicates when the door can be opened:

•light on: the door cannot be opened

•light blinking: the door is opening in some minutes

•light off: the door can be opened

Acoustic signals

An acoustic signal sounds in the following cases:

•at the end of the cycle

•in the event of operating problems

By pressing buttons 3 and 4 simultaneously the signal is deactivated. By pressing the buttons again the signal is

reactivated.

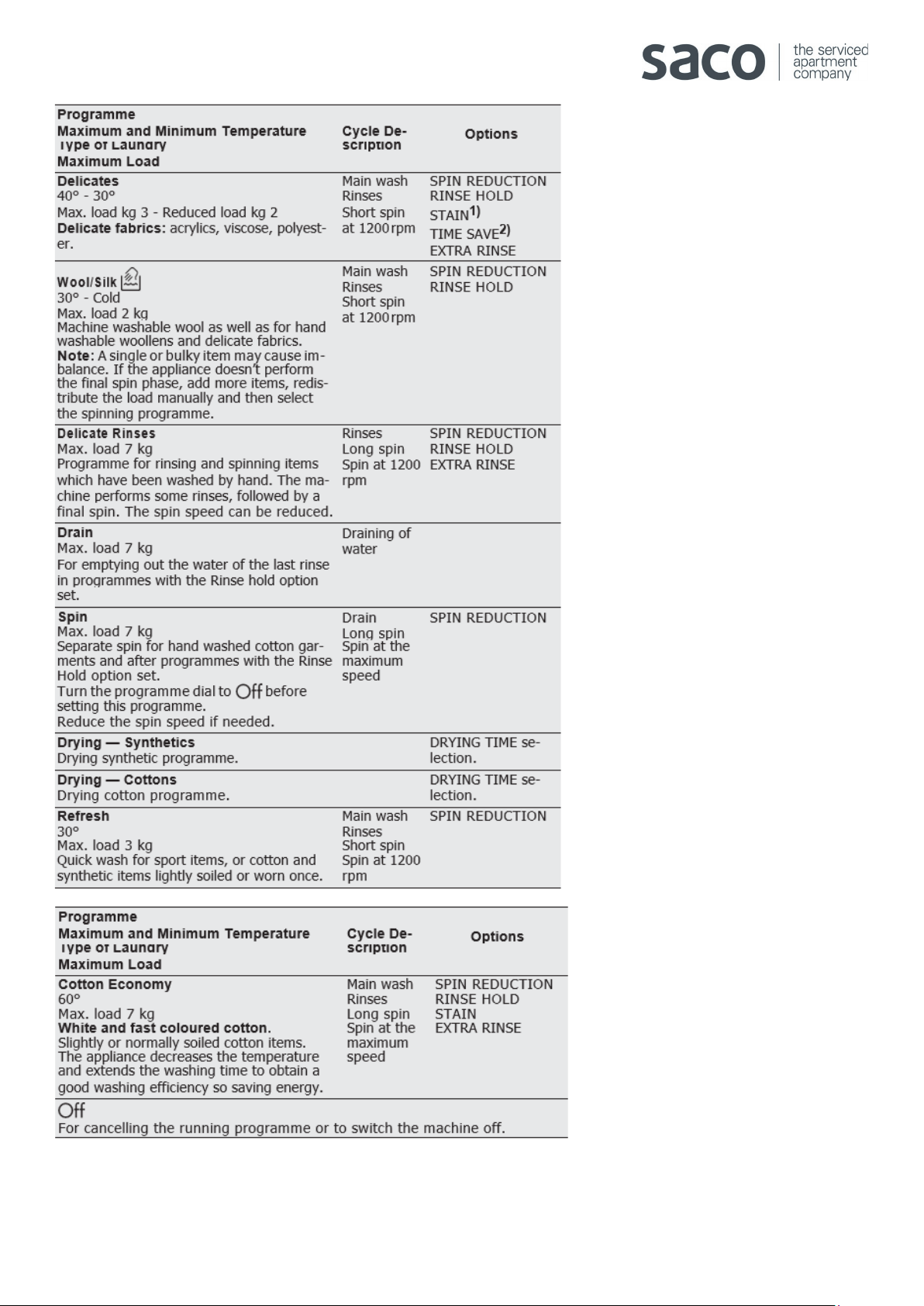

Washing programmes

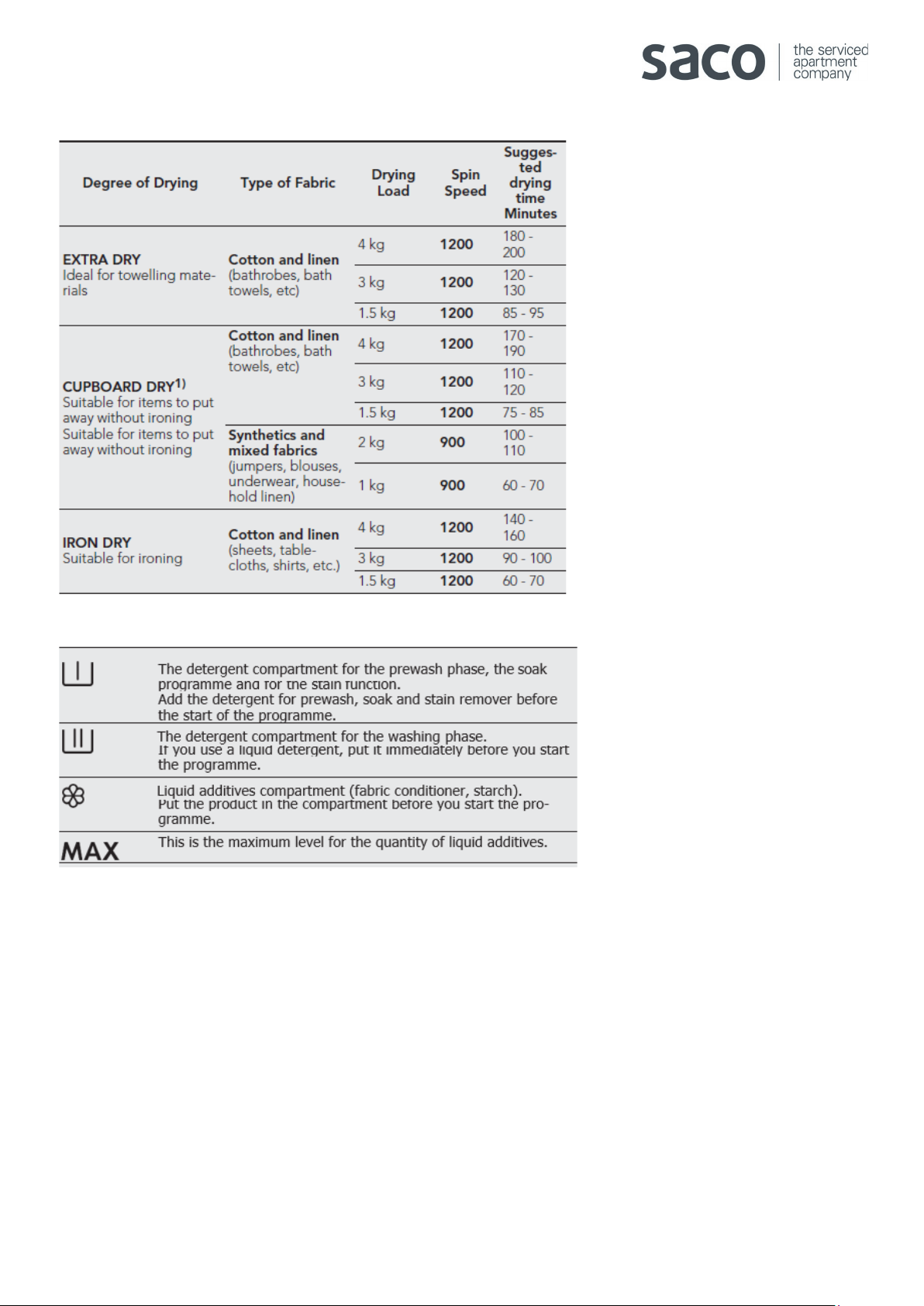

Drying programmes

Filling the detergent

Starting the programme (button 8)

Press button 8 to start the programme. The corresponding red pilot light stops blinking.

•The pilot light A is on to indicate that the appliance starts operating.

•The pilot light C is on to indicate the door is locked.

Press button 8 to interrupt a programme. The corresponding red pilot light starts blinking. Press button 8 again to

restart the programme from the point at which it was interrupted

If you set an incorrect option, the yellow pilot light of the button 8 blinks for 3 times. The display shows the message

Err.

Setting the DELAY START (button 9)

Press this button again and again to set the required delay.

The display shows the set delay time (up to 20 hours), then shows the duration of the programme again.

Set the delay before you press the button 8.

You can delay the wash programme from 30 min - 60 min - 90 min, 2 hours and then by 1 hour up to a maximum

of 20 hours.

Adding items after you have set the delay (throughout the delay time the door will be locked):

•Press the button 8 to put the machine in pause

•Add the laundry, close the door.

•Press the button 8 again.

Setting the delayed start:

•Set the programme and the required options.

•Set the delay start.

•Press the button 8: the appliance starts its hourly countdown.

•The programme will start after the selected delay has expired

Cancelling the delayed start:

•Press the button 8 to set the washing machine to PAUSE;

•Press the button 9 once until the display shows the symbol

•Press the button 8 again to start the programme.

Interrupting a programme

Press button 8 to interrupt a programme which is running

Cancelling a programme

Turn the selector dial to Off

Opening the door

When the machine is working the door is locked.

To open the door, press button 8 to set the machine to pause

If the light C after a few minutes goes off, the door can be opened.

If the light C stays on, this means the door cannot be opened in the current setting.

If this is the case, turn the programme dial to which turns the machine off. After a few minutes, the door can be

opened.

At the end of a programme

The machine stops automatically. The pilot lights A and C go off. A blinking will appear on the display.

If you have set a programme or an option that ends with water in the tub, the light C remains lit. The door is locked.

The water must be emptied out before opening the door. The drum will continue to turn at regular intervals until

waster is drained.

To empty the water:

•Turn the programme selector dial to

•Set the DRAIN or SPIN programme

•Press button 8

When the programme has finished the display shows a blinking . The pilot light C goes off. The door can be opened.

Turn the programme selector dial to to switch the machine off.

Drying only

•Load the laundry.

•Select a spin cycle at the maximum spin speed allowed for the type of laundry for best performance

•Set the drying programme for Cottons or Synthetics in the Drying sector of the programme dial.

•Press button 6 to set the drying time. Press this button repeatedly until the time you want appears on the display.

•At the end of the drying programme, an acoustic signal sounds and a blinking appears on the display.

•The anti-crease phase begins, which lasts for about 10 minutes. Light C is on and the door cannot be opened.

NON-STOP programme: Washing and timed drying

•Load the laundry.

•Add detergent

•Switch the machine on: turn the selector dial to the required washing programme/fabric.

•Press the relevant buttons to set the required options.

•Press button 6 to set the drying time. When selecting a «non-stop programme» the pilot lights A and B illuminate.

•The DRYING TIME value appears on the display for some seconds, then the entire duration of the washing and

drying cycle appears.

•Press button 8 to start the programme.
