AEG LAVATHERM T35850 User manual

LAVATHERM T35850

User manual Exhaust Dryer

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfectly

and most efficiently. To refer to this manual any time you need to, we recommend

you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Operating Instructions 3

Important safety information 3

Product description 5

Control panel 6

Before first use 6

Sorting and preparing laundry 6

Laundry weights 7

Programme overview 8

Daily use 9

Switching machine on / switching light on

Opening loading door / loading laundry

Selecting the programme 10

Selecting additional options 10

Setting delay timer 11

Starting the programme 11

Changing programme 11

Putting in extra items or taking items out

before end of programme 11

Drying cycle complete / removing laundry

Care and cleaning 12

Cleaning fluff filter 12

Cleaning the door 13

Cleaning the drum 13

Clean operating screen and housing 13

What to do if ... 14

Troubleshooting by yourself 14

Machine settings 15

BUZZER SIGNAL permanent off 15

Water hardness 15

Technical data 16

Installation 17

Appliance positioning 17

Removing transport safety packaging 17

Fitting the vent hose 18

Electrical connection 19

Special accessories 20

Environment 21

Environmental tips 21

Service 22

Guarantee/Customer Service 22

GREAT BRITAIN & IRELAND 22

European Guarantee 24

www.electrolux.com 24

Subject to change without notice

2Contents

Operating Instructions

Important safety information

In the interest of your safety and to ensure the correct use, before installing and

first using the appliance, read this user manual carefully, including its hints and

warnings. To avoid unnecessary mistakes and accidents, it is important to ensure

that all people using the appliance are thoroughly familiar with its operation and

safety features. Save these instructions and make sure that they remain with the

appliance if it is moved or sold, so that everyone using it through its life will be

properly informed on appliance use and safety.

General safety

• It is dangerous to alter the specifications or attempt to modify this product in any way.

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for

their safety.

• Make sure that small pets do not climb into the drum. To avoid this, please check into

the drum before using.

• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp

material can cause extensive damage and must not be placed into the machine.

• In order to avoid danger of fires caused by excessive drying, do not use appliance to dry

the following items: Cushions, quilts and the like (these items accumulate heat).

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed

articles and clothes or pillows fitted with foam rubber pads should not be dried in the

tumble dryer.

• Always unplug the appliance after use, clean and maintenance.

• Under no circumstances should you attempt to repair the machine yourself. Repairs

carried out by inexperiencedpersons may cause injury or serious malfunctioning. Contact

your local Service Centre. Always insist on genuine spare parts.

• Items that have been soiled with substancessuch as cooking oil acetone, petrol, kerosene,

spot removers, turpentine, waxes and wax removers should be washed in hot water with

an extra amount of detergent before being dried in the tumble dryer.

•Danger of explosion: Never tumble dry items that have been in contact with inflam-

mable solvents (petrol, methylated spirits, dry cleaning fluid and the like). As these sub-

stance are volatile, they could cause an explosion. Only tumble dry items washed with

water.

•Risk of fire: items that have been spotted or soaked with vegetable or cooking oil

constitute a fire hazard and should not be placed in the tumble dryer.

• If you have washed your laundry with stain remover you must execute an extra rinse

cycle before loading your tumble dryer.

Important safety information 3

• Please make sure that no gas lighters or matches have accidentally been left in pockets

of garments to be loaded into appliance

WARNING!

Never stop a tumble dry before the end of the drying cycle unless all items are

quickly removed and spread out so that the heat is dissipated. Risk of fire!

•Risk of electric shock! Do not spray down the appliance with jets of water.

• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure

that the items are left at a temperature that ensures that items will not be damaged.

• Ensure you have adequate ventilation in the installation room to avoid the back flow of

gases into the room from appliances burning other fuels, including open fires.

Installation

• This appliance is heavy. Care should be taken when moving it.

• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it

and contact the Service Centre.

• All packing and transit bolts must be removed before use. Serious damage can occur to

the product and to property if this is not adhered to. See relevant section in the user

manual.

• Any electrical work required to install this appliance should be carried out by a qualified

electrician or competent person.

• Care must be taken to ensure that the appliance does not stand on the electrical supply

cable.

• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air

to circulate freely.

• After having installed the appliance, check that it is not pressing or standing on its

electrical supply cable or/and inlet hose.

• If the tumble dryer is placed on top of a washing machine, it is compulsory to use the

stacking kit (optional accessory).

Use

• This appliance is designed for domestic use. It must not be used for purposes other than

those for which it was designed.

• Only wash fabrics which are designed to be machine dried. Follow the instructions on

each garment label.

• Do not dry unwashed items in the tumble dryer.

• Do not overload the appliance. See the relevant section in the user manual.

• Clothes which are dripping wet should not be placed in the dryer.

• Garments which have been in contact with volatile petroleum products should not be

machine dried. If volatile cleaning fluids are used, care should be taken to ensure that

the fluid is removed from the garment before placing in the machine.

• Never pull the power supply cable to remove the plug from the socket; always take hold

of the plug itself.

• Never use the tumble dryer if the power supply cable, the control panel, the working

surface or the base are damaged so that the inside of the tumble dryer is accessible.

• Fabric softeners, or similar products should be used as specified by the fabric softener

instructions.

4Important safety information

•Caution - hot surface : Do not touch the door light cover surface when the light is

switched on.

•Hot surface: Do not touch the back of the appliance while it is operating!

Child safety

• This machine is not intended for use by young children or infirm persons without su-

pervision.

• Children should be supervised to ensure that they do not play with the appliance.

• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children

- danger of suffocation! Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s reach.

• Make sure that children or pets do not climb into the drum.

Product description

1Control panel

2Door

3Fluff filter

4Lamp for inside light

5Rating plate

6Adjustable feet

7Sideways vent outlets / back vent outlet

1) Only dryers equipped with internal drum light.

Product description 5

8Ring nut

Control panel

1Programme knob and OFF switch

2Function buttons

3START PAUSE button

4DELAY START button

5Function status led

Before first use

In order to remove any residues which may have been produced during production, wipe

the dryer drum with a damp cloth or carry out a brief drying cycle (ca. 30 min.) with damp

cloths in the machine.

Sorting and preparing laundry

Sorting laundry

• Sort by fabric type:

– Cotton/linen for programmes in COTTONS programme group.

– Mixtures and SYNTHETICS for programmes in SYNTHETICS programme group.

6Control panel

• Sorting by care label. The care labels mean:

Drying in the tumble

dryer possible in prin-

ciple

Dry at normal tem-

perature

Dry at reduced tem-

perature (press DELI-

CATE button!)

Drying in the tumble

dryer not possible

Do not place in the appliance any wet laundry which is not specified on the care label as

being suitable for tumble-drying.

This appliance can be used for all wet laundry items which are labelled as suitable for

tumble-drying.

• Do not dry new, coloured textiles together with light-coloured laundry items. Textile

colours may bleed.

• Do not dry cotton jersey and knitwear with the EXTRA programme. Items may shrink!

•Wool can be dried only by special programme WOOL CARE !

Preparing laundry

• To avoid laundry becoming tangled: close zips, button up duvet covers and tie loose ties

or ribbons (e.g. of aprons).

• Empty pockets. Remove metal items (paper clips, safety pins, etc).

• Turn items with double-layered fabrics inside out (e.g. with cotton-lined anoraks, the

cotton layer should be outermost). These fabrics will then dry better.

Laundry weights

Type of laundry Weight

Bathrobe 1200 g

Napkin 100 g

Quilt cover 700 g

Sheet 500 g

Pillow case 200 g

Tablecloth 250 g

Towelling towel 200 g

Tea cloth 100 g

Night dress 200 g

Ladies' briefs 100 g

Man's work shirt 600 g

Man's work shirt 200 g

Man's pyjamas 500 g

Blouse 100 g

Men's underpants 100 g

Sorting and preparing laundry 7

Programme overview

Programmes

max. load (weight when dry)

Additional functions/

options

Application/properties

Care mark

DELICATE

SENSITIVE

LONG ANTICREASE

BUZZER

DELAY START

COTTONS

EXTRA DRY 7 kg • • • • • Thorough drying of thick or multi- layered fab-

rics, e.g. terry towelling items, bathrobes.

COTTONS

CUPBOARD

DRY

7 kg • • • • • Thorough drying of fabrics of even thicknesses,

e.g. terry towelling items, knitwear, towels.

COTTONS

IRON DRY

7 kg • • • • • For thin fabrics which are also to be ironed, e.g.

knitwear, cotton shirts.

SYNTHET-

ICS EXTRA

DRY

3 kg • • • • • Thorough drying of thick or multi-layered fab-

rics, e.g. pullovers, bedding, table linen.

SYNTHET-

ICS CUP-

BOARD DRY

3 kg • • • • •

For thin fabrics which are not ironed, e.g. easy

care shirts, table linen, baby clothes, socks, lin-

gerie with bones or wires.

SYNTHET-

ICS IRON

DRY

3 kg • • • • • For thin fabrics which are also to be ironed, e.g.

knitwear, cotton shirts.

30 MIN 1 kg • - • • • For further drying of individual items of laun-

dry or for small volumes of less than 1 kg.

FRESCHEN

UP 1 kg • - • • • For refreshing or gently cleaning textiles with

commercially available dry cleaning products.

BED LINEN 3 kg • - • • • Bedlinen (single and double sheet, pillowcase,

bedspread, duvet cover).

JEANS 7 kg • • • • •

For leisure clothing, such as jeans, sweat-shirts,

etc., of different material thicknesses (e.g. at

the neck, cuffs and seams).

8Programme overview

Programmes

max. load (weight when dry)

Additional functions/

options

Application/properties

Care mark

DELICATE

SENSITIVE

LONG ANTICREASE

BUZZER

DELAY START

SPORTS

LIGHT 2 kg A

- • • • For sportswear, thin fabrics, polyester, which

are not ironed.

EASY IRON

1 kg

(or 5

shirt

- • • •

Special programme with anti-crease mecha-

nism for easy care textiles such shirts and blou-

ses; for minimum ironing effort. The result de-

pends on the type and quality of textiles. (The

loading volume corresponds to approx. 5 to 7

shirts.) Recommendation: Place textiles in the

dryer straight after spinning. Once dried, im-

mediately remove textiles and place on clothes

hanger.

WOOL

CARE 1 kg • - - • •

WOOL CARE is special programme for briefly

treating woollens with warm air after they

have been dried naturally, worn or stored for

long periods. Wool fibres are aligned and the

wool becomes soft and snugly.

1) In accordance with IEC61121

2) select DELICATE option

3) Automatic

Daily use

Switching machine on / switching light on

Turn the programme selector to any programme. The machine has been switched on.

Daily use 9

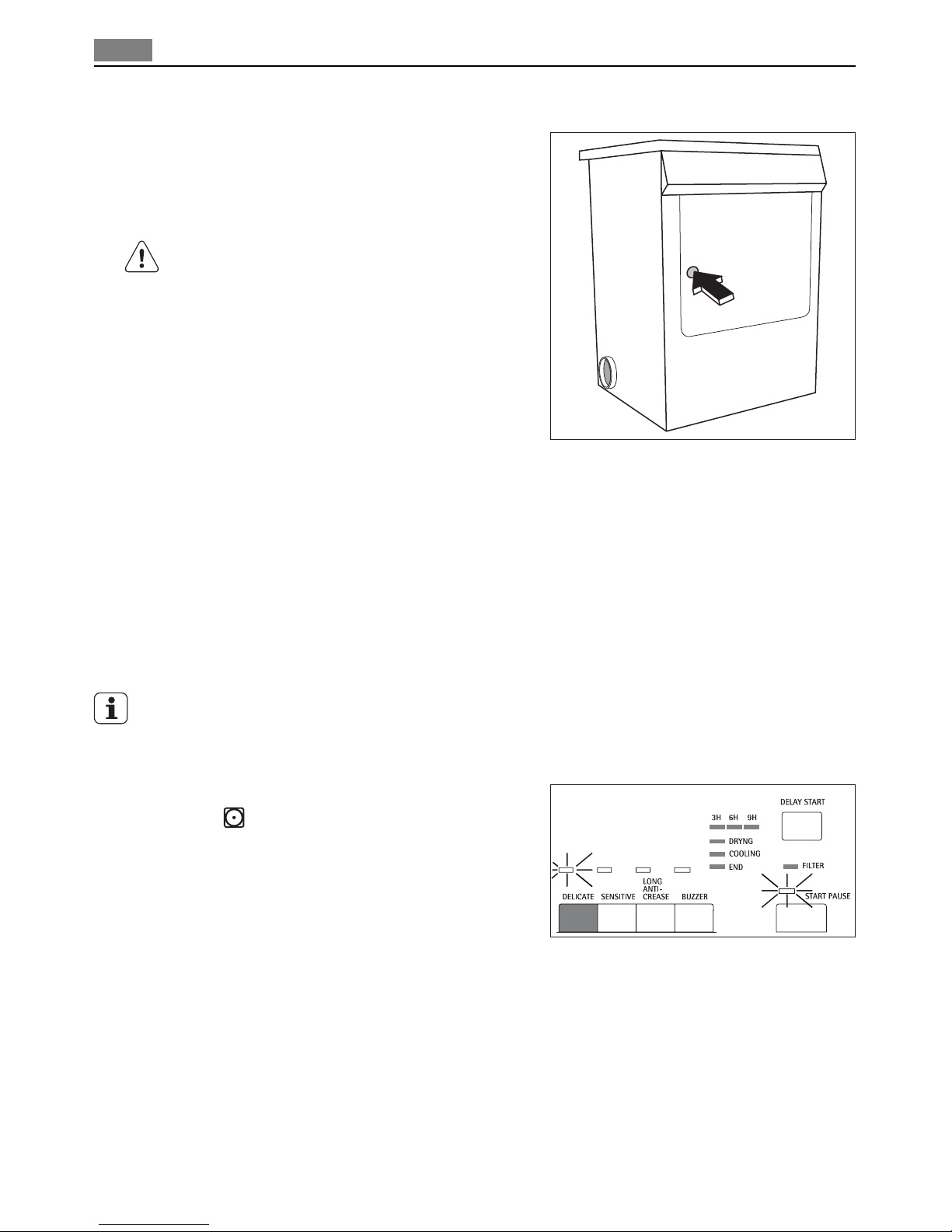

Opening loading door / loading laundry

1. Open loading door:

Use force to push against the loading door

(push point)

2. Load your laundry (do not force it in).

CAUTION!

Do not jam laundry in between the loading

door and rubber seal.

3. Close loading door securely. Lock must

audibly lock.

Selecting the programme

Use the programme selector to set the programme you require.

Selecting additional options

The additional options available for the drying programmes are DELICATE , SENSITIVE , LONG

ANTICREASE and BUZZER

1. By turning the knob choose a drying programme.

2. To set the option press required option button. The corresponding lights on .

3. Press alternately option button to select appropriate options. START PAUSE icon flashes.

Some options cannot be selected together as DELICATE and SENSITIVE. Some of them are

not selectable with certain programmes

DELICATE

For especially gentle drying of sensitive fabrics

with the care label and for temperature-sen-

sitive textiles (e.g. acrylic, viscose). Programme is

executed with reduced heat.

DELICATE is only suitable for use with loads of up

to 3kg.

LONG ANTICREASE

A long anti-crease phase lengthen the anti-crease phase (30 min.) at the end of the drying

additionally by 60 minutes. The drum rotates at intervals during this phase. This keeps the

laundry loose and free of creases. Phase lasts in total 90 minutes. The laundry can be

removed at any time during the anti-crease phase.

When the option is active, the LONG ANTICREASE light is on.

SENSITIVE

For gentle drying of fabrics that are frequently worn. Programme starts on full heat setting,

which is then reduced as the programme progresses to be kind to the washing.

10 Daily use

Table of contents

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care
