Adaptec 1405 User manual

Adaptec SATA/SAS

1405, 1045 Controller

Quick Start Guide

Kurzanleitung

Guide de démarrage

Guida di avvio rapida

Guía rápida

クィックスタートガイド

Controller Illustrations

SAS 1405 1045 QSG.book -1 ページ２００８年１１月６日　木曜日　午前９時４５分

SAS 1405 1045 QSG.book 0 ページ２００８年１１月６日　木曜日　午前９時４５分

Adaptec SAS/SATA

1405, 1045 Controller

Quick Start Guide

SAS 1405 1045 QSG.book -1 ページ２００８年１１月６日　木曜日　午前９時４５分

SAS 1405 1045 QSG.book 0 ページ２００８年１１月６日　木曜日　午前９時４５分

English

Introduction

This Quick Start Guide provides information on how to install your

Microsoft® Windows 2003/2008/XP/Vista™, SUSE® or Red Hat Linux®

operating system and Adaptec SATA/SAS 1405, 1045 controller driver.

For other installation options, refer to the Adaptec SATA/SAS 1405, 1045

Controller Installation and User’s Guide included on the controller

Installation CD. For controller illustrations, refer to the last section of this

document.

Note: For the latest information about the products described in this

Guide, for operating systems support, and to download drivers, visit

www.adaptec.com.

Package Contents

Adaptec SATA/SAS 1405 or 1045 Controller

Embedded in the controller’s BIOS are these utilities:

●Configuration Utility - Used to modify the controller and disk

drive settings

●Disk Utilities - Used to format and verify disk drives

Adaptec installation CD containing:

●Drivers for the Adaptec controller

●Product Documentation for the Adaptec SATA/SAS 1405 or 1045

Controller

●Readme files

Cable (1405 kit only)

Low-profile bracket

Adaptec SATA/SAS 1405, 1045 Controller Quick Start Guide (this

document in printed format)

SAS 1405 1045 QSG.book 1 ページ２００８年１１月６日　木曜日　午前９時４５分

Step 1 Installing the Controller

Caution: Electrostatic Discharge (ESD) can damage your SATA/SAS

controller. Handle the controller carefully so that you do not expose it

to static charge.

aIf you have a low-profile computer cabinet, replace the original full-

height bracket on the controller card with the low-profile bracket

supplied in the controller kit.

bTurn off your computer and disconnect the power cord.

cOpen the system cabinet.

dRemove the cover from an available PCIe slot.

eInstall the controller in the PCIe slot and secure the controller bracket

to the chassis.

fConnect the SATA/SAS controller’s I2C connector (not available on all

models) to an I2C connector on an internal backplane or enclosure,

using an I2C cable.

gInstall and connect any internal disk drives using the appropriate

cable(s), then close the computer cabinet.

●All connectors are keyed so that you can insert the cables in only

one direction.

●Do not try to force a cable in to the controller or a disk drive. If the

connector does not slide on easily, try reversing it.

Step 2 Setting Up the Boot Sequence

The process you use to access your computer’s BIOS Setup program and

set the boot sequence varies by the computer manufacturer. Refer to the

instructions provided with your computer. The steps may be similar to:

aDuring startup, press the key combination (for example, <F2>, <F1>,

<DEL>) that starts the BIOS Setup program.

bGo to the menu used to specify the boot sequence. Put the CD drive

first—this allows you to perform Step 3 below.

cGo to the menu used to specify the boot priority for disk drives. Put

the controller first in this sequence.

dSave your changes, exit Setup, and then restart your computer.

SAS 1405 1045 QSG.book 2 ページ２００８年１１月６日　木曜日　午前９時４５分

English

Step 3 Creating the Driver Disk

Before you install the driver, you need to create a driver disk. To create the

driver disk:

aInsert the Adaptec Controller CD and power on the computer to boot

from the CD.

bFollow the on-screen instructions to display the CD menu.

cClick Create Driver Disk, and select the required operating system.

dWhen prompted, insert a floppy disk, then click OK. The computer

creates the driver disk.

eRemove and label the driver disk.

fContinue with the installation of the operating system and controller

driver.

Step 4 Installing the Controller Driver with

the Operating System

Windows 2003/XP

aInsert the Windows CD, and restart the computer.

bWhen prompted to install a third-party driver, press F6.

Note: When F6 is active, a prompt appears at the bottom of the screen

for only 5 seconds. If you miss your chance to press F6, restart your

computer.

cInsert the driver disk, then wait until prompted to install the driver.

dPress S to specify that the driver is on the floppy disk, then press Enter.

The computer reads the disk.

eWhen the driver is found, press Enter. Follow the on-screen

instructions to complete the installation.

Windows Vista/Windows Server 2008

aInsert the Windows CD.

bWhen prompted to install a third-party driver, click Load Driver.

cBrowse to locate the driver and click Next to proceed with the

installation.

SAS 1405 1045 QSG.book 3 ページ２００８年１１月６日　木曜日　午前９時４５分

Red Hat Linux

aInsert the Red Hat CD.

bRestart the computer.

cWhen the Red Hat Welcome screen opens, type

expert

linux dd

at the boot prompt.

dWhen prompted, insert the driver disk you created, then select OK.

eFollow the on-screen instructions to set up the environment you want.

fIf you intend to install other third-party devices, install them now.

Otherwise, select Done.

gFollow the on-screen instructions to complete the Red Hat

installation.

SUSE Linux

aInsert the SUSE CD.

bRestart the computer.

cWhen the SUSE Installation menu opens, press the F6 key, select the

required installation option from the menu, then press Enter.

dWhen prompted, insert the driver disk you created, then press any key

to continue.

eFollow the on-screen instructions to set up the environment you want.

fIf you intend to install other third-party devices, install them now.

Otherwise, select Done.

gFollow the on-screen instructions to complete the SUSE installation.

SAS 1405 1045 QSG.book 4 ページ２００８年１１月６日　木曜日　午前９時４５分

English

About Adaptec SATA/SAS 1405, 1045

Controllers

The controllers listed have met UL safety requirements for installation

and use in UL listed computers and Information Technology Equipment

(ITE) including server and network appliances.

For more information about Adaptec controllers, specifications, user

guides, and updates, visit www.adaptec.com.

To find detailed information about the controllers described in this

QuickStart Guide, refer to these documents:

●Readme—Text files located on the Adaptec Installation CD. These files

provide the late-breaking technical information.

●Adaptec Controller Installation and User’s Guide—PDF file located

on the Installation CD. It provides complete information on how to

install and configure your controller and attached devices.

SAS 1405 1045 QSG.book 5 ページ２００８年１１月６日　木曜日　午前９時４５分

SAS 1405 1045 QSG.book 6 ページ２００８年１１月６日　木曜日　午前９時４５分

This manual suits for next models

Table of contents

Languages:

Other Adaptec Controllers manuals

Adaptec

Adaptec 5805 User manual

Adaptec

Adaptec 2258400-R - 51245 RAID 512MB PCI-Express... User manual

Adaptec

Adaptec ACB-4525Z User manual

Adaptec

Adaptec ACB-2071 User manual

Adaptec

Adaptec ICP 5045BL User manual

Adaptec

Adaptec 2074700-R - ICP Vortex GDT8514RZ RAID... User manual

Adaptec

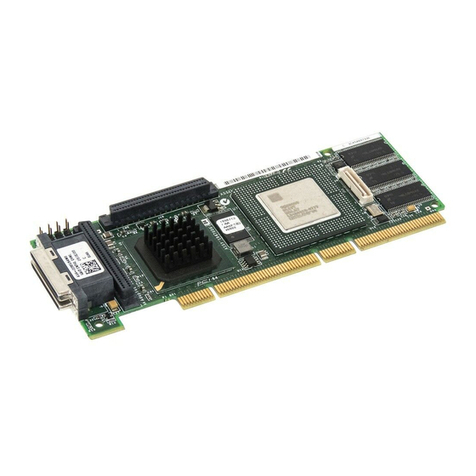

Adaptec 2120S - SCSI RAID Controller User manual

Adaptec

Adaptec RAID 5805Z User manual

Adaptec

Adaptec AAR-2020SA Instruction sheet

Adaptec

Adaptec RAID 21610SA User manual

Adaptec

Adaptec RAID 2810SA How to use

Adaptec

Adaptec PowerDomain 29160N User manual

Adaptec

Adaptec ICP 5045BL How to use

Adaptec

Adaptec 1420SA - Serial ATA II RAID Controller User manual

Adaptec

Adaptec AAR-2420SA Instruction sheet

Adaptec

Adaptec AAR-2420SA Instruction sheet

Adaptec

Adaptec 2930U2 - Storage Controller Ultra2 SCSI 80... Service manual

Adaptec

Adaptec AEC-4412B User manual

Adaptec

Adaptec 2256100-R User manual

Adaptec

Adaptec 39320-R User manual

Adaptec

Adaptec ACB-2002A User manual

Adaptec

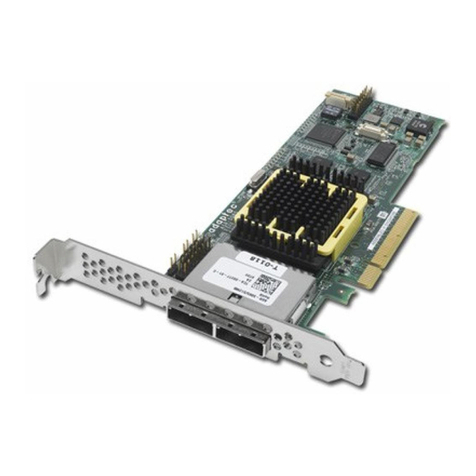

Adaptec 52445 User manual
