ActronAir Serene 2 User manual

Serene 2

Wall Hung Split System

Owner's Manual

Model Numbers:

WRC-026CS/WRE-026CS

WRC-035CS/WRE-035CS

WRC-050CS/WRE-050CS

WRC-072CS/WRE-072CS

WRC-085CS/WRE-085CS

IMPORTANT NOTE:

Please read this manual carefully before operating your air conditioning unit.

That’s better. That’s Actron.

Owner's Manual - Wall Hung Split System

Doc. No.9590-4011 Ver. 2 210622

Owner's Manual Wall Hung Split System

Table of Contents

. General Information ..................................................................................................................

. Safety Instructions ....................................................................................................................

. Unit Speciﬁcation and Features ..................................................................................................

. Unit Parts 

. Achieving Optimal Performance 

. Features 

. Setting Vertical Angle of Air Flow 

. Setting Horizontal Angle of Air Flow 

. Sleep Operation 

. Manual Operation .....................................................................................................................

. Care and Maintenance .............................................................................................................

. Troubleshooting .....................................................................................................................

Owner's Manual Wall Hung Split System

Owner's Manual - Wall Hung Split System

Doc. No.9590-4011 Ver. 2 210622

. General Information

CONGRATULATIONS on your purchase of an ActronAir air conditioning unit! This unit has been designed and engineered

to provide optimum air conditioning and to achieve maximum energy eﬃciency.

Your air conditioning system has been manufactured from the highest quality materials. Numerous “in house” and

“external” inspections and test procedures were conducted to your air conditioning unit to ensure satisfactory operation.

This guide provides operation instructions speciﬁc to your split indoor unit. Read this manual thoroughly to ensure safe

operation of your air conditioning system.

. Safety Instructions

•Only licensed HVAC technicians* should service this air conditioning equipment. Improper service or alteration by

an unqualiﬁed technician could result in signiﬁcant and major damage to the product or property which may render

your warranty null and void. Such unqualiﬁed service could also lead to severe physical injury or death. Follow all safety

instructions in this literature and all warning labels that are attached to the equipment.

•Prevailing WH&S regulations must be observed and will take precedence to the safety instructions contained on this

manual. Safe work practices and environment must be the paramount importance in the performance of all the service

procedures.

•This appliance is not intended for use by young children or inﬁrm persons unless they have been adequately supervised

by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure

that they do not play with the appliance.

*Qualiﬁcations required will be appropriate Electrical, Refrigeration and Refrigerant Handling License and Training

dependent on local State/Territory regulations.

DANGER

Hazardous Voltage - Risk of Electrocution.

Turn Oﬀ the power from main isolator before proceeding with any service and maintenance work of the unit. Observe proper

LOCK-OUT/TAG-OUT (LOTO) procedures for electrical appliances in order to prevent accidental switching-on of the power

supply. Extreme care and caution must be observed should there be a need to work on live circuit.

WARNING

• If any abnormal situation arises (like burning smell), turn of the power supply and call your HVAC technician for instructions

to avoid electric shock, ﬁre or injury.

• DO NOT let the indoor unit or the controller get wet. It may cause electric shock or ﬁre.

• DO NOT insert ﬁngers, rods or other objects into the air inlet or outlet. This may cause injury, since the fan may be rotating

at high speeds.

• DO NOT use a ﬂammable spray such as hair spray, lacquer or paint near the unit. This may cause ﬁre or combustion.

Owner's Manual - Wall Hung Split System

Doc. No.9590-4011 Ver. 2 210622

Owner's Manual Wall Hung Split System

CAUTION

• DO NOT inspect the unit by yourself. Ask a qualiﬁed HVAC technician to perform the inspection.

• To prevent product deterioration, do not use the air conditioner for preservation purposes (storage of food, plants, animals,

works of art, etc.).

• DO NOT operate the air conditioner with wet hands. It may cause electric shock.

• DO NOT touch the evaporator coils inside the indoor unit. The evaporator coils are sharp and may cause injury.

• DO NOT place items that might be aﬀected by moisture damage under the indoor unit. Condensation can occur at a relative

humidity of 80%.

• DO NOT expose heat-producing appliances to cold air or place them under the indoor unit. This may cause incomplete

combustion or deformation of the unit due to the heat.

• If the air conditioner is used together with other heating devices, thoroughly ventilate the room to avoid oxygen deﬁciency.

• DO NOT climb onto or place objects on top of the outdoor unit.

• DO NOT operate the air conditioner when using fumigant insecticides. The chemicals may become layered with the unit and

endanger those who are hypersensitive to chemicals.

• DO NOT let children play with the air conditioner.

• DO NOT operate the air conditioner in a wet room (e.g. bathroom or laundry room). This can cause electrical shock and cause the

product to deteriorate.

WARNING

This air-conditioning unit contains R-32 refrigerant (CLASS A2L) which is mildly ﬂammable. Refer to R-32 Safety Manual, provided

with the unit.

NOTE

• Service, maintenance, repairs and decommissioning of this unit must be performed by a licensed HVAC technician; qualiﬁed

to handle R-32 refrigerant.

• R-32 refrigerant is odourless, if the refrigerant gas comes into contact with ﬁre, it may emit a poisonous gas.

• Do not continuously operate open ﬂames and ignition sources in the room.

Owner's Manual Wall Hung Split System

Owner's Manual - Wall Hung Split System

Doc. No.9590-4011 Ver. 2 210622

. Unit Speciﬁcation and Features

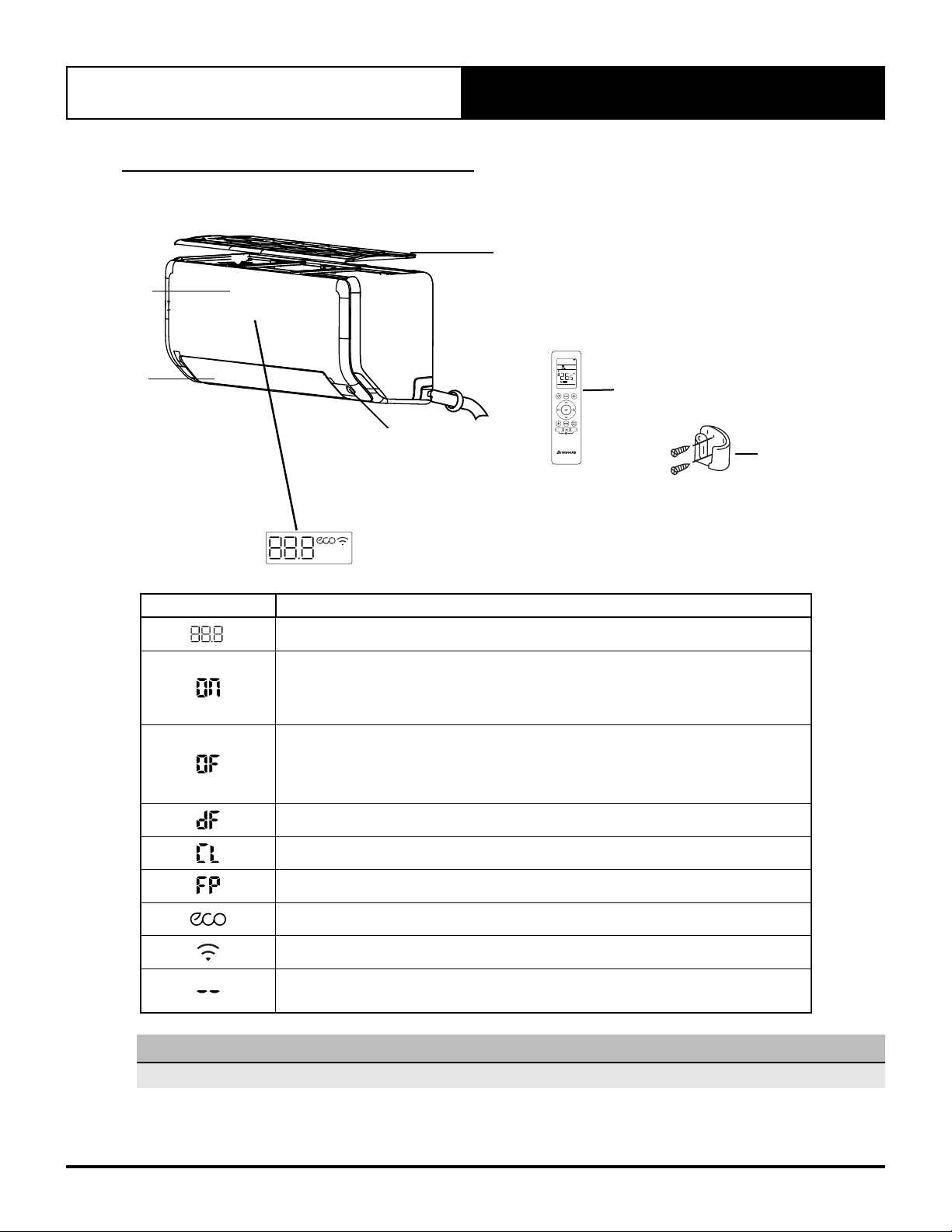

03.01. Unit Parts

AIR FILTER

PULL OUT

LOUVRE

REMOTE CONTROL

HOLDER

REMOTE

CONTROL

INTUITIVE

PROXIMITY SENSOR

DISPLAY WINDOW

FRONT

PANEL

Humidity

Boost

Display Code Display Code Explanation

Display window for indicating temperature, operation features and error codes.

Displayed for three seconds when:

• TIMER ON is set

• IONISER, SWING, TURBO, ECO, BREEZE AWAY, INTUITIVE PROXIMITY SENSOR

or QUIET feature is turned on

Displayed for three seconds when:

• TIMER OFF is set

• IONISER, SWING, TURBO, ECO, BREEZE AWAY, INTUITIVE PROXIMITY SENSOR

or QUIET feature is turned oﬀ

Displayed when the system is defrosting

Displayed when Active Clean feature is turned on

Displayed when Freeze Protection mode is turned on

Displayed when ECO+ feature is activated

Displayed when Easyconnect is installed

Displayed when Indoor unit is in mode conﬂict with another operating indoor unit

(applicable to multi-split “MRC” installations only)

NOTE

Refer to remote manual for full features list.

Owner's Manual - Wall Hung Split System

Doc. No.9590-4011 Ver. 2 210622

Owner's Manual Wall Hung Split System

03.02. Achieving Optimal Performance

Optimal performance for the COOL, HEAT, and DRY mode can be achieved in the temperature ranges shown

in the table below. If the unit is used outside of these ranges, certain safety protection features will activate and

cause the unit to perform at a reduced capacity.

COOL Mode HEAT Mode DRY Mode

Indoor Temperature 17°C - 32°C 0°C - 30°C 10°C - 32°C

Outdoor Temperature -15°C - 60°C 25°C - 30°C 0°C - 60°C

NOTE

To further optimize the performance of the unit, do the following:

• Keep doors and windows closed.

• Limit energy usage by using TIMER ON and TIMER OFF functions.

• Do not block air inlets or outlets.

• Regularly inspect and clean air ﬁlters.

03.03. Features

NOTE

Refer to remote manual for full features list.

Auto-Restart

If the unit loses power, it will automatically restart with the prior settings once power has been restored.

Anti-mildew

When the unit is turned oﬀ after COOL, AUTO or DRY mode, the unit will continue to operate a low power to dry up

condensed water to prevent mildew growth.

Easyconnect Control (Optional)

Allows you to control the unit using a mobile phone and a wireless connection. Installation is required to be undertaken

by a licensed technician. Easyconnect is an accessory that may be purchased separately.

Louvre Angel Memory

When turning on your unit, the louvre will automatically resume its former angle. Aim the louvre higher to avoid direct

airﬂow. This setting is found under the SET menu.

Active Clean Function

It washes away dust, mold and grease when it adheres to the heat exchanger, by automatically freezing and then rapidly

thawing frost. Active Clean function is used to produce more condensed water to improve the cleaning eﬀect. After

cleaning, the internal blower fan operates with hot air to blow-dry the evaporator and prevent the growth of mold.

When this function is turned on, the indoor unit will display CL. After 20 to 45 minutes, the unit will turn oﬀ

automatically and Active Clean function will be deactivated.

Owner's Manual Wall Hung Split System

Owner's Manual - Wall Hung Split System

Doc. No.9590-4011 Ver. 2 210622

Breeze Away

This feature stops direct air from blowing onto you.

Refrigerant Leakage Detection

The indoor unit will automatically display EL0C when it detects refrigerant leakage. Switch system oﬀ and contact

service or installer.

Intuitive Proximity Sensor

This feature detects the occupancy of the people in the room. When in COOL mode, if you are away for 30 minutes, the

unit will automatically lower the frequency of the unit to save energy. The unit will automatically resume operation after

sensing activity in the room.

LED Display

Press the LED button on the remote control to turn off the indoor unit panel display and cancel the 'beep' noise.

Freeze Protection

When the unit is on HEAT mode and indoor temperature drops below 8 °C - FP will be displayed and system will enter

freeze protection mode.

03.04. Setting Vertical Angle of Air Flow

While the unit is on, use the SWING button on the remote control to set the vertical angle airﬂow direction. Refer to

Remote Control manual for more details.

03.05. Setting Horizontal Angle of Air Flow

While the unit is on, press and hold the SWING button on the remote control to set the vertical angle airﬂow direction.

Refer to Remote Control manual for more details.

NOTE

• When using COOL or DRY mode, do not set vertical louvre to the minimum angle for long periods of time. This can

cause water to condense on the louvre blade, which may drop on your ﬂoor or furnishings.

• When using COOL or HEAT mode, setting the vertical louvre to the minimum angle can reduce the performance of

the unit due to restricted air ﬂow.

• Do not move louvre by hand. This will cause the louvre to become out of sync. If this occurs, reset mains power supply

isolator to restart the unit. This will reset the louvre.

CAUTION

Do not put your ﬁngers in or near the blower. The high-speed fan inside the unit may cause injury.

Owner's Manual - Wall Hung Split System

Doc. No.9590-4011 Ver. 2 210622

Owner's Manual Wall Hung Split System

03.06. Sleep Operation

The SLEEP function is used to decrease energy usage while you sleep and do not need the same temperature

settings to stay comfortable. This function can only be activated via the remote control.

Press the SLEEP button when you are ready to go to sleep. When in COOL mode, the unit will increase the

temperature by 1°C after 1 hour, and will increase an additional 1°C after another hour. When in HEAT mode, the

unit will decrease the temperature by 1°C after 1 hour, and will decrease an additional 1°C after another hour.

It will hold the new temperature for 7 hours, then the unit will turn oﬀ automatically.

NOTE

The SLEEP function is not available in FAN or DRY mode.

Page 10 

The SLEEP function is used to decrease energy

use while you sleep (and don’t need the same

temperature settings to stay comfortable). This

function can only be activated via remote control.

Press the SLEEP button when you are ready to

go to sleep. When in COOL mode, the unit will

increase the temperature by 1°C (2°F) after 1

hour, and will increase an additional 1°C (2°F)

after another hour. When in HEAT mode, the unit

will decrease the temperature by 1°C (2°F) after

1 hour, and will decrease an additional 1°C (2°F)

after another hour.

It will hold the new temperature for 7 hours, then

the unit will turn oﬀ automatically.

Note: The SLEEP function is not available in

FAN or DRY mode.

Sleep Operation

Set

temperature

Saving energy during sleep

1hr 1hr

7 hours

timer o

+/- 1 C/2 F

SLEEP Operation

+/- 1 C/2 F

Fig. 3.1

•

Unit

Speciﬁcations

and Features

SLEEP Operation

Set

Temperature

7 hours

Timer Oﬀ

±1°C ±1°C

Saving Energy During Sleep

Owner's Manual Wall Hung Split System

Owner's Manual - Wall Hung Split System

Doc. No.9590-4011 Ver. 2 210622

. Manual Operation

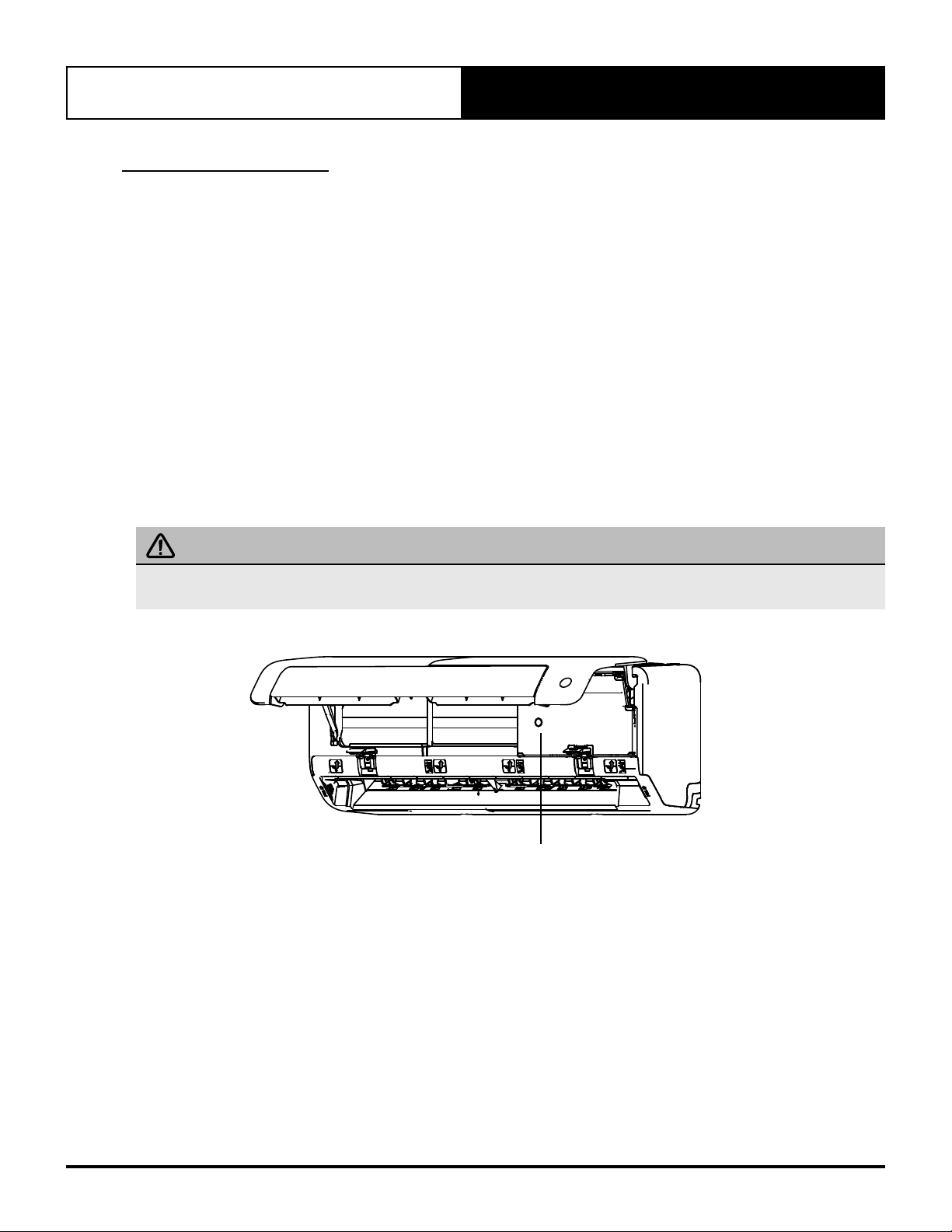

How to operate your unit without the remote control

In the event that your remote control fails to work, your unit can be operated manually with the MANUAL CONTROL

button located on the indoor unit (shown in image below). Note that manual operation is not a long-term solution, and

that operating the unit with your remote control is strongly recommended.

To operate your unit manually:

1. Locate the MANUAL CONTROL button as shown on the image on the next page.

2. Press the MANUAL CONTROL button one time to activate FORCED AUTO mode. The display will show 24.0c.

3. Press the MANUAL CONTROL button again to activate FORCED COOLING mode. The display will show fC.

4. Press the MANUAL CONTROL button a third time to turn the unit Oﬀ.

FORCED AUTO MODE

The unit will go to AUTO mode with 24˚C set point.

FORCED COOL MODE

The outdoor unit will run at minimum capacity and indoor fan in low speed. After 30 minutes, the system will go to AUTO

mode with 24˚C set point.

CAUTION

The manual button is intended for testing purposes and emergency operation only. Please do not use this function unless

the remote is lost and it is absolutely necessary. To restore regular operation, use the remote control to activate the unit.

MANUAL CONTROL

BUTTON

Owner's Manual - Wall Hung Split System

Doc. No.9590-4011 Ver. 2 210622

Owner's Manual Wall Hung Split System

. Care and Maintenance

NOTE

Apart from ﬁlter cleaning, all other general maintenance and care of systems should be undertaken by a licensed technician.

Maintenance Procedures

This section describes the procedures that must be performed as a part of normal maintenance program. Regular

servicing of equipment by licensed technician is highly recommended. Regular servicing of your unit helps in maintaining

its optimum performance and reliability. The checklist and service periods provided on this manual are guides only,

as some sites may require more frequent servicing. Always disconnect electrical power to the unit before performing

these procedures. It is always a safe practice to observe all safety warnings and cautions when conducting maintenance

tasks.

DANGER

Live Electrical Connections!

It may be necessary to work with live electrical components on certain maintenance tasks. Only licensed electricians and

qualiﬁed technicians are allowed to perform these tasks.

Beware of Rotating Fan Blades!

Always make sure that all power supply, to the Outdoor Fans are turn Oﬀ and isolated.

Observe WH&S safety procedures, do not wear loose clothing and any jewellery when working near the fans.

Wear PPE whenever performing any maintenance procedures.

Observe all necessary procedures when working in a conﬁned space.

WARNING

Hazardous Voltage !

Always make sure that all power supply, including remote controls, are disconnected before performing maintenance.

Observe proper LOCK-OUT/TAG-OUT procedures to ensure that power cannot be inadvertently energised. Failure to

disconnect power before maintenance procedures can result in serious injury and/or death.

This unit is charged with R-32 mildly ﬂammable refrigerant.

Annual Maintenance Checklists

•Perform general maintenance inspections.

•Perform scheduled start-up checks.

•Leak test refrigerant circuits.

•Inspect contacts of all contactors and relays. Replace all worn contacts as required.

•Inspect, clean and tighten all electrical connections.

•Check fans for balanced operation. Make sure that there are no loose screws / bolts, no fan blades interference and no

damage to the fans and guards.

•Inspect the air ﬁlters, clean or replace as required.

•Clean and repaint any corroded panel section.

•Ensure no blockage of airﬂow through variable speed drive.

This manual suits for next models

Table of contents

Other ActronAir Air Conditioner manuals

ActronAir

ActronAir ECOFLEX MINI VRF Series User manual

ActronAir

ActronAir PKY820T User manual

ActronAir

ActronAir Easyconnect Serene Assembly instructions

ActronAir

ActronAir ECOFLEX MINI VRF R-32 Series User manual

ActronAir

ActronAir CRV720T User manual

ActronAir

ActronAir Serene 2 WRC-026CS User manual

ActronAir

ActronAir AIRES CRS10AS User manual

ActronAir

ActronAir ECOFLEX MINI VRF R-32 Series User manual

ActronAir

ActronAir UltraSlim URC-071AS User manual

ActronAir

ActronAir Serene WRC-026AS User manual

ActronAir

ActronAir ESP ULTIMA SYSTEM User manual

ActronAir

ActronAir MULTIELITE MRC-052AS-2 User manual

ActronAir

ActronAir MRE-035CS User manual

ActronAir

ActronAir ECOFLEX MINI VRF R-32 Series User manual

ActronAir

ActronAir ECOFLEX MINI VRF R-32 Series User manual

ActronAir

ActronAir WRC-026CS User manual

ActronAir

ActronAir CRV290T User manual

ActronAir

ActronAir CRV140S User manual

ActronAir

ActronAir AIRES EVA10AS User manual

ActronAir

ActronAir ECOFLEX MINI VRF Series User manual

ActronAir

ActronAir ESP Digital SRD131C User manual

ActronAir

ActronAir EVA720T User manual

ActronAir

ActronAir ECOFLEX MINI VRF Series User manual

ActronAir

ActronAir Cascade 2 Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
