ACME SABER Mini User manual

CONTENTS

1. Safety Instruction ...................................................................................2

2. Technical Specification............................................................................4

3. Control Panel ..........................................................................................5

4. Color/Gobo and Lamp ............................................................................6

4.1 Color/Gobo.......................................................................................6

4.2 Light Source ......................................................................................7

4.3 Change The Lamp .............................................................................7

5. How To Set The Unit ...............................................................................9

5.1 Main Function...................................................................................9

5.2 Home Position Adjustment.............................................................13

6. Control By Universal DMX Controller....................................................15

6.1 DMX512 Connection.......................................................................15

6.2 Address Setting...............................................................................16

6.3 DMX512 Configuration ...................................................................16

7. Troubleshooting....................................................................................19

8. Fixture Cleaning....................................................................................19

1. Safety Instruction

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will

not accept liability for any resulting defects or problems.

Unpack and check carefully that there is no transportation damage before using the unit.

This product is for indoor use only. Use only in a dry location.

DO install and operate by qualified operator.

DO NOT allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.

Before operating, ensure that the voltage and frequency of power supply match the power

requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.

DO NOT connect the device to any dimmer pack.

During initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.

Make sure there are no flammable materials close to the unit while operating to avoid fire

hazard.

Examine the power wires carefully; replace them immediately if there is any damage.

Unit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare-handed

during its operation.

Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut

Please read the instruction carefully which includes important information about

the installation, usage and maintenance.

off the mains power immediately.

DO NOT operate in dirty or dusty environment, do clean fixtures regularly.

DO NOT touch any wire during operation as there might be a hazard of electric shock.

Avoid power wires together twist other cables.

The minimum distance between light output and the illuminated surface must be more than 8

meters.

Disconnect mains power before fuse/lamp replacement or servicing.

Replace fuse/lamp only with the same type.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

DO NOT open the unit as there are no user serviceable parts inside.

Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to

damage or malfunction. Please contact the nearest authorized technical assistance center if

needed.

Disconnect the mains power if the fixture is has not been used for a long time.

DO use the original packing materials before transporting it again.

Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.

DO replace the bulb once it is damaged, deformed or life-expired.

DO NOT look directly at the light while the bulb is on.

Never touch bulb with bare fingers, as it is very hot after using.

DO NOT start on the unit without bulb enclosure or when housing is damaged.

Installation:

The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that the

unit is firmly fixed to avoid vibration and slipping while operating and make sure that the structure

to which you are attaching the unit is secure and is able to support a weight of 10 times of the

fixtures weight. Always use a safety cable that can hold 12 times of the weight of the fixture when

installing.

The equipment must be installed by professionals. It must be installed in a place where is out of the

reach of people and no one can pass by or under it.

2. Technical Specification

Power Voltage:

AC 100~240V, 50/60Hz

Power Consumption:

200W

Light Source:

OSRAM SIRIUS HRI 100W

Color Temperature:

9000K

Beam Angle:

3°

Movement:

Pan: 540°

Tilt: 270°

Color Wheel:

1 color wheel with 14 colors plus open

Gobo Wheel:

1 fixed gobo wheel with 15 gobos plus open

Control:

DMX Channel: 12 channels

Control Mode: DMX, Pri./Sec., Sound Active

Firmware Upgrade: Update via DMX link

Construction:

Display: LCD display

Data In/Out: 3-pin XLR(5-pin XLR is optional)

Power In/Out: Power Connector in/out

Protection Rating: IP20

Features:

Prism: 8 facet prism rotating in both directions

0~100% smooth dimming

Various strobe speeds

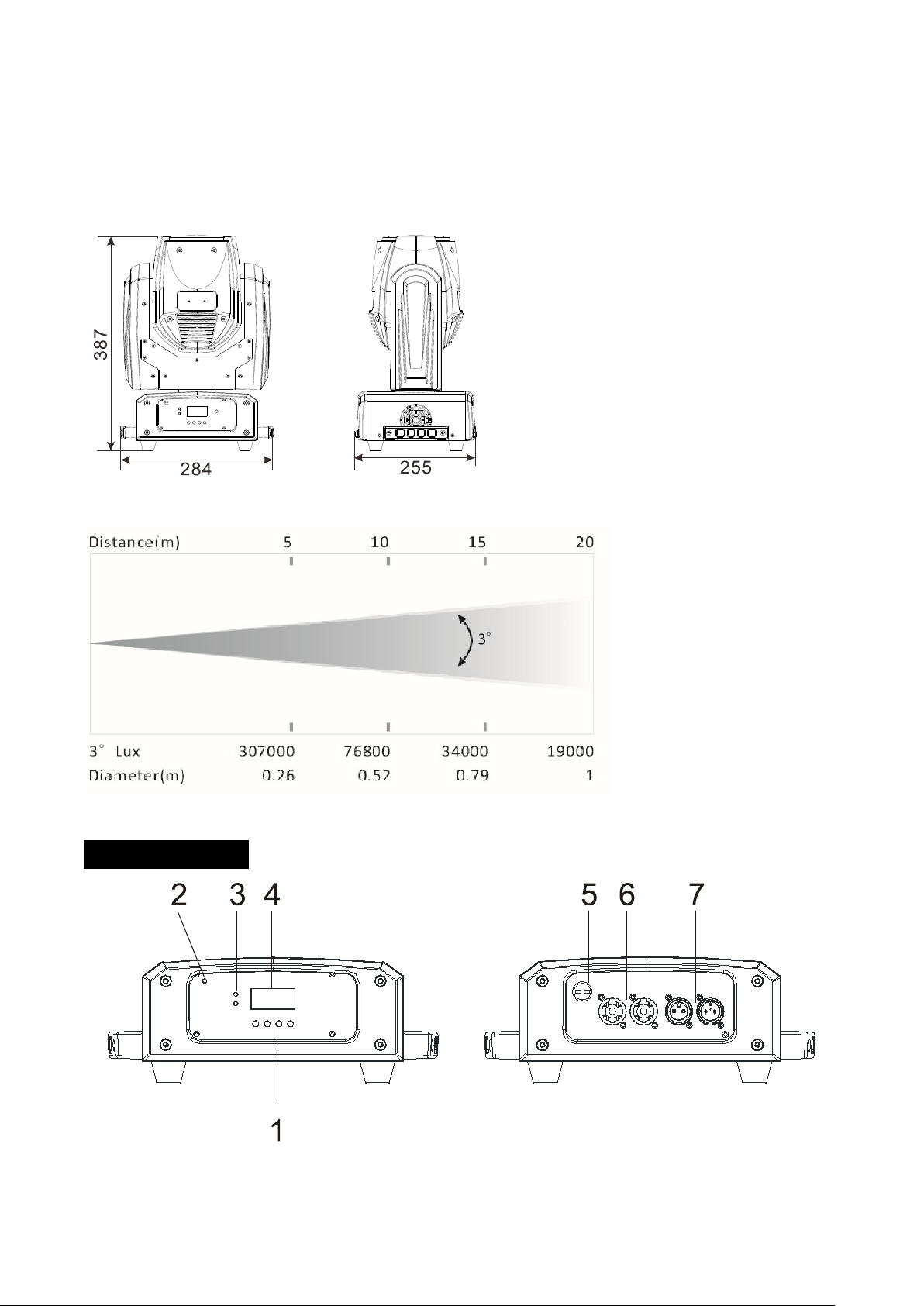

Dimension/Weight:

284x255x387mm, 9.2kgs

11.2”x10”x15.2”in, 20.3lbs

Photometrics Diagram:

3. Control Panel

1. Button:

To select the programming functions

DOWN

To go forward in the selected functions

To go backward in the selected functions

ENTER

To confirm the selected functions

2. MICROPHONE:

To receive music for sound active

3. LED:

DMX

DMX input present

SOUND

Flashing

Sound activation

4. DISPLAY:

Used to show the various menus and the selected function

5. FUSE(T 5A):

Protects the unit from over-voltage or short circuit

6. POWER IN/OUT:

Used to connect to supply power/Used to connect to the next fixture

7. DMX IN/OUT:

Use 3-pin XLR cable to link the units and input/output DMX signal (5-pin XLR is optional)

4. Color/Gobo and Lamp

4.1 Color/Gobo

DANGER!

Install the color wheel/gobo wheel with the device switched off only.

Unplug from mains before changing the color wheel/gobo wheel!

4.2 Light Source

OSRAM SIRIUS HRI 100W

Because of its high internal pressure, there might be a risk that the Discharge lamp

would explode during operation. The lamp emits intense UV radiation which is harmful

to the eyes and skin. The high luminance of the arc can cause severe damage to the

retina if you take a close look at the lamp.

To protect the lamp, always turn off the lamp first (via control panel or DMX controller)

and let the unit run at least five minutes to cool down before switching off the mains

supply. Never handle the lamp or luminary when it is hot.

Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured

alcohol and wipe it with a lint free cloth before installation.

The lamp generates UV radiation. Never operate the lamp without appropriate shielding.

When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube

rupture. The risk increases with age, temperature and improper handling of the lamp. Do not

use the lamp longer than its lifespan.

Make sure the lamp is located in the center of the reflector for the best projection.

4.3 Change The Lamp

Do not use this lamp more than 6000 hours, using the lamp any longer than its set life could

seriously damage your unit. Periodically checking the lamp running time, when the lamp reaches

the 6000 hour mark, or close to it, we strongly suggest you switch the lamp out. Clear the RESET

TIME after you have replaced the lamp.

To replace the lamp:

1. Ensure that the fixture is detached from power and has cooled down completely. It is a good

idea to allow the fixture to run for 10 minutes after the lamp has been turned off, so that the

cooling fans have time to works.

2. Loosen the screws on the head of the fixture and open the fixture head covers. Remove the fan.

3. Lift the lamp out of its recess, disconnect the lamp and connect a new lamp that must be the

same type with the old one. And then place the new lamp into the lamp recess.

Finally reinstall the head cover, fastening it securely before reapplying power.

Warning:

The installing direction of lamp:

5. How To Set The Unit

5.1 Main Function

Turn on the unit, press the MENU button into menu mode, press the UP/DOWN button until the

required function is shown on the monitor. Select the function by the ENTER button. Use the

UP/DOWN button to choose the submenu, press the ENTER button to store and automatically

return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit menu mode.

The main functions are shown below:
