ACME LED Move 600SE User manual

LED‐MS600SE



UserGuide

ProfessionalLEDMovingHead

CONTENTS



1.SafetyInstruction..............................................................................................2

2.TechnicalSpecifications ....................................................................................3

3.HowToSetTheUnit .........................................................................................4

3.1ControlPanel ..............................................................................................4

3.2GoboWheel................................................................................................5

3.3MainFunction.............................................................................................6

3.4HomePositionAdjustment.......................................................................11

4.ControlByUniversalDMXController .............................................................14

4.1DMX512Connection................................................................................14

4.2DMXAddressSetting ................................................................................15

4.3DMX512Configuration .............................................................................16

5.Troubleshooting..............................................................................................18

6.FixtureCleaning..............................................................................................20

1.SafetyInstruction

WARNING

PleasekeepthisUserGuideforfutureconsultation.Ifyouselltheunittoanotheruser,besure

thattheyalsoreceivethisinstructionmanual.

Important:

Damagescausedbythedisregardofthisusermanualarenotsubjecttowarranty.The

dealerwillnotacceptliabilityforanyresultingdefectsorproblems.

yUnpackandcheckcarefullythatthereisnotransportationdamagebeforeusingtheunit.

yTheunitisforindooruseonly.Useonlyinadrylocation.

yDOinstallandoperatebyqualifiedoperator.

yDONOTallowchildrentooperatethefixture.

yUsesafetychainwhenfixingtheunit.Handletheunitbycarryingitsbaseinsteadofhead

only.

yTheunitmustbeinstalledinalocationwithadequateventilation,atleast50cmfromadjacent

surfaces.

yBesurethatnoventilationslotsareblocked,otherwisetheunitwillbeoverheated.

yBeforeoperating,ensurethatthevoltageandfrequencyofpowersupplymatchthepower

requirementsoftheunit.

yIt’simportanttogroundtheyellow/greenconductortoearthinordertoavoidelectricshock.

yMaximumambienttemperatureTa:40℃.DONOToperateitwhenthetemperatureishigher.

yDONOTconnectthedevicetoanydimmerpack.

yDuringinitialstart‐upsomesmokeorsmellmayarise.Thisisanormalprocessanddoesnot

necessarilymeanthatthedeviceisdefective,anditwilldecreasegraduallywithin15minutes.

yMakesuretherearenoflammablematerialsclosetotheunitwhileoperatingtoavoidfire

hazard.

yExaminethepowerwirescarefully,replacethemimmediatelyifthereisanydamage.

yUnit’ssurfacetemperaturemayreachupto85℃.DONOTtouchthehousingbare‐handed

duringitsoperation,andallowabout15minutesforcoolingtheunitdownbeforereplacing

bulbormaintenanceasitcouldbeveryhot.

yAvoidanyinflammableliquids,waterormetalobjectsenteringtheunit.Onceithappens,cut

Pleasereadcarefullytheinstruction,whichincludesimportant

informationabouttheinstallation,usageandmaintenance.

offthemainspowerimmediately.

yDONOToperateindirtyordustyenvironment,docleanfixturesregularly.

yDONOTtouchanywireduringoperationastheremightbeahazardofelectricshock.

yAvoidpowerwirestogethertwistothercables.

yTheminimumdistancebetweenlightoutputandtheilluminatedsurfacemustbemorethan

2.5meters.



yDisconnectmainspowerbeforefuse/lampreplacementorservicing.

yReplacefuse/lamponlywiththesametype.

yIntheeventofseriousoperatingproblem,stopusingtheunitimmediately.

yNeverturnonandofftheunittimeaftertime.

yThehousing,thelenses,ortheultravioletfiltermustbereplacediftheyarevisiblydamaged.

yDONOTopentheunitastherearenouserserviceablepartsinside.

yNevertrytorepairtheunitbyyourself.Repairscarriedoutbyunskilledpeoplecanleadto

damageormalfunction.Pleasecontactthenearestauthorizedtechnicalassistancecenterif

needed.

yDisconnectthemainspowerifthefixtureishasnotbeenusedforalongtime.

yDOusetheoriginalpackingmaterialsbeforetransportingitagain.

Caution：

yTopreventorreducetheriskofelectricalshockorfire,donotexposetheunittorainor

moisture.

yHotlampexplosionhazard.Donotopentheunitwithin15minutesafterswitchingoff.

yDOreplacethebulbonceitisdamaged,deformedorlife‐expired.

yDONOTlookdirectlyatthelightwhilethebulbison.

yNevertouchbulbwithbarefingers,asitisveryhotafterusing.

yDONOTstartontheunitwithoutbulbenclosureorwhenhousingisdamaged.

2.TechnicalSpecifications

yDMXChannels:14&15channels

yGreatbuilt‐inlightingshowsunderMaster/Slavemodetriggeredbymusic

ySmooth0~100%dimmingandvariablestrobespeeds

yMotorizedfocusbyDMXcontrol

yAutomaticPan/Tiltpositioncorrection

yExcellentventilation,ensuringreliableoperation

yVoltage：AC100‐240V~50/60Hz

yPowerconsumption:226W

yLightSource:1x150WLED

yFuse:6.3A

yDimension:327x247x526mm

yWeight:14Kgs

3.HowToSetTheUnit

3.1ControlPanel

FrontviewRearview

① Display:

Showthevariousmenusandtheselectedfunctions

②LED:

DMXOnDMXinputpresent

MASTEROnMasterMode

SLAVEOnSlaveMode

SOUNDFlashingSoundactivation



③Button:

MENUToselecttheprogrammingfunctions

DOWNTogobackwardintheselectedfunctions

UPTogoforwardintheselectedfunctions

ENTERTo confirmtheselectedfunctions

④OnlyForRemoteControl:

ConnectingwithCA‐8/ C A ‐9RTXtocontroltheunitforStandby,FunctionandModefunction.

⑤DMXinput/output:

ForDMX512link,use3/5 ‐pinXLRplugcabletolinktheunittogether.

⑥Mainsinput:

Connecttosupplymainspower.

⑦Mainsoutput:

Connecttosupplymainspowerforthenextunit.

3.2GoboWheel

DANGER!

Installthegoboswiththedeviceswitchedoffonly.

Unplugfrommainsbeforechanginggobos!

3.3MainFunction

Toselectanyofthegivenfunctions,presstheMENUbuttonuptowhentherequiredoneis

showingonthedisplay.SelectthefunctionbyENTERbuttonandthedisplaywillblink.UseDOWN

andUPbuttontochangethemode.Oncetherequiredmodehasbeenselected,PressENTER

buttontostore.BacktothemainfunctionswithoutanychangepresstheMENUbuttonorwaitfor

8seconds.

HoldMENUbuttontoquitmenumode,theunitwillrunthebuilt‐inprogramyouselected.

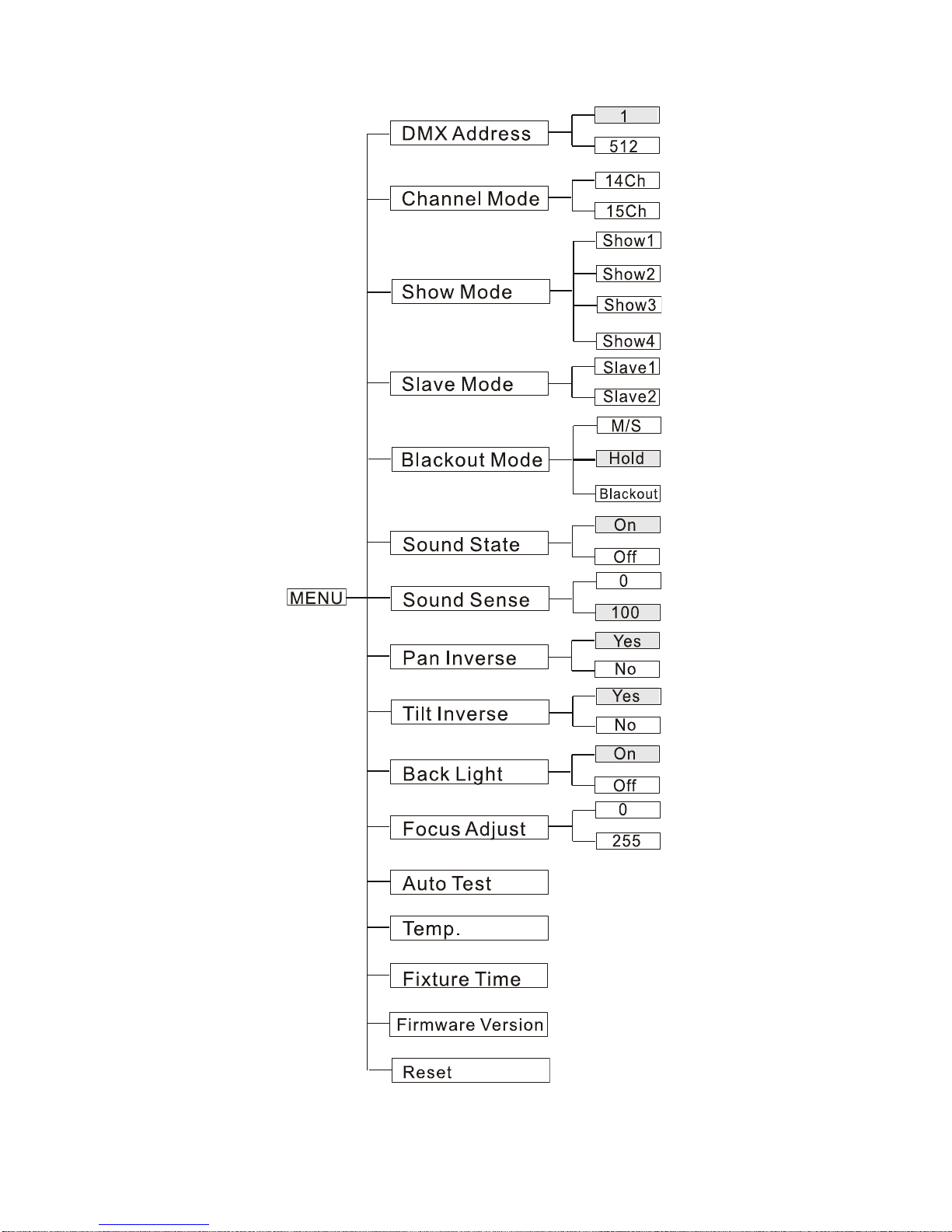

Themainfunctionsareshownbelow:

DMXAddress

SelectDMXAddress,presstheENTERbuttontoconfirm,thepresentaddresswillblinkonthe

display.UsetheUPandDOWNbuttontoadjusttheaddressfrom1to512.Oncetheaddresshas

beenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutanychange

presstheMENUbuttonagain.HoldandpresstheMENUbuttonaboutonesecondorwaitforone

minutetoexitthemenumode.



ChannelMode

SelectChannelMode,presstheENTERbuttontoconfirm,presentmodewillblinkonthedisplay.

UsetheDOWNandUPbuttontoselectthe14Chor15ChMode.Oncethemodehasbeen

selected,presstheENTERbuttontosetup,togobacktothefunctionswithoutanychangepress

theMENUbuttonagain.HoldandpresstheMENUbuttonaboutonesecondorwaitforone

minutetoexitthemenumode.



ShowMode

SelectShowMode,presstheENTERbuttontoconfirm,presentmodewillblinkonthedisplay.Use

theDOWNandUPbuttontoselecttheShow1orShow2orShow3orShow4mode.Oncethe

modehasbeenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutany

changepresstheMENUbuttonagain.HoldandpresstheMENUbuttonaboutonesecondorwait

foroneminutetoexitthemenumode.



SlaveMode

SelectSlaveMode,presstheENTERbuttontoconfirm,presentmodewillblinkonthedisplay.Use

theDOWNandUPbuttontoselecttheSlave1(normal)orSlave2(2lightshow)mode.Oncethe

modehasbeenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutany

changepresstheMENUbuttonagain.HoldandpresstheMENUbuttonaboutonesecondorwait

foroneminutetoexitthemenumode.



BlackoutMode

SelectBlackoutMode,presstheENTERbuttontoconfirm,presentmodewillblinkonthedisplay.

UsetheDOWNandUPbuttontoselecttheM/S(Master/Slave),HoldorBlackoutMode.Oncethe

modehasbeenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutany

changepresstheMENUbuttonagain.HoldandpresstheMENUbuttonaboutonesecondorwait

foroneminutetoexitthemenumode.



SoundState

SelectSoundState,presstheENTERbuttontoconfirm,presentmodewillblinkonthedisplay.Use

theDOWNandUPbuttontoselecttheOn(soundon)orOff(soundoff)mode.Oncethemode

hasbeenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutany

changepresstheMENUbuttonagain.HoldandpresstheMENUbuttonaboutonesecondorwait

foroneminutetoexitthemenumode.



SoundSense

SelectSoundSense,presstheENTERbuttontoconfirm,presentmodewillblinkonthedisplay.

UsetheDOWNandUPbuttontochangethesoundsensefrom0…100.Oncethemodehasbeen

selected,presstheENTERbuttontosetup,togobacktothefunctionswithoutanychangepress

theMENUbuttonagain.HoldandpresstheMENUbuttonaboutonesecondorwaitforone

minutetoexitthemenumode.



PanInverse

SelectPanInverse,presstheENTERbuttontoconfirm,presentmodewillblinkonthedisplay.Use

theDOWNandUPbuttontoselecttheYes(paninversion)orNo(normal)mode.Oncethemode

hasbeenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutany

changepresstheMENUbuttonagain.HoldandpresstheMENUbuttonaboutonesecondorwait

foroneminutetoexitthemenumode.


