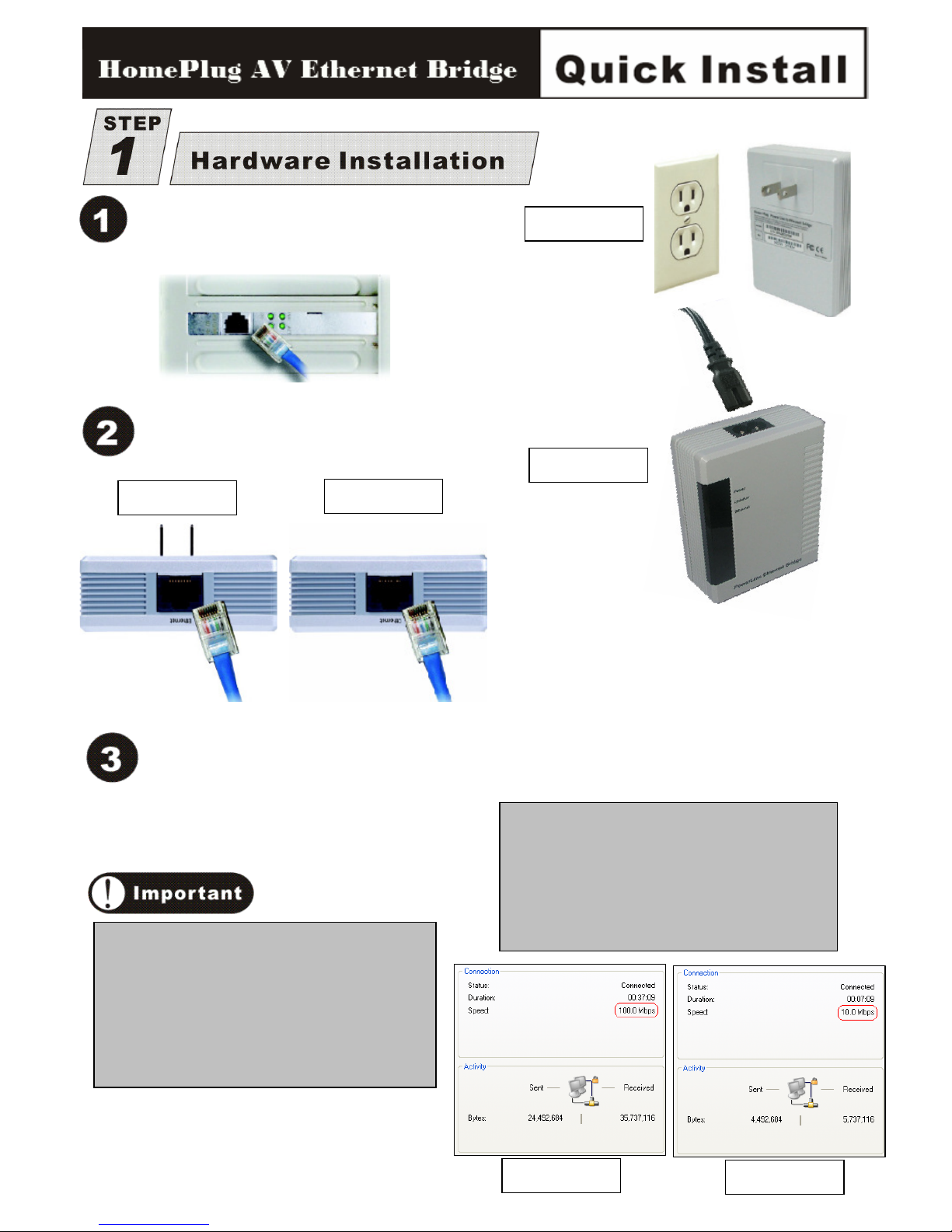

Abocom HomePlug AV Ethernet Bridge PLE0200 Instructions for use
Plug the other end of this cable into the
Ethernet port of the Bridge.
Plug type Inlet type
Plug the Bridge into an electrical
socket.( Plug type)
Plug the electrical cable into electrical
port.( Inlet type )
Plug type
Inlet type
Plug the other end of this cable into an
electrical socket.
The installation of the Bridge is complete.
You can enjoy this HomePlug AV product
by default setting now. If you want to
further configure the Bridge, proceed to
Software Installation.
Plug the included Ethernet network cable into
the computer's Ethernet port.
Because the Bridge sends data over the powerlines of
your house, plug the Bridge directly into an electrical
socket. It’s recommended not to plug the device into a
power strip with surge protection. And do not plug the
device into UPS. The Bridge has its own power filter for
protection against surges.
Note:
If you want to distinguish the 200M’s adapter
(AV) from 14 M’s adapter, you can go to the Network
Connections of Control Panel. And open the Connection
which one is connecting and also finish the hardware
installation. You can check the connection speed is
100.0 Mbps, but 14M will show 10.0Mbps.
200M type 14M type
Insert the included utility CD into the CD-ROM
drive of your computer and then perform
Setup.exe within setup folder or click install
Utility option in CD Auto-Run program.
Instal
InstalInstal
Instal
ling the
ling the ling the
ling the
HomePlug AV
HomePlug AVHomePlug AV
HomePlug AV
Utility
Utility Utility
Utility
Note: Utility could be installed in Windows
Vista(x86), Windows 2003 Server, Windows XP,
Windows 2000.
Click Next to continue.
Select the destination folder and click Next.
Select the components, just click Next
to continue.
Wait for the finish status.
If you have not installed the FrameWork
1.1, please continue to install. And after
the step, you will complete the Software
installation. To launch the HomePlug
AV utility on the windows‘s desktop.
