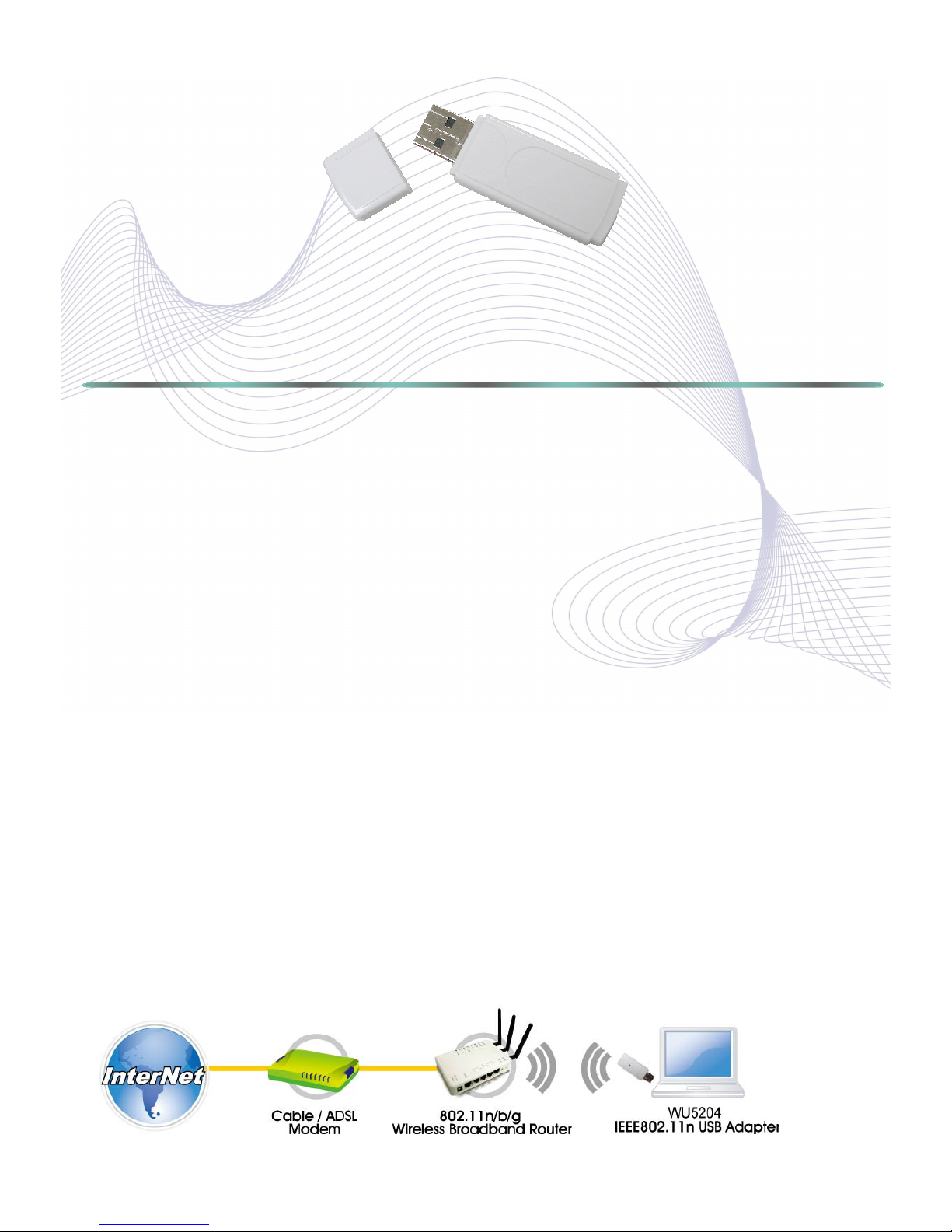

Abocom WU5204 User manual

WU5204

802.11b/g/n Mini Wireless LAN USB2.0 Adapter

Description

The WU5204 is an IEEE802.11b/g/n USB adapter that connects your notebook to a wireless local area. The WU5204 fully

complies with IEEE 802.11n draft 3.0 and IEEE 802.11 b/g standards, delivers reliable, cost-effective, feature rich wireless

connectivity at high throughput from an extended distance.

The WU5204 is a very small adapter that can connects notebook, handheld or desktop computer equipped with USB

interface for wireless network applications. It allows you to take full advantage of your notebook’s mobility with access to

real-time information and online services anytime and anywhere.

Features



1T1R Mode with 150Mbps PHY Rate for both



Complies with IEEE 802.11n draft 3.0 and IEEE 802.11 b/g standards



Supports WEP 64/128, WPA, WPA2



Supports WMM and WMM-PS



Supports WPS configuration



Supports USB 2.0/1.1 interface



Portable and mini-size design



Compatible with Microsoft Windows Vista, XP, 2000

Application

Specification

Standards IEEE 802.11 b/g/n standards compliant

Antenna Chip antenna (2dBi) *1

Supported OS Windows 2000, XP, Vista

Security WEP 64/128

WPA, WPA2

Frequency

Range

802.11b/g/n

USA (FCC): 2.412GHz ~ 2.462GHz

Europe (ETSI): 2.412GHz ~ 2.472 GHz

Japan (TELEC): 2.412GHz ~ 2.472GHz

Number of

Selectable

Channels

802.11b/g/n:

USA (FCC) 11 channels;

EU (ETSI) 13 channels;

Japan (TELEC) 13 channels

Data Rate

802.11b: 1, 2, 5.5, 11Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

802.11n(20MHz):MCS0~7, up to 72.22Mbps

802.11n(40MHz):MCS0~7, up to 150Mbps

Transmit Power

(EIRP)

802.11b : 17+/-1.5 dBm (Typical)

802.11g : 13+/-1.5 dBm (Typical)

Wireless-N : 13+/-1.5 dBm (Typical)

Receiver

Sensitivity

11b 11Mpbs :-76dBm

11g 54Mpbs :-65dBm

11n-HT20 72.22Mpbs :-62dBm

11n-HT40 150Mpbs :-59dBm

Physical

Specifications

Weight : 7.5 g

Dimension : 55.50(L)*19.00(W)*8.10(H) mm

Environment

Specifications

Operating Temp : 0



to 45





Storage Temp : -20



to 70





Operating Humidity : 10% to 90% Non-Condensing

Storage Humidity : 5% to 90% Non-Condensing

Power

Requirement DC 5V

Certifications:

FCC, CE

Warranty 12 months
