Abocom WBD512 User manual
1-1
USB 802.11b Wireless LAN Adapter
M73-APO01-700
Installation
Install the Driver & Utility
Note: Always remember to install the Driver
& Utility before you plug USB cable into the
PC’s USB port.
In Windows 98SE/ME
For Windows 98SE users: As you perform the
installation, have your system operating
CD-ROM at hand. You may be asked to insert
the OS CD-ROM for the system to download a
specific driver.
1. Insert the supplied CD-ROM into the
CD-ROM drive. Double click on Setup.exe to
install the Wireless LAN Driver & Utility.
2. In the Welcome screen, click Next.
3. Click Next; Windows will copy all the
necessary files to your system.
4. When Windows prompts you to restart your
computer, select Yes and click OK.
USB 802.11b Wireless LAN
1-2
In Windows 2000
1. In the Welcome screen, click Next.
2. Click Next; Windows will copy all the
necessary files to your system.
3. In the Digital Signature Not Found window,
click Yes to continue.
4. Restart your computer.
In Windows XP
1. In the Welcome screen, click Next.
2. Click Next; Windows will copy all the
necessary files to your system.
3. Click Continue Anyway to proceed.
USB 802.11b Wireless LAN
1-3
Install the Device
1. Plug the square end (Type B) of USB cable
into the adapter's USB port.
2. Plug the rectangle end (Type A) of USB cable
into the PC's USB port
3. After installing the Wireless USB Adapter,
Windows will automatically detect the new
device. Follow the on-screen instruction to
install.
Note for Windows 2000 users:
During the installation, when the “Digital
Signature Not Found” screen appears, click
“Yes” to continue.
Note for Windows XP users:
During the installation, when Windows prompt
you that this hardware has not passed Windows
Logo testing…, click Continue Anyway.
In Windows 98SE
1. Windows will auto-detect the 802.11b USB
Adapter and a “New Hardware Found”
window will show up.
USB 802.11b Wireless LAN
1-4

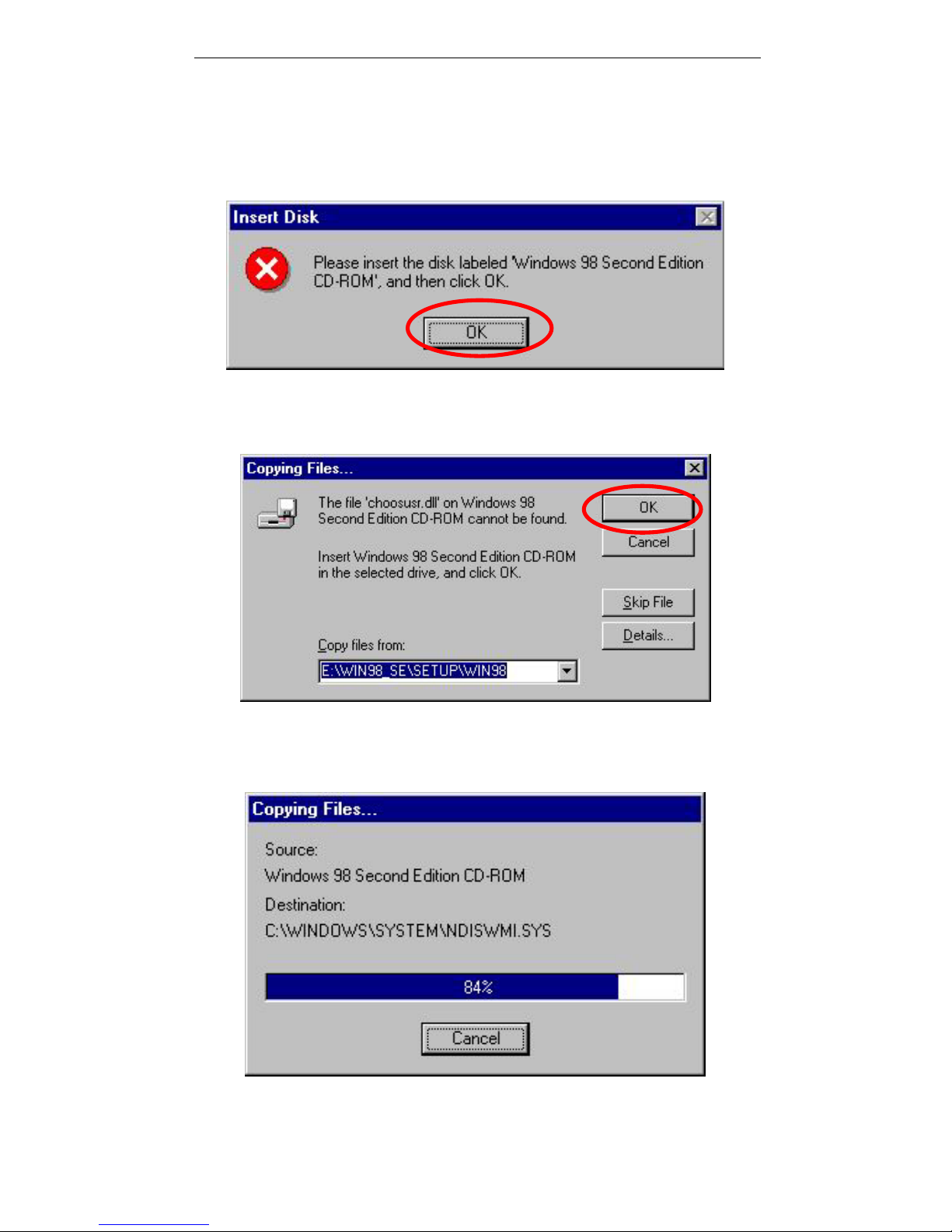

2. Once the “Please insert the disk labeled
‘Windows 98 Second Edition CD-ROM’,
and then click OK” window appears, click
OK.
3. Select the correct drive and click OK.
4. Windows will copy all the necessary files to
your system.
USB 802.11b Wireless LAN
1-5

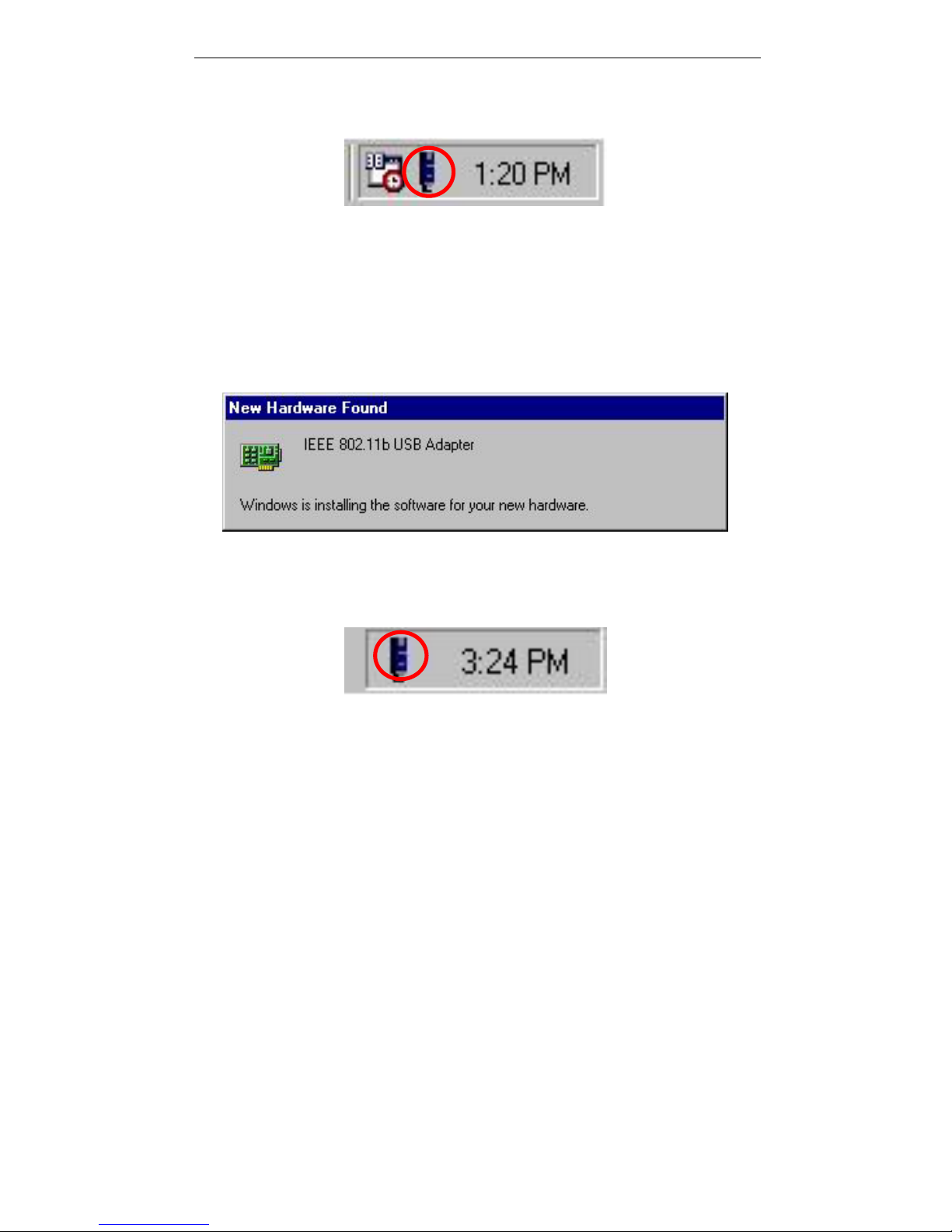

5. Windows will auto-detect the 802.11b USB
Adapter promptly as the icon showed below.
In Windows ME
1. Windows will auto-detect the 802.11b USB
Adapter and a “New Hardware Found”
window will show up.
2. Windows will auto-detect the 802.11b USB
Adapter promptly as the icon showed below.
USB 802.11b Wireless LAN
1-6
In Windows 2000

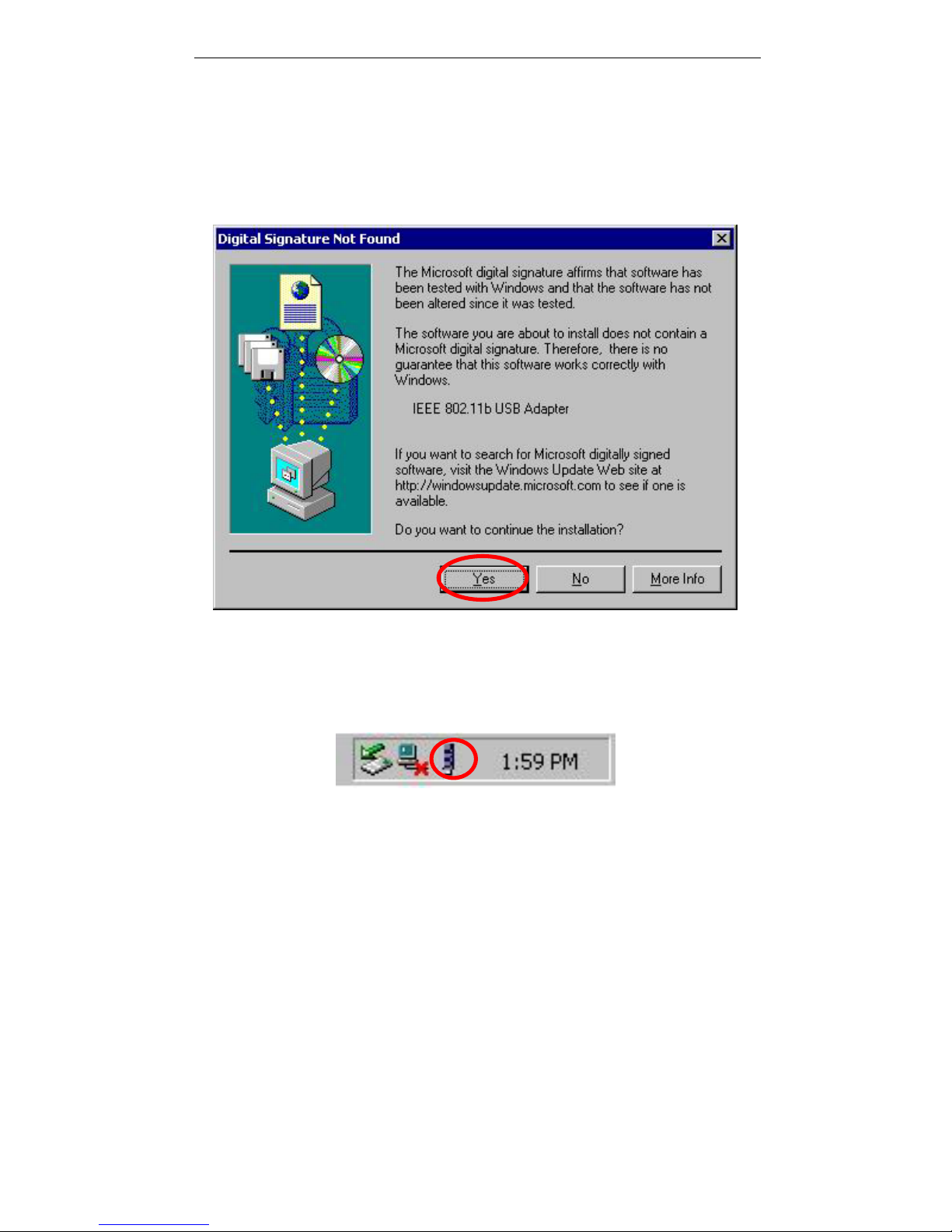

1. In Digital Signature Not Found window, click
Yes to continue.
2. Windows will auto-detect the 802.11b USB
Adapter promptly as the icon showed below.
In Windows XP

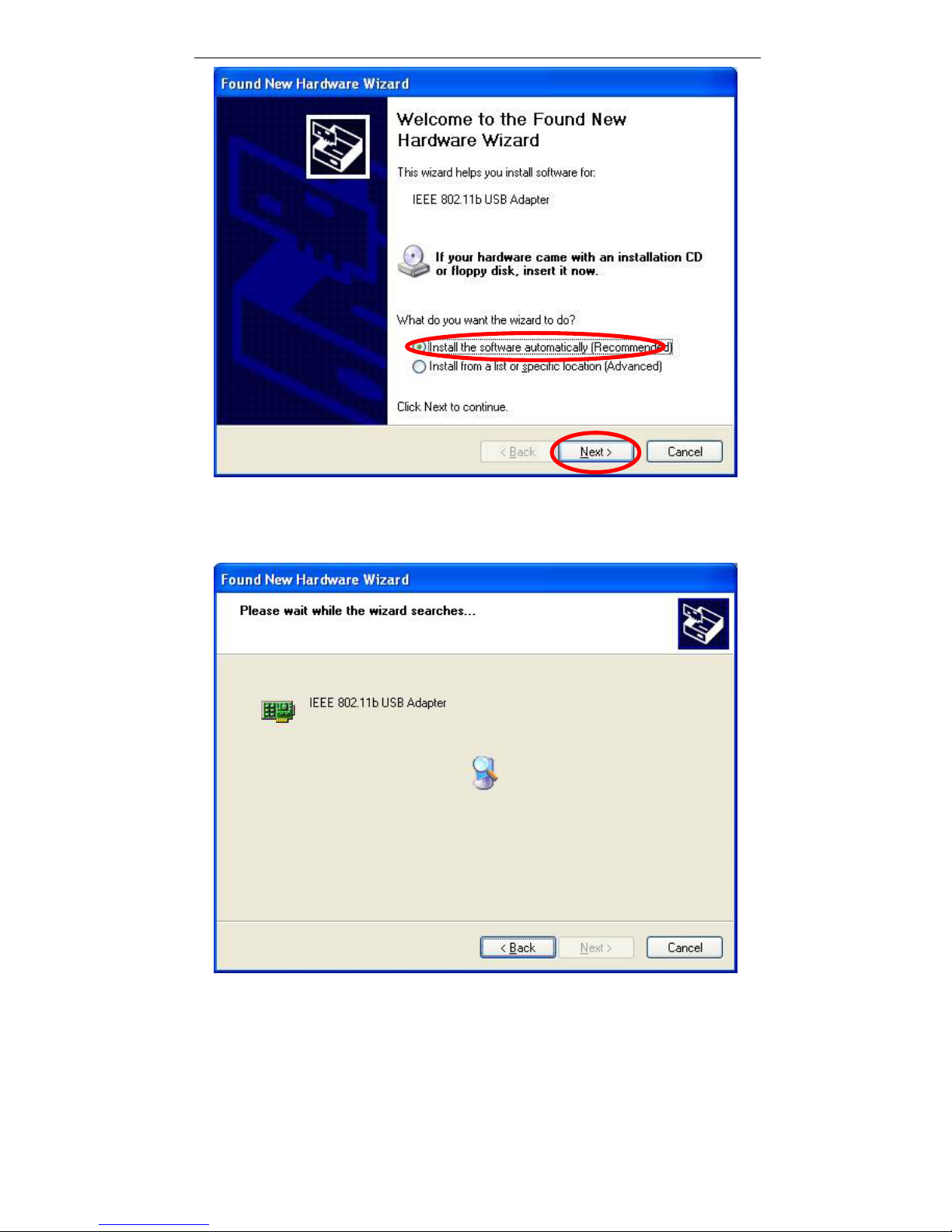

1. Windows will auto-detect the 802.11b USB
Adapter and a “Found New Hardware
Wizard” window will show up. Select “Install
the software automatically (recommended)”.
Click Next to continue.
USB 802.11b Wireless LAN
1-7
2. Wait and the Wizard will search for the
802.11b USB Adapter.

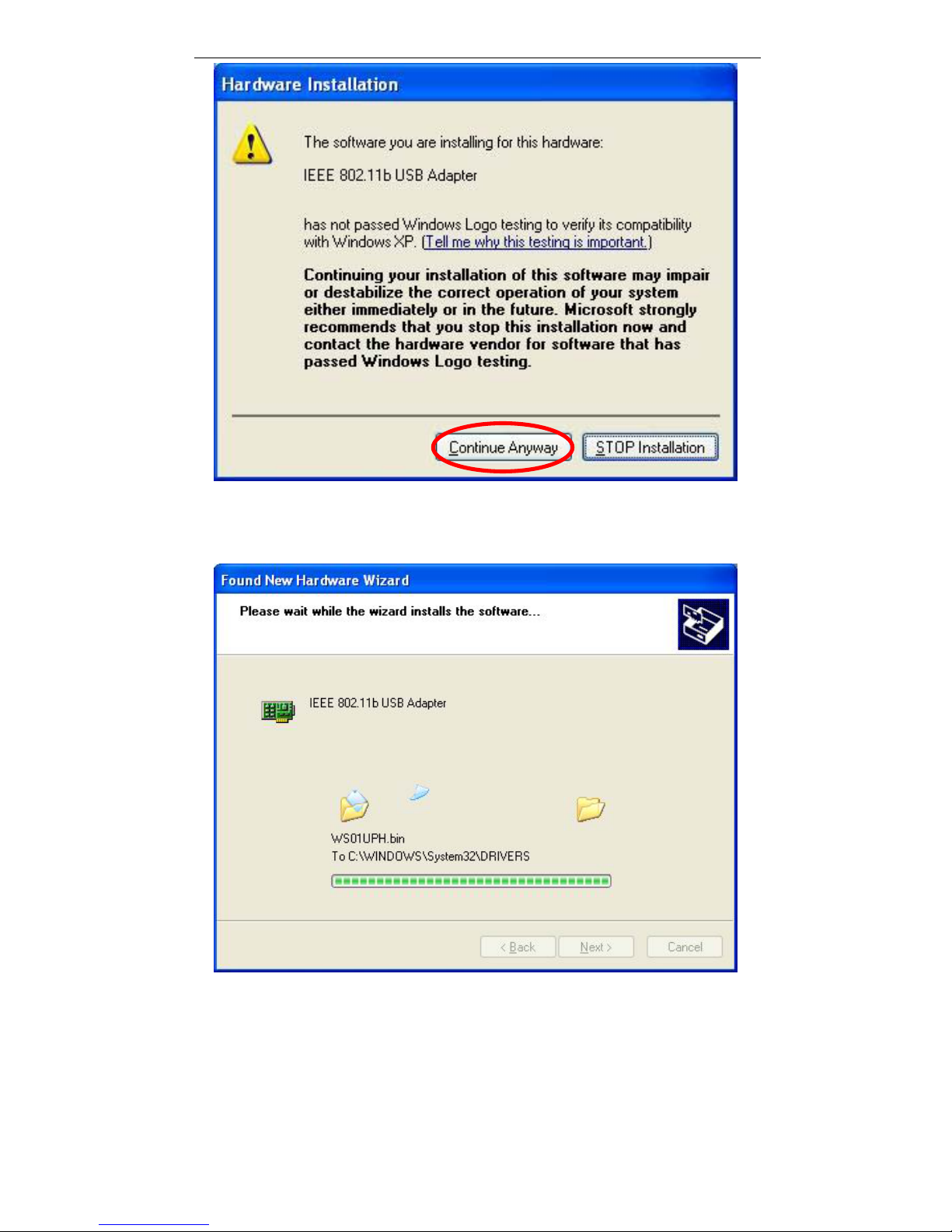

3. Click Continue Anyway to proceed.
USB 802.11b Wireless LAN
1-8
4. Click Next; Windows will copy all the
necessary files to your system.

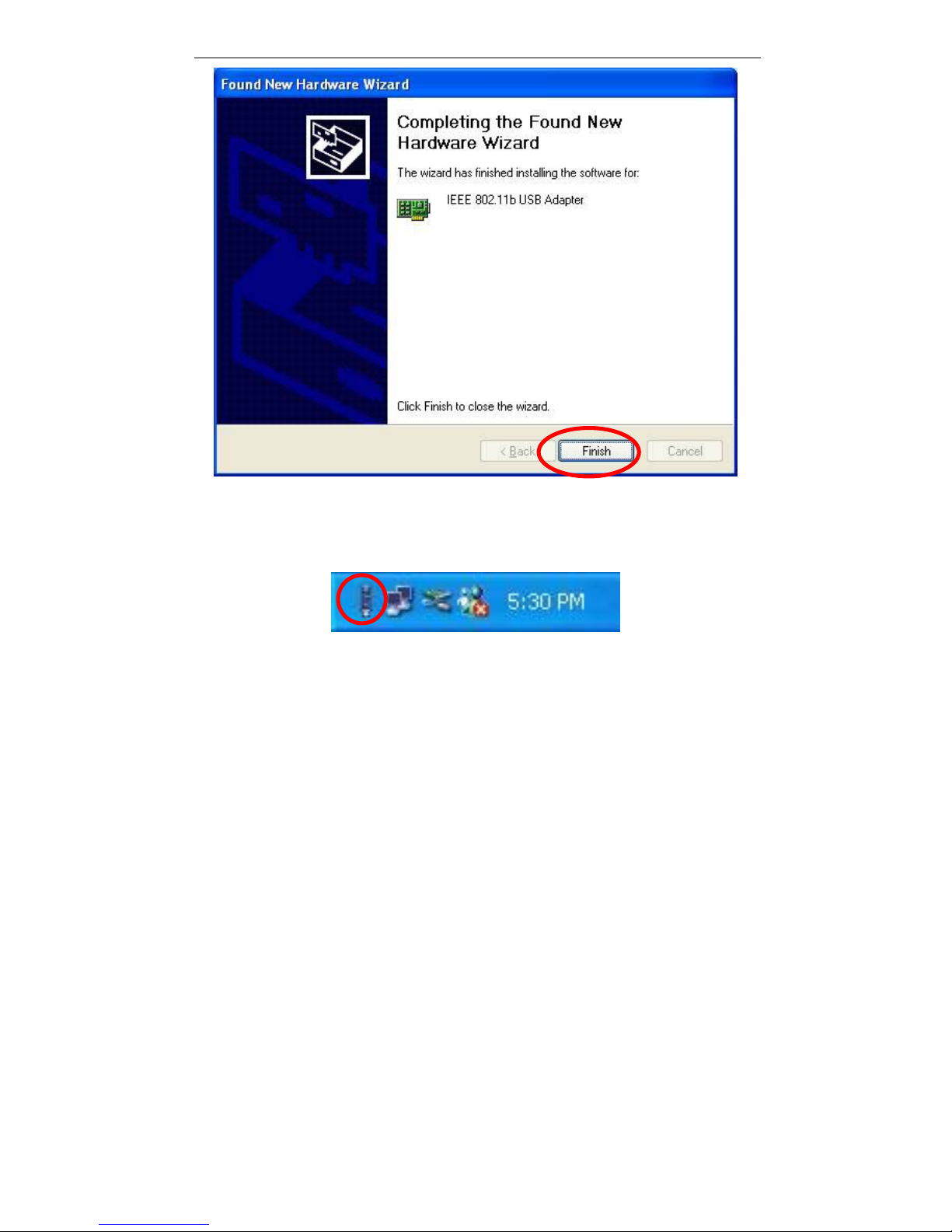

5. Click Finish to complete the installation.
USB 802.11b Wireless LAN
1-9
6. Windows will auto-detect the 802.11b USB
Adapter promptly as the icon showed below.
Configuration
Once the driver and utility has been installed, and
the device is properly connected to your computer,
you can now start using this device with the default
settings. However, if you’d like to change settings
in the utility, you can refer to user manual saved in
the CD-ROM for the corresponding section to
perform more advanced configuration.
