Zanussi ZHC 9015 Manual

Cappa

Cooker hood

Hotte de cuisine

Dunstabzugshaube

Dampkap

MANUALEDIINSTALLAZIONE,USOEMANUTENZIONE

INSTALLATION,USEANDMAINTENANCEHANDBOOK

MANUELD’INSTRUCTIONSPOURL’INSTALLATION,L’EMPLOIETL’ENTRETIEN

HANDBUCHFÜRINSTALLATION,BEDIENUNGUNDWARTUNG

INSTRUCTIESVOORMONTAGE,GEBRUIKENONDERHOUD

ZHC 9015

10GB

CONTENTS

Dear Customer,

If you follow the recommendations

contained in this Instruction Manual,

your appliance will give you constant

high performance and will remain

efficient for many years to come.

RECOMMENDATIONSANDSUGGESTIONS 11

CHARACTERISTICS 12

INSTALLATION 13

USE 16

MAINTENANCE 16

11GB

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

•The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

•The minimum safety distance between the cooker top and the

extractor hood is 650 mm.

•Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

•For Class I appliances, check that the domestic power supply

guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of

minimum diameter 120 mm. The route of the flue must be as short

as possible.

•Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, fireplaces, etc.).

•If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must

be guaranteed in the room in order to prevent the backflow of

exhaust gas. The kitchen must have an opening communicating

directly with the open air in order to guarantee the entry of clean

air.

USE

•The extractor hood has been designed exclusively for domestic

use to eliminate kitchen smells.

•Never use the hood for purposes other than for which it has ben

designed.

•Never leave high naked flames under the hood when it is in

operation.

•Adjust the flame intensity to direct it onto the bottom of the pan

only, making sure that it does not engulf the sides.

•Deep fat fryers must be continuously monitored during use:

overheated oil can burst into flames.

•The hood should not be used by children or persons not instructed

in its correct use.

MAINTENANCE

•Switch off or unplug the appliance from the mains supply before

carrying out any maintenance work.

•Clean and/or replace the Filters after the specified time period.

•Clean the hood using a damp cloth and a neutral liquid detergent.

650 mm min.

12GB

CHARACTERISTICS

Dimensions

Components

Ref. Q.ty Product Components

11 Hood Body, complete with: Controls, Light,

Blower, Filters

21 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

91 Reducer Flange ø 150-125 mm

15 1 Air Outlet Connection

Ref. Q.ty Installation Components

7.1 2 Hood Body Fixing Brackets

7.2.1 2 Upper Chimney Section Fixing Brackets

11 8 Wall Plugs

12a 8 Screws 4,2 x 44,4

12c 6 Screws 2,9 x 9,5

12d 2 Screws M4 x 25

Q.ty Documentation

1 Instruction Manual

530

Min 530

Max 730

100

R 5,7

205

490

210

270 84

65,5

1269

12c

7.2.1

7.1

12a 11

12d

12c

2.1

2.2

Hood Type 90

L 898

H 351

13GB

INSTALLATION

Wall drilling and bracket fixing

Wall marking:

•Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre

of the area in which the hood will be installed.

•Draw a horizontal line at 650 mm above the hob for installation without the back panel, or at

height H (H=height of the visible part of the panel) for installation with the back panel.

•Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning

the centre (notch) with the vertical reference line.

•Mark the wall at the centres of the holes in the bracket.

•Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper

chimney section supplied), aligning the centre (notch) with the vertical line.

•Mark the wall at the centres of the holes in the bracket.

•Place bracket 7.1 as shown 109,5 mm from the vertical reference line and 200 mm above the

horizontal reference line.

•Mark the centres of the holes in the bracket.

•Repeat this operation on the other side.

REARPANEL(OPTIONAL)

The Rear Panel must be fitted before fixing the hood body and, if it is to be fixed at both top and

bottom, must be fitted at the correct height prior to installing the bases. As this operation is rather

complex, it should be carried out either by the kitchen installer or a qualified person who knows the

final dimensions of the units.

For fixing at the top only, proceed as follows:

•Rest the back panel on the base, inserting the lower plate between the upper surface and the wall,

centring it on the vertical reference line.

•Mark the centres of the two holes in the upper plate.

H 200 X1÷2

650 min.

7.2.1

7.1 109,5 109,5

14GB

•Drill ø8 mm holes at all the centre points marked.

•Insert the wall plugs 11 in the holes.

•Fix the brackets using the 12a screws (4,2 x 44,4) supplied.

•Fix the back panel (where present) using the 12a (4,2 x 44,4) screws supplied.

Mounting the hood body

•Screw the two screws 12d supplied onto the

brackets 7.1.

•Hook the hood body onto the bracket 7.1,

centring it around the vertical line.

•Use the adjusting screws 12d underneath the

hood to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid

pipe ø150 or 125 mm, the choice of which is left to the installer.

•To install a ø125 mm air exhaust connection,

insert the reducer flange 9on the hood body

outlet.

•Fix the pipe in position using sufficient pipe

clamps (not supplied).

•Remove any activated charcoal filters.

7.1

12.d

ø 125ø 150

15GB

RECIRCULATIONVERSIONAIROUTLET

•Push fit the air outlet fitting 15 onto the air outlet

of the hood body.

•Ensure that the activated charcoal filters have

been inserted.

ELECTRICAL CONNECTION

•Connect the hood to the mains through a two-pole switch

having a contact gap of at least 3 mm.

•Remove the grease filters (see paragraph Maintenance)

being sure that the connector of the feeding cable is

correctly inserted in the socket placed on the side of the

fan.

Flue assembly

Upper exhaust flue

•Slightly widen the two sides of the upper flue

and hook them behind the brackets 7.2.1,

making sure that they are well seated.

•Secure the sides to the brackets using the 4

screws 12c (2,9 x 9,5) supplied.

Lower exhaust flue

•Slightly widen the two sides of the flue and hook

them between the upper flue and the wall,

making sure that they are well seated.

•Fix the lower part laterally to the hood body

using the 2 screws 12c (2,9 x 9,5) supplied.

•Make sure that the air outlet connection is

aligned with the chimney outlets.

12e

2.1

2.2

7.2.1

12e

16GB

V1 V2 V3

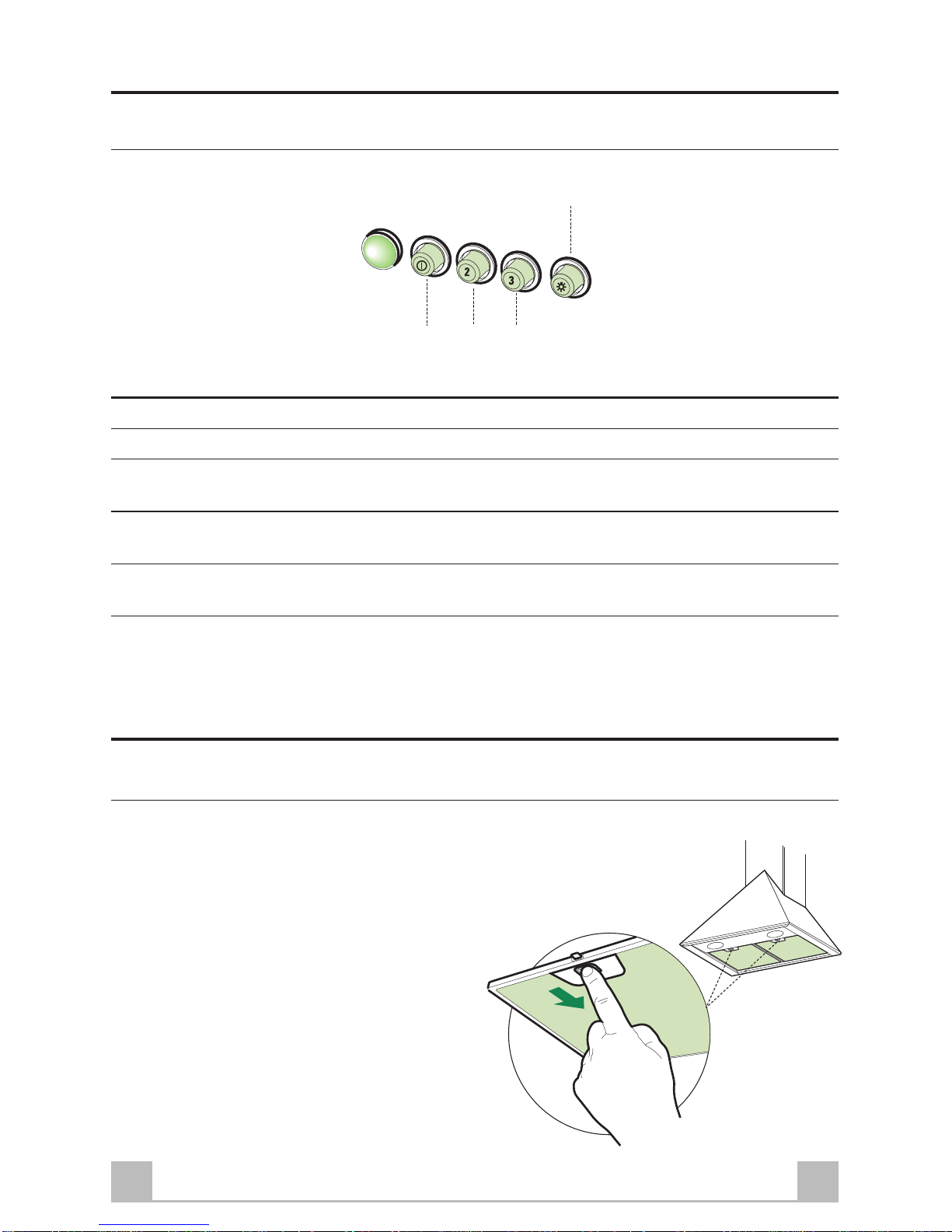

USE

Controlpanel

LLight Switches the lighting system on and off.

SLed Motor running led.

V1 Motor Switches the extractor motor on and off at low speed. Used to provide a continuos

and silent air change in the presence of light cooking vapours.

V2 Speed Medium speed, suitable for most operating conditions given the optimum treated

air flox/noise level ratio.

V3 Speed Maximum speed, used for eliminating the highest cooking vapour emission,

including long periods.

MAINTENANCE

Greasefilters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

•The filters must be cleaned every 2 months of

operation, or more frequently for particularly

heavy usage, and can be washed in a dishwasher.

•Remove the filters one at a time by pushing them

towards the back of the group and pulling down

at the same time.

•Wash the filters, taking care not to bend them.

Allow them to dry before refitting.

•When refitting the filters, make sure that the

handle is visible on the outside

17GB

Activated charcoal filter (Recirculation version)

REPLACINGTHEACTIVATEDCHARCOALFILTER

These filters are not washable and cannot be

regenerated, and must be replaced every 4 months

of operation, or more frequently with heavy usage.

•Remove the grease filters.

•Remove the saturated activated charcoal filters

as shown (A).

•Fit new filters (B).

•Replace the grease filters.

Lighting

LIGHT REPLACEMENT

40 W incandescent light.

•Remove the metal grease filters.

•Unscrew the bulbs and replace them with new

ones having the same characteristics.

•Replace the metal grease filters.

Quest’apparecchio é conforme alla norma europea sulla bassa tensione C.E.E. 73/23

relativa alla sicurezza elettrica e alle norme europee: C.E.E. 89/336 relativa alla com-

patibilità elettromagnetica e C.E.E. 93/68 relativa alla marcatura CE.

This appliance complies with European regulations on low voltages, EEC Directive 73/

23 on electrical safety, and with the following European regulations: EEC Directive 89/

336 on electromagnetic compatibility and EEC Directive 93/68 on EC marking.

Cet équipement est conforme à la norme européenne sur la basse tension C.E.E. 73/

23 relative à la sécurité électrique et aux normes européennes: C.E.E. 89/336 relative

à la compatibilité électromagnétique et C.E.E. 93/68 relative au marquage CE.

Dieses Gerät entspricht den europäischen Niederspannungsrichtlinien 73/23/EWG

zur elektrischen Sicherheit, den europäischen Richtlinien 89/336/EWG zur

elektromagnetischen Verträglichkeit und den Richtlinien 93/68/EWG zur CE-

Kennzeichnung

Dit apparaat voldoet aan de Europese Laagspanningsrichtlijn 72/23/EEG inzake de

elektrische veiligheid en aan de Europese normen 89/336/EEG inzake de

elektromagnetische compatibiliteit en 93/68/EEG inzake de CE-markering.
