Zanussi Master 642293 User manual

ZANUSSI

P R O F E S S I O N A L

304 AISI WALL TYPE HOODS

MASTER - M line - 900 mm

304 S/S LABYRINTH FILTER H=500 MM 2 2 4 4 5 6 6 7

304 S/S BLIND PANEL 400X500H MM 1 1 1 1 1 1

INCLUDED ACCESSORIES

Net weight - kg. 23 29 36 42 48 55 60 67

Air Capacity - mc/h 1200 1600 2000 2400 1900 3200 3600 4000

height 500 500 500 500 500 500 500 500

depth 900 900 900 900 900 900 900 900

width 1200 1600 2000 2400 2800 3200 3600 4000

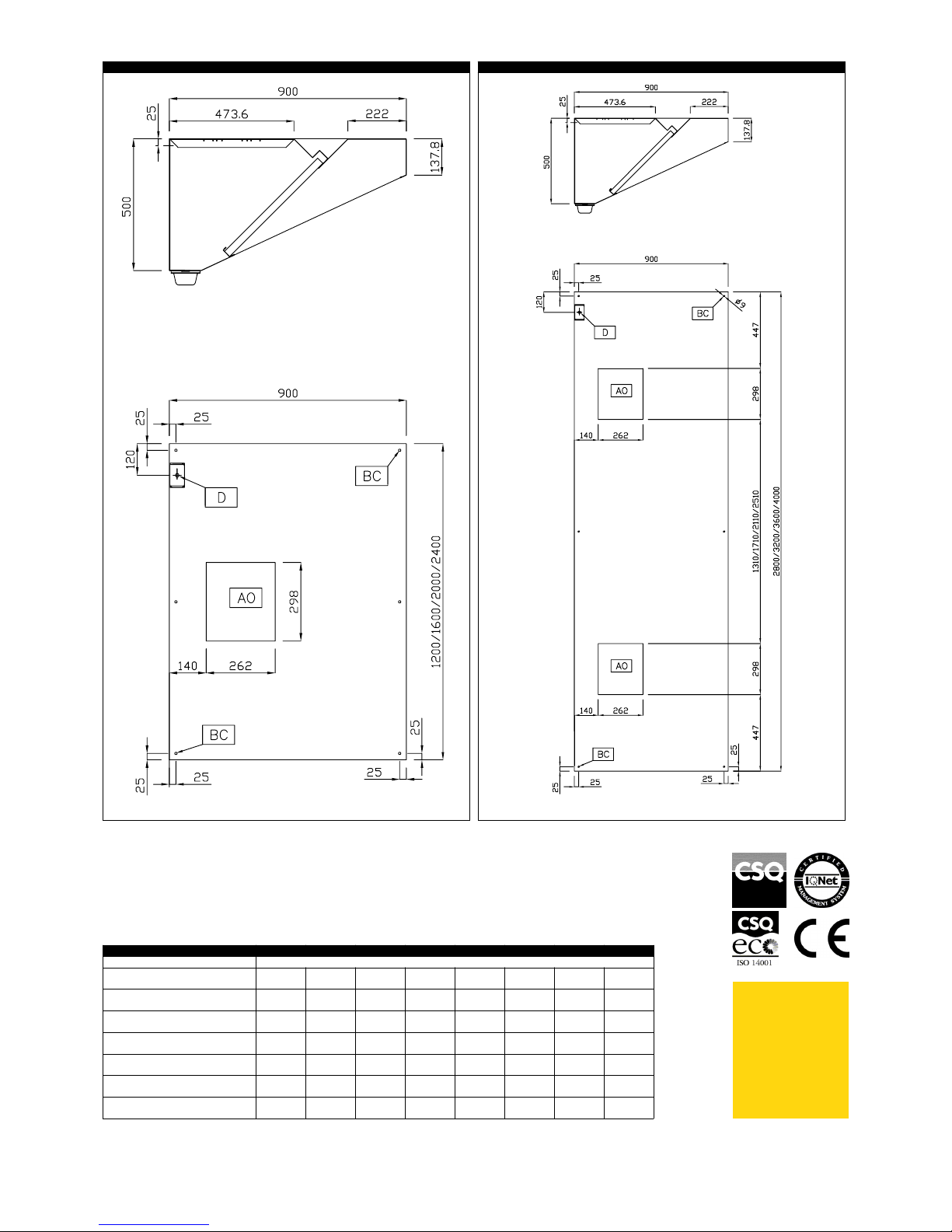

External dimensions - mm

MP912DT

642293

MP916DT

642294

MP920DT

642295

MP924DT

642296

MP928DT

642297

MP932DT

642298

MP936DT

642299

MP940DT

642300

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

A range of wall-mounted hoods used

for snack applications and on the

N700 and N900 Series cooking

units. Their particular profile and the

limited installation height makes

them suitable for use in places with

low ceilings. The range consists of

hoods with 8 different lengths (1200,

1600, 2000, 2400, 2800, 3200, 3600

and 4000 mm) and a depth of 900

mm.

FUNCTIONAL AND

CONSTRUCTION

FEATURES

� Constructed entirely in 304 AISI

stainless steel.

� Labyrinth filters in 304 AISI

stainless steel easily removable for

cleaning. Labyrinth filters guarantee

constant filtration to avoid clogging

and protect against fire.

� Back drain pipe with drain hole to

transfer grease into a 304 AISI

container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

� The outlet holes are sized in order

to minimize drops in pressure.

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

HBAA5 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

SPEED VARIATOR FOR MOTORS UP TO

1.7 KW

640686 640686 640686 640686

SPEED VARIATOR FOR MOTORS UP TO

1.17 KW

640076 640076 640076 640076

FAN FOR VENTIL HOODS+DUCTED

EXTRACT.UNIT

640748 640748 640748 640748 640748 640748 640748 640748

DRAIN FOR HOODS DIAM.1/2"(M) WITH

PLUG

640409 640409 640409 640409 640409 640409 640409 640409

36-WATT LIGHTING FIXTURE W/1

LAMP-IP 65

680805 680805 680805 680805 680805

27-WATT LIGHTING FIXTURE W/1

LAMP-IP 65

680804 680804 680804 680804 680804

MP912DT

642293

MP916DT

642294

MP920DT

642295

MP924DT

642296

MP928DT

642297

MP932DT

642298

MP936DT

642299

MP940DT

642300

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

642293, 642296, 642295, 642294 642297, 642300, 642299, 642298
