Zanussi Master 642278 User manual

ZANUSSI

P R O F E S S I O N A L

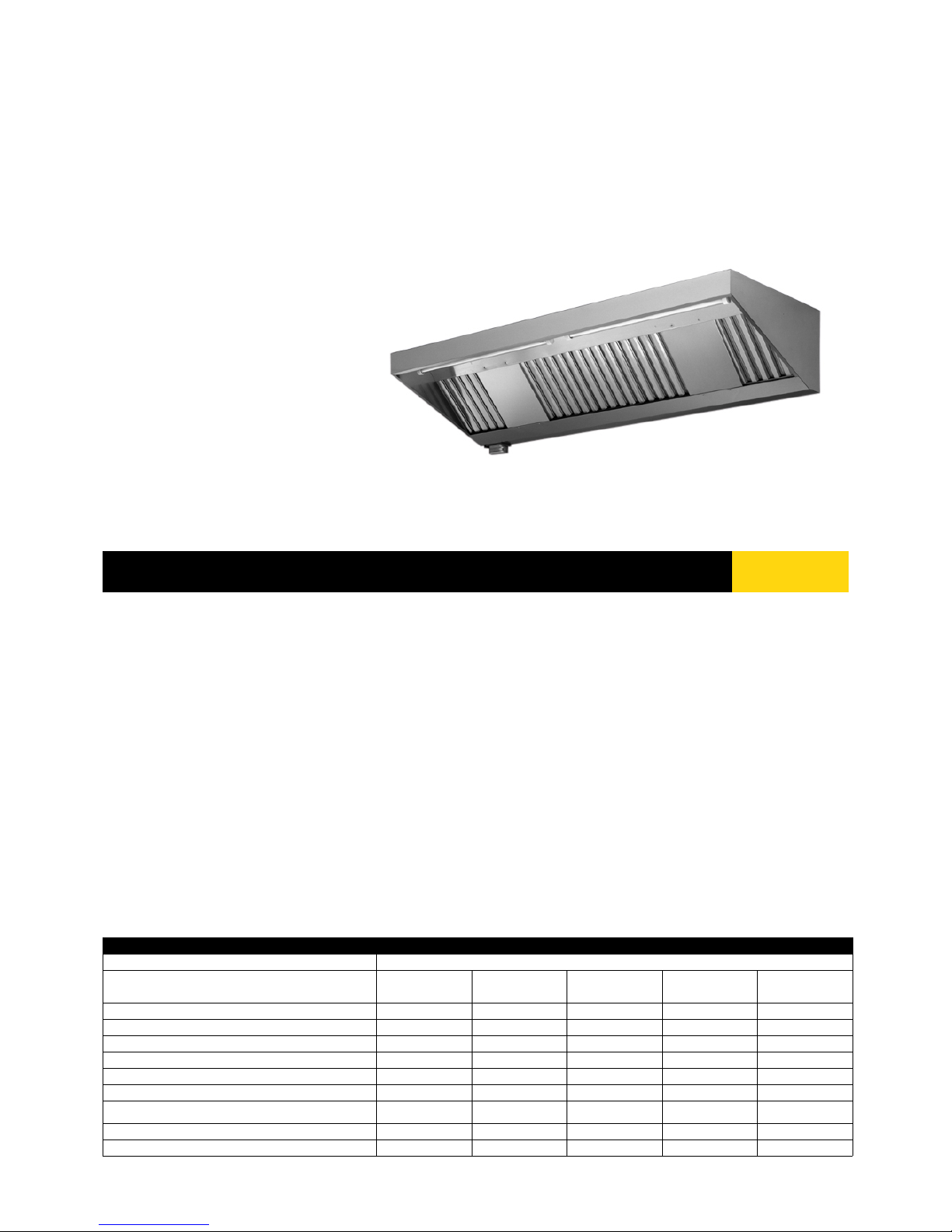

304 AISI WALL TYPE HOODS

MASTER - M line - 700 mm

642278

304 S/S LABYRINTH FILTER H=500 MM 2 2 4 4 5

304 S/S BLIND PANEL 400X500H MM 1 1 1 1

INCLUDED ACCESSORIES

Net weight - kg. 20 27 34 38 44

Air Capacity - mc/h 1000 1300 1600 1900 2200

height 500 500 500 500 500

depth 700 700 700 700 700

width 1200 1600 2000 2400 2800

External dimensions - mm

MP712DT

642278

MP716DT

642279

MP720DT

642280

MP724DT

642281

MP728DT

642282

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

A range of wall-mounted hoods used

for snack applications and on the

N700 and N900 Series cooking

units. Their particular profile and the

limited installation height makes

them suitable for use in places with

low ceilings. The range consists of

hoods with 5 different lengths (1200,

1600, 2000, 2400 and 2800 mm)

and a depth of 700 mm.

FUNCTIONAL AND

CONSTRUCTION

FEATURES



� Constructed entirely in 304 AISI

stainless steel.

� Labyrinth filters in 304 AISI

stainless steel easily removable for

cleaning. Labyrinth filters guarantee

constant filtration to avoid clogging

and protect against fire.

� Back drain pipe with drain hole to

transfer grease into a 304 AISI

container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

� The outlet holes are sized in order

to minimize drops in pressure.

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

HBAA4 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

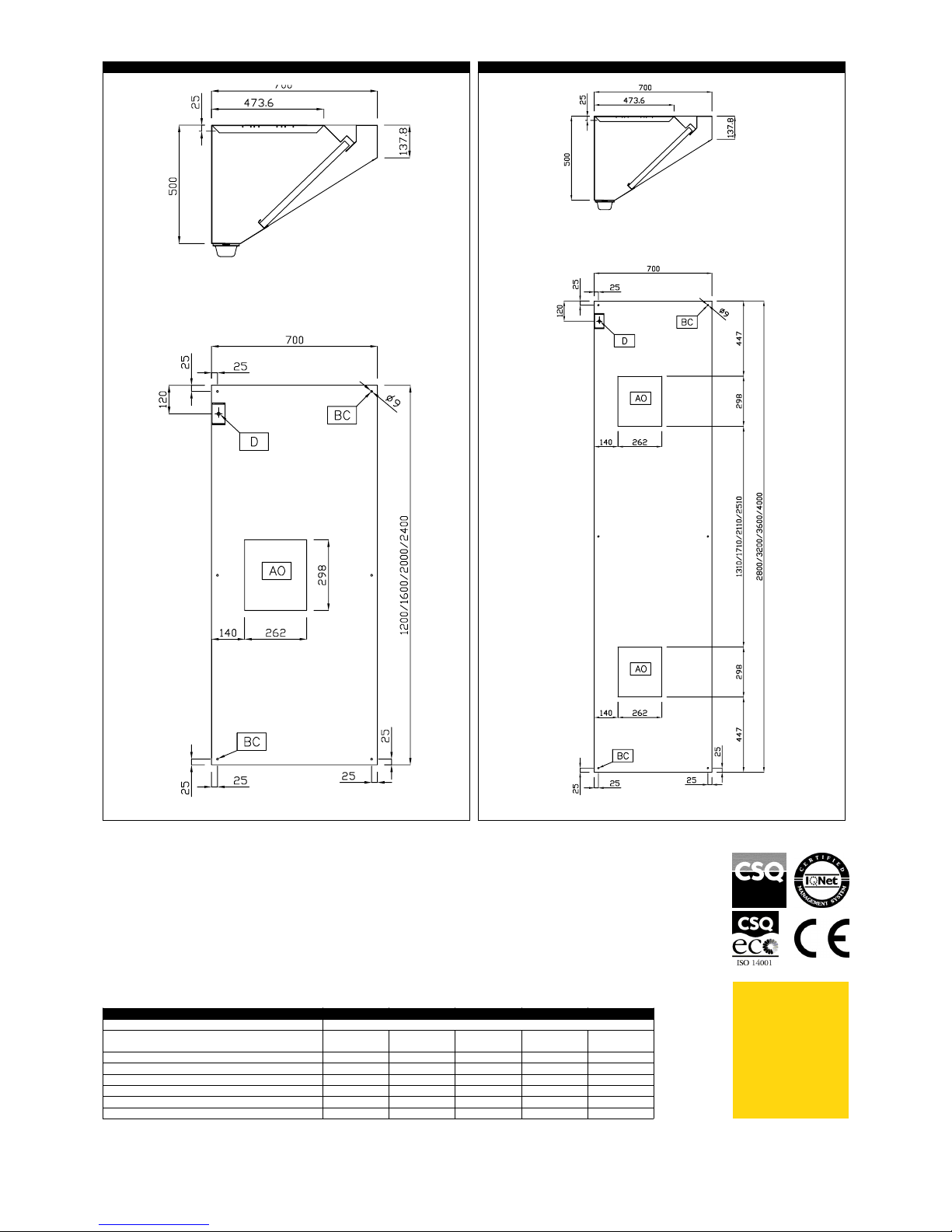

SPEED VARIATOR FOR MOTORS UP TO 1.7 KW 640686

SPEED VARIATOR FOR MOTORS UP TO 1.17 KW 640076 640076 640076 640076

FAN FOR VENTIL HOODS+DUCTED EXTRACT.UNIT 640748 640748 640748 640748 640748

DRAIN FOR HOODS DIAM.1/2"(M) WITH PLUG 640409 640409 640409 640409 640409

36-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680805 680805

27-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680804 680804 680804

MP712DT

642278

MP716DT

642279

MP720DT

642280

MP724DT

642281

MP728DT

642282

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

642278, 642281, 642280, 642279 642282

This manual suits for next models
