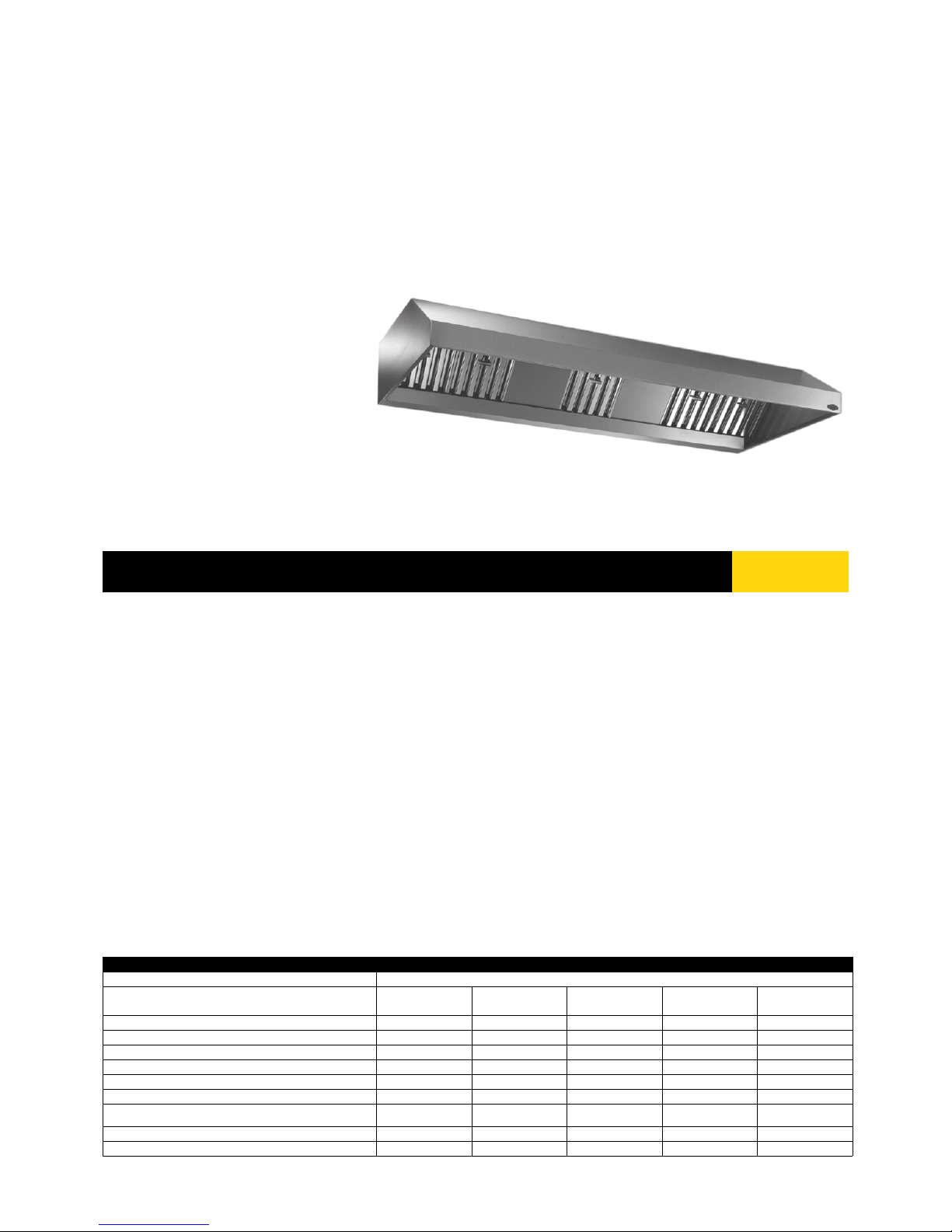

Zanussi Block 642189 User manual

ZANUSSI

P R O F E S S I O N A L

430 AISI WALL TYPE HOODS

BLOCK - BV line - 1400 mm

642189

430 S/S LABYRINTH FILTER H=500 MM 2 2 4 4 5

304 S/S BLIND PANEL 400X500H MM 1 1 1 1

INCLUDED ACCESSORIES

Net weight - kg. 47 56 64 73 91

Air Capacity - mc/h 3800 3800 3800 3800 7600

height 500 500 500 500 500

depth 1400 1400 1400 1400 1400

width 1200 1600 2000 2400 2800

External dimensions - mm

BPV1412BT

642189

BPV1416BT

642190

BPV1420BT

642191

BPV1424BT

642192

BPV1428BT

642193

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

A range of wall-mounted hoods

guaranteeing a rational and versatile

solution to extraction problems over

most cooking appliances. The

sloped front gives them a neat

appearance while taking up less

space, making them particularly

suitable for small kitchens. The

range consists of hoods with 5

different lengths (1200, 1600, 2000,

2400 and 2800 mm) and 1400 mm

deep.

FUNCTIONAL AND

CONSTRUCTION

FEATURES



� Constructed entirely in 430 AISI

stainless steel.

� Labyrinth filters in 430 AISI

stainless steel easily removable for

cleaning. Labyrinth filters guarantee

constant filtration to avoid clogging

and protect against fire.

� Powerful internal fan(s) 550 W.

� Lead hole for electric cable on top.

� Perimetral gutter with drain hole to

transfer grease into a 304 AISI

container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

� The outlet holes are sized in order

to minimize drops in pressure.

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

HCBA2 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

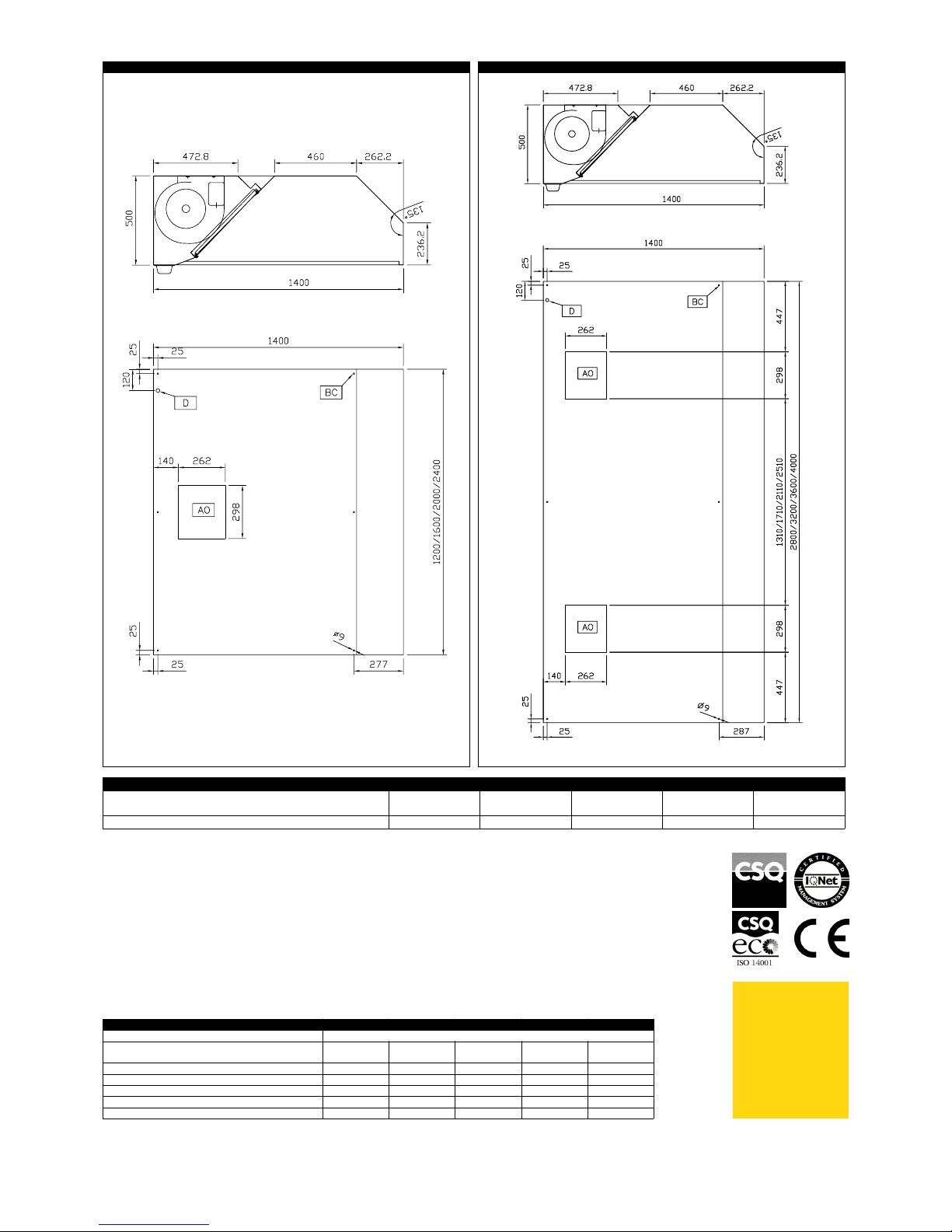

SPEED VARIATOR FOR MOTORS UP TO 1.7 KW 640686

SPEED VARIATOR FOR MOTORS UP TO 1.17 KW 640076 640076 640076 640076

DRAIN FOR HOODS DIAM.1/2"(M) WITH PLUG 640409 640409 640409 640409 640409

36-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680805 680805

27-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680804 680804 680804

BPV1412BT

642189

BPV1416BT

642190

BPV1420BT

642191

BPV1424BT

642192

BPV1428BT

642193

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

EI - Electrical connection 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60

BPV1412BT

642189

BPV1416BT

642190

BPV1420BT

642191

BPV1424BT

642192

BPV1428BT

642193

LEGEND

642189, 642192, 642191, 642190 642193
