Zanussi Block 642235 User manual

ZANUSSI

P R O F E S S I O N A L

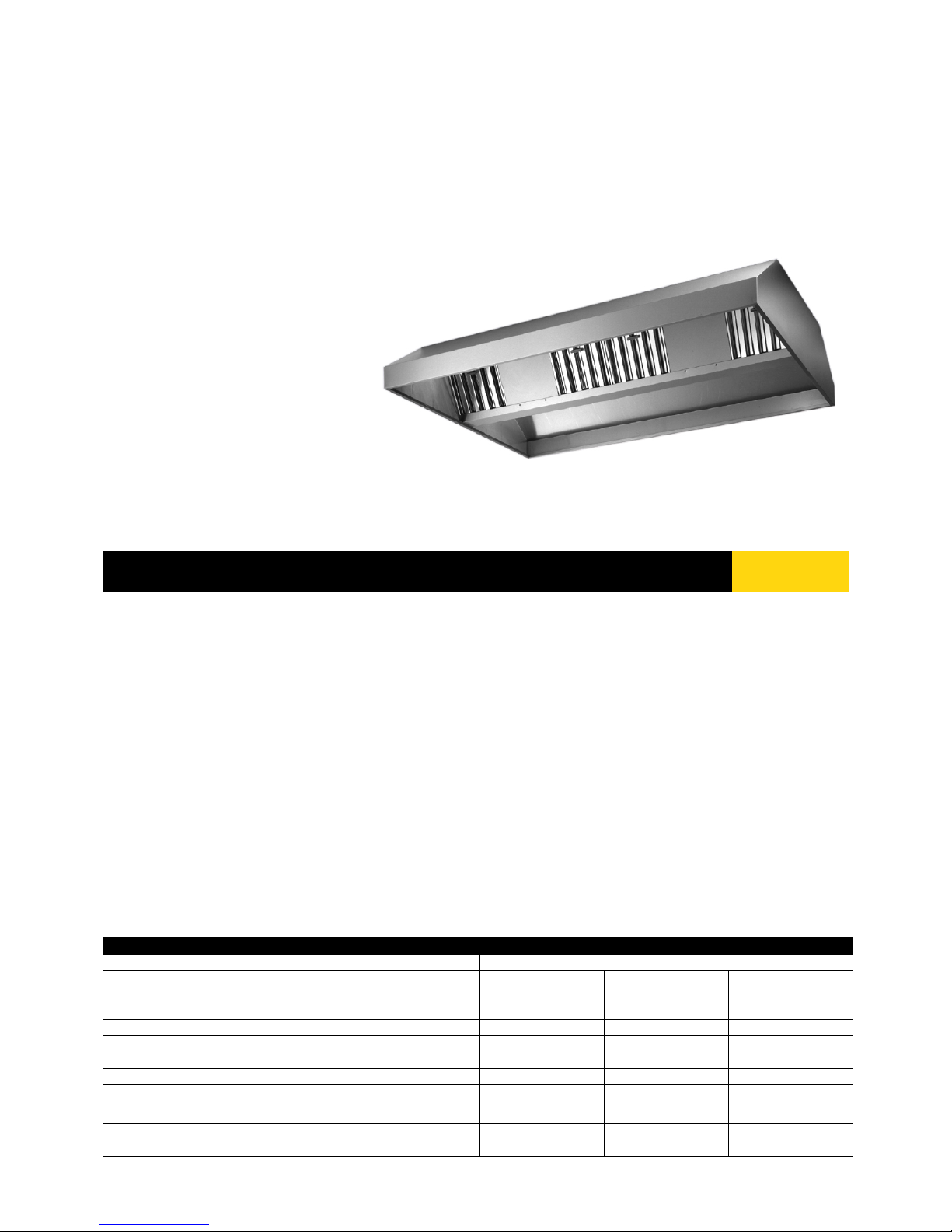

430 AISI CENTRAL TYPE HOODS

BLOCK - BV line - 2200 mm

342235

430 S/S LABYRINTH FILTER H=500 MM 8 8 10

304 S/S BLIND PANEL 400X500H MM 2

INCLUDED ACCESSORIES

Net weight - kg. 82 92 102

Air Capacity - mc/h 7600 7600 7600

height 500 500 500

depth 2200 2200 2200

width 2000 2400 2800

External dimensions - mm

BCV2220BT

642235

BCV2224BT

642236

BCV2228BT

642237

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

A range of central hoods

guaranteeing a rational and versatile

solution to extraction problems over

most cooking appliances. The

sloped front gives them a neat

appearance while taking up less

space, making them particularly

suitable for small kitchens. The

range consists of hoods with 3

different lengths (2000, 2400 and

2800 mm) and 2200 mm deep.

FUNCTIONAL AND

CONSTRUCTION

FEATURES



� Constructed entirely in 430 AISI

stainless steel.

� Labyrinth filters in 430 AISI

stainless steel easily removable for

cleaning. Labyrinth filters guarantee

constant filtration to avoid clogging

and protect against fire.

� Powerful internal fan(s) 550 W.

� Lead hole for electric cable on top.

� Perimetral gutter with drain hole to

transfer grease into a 304 AISI

container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

� The outlet holes are sized in order

to minimize drops in pressure.

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

HCBB3 2011-06-27 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

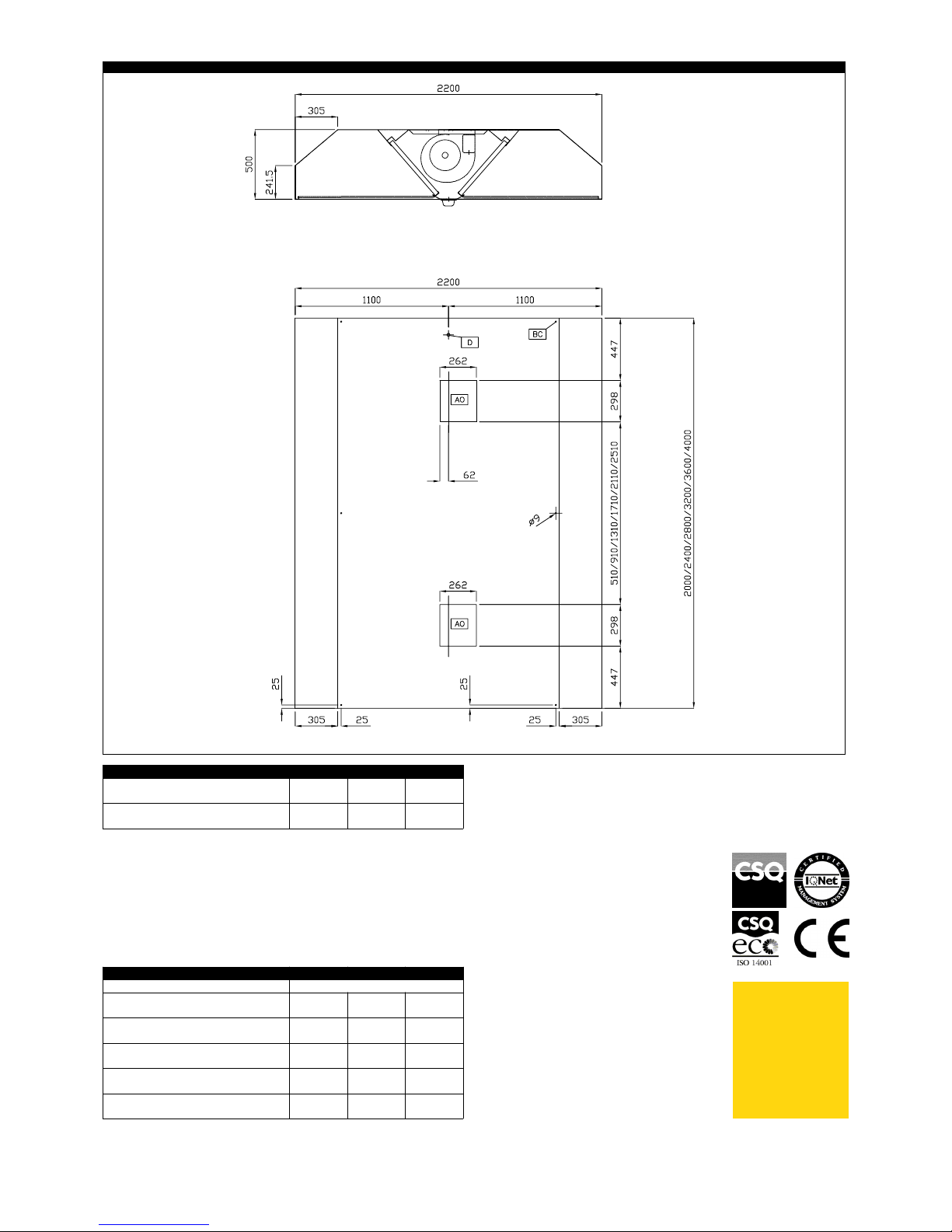

SPEED VARIATOR FOR MOTORS UP TO

1.7 KW

640686 640686 640686

DRAIN FOR HOODS DIAM.1/2"(M) WITH

PLUG

640409 640409 640409

36-WATT LIGHTING FIXTURE W/1 LAMP-IP

680805

27-WATT LIGHTING FIXTURE W/1 LAMP-IP

680804 680804

BCV2220BT

642235

BCV2224BT

642236

BCV2228BT

642237

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

EI - Electrical connection 220/240 V,

1N, 50/60

220/240 V,

1N, 50/60

220/240 V,

1N, 50/60

BCV2220BT

642235

BCV2224BT

642236

BCV2228BT

642237

LEGEND

642235, 642237, 642236

This manual suits for next models
