York RVHC 09-12DS Operating instructions

Installation & Owner’s Manual

MODELS

RVHC 09-12DS

RVHC 18AS

MINISPLIT

HIGH WALL

AIR CONDITIONER

EN 035M00032-000The units comply with one or more of the following marks - see unit for details.

J355-EN.indd 1J355-EN.indd 1 1/12/07 3:20:50 PM1/12/07 3:20:50 PM

CONTENTS

Safety Precautions ................................................... 3

Part Names................................................................ 4

Manual Operation ..................................................... 5

How the Air Conditioner Works............................... 5

Optimal Operation .................................................... 6

Preparation Before Installation ............................... 6

Installation Procedure.............................................. 8

Maintenance............................................................ 14

Operation Tips ........................................................ 15

Troubleshooting Guide .......................................... 16

Technical Speciﬁcation.......................................... 17

Declaration of Conformity ..................................... 19

Please read this installation

manual carefully before starting

the installation. It will tell you

necessary information.

Quality POLICY

We will continuously strive to satisfy

our customers with consistent

reliability in product, service and

support through superior quality,

service culture and distinctive

technology.

R410A

Set RVHCxxDSAAAR / RVHCxxASAAAR

Outdoor RVJCxxDS-AAR / RVJCxxAS-AAR

Indoor RVKCxxDS-AAR / RVKCxxAS-AAR

J355-EN.indd 2J355-EN.indd 2 1/12/07 3:20:51 PM1/12/07 3:20:51 PM

ENGLISH 3

EXTENDED PARTS

1. Refrigarant Pipe

Models 07-09 12-18

Liquid size 1/4 inch 1/4 inch

Gas size 3/8 inch 1/2 inch

2. Pipe insulation material (Polyethylene foam 9 mm thick)

3. Vinyl tape

4. Putty

REQUIRED TOOLS

1. Screw driver 9. Manifold gauge

2. Hexagonal wrench 10. Gas leak detector

3. Torque wrench 11. Vacuum pump

4. Spanner 12. Pipe clamp

5. Reamer 13. Pipe cutter

6. Hole core drill 14. Flare tool set

7. Tape measure 15. Electrical circuit tester

8. Thermometer

SAFETY PRECAUTIONS

•Please read this installation manual carefully before starting installation of the unit.

•This air conditioning system contains refrigerant under pressure, rotating parts and electrical connection which

may be dangerous and can cause injury. Installation and maintenance of this air conditioning system should only

be carried out by trained and qualiﬁed personnel.

•After unpacking, please check the unit carefully for possible damage.

•Before undertaking any work on the unit, make sure that the power supply has been disconnected.

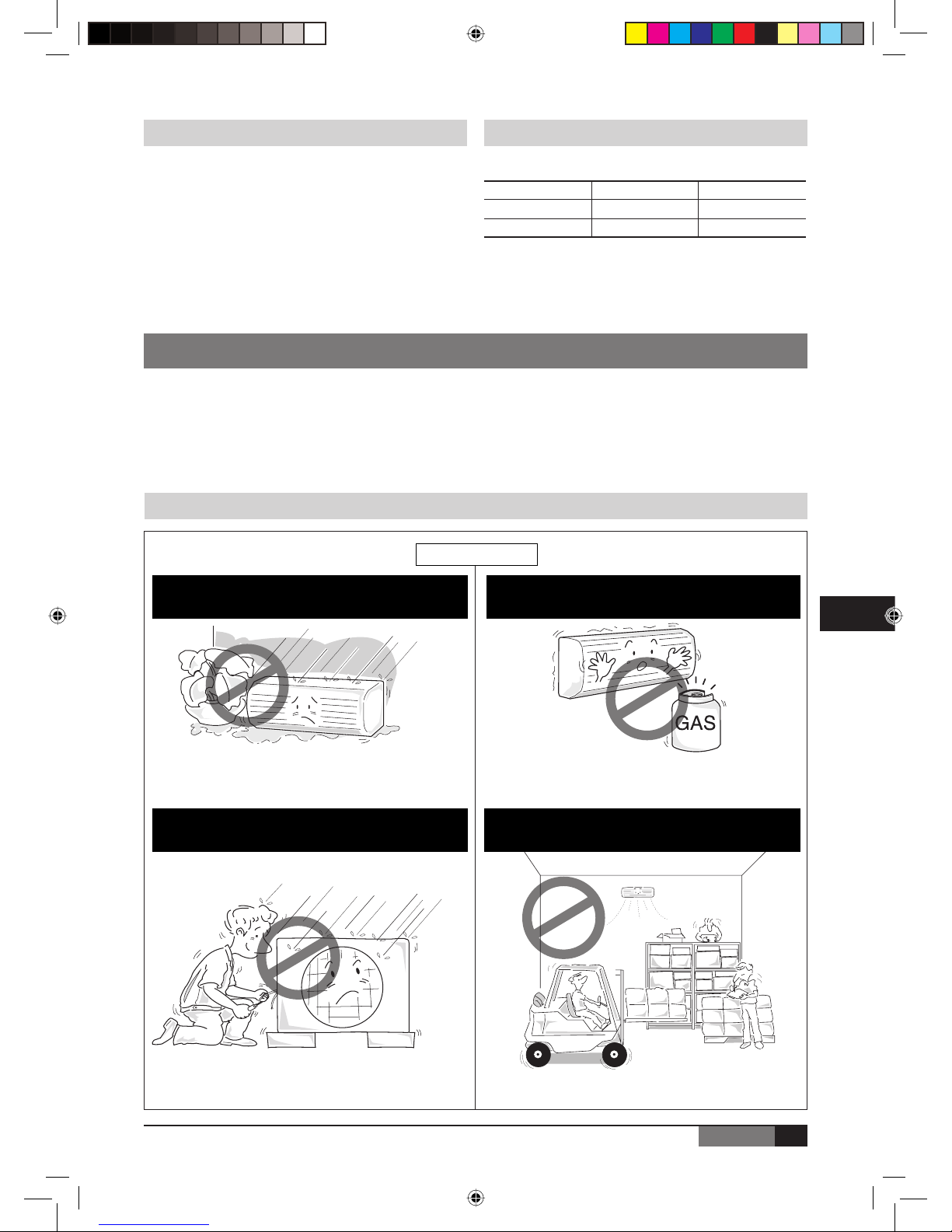

WARNING & CAUTIONS

Do not store or unpack the unit in a wet area or

expose to rain or water.

Do not install in a place where ﬂammable gas

may leak.

Do not conduct installation in wet area or in the

rain.

This system is designed for domestic or residential

use only.

It may cause the unit to short circuit and may result electric

shocks or ﬁre.

It may cause ﬁre.

It is a high risk to cause the electrical shocks. If used in certain environments, such as a manufacturing

workplace, the equipment may not function efﬁciently.

INSTALLATION

J355-EN.indd 3J355-EN.indd 3 1/12/07 3:20:51 PM1/12/07 3:20:51 PM

ENGLISH

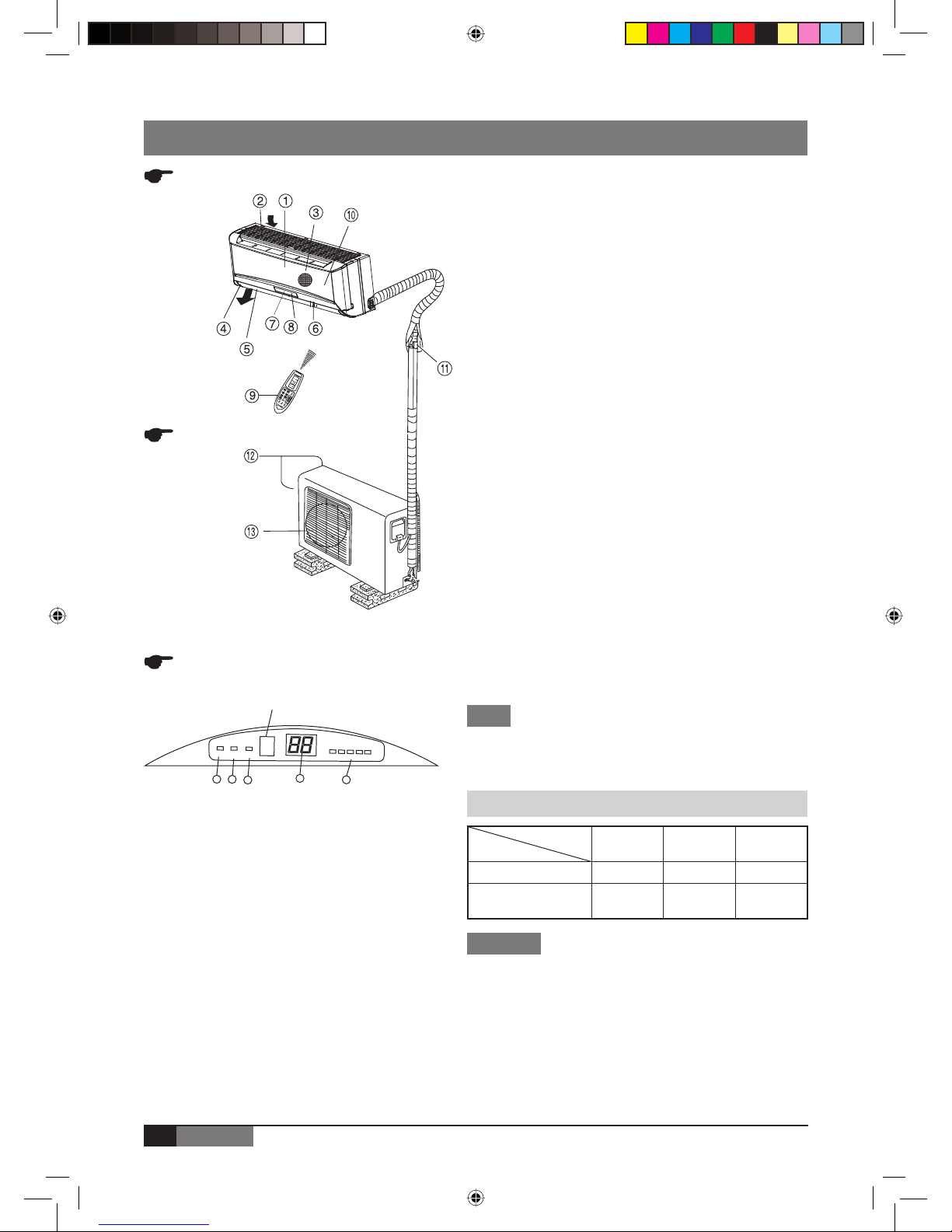

PART NAMES

CAUTIONS

1. If air conditioner is used outside of the above conditions,

certain safety protection features may come into operation

cause the unit to function abnormally.

2. Room relative humidity less than 80%. If the air conditioner

operates in excess of this ﬁgure, the surface of the air conditioner

may attract condensation. Please sets the vertical air ﬂow

louver to its maximum angle (Vertically to the ﬂoor), and

set HIGH fan mode.

3. Optimum performance will be achieved within these

operating temperature.

INDOOR UNIT

OUTDOOR UNIT

■INDOOR & OUTDOOR UNIT

■DISPLAY PANEL

1AUTO indicator

This indicator illuminates when the air conditioner is in AUTO

operation.

2TIMER indicator

This indicator illuminates when TIMER is set ON/OFF.

DEFROST indicator (For Cooling & Heating models only)

This indicator illuminates when the air conditioner starts

defrosting automaticallyor when the warm air control feature

is activated in heating operation.

4TEMPERATURE indicator

A) Usually it displays the temperature settings.

When change the setting temperature, this indicator

begins to ﬂash, and stops 20 seconds later.

B) It displays the room temperature when the air

conditioner is in FAN only operation.

C) When the unit stops operation, it returns to original

factory settings.

D) Displays the malfunction code or protection code.

5FREQUENCY indicator

This indicator appears only when the compressor is in

operation and indicates the current operating frequency.

NOTE

All the pictures in this manual are for explanation purpose

only. They may be slightly different from the air conditioner

your purchased. The actual shape shall prevail.

OPERATING TEMPERATURE

DISPLAY PANEL

Signal receptor

8Remote controller signal

receiver

9Remote controller

0Manual control button

Connecting pipe, drain hose

=Air inlet (side and rear)

~Air outlet

1Front panel

2Air inlet

3Air ﬁlter

4Air outlet

5Horizontal air ﬂow grille

6Vertical air ﬂow louver

7Display panel

Mode

Temperature

Cooling

operation

Heating

operation

Drying

operation

Room temperature 17°C-32°C 17°C-30°C 17°C-32°C

Outdoor

temperature 18°C-43°C -7°C-24°C 18°C-43°C

12345

AUTO DEF.

TIMERFREQUENCY

J355-EN.indd 4J355-EN.indd 4 1/12/07 3:20:53 PM1/12/07 3:20:53 PM

ENGLISH 5

AUTO / COOL

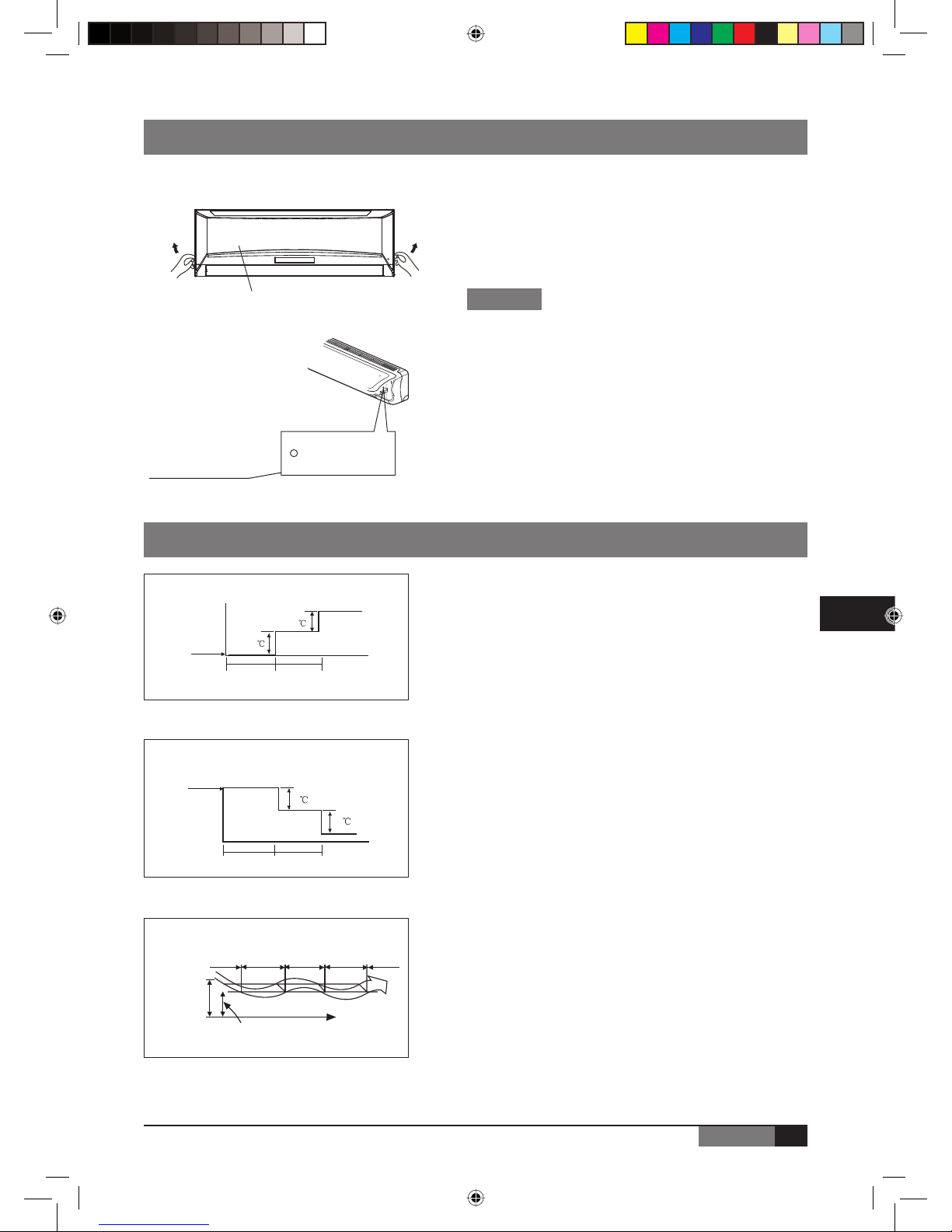

MANUAL OPERATION

1Open and lift the front panel up to an angle at which it

remains ﬁxed with a clicking sound.

2Press the button until the AUTO indicator is lit, the unit

will work in forced AUTO mode.

3Close the panel ﬁrmly to its original position.

Manual operation can be used temporarily in case you cannot ﬁnd the remote controller or its batteries are

exhausted.

HOW THE AIR CONDITIONER WORKS

■AUTOMATIC OPERATION

•When you set the air conditioner in AUTO mode, it will

automatically select cooling, heating (cooling/heating

models only), or fan only operation depending on

what temperature you have selected and the room

temperature.

•The air conditioner will control room temperature

automatically around the temperature point set by you.

•If the AUTO mode is uncomfortable, you can select desired

conditions manually.

■SLEEP OPERATION

•When you push SLEEP button during cooling, heating

(cooling only type without), or AUTO operation, the

air conditioner will automatically increase (cooling) or

decrease (heating) 1°C per hour. The set temperature

will be steady 2 hours later.

•The fan speed will be automatically controlled.

■DRYING OPERATION

•The dry mode will automatically select the drying operation

based on the difference between the set temperature and

the actual room temperature.

•The temperature is regulated while dehumidifying by repeating

turning on and off of the cooling operation or fan only. The

fan is low.

Manual control button

Panel CAUTIONS

Press Sleep button

Set

Temperature

1 hour 1 hour

Cooling

Press Sleep button

Set

Temperature

1 hour 1 hour

Heating

DRYING operation

Room

temperature

Time

set temperature

Cooling

Fan only

Cooling

Fan only

Cooling

•Once you push the manual button, the operation mode

is shifted in an order as: AUTO, COOL, OFF.

•Push the button twice, the unit will operate in forced COOL

mode. This is used for testing purposes only.

•Third press will stop the operation and turn off the air

conditioner operation.

•To restore the remote controller operation, use the remote

controller directly.

J355-EN.indd 5J355-EN.indd 5 1/12/07 3:20:54 PM1/12/07 3:20:54 PM

ENGLISH

OPTIMAL OPERATION

To achieve optimal performance, please note the following:

•Adjust the air ﬂow direction correctly so that it is not directed on people.

•Adjust the temperature to achieve the highest comfort level. Do not adjust the unit to excessive temperature

levels.

•Close doors and windows on COOL or HEAT modes, or performance may be reduced.

•Use TIMER ON button on the remote controller to select a time you want to start your air conditioner.

•Do not put any object near air inlet or air outlet, as the efﬁciency of the air conditioner may be reduced and the air

conditioner may stop running.

•Clean the air ﬁlter periodically, otherwise cooling or heating performance may be reduced.

•Do not operate unit with horizontal louver in closed position.

PREPARATION BEFORE INSTALLATION

•Before doing any work, check the interior power supply cord and the main breaker capacity are sufﬁcient and the

installation area is sufﬁcient and complies with the requirements.

•Check that the power supply available agrees with name plate voltage.

•Electrical work, wiring and cables must be in compliance with national and local wiring codes and standard.

•Do not use the extension cables. In the case extended cables are needed, use the terminal block.

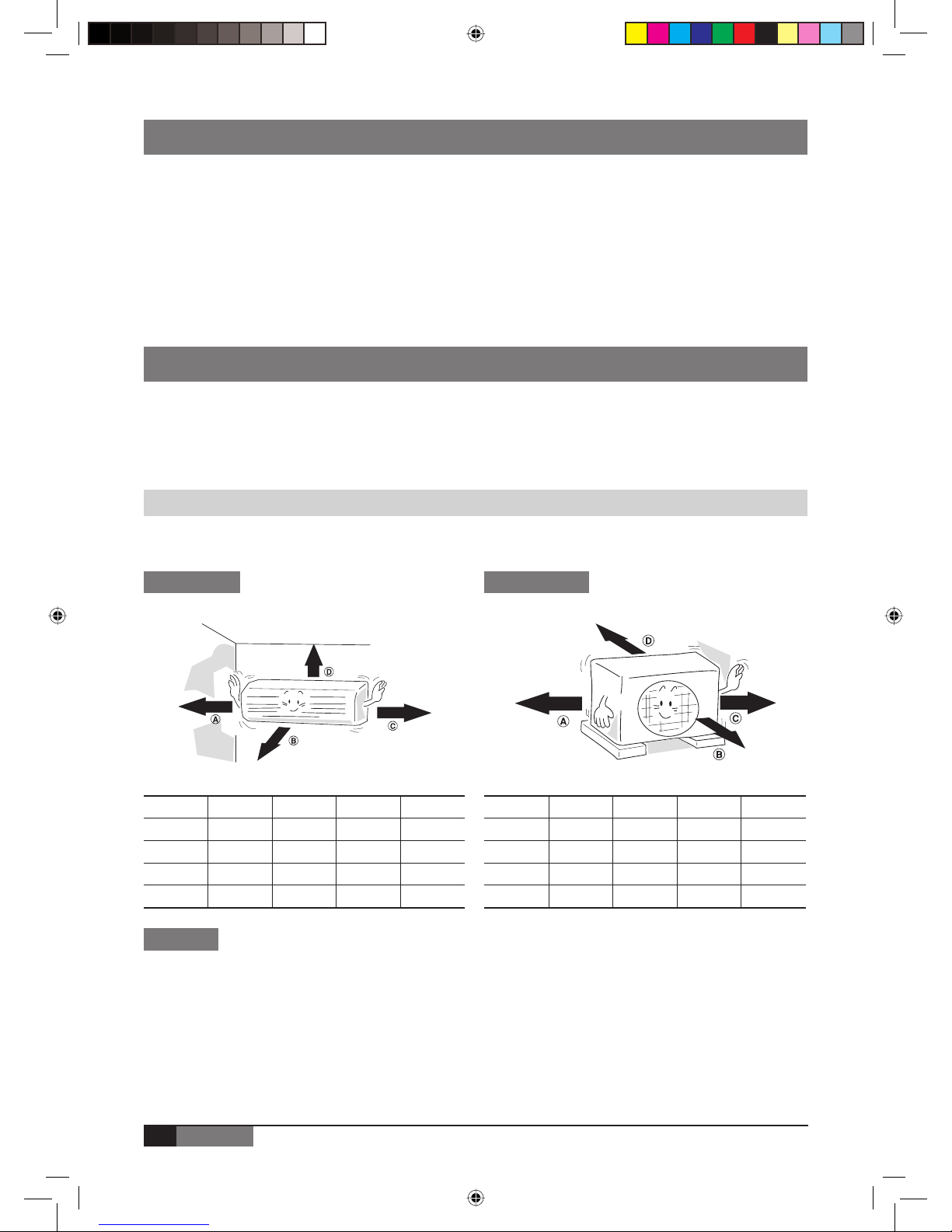

SELECTION OF THE LOCATION

•Select a place which provides the space around the units as shown in the diagram below.

INDOOR UNIT OUTDOOR UNIT

•Do not install in a place that cannot bear the weight of the unit.

CAUTION

Models 07 09 12 18

A 12cm 12cm 12cm 12cm

B 70cm 70cm 70cm 70cm

C 12cm 12cm 12cm 12cm

D 15cm 15cm 15cm 15cm

Models 07 09 12 18

A 30cm 30cm 30cm 30cm

B 200cm 200cm 200cm 200cm

C 60cm 60cm 60cm 60cm

D 30cm 30cm 30cm 30cm

J355-EN.indd 6J355-EN.indd 6 1/12/07 3:20:56 PM1/12/07 3:20:56 PM

ENGLISH 7

OUTDOOR UNIT PICTURES

285

290

530 110

590

750

RVJC 18RVJC 07-12

335

125

560.1141.5

135

351.2

694.5

301.5

843

313

235

PARTS INSTALLATION

NOTES

CAUTIONS

•Ensure that the space around the left and right of the

indoor unit is more than 12cm.

The indoor unit should be installed allowing a minimum

clearance of 15cm from the ceiling.

•Use a stud ﬁnder to locate studs to prevent unnecessary

damage to the wall.

•A minimum pipe run of 3 metres is required to minimise

vibration & excessive noise.

•The indoor unit should be installed on the wall at a height

of 2.3 metres or more from the ﬂoor.

•

A, B and C directions should be free from obstructions.

NOTES

•This illustration is for explanation purposes only.

•Copper lines must be insulated independently.

Self-tapping screw B

ST3.9X10

Loop the

connective

cable.

Remote Controller

Air Filter

Remote Controller

holder

30cm minimum

200cm minimum

60cmminimum

30cmminimum

12cm minimum

15cm minimum

60cm minimum

Except the above parts provided, the other parts needed

during installation you must purchase.

Number Name of part Q’ty

1Installation plate 1

2Clip anchor 8

3Self-tapping screw A ST3.9X25 8

Connecting

pipe

assembly

Liquid side

6.35 Parts you

must

purchase

Gas side

9.53 (<12000Btu/h model)

12.7 (f12000Btu/h model)

5Remote controller 1

6Self-tapping screw B ST3.9X10 2

7Remote controller holder 1

8Seal 1

9Drain joint 1

J355-EN.indd 7J355-EN.indd 7 1/12/07 3:20:57 PM1/12/07 3:20:57 PM

ENGLISH

ø 65 mm

INDOOR UNIT

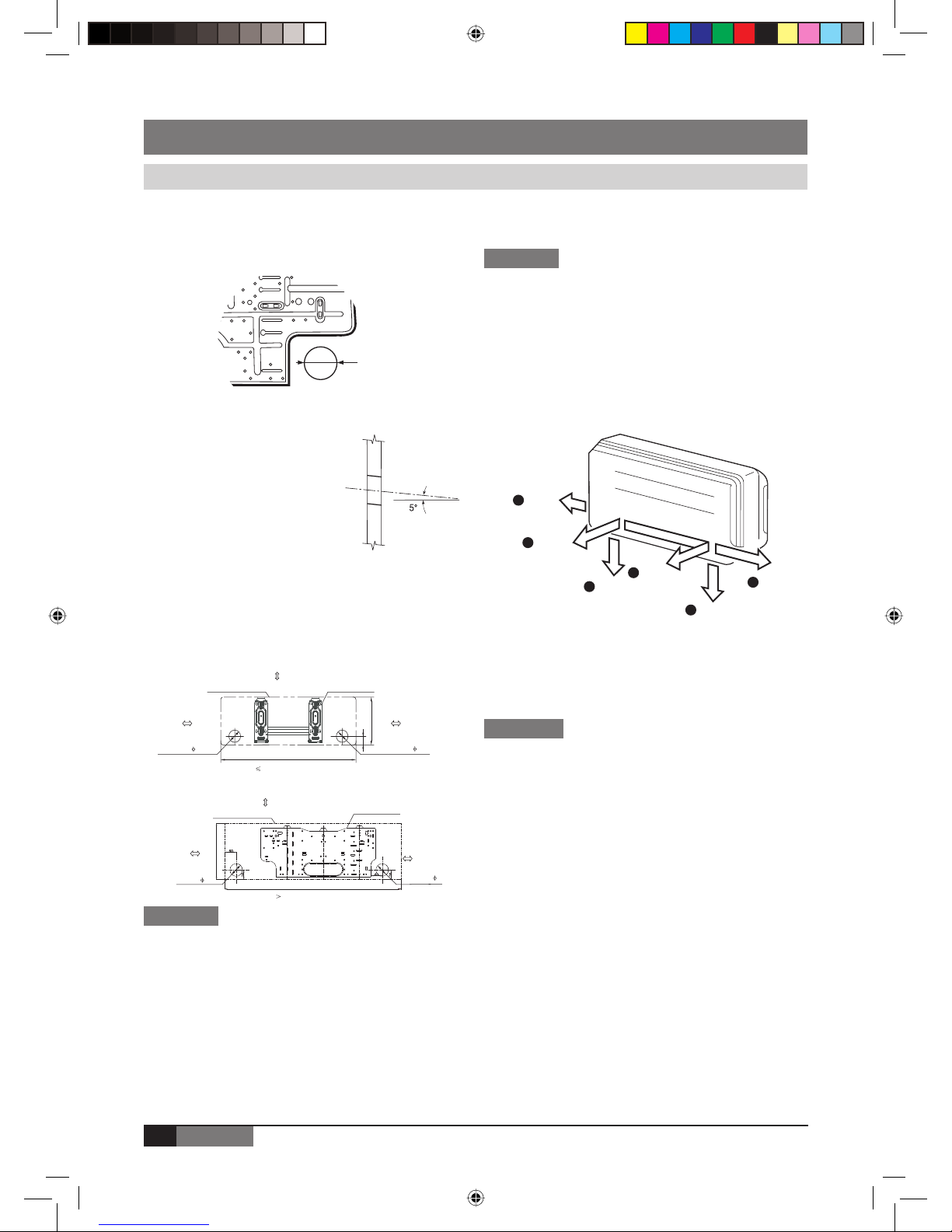

INSTALLATION PROCEDURE

...

.....

....

..... .

....

...

....

...

■Fixing

•Place the installation guide pattern on the designated

installation place and mark the hole position.

•Drill a hole and mount installation plate.

•After determining the pipe hole position. Drill the hole

at a slight downward slant towards the outdoor side.

Outdoor

Indoor

Note:

When installing the

refrigerant pipes from

others side. A hole

must be place to

allow fall towards the

outdoor unit.

•

Make 6 mm 4-6 holes, in the wall at the four corners of

mounting plate (bracket) then insert appropriate mounting

devices.

•

Install the mounting plate using 4-6 pieces of mounting

screw securely at four corners and tighten the screw

completely. Do not over tighten the screws and deform

the back plate.

750

250

Right refrigerant

pipe hole 65

Installation plate

Indoor unit outline

Left refrigerant

pipe hole 65

150mm or more to ceiling

120mm or more

to wall

120mm or more

to wall

150mm or more to ceiling

Indoor unit outline Installation plate

920

293

Right refrigerant

pipe hole 65

Left refrigerant

pipe hole 65

120mm or more

to wall

120mm or more

to wall

( 12000Btu/h model)

MODEL 07-12

MODEL 18

•Be careful when handling the sharp edge of the mount-

ing plate.

■Wiring

•

This indoor unit is ready for connection to the outdoor unit.

•Never modify the unit by removing any of the safety

guards or by passing any of the safety interlock

switches.

•Connect the interconnecting cable correctly and con-

nect the connecting cable to terminal as identiﬁed with

their respective marking.

•Do not damage the conductor core or inner insulation

of power supply cables and do not deform or crush the

cables.

■Piping

The auxiliary piping can be connected in the directions

shown the above diagram. To connect in the D, Eand

Fdirection, pipes will need to be extended.

•Bend pipes carefully to avoid ﬂattening or obstructing

them if the pipes are bent incorrectly, the indoor unit

may be unstable on the wall.

•Carefully arrange pipes so that pipes do not stick out

of the rear plate of the indoor unit.

Right

Right Left

Rear Bottom

CAUTION

CAUTIONS

J355-EN.indd 8J355-EN.indd 8 1/12/07 3:20:58 PM1/12/07 3:20:58 PM

ENGLISH 9

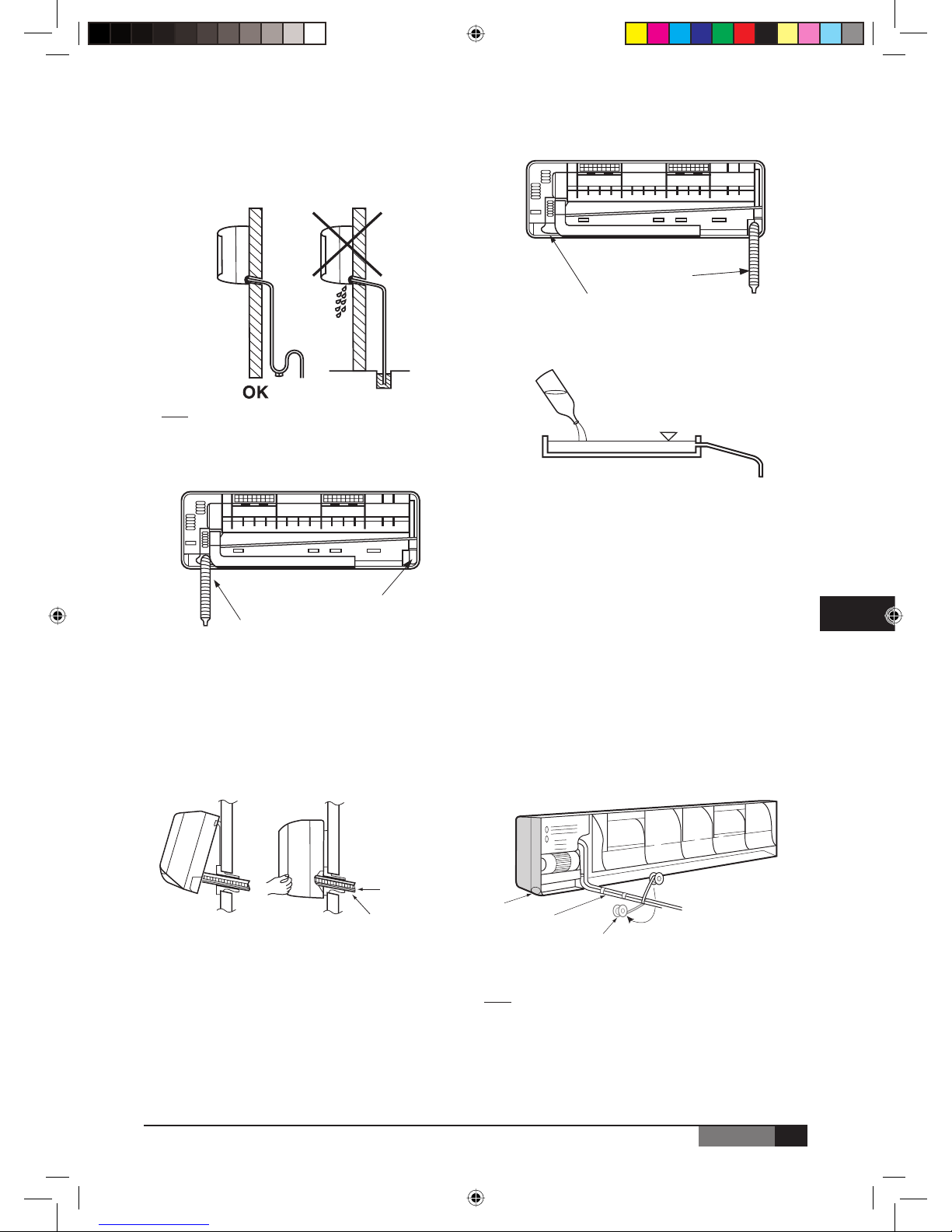

■Drain hose

•Drain hose is ﬂexible and can be routed to suit various

piping arrangements. The drain line must include elbow

trap (U bend). Connect a plastic condensate pipe with

an internal diameter of 12 mm.

•The drain hose can be connected to the left or the right

side.

Veriﬁcation of condensate water drainage:

Fill the drain pan with water and observe evacuation.

Note: Do not put the drain hose end into water.

Drain hose

For left and left rear piping (Factory standard)

Drain cap

Drain hose

For right connection

■Indoor Unit Fixing

•Thread the indoor unit piping and cable through the hole.

•Hang the top of the unit onto the upper ridge of them in mounting plate.

•Make sure that the unit is correctly hung in place by sliding it to the left, then to the right.

•Press the bottom left and bottom right hand corners of the unit against the mounting plate until the ﬁxing prongs

click into place in the retainers provided to that effect.

Drainage line

Interconnection cable

Note: The condensate evacuation line should be taped to the

refrigerant lines with vinyl tape.

a) Access plate for the

condensate drainage

pump detection

(condensate pump

is available as an

accessory).

Condensate

drainage line Vinyl tape

J355-EN.indd 9J355-EN.indd 9 1/12/07 3:21:00 PM1/12/07 3:21:00 PM

ENGLISH

OUTDOOR UNIT

■Fixing and Piping

•Piping must be performed by qualiﬁed personnel ac-

cording to good refrigeration systems practices.

•Piping materials and insulation materials must be of

refrigerant quality.

•Select the pipe diameters according to the size of unit

and cut the pipe to design length by using pipe cut-

ter.

•Install the ﬂare nuts and ﬂare the end of the pipes.

•Check that no foreign bodies are inside the piping.

•Align the central of the connecting pipes and tighten

the ﬂare nut.

•Fix piping with pipe clamps and check that any pipe

vibrations cannot be transmitted to the building struc-

ture.

•Connect the pipe correctly.

•Do not apply the excessive torque.

•Use an appropriate bending tool to form curves and

avoid over-tightening the refrigerant tubes.

•To prevent heat loss, the two lines must be insulated

separately.

■Maximum Piping Length

The suction line must have a 2% gradient up to the

compressor on horizontal sections.

Where piping lengths are unusually long and include a

large number of oil traps, it may be necessary to adjust

to compressor charge.

■Refrigerant piping connections

(FLARE connections)

To avoid alteration of unit capacities, check that piping

lengths and changes in elevation are kept to a strict

minimum.

Before connectiong the refrigerant lines, follow the

procedures below (if pre-charged connection lines are

not supplied):

•Select copper pipe diameters according to the size of

unit to be installed.

•Install the refrigeration lines, checking that no foreign

bodies get inside the piping.

•Install the ﬂare connectors and ﬂare the ends of the

pipes.

•Evacuate the piping. This operation, which should last

at least 15 minutes if there are large piping lengths and

changes in elevation, should be followed by a leak test.

Refrigerant charge to be added per extra meter

of piping length when more than 7.5 meters.

NOTES

Unit size MODELS

7 9 12 18

(m) 10 15 18 20

Unit size MODELS

7 9 12 18

g/m 30 30 30 30

J355-EN.indd 10J355-EN.indd 10 1/12/07 3:21:01 PM1/12/07 3:21:01 PM

This manual suits for next models

Table of contents

Other York Air Conditioner manuals

York

York YH9FYH24BAH-A-X User manual

York

York ECO R-407C User manual

York

York YCSA 120 T Manual

York

York D1SV300 User manual

York

York SUNLINE ULTRA D1HG 048 User manual

York

York UC18A3XC1 Quick start guide

York

York YC-7E User manual

York

York PREDATOR DM 090 User manual

York

York GHD Quick start guide

York

York Sun Select YV28 User manual

York

York 13 Seer-TCGF User manual

York

York LATITUDE Series Quick start guide

York

York YJU3YH019BARRA-X User manual

York

York TCHD18 THRU 60 Quick start guide

York

York LX series Quick start guide

York

York AFFINITY R-410A DNX Quick start guide

York

York MagnaDRY DK-07 Series User manual

York

York DNH018 User manual

York

York YMUJYH(012-018)BAM-A-X User manual

York

York PCE4 Series User manual

York

York LX series Quick start guide

York

York WJ 180 Quick start guide

York

York SUNLINE 2000 D3CE User manual

York

York SUNLINE DHG 180 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
