Yamaha NS-AP1500 User manual
P/N 430030
These speakers are designed to be used as a main, center, surround or effects speakers;

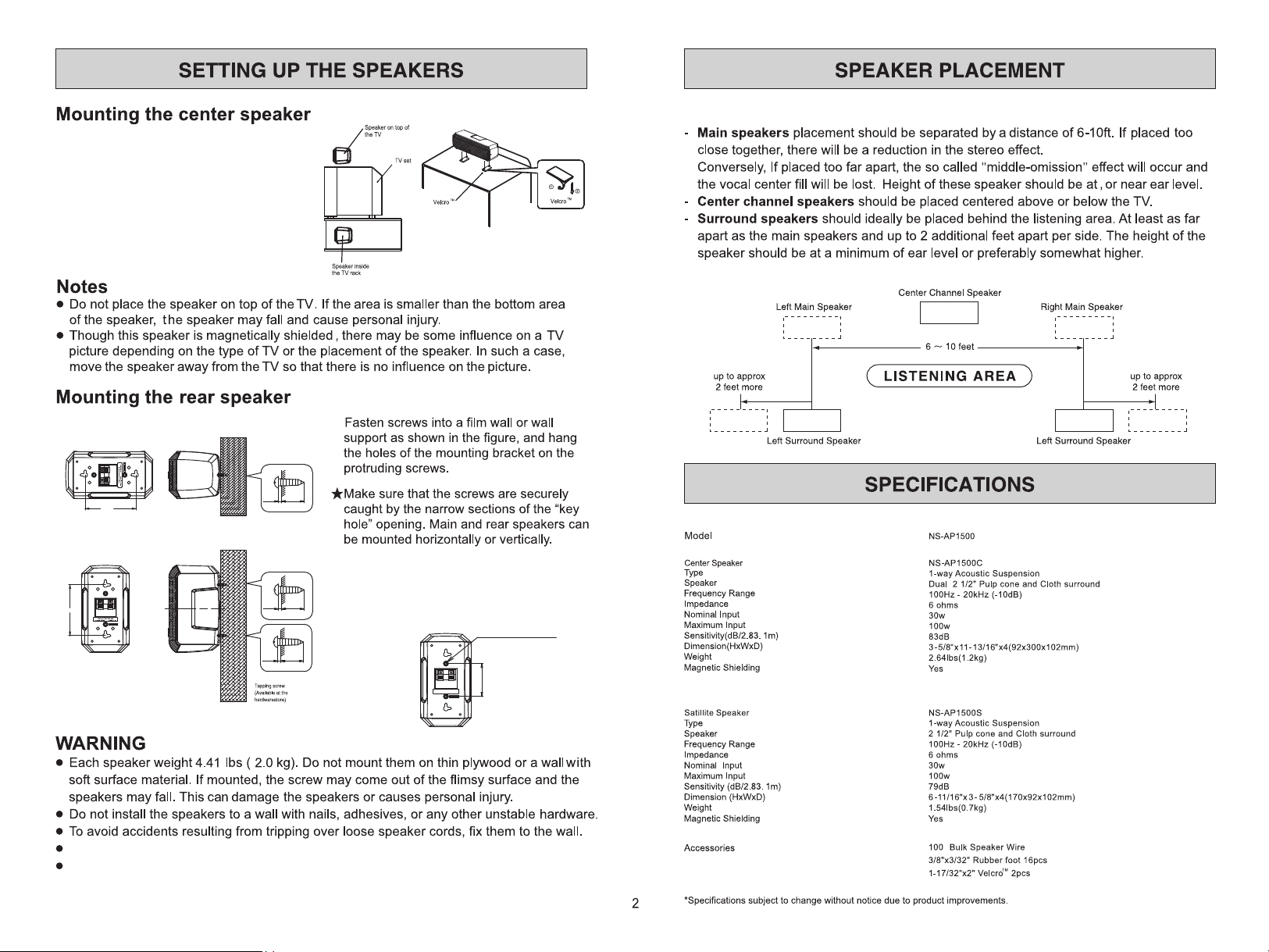

Place the center speaker on top of the TV,
on the floor under the TV or inside the TV
rack so that it is stable. When placing the
speaker on top of the TV , inside of the
Rack or on top of the TV Stand horizontally
or vertically, put the provided Velcro strips
at two points on both the bottom of the
speaker and top of the TV, to prevent the
speaker from falling.
A screw with a diameter of 1/4 Inch
can be used.
(Hole depth:7mm)
You can also use the screw holes on the
rear of the speaker for installing the speakers
on commericially available speaker brackets.
60
( 2-3/8" )
3 7/8"
3 7/8"
6mm 20mm
Min
6mm 20mm
Min
6mm 20mm
Min
YAMAHA CORPORATION
MADEIN CHINA
MODELNS-AP1400S
Secure installation is the purchaser's responsibility.
When using speaker bracket to mount the speakers on a wall or ceiling, it is strongly
recommended that safety wire, which may be included the bracket, be used between the
speaker and the bracket to prevent the speaker from falling.
'
