Yale IA-210 User manual

Intruder Alarm Kit

IA-210

IA-220

IA-230

The smarter way to

protect your home.

Quick Start Guide

Full User Manual

1. Go to Yale web site

www.yale.co.uk/product-registration

2.Complete product information form

3.Activate your guarantee

Thank you for choosing the Yale Intruder Alarm System.

This simple to install system has been designed with the user in mind, just follow

these simple steps:

the product details. Register your product to get products news and updates.

if you need extra accessories or spare parts please visit yale.co.uk

Installation Service

Want us to install this product ?

Why not call Yale Smart Security Partners and

let a professional installer take care of the rest.

Choose your package online at

www.yalestore.co.uk/installation

Choose your

package.

Agree a Date & Time

A B

Enjoy your

professionally installed

Yale product!

Date

(03)

(p. 04-05)

(p. 06)

(p. 07-09)

(p. 10)

(p. 11-14)

(p. 15-18)

Install your system in a few easy steps. Please read through all of the steps shown below

and then follow the detailed instructions in the following pages. See your box for kit content.

Unpack your kit

Plan your system

Panel set up

Device installation: Activating devices

Device installation: Testing device signal strength

Device installation: Install the devices in the desired location

Using the system

*Each kit contains different components, see your box for kit content.

Index•

Page 4.

Page 6.

Page 7.

Page 9.

Page 10.

Page 11.

Page 15.

(04)

Max. Total 40 pcs.

Door/Window contact

AC-DC

Keypad

AC-KP

Available as accessory

Motion Detector

AC-PIR

Available with IA-210, IA-220

Kit or as accessory

~12m

110°

~ 1.8

2.1m

~ 1.8

2.1m

~7m

110°

+ PIN CODE

Panic buttons press/hold

Panic Buttons can activate your

alarm immediately - even when

the system is disarmed.

How to

Disarm

>3sec.<

Motion Detector Pet

AC-PETPIR

Available with IA-230

Kit or as accessory

How to

Full-Arm

How to

Part-Arm

Max < 27 kg

All the devices in this kit are pre-paired for easy installation. If you are adding more devices

(purchased separately to this kit) you will need to pair these into the system separately

(see page 18)

1.Unpack Your Kit•

See add device section on page 25.

Most of the devices are provided with either internal or external security

tamper mechanism, please make sure the tamper spring is fully

compressed when you install the devices.

(05)

Keyfob

AC-KF

Available with IA-230 Kit

or as accessory

Contactless Tag

AC-RFIDTAG

Example

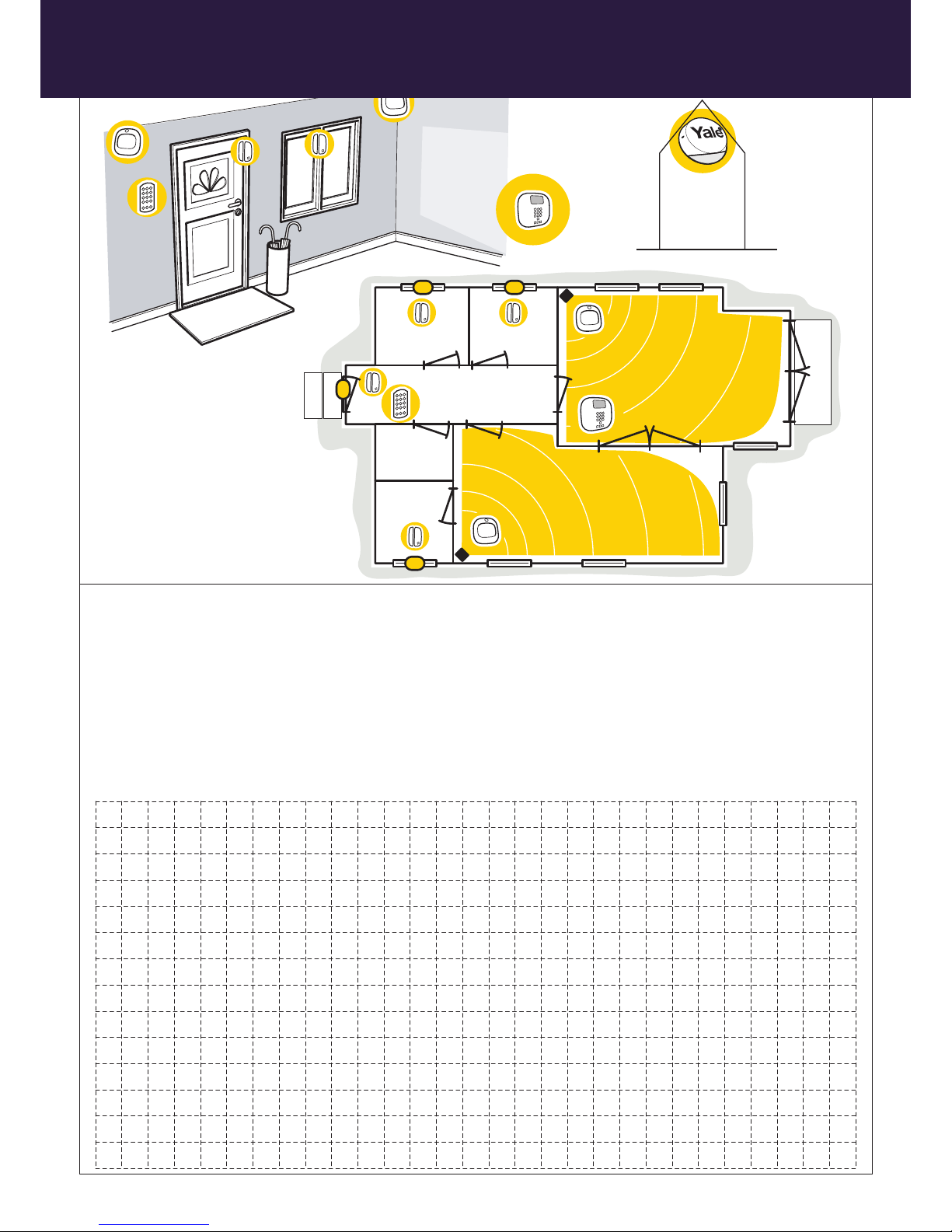

Plan Your home

(06)

Location tips:

1. Panel/Keypad should be accessible from a protected entry/exit point. Ensure that the Panel/KeyPad is not

visible from the outside of the premises.

2. Mount Door/Window contacts as high as possible on the door window frame.

3. PIR Motion Detectors should be located in the corner of the room to maximise coverage.

Do not point directly at a source of heat (eg.fires or boilers), facing a window or a door protected by a

Door/Window contact. Avoid installing directly above radiators.

4. If you have Pets that may climb on furniture, avoid using PET PIR Motion detectors as this can cause false

alarms. Instead replace with additional Door/ Window Contacts.

5. Mount the External siren as high as possible on an external wall.

Plan your system: Before beginning the installation process, take some time to plan your

system, decide where you want to locate the devices.

2.Location Planning•

(07)

Standard PSTN phone

landline socket

The wall mounting holder

should be always inserted

because the panel has got

a tamper switch.

Panel set up

3.Panel Set-up•

(08)

Welcome to your Yale Intruder System

please follow the on screen setup guide.

Press to start setup.

Press to select right setting.

Press to confirm and move to next step.

To learn all the system features and set up options

please visit the product page and download the full

advanced manual for further details.

When set up is complete, select:

> Exit set up <

Press to confirm

Press + PIN code to exit the set up process

If you wish to repeat the process, select:

> Repeat set up <

Press to confirm

Wecome to your

Yale Alarm System

Yale Intruder Alarm

Initial Menu

> Exit set up <

Repeat set up

Continue installation

www.yale.co.uk

Panel Set Up

3.Panel set-up•

Test your planned location of devices and check the signal strength on the panel screen.

Activate the devices by removing the battery strips. All devices in the kit are pre linked, If you have

purchased extra accessories in addition to the kit, you’ll need to pair them to the system, following

the instructions on page 18

Device Installation: Test device signal

(10)

PIR Zone03 E

T:9 PIR 1

If signal strength is below 2 please try

to move the device to a different

location and repeat connection test.

After all devices have been tested in the desired location -

Press to exit Test mode

Press or button and enter your

PIN code to access the main menu

Scroll down using button and select

“Test” and press

Select “Device” and press to enter the

panel into learning mode

Press button to test connection

8 9

page 25.

4.Device Installation•

Test your planned location of devices and check the signal strength on the panel screen.

Activate the devices by removing the battery strips. All devices in the kit are pre linked, If you have

purchased extra accessories in addition to the kit, you’ll need to pair them to the system, following

the instructions on page 18

Device Installation: Test device signal

(10)

PIR Zone03 E

T:9 PIR 1

If signal strength is below 2 please try

to move the device to a different

location and repeat connection test.

After all devices have been tested in the desired location -

Press to exit Test mode

Press or button and enter your

PIN code to access the main menu

Scroll down using button and select

“Test” and press

Select “Device” and press to enter the

panel into learning mode

Press button to test connection

8 9

5.Device Installation: Testing Device Signal Strength•
