Yale AYRD110 Technical specifications
1
P/N -110- - - Rev DAYRD STANDALONE INST FUL
Yale Real Living®
Installation and Programming Instructions
Key Free Push Button Deadbolt B1L
®
x3
#8-32 x 5/16"
Machine screws
x4
#7 wood & #8-32
machine x 20mm
Combination screws
x2
M6x47mm
Long through bolt
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO
THE PRODUCT AND VOID THE FACTORY WARRANTY
Before you begin
for step-by-step installation
instructions & to register
your product
DOWNLOAD
THE BILT APP
2
P/N -110- - - Rev DAYRD STANDALONE INST FUL

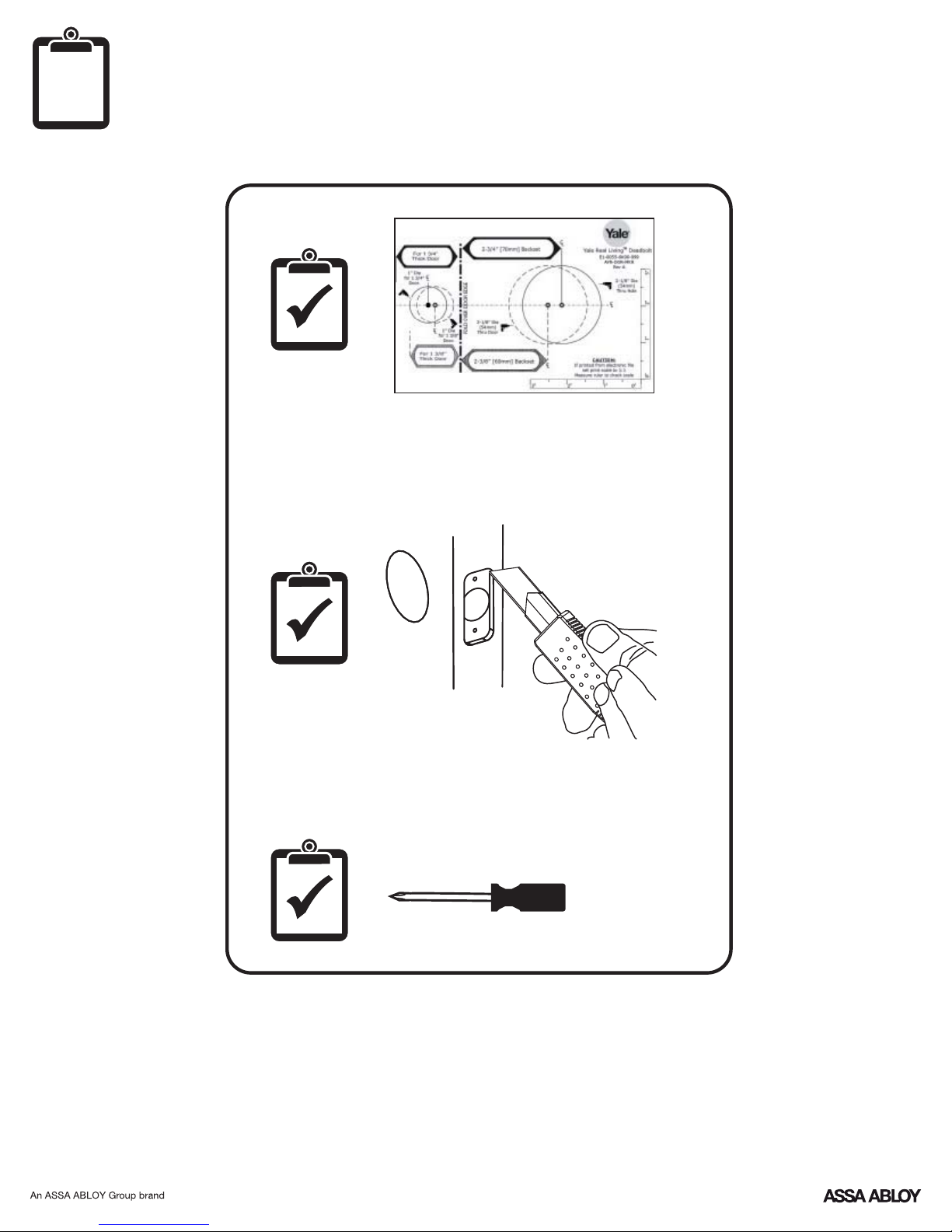

Preparing Door
3
P/N -110- - - Rev DAYRD STANDALONE INST FUL
O
x4
1
d faute
2-3/8" position
2-3/4" position

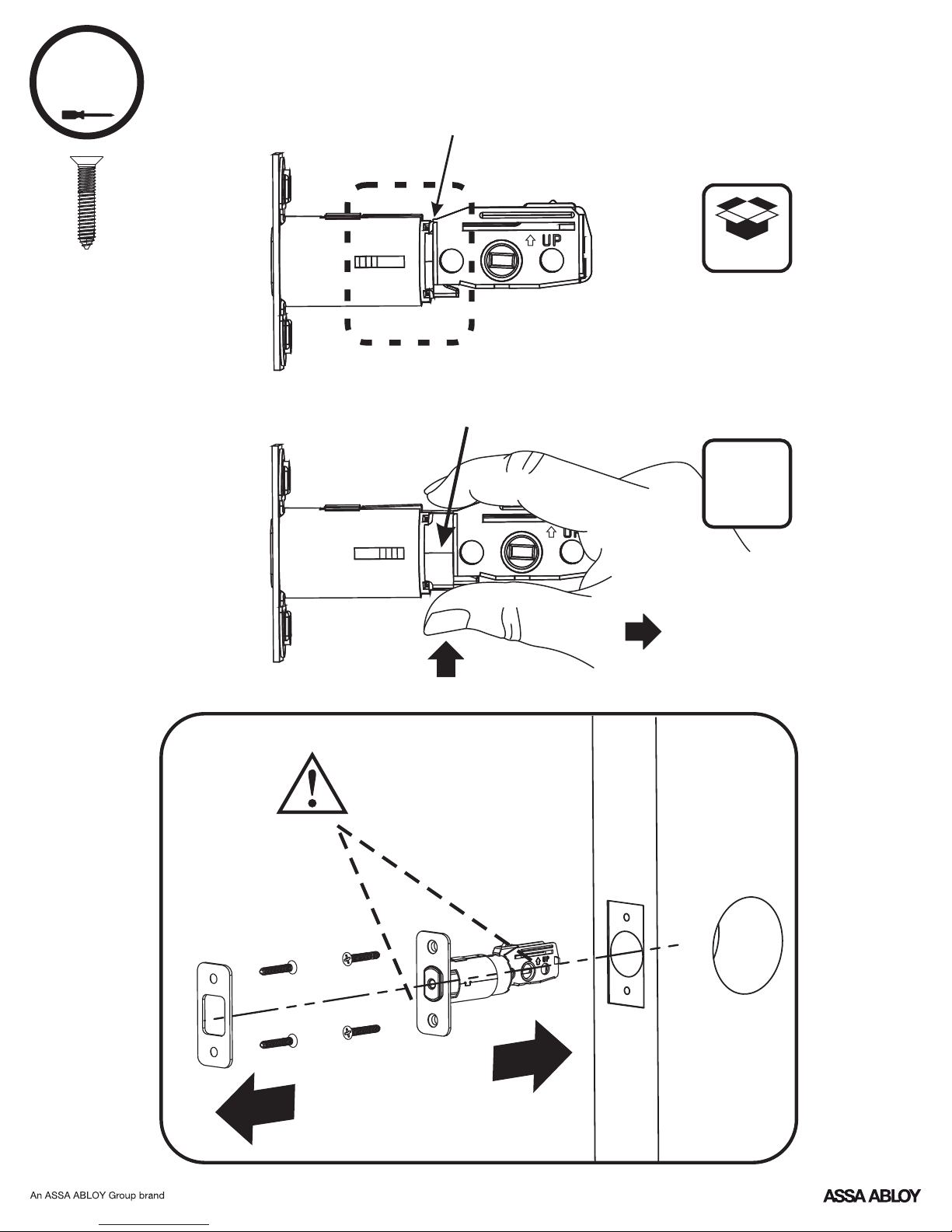

Installing Latch & Strike Plate
Press
Pull
optional
Bolt must be in retracted
(unlocked) position. Note
horizontal orientation of
mechanism.
4
P/N -110- - - Rev DAYRD STANDALONE INST FUL
2Installing Keypad Escutcheon
Outside of DoorInside of Door
Bolt must be in retracted (unlocked)
position. Note horizontal orientation
of mechanism.
5
P/N -110- - - Rev DAYRD STANDALONE INST FUL
x2
3Installing Interior Mounting Plate
Loosen screw to
remove cover.
4Attaching the Cable Assembly
6
P/N -110- - - Rev DAYRD STANDALONE INST FUL
7
P/N -110- - - Rev DAYRD STANDALONE INST FUL
x3
5Installing Interior Escutcheon
8
P/N -110- - - Rev DAYRD STANDALONE INST FUL
Testing Operation
Bolt must be in retracted
(unlocked) position before
installing batteries.AA
!
9
P/N -110- - - Rev DAYRD STANDALONE INST FUL
Handing the Lock
Press . Press . Press . Enter
new Master code (4-8 digits).PIN
Press to complete.
After entering the Master code,PIN
press any key to complete handing.
10
P/N -110- - - Rev DAYRD STANDALONE INST FUL
6Installing Cover
Congratulations, you've installed the Yale Real Living®
Key Free Push Button Deadbolt B1L! Turn sheet over for
Programming Instructions to customize your product.
