Xerox WorkCentre M24 Color Service manual

SA Guide -- WorkCentre M24

Product Overview

Start Install Steps

WorkCentre M24 SA Guide

Network

Connectivity Print Drivers Enabling

Scanning Scan to E-mail

and Fax Internet Services Trouble shooting Trademarks

& Notices

Welcome to the WorkCentre M24 guide for System Administrator's.

This guide will help you install printing and other optional services on your network.

Click here to begin.

Click here for a Quick Install page.

(Use your browser's Print function to print it for reference.)

Click here for instructions on using this guide.

file:///C|/0-web/boxster/WorkCentreM24-System-Analyst-Guide/index.htm [9/4/03 8:32:24 AM]

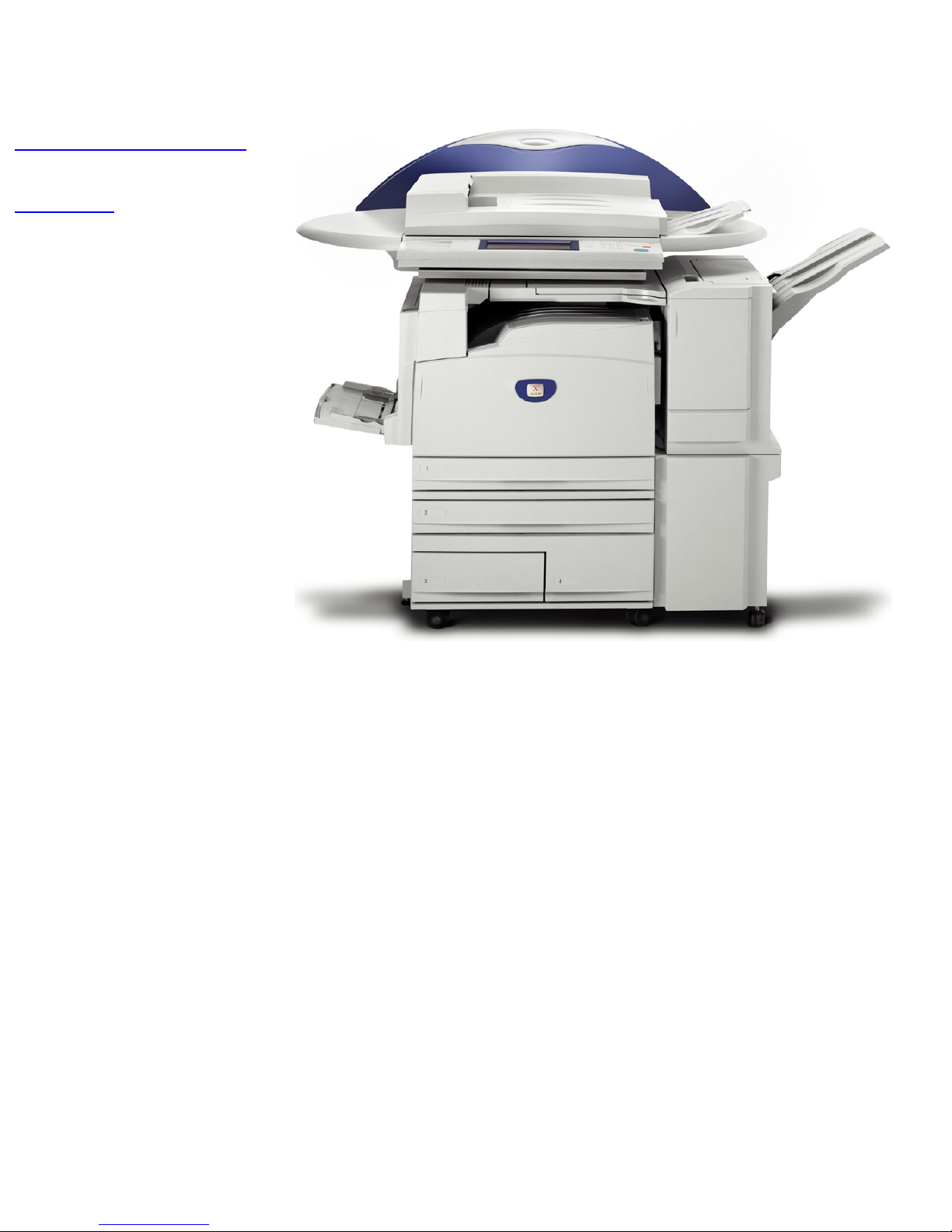

Product Overview

WorkCentre M24 Product Overview

Standard Features

Options

file:///C|/0-web/boxster/WorkCentreM24-System-Analyst-Guide/main/Specifications.htm [9/4/03 8:32:26 AM]

Standard Features

●Printer engine with Integrated controller

●Scanner with Stand

●Duplex Automatic Document Feeder (DADF)

●Standard High Capacity A4 Tray

●Electronic Pre-Collation (EPC)

●Face-Up Output Tray

●Offset Catch Tray

●Scan to mailbox

●600x600; 600x1200 & 1200x1200 printing resolution -

200x200; 300x300 & 600x600 copying resolution

●EA1 toner - No Oil Required! - No Streaks

●SRA3 / 12x19", 64x220 gsm / 16-110 lb index media - Full Bleeds on A3/11x17"

●Up to 3,140 sheet capacity

●Excellent Reliability of 3 calls/year at 7K AMPV; 1.2 hours MSH

●45 sec warm-up; 7 sec color FCOT

●Fuser Belt Module

●Token Ring - Not Available

Return to Product Overview Menu Proceed to Options

file:///C|/0-web/boxster/WorkCentreM24-System-Analyst-Guide/main/StdFeatures.htm [9/4/03 8:32:26 AM]

Options

●1000 Sheet Finisher (stapler)

●Base Machine with stand (see below)

●Tandem Tray (see below)

●Three Tray Module (see below)

Base Machine with Stand

(Shown with optional

DADF and Finisher.)

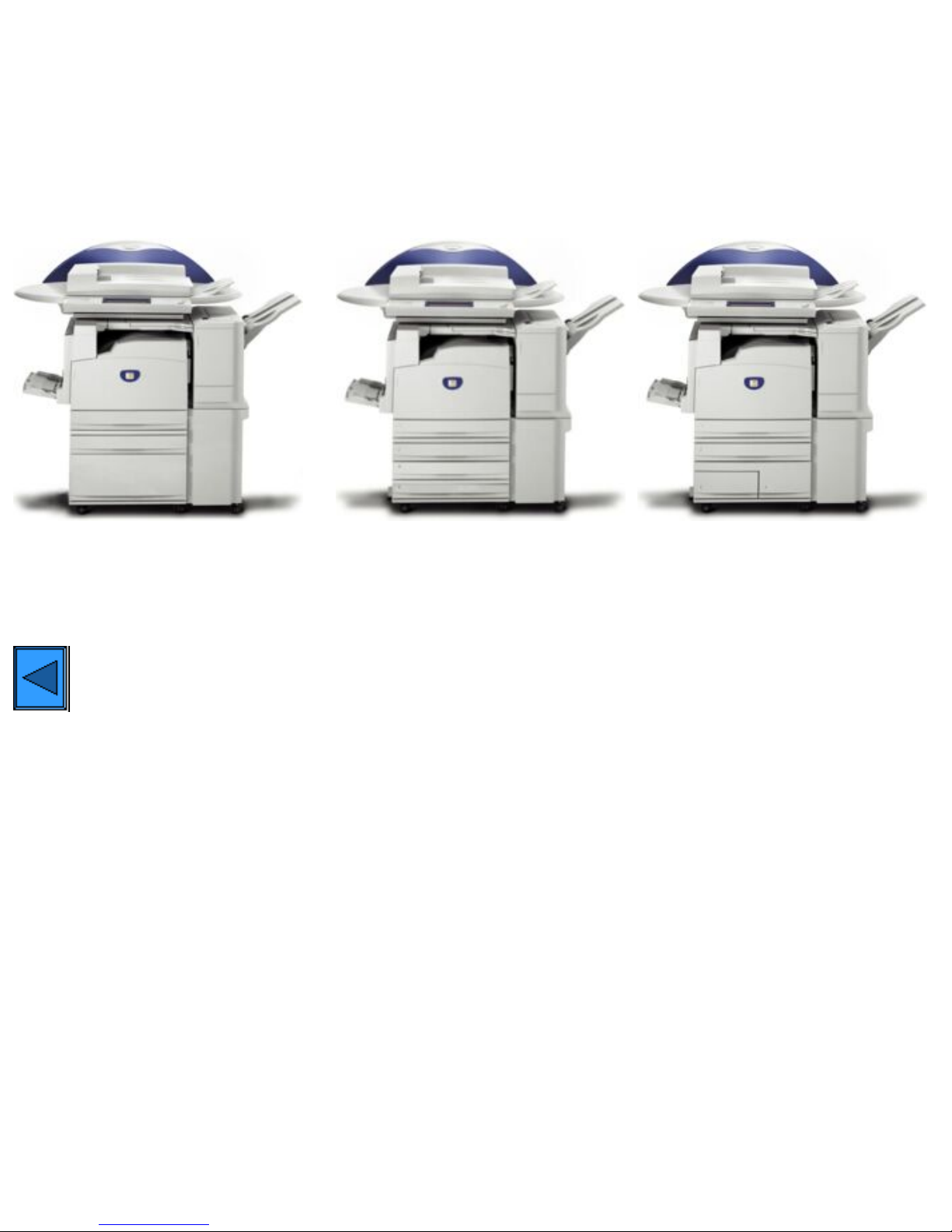

Three Tray Module Tandem Tray Module

Return to Product Overview Menu

file:///C|/0-web/boxster/WorkCentreM24-System-Analyst-Guide/main/options.htm [9/4/03 8:32:27 AM]

SA Guide -- WorkCentre M24

Welcome to the WorkCentre M24 guide for System Administrator's.

This guide will help you install printing and other optional services on your network.

Click here to begin.

Click here for a Quick Install page.

(Use your browser's Print function to print it for reference.)

Click here for instructions on using this guide.

file:///C|/0-web/boxster/WorkCentreM24-System-Analyst-Guide/main/GuidePage.htm [9/4/03 8:32:27 AM]

Step 1 - Install

Installation

Step 1. Connect one end of a Category 5 twisted pair cable to a live network drop. Connect the opposite end

of the cable to the RJ-45 socket at the rear of the Printer.

Click to continue

file:///C|/0-web/boxster/WorkCentreM24-System-Analyst-Guide/main/Install_1.htm [9/4/03 8:32:27 AM]

Step 2 - Install

Installation

Step 2. Set the printer's power switch to ON and wait until the Main (multiple tabbed) screen is displayed.

Click to continue

file:///C|/0-web/boxster/WorkCentreM24-System-Analyst-Guide/main/Install_2.htm [9/4/03 8:32:27 AM]

Step 3 - Install

Step 3.

Follow the procedure outlined below to print a Settings List.

To print a copy of this procedure, go to the Network Connectivity tab of the guide and select

Settings List.

You can then use your browser's Print function to print the procedure.

Settings List

To print a Settings List, with the Printer switched ON, perform the following steps:

1. Press the Machine Configuration (Confirmation) button. This is the lowest of the three square

buttons to the immediate left of the Control Panel’s numeric keypad.

2. Press the Billing Meter/Print Report Tab on the Control Panel’s touch screen. This is the second Tab

from the left side of the screen.

3. Press the Print Report/List button. This is the lowest of the two buttons displayed vertically on the

touch screen.

4. Press the Copy Mode Settings button. This is the center button in the upper row of three buttons

displayed horizontally on the touch screen.

5. Press the Square (Settings List) button displayed by itself on the screen.

6. Press the large, green, Start button, located to the immediate right of the Control Panel’s numeric

keypad.

7. The printing process will be graphically displayed on the touch screen. Upon receipt of the Settings List,

note that the three page print is formatted into two columns with horizontal ruled lines indicating four

distinct data display areas on the print. The first area displays System Settings. The second area

displays Copy Settings. The third area displays Print Settings. The fourth area displays

Communication Settings.

Click to continue

file:///C|/0-web/boxster/WorkCentreM24-System-Analyst-Guide/main/Install_3.htm [9/4/03 8:32:27 AM]

Step 4 - Install

Step 4:

Network

Connectivity

All of the instructions referenced below are obtained by first opening the Network

Connectivity Tab. Use the Back function of your browser to return to this step, should you

go to any of the referenced procedures now.

Refer to the Settings List and verify that the appropriate ports and protocols are enabled for your Network

environment.

Verify the following:

●The TCP/IP protocol stack should be enabled to support communicating with the Printer's Internet

Services. The Printer should also have a valid IP Address, Subnet Mask, and Gateway. If this is not the

case, select NOS Selection Menu, click TCP/IP Protocol Configuration, and follow the instructions

supplied.

●If Internet Services on the Printer is shown as "disabled" on the Settings List, follow the instructions to

Enable Internet Services.

●If you will be using SNMP Management software with this printer, select SNMP Configuration and

follow the instructions supplied.

●If you will be using the Parallel Port and wish to view or change its configuration, select Parallel Port

Configuration and follow the instructions supplied.

Follow the instructions referenced for performing necessary configurations.

Click to continue

file:///C|/0-web/boxster/WorkCentreM24-System-Analyst-Guide/main/Install_4.htm [9/4/03 8:32:28 AM]

Network Connectivity Menu

Network

Connectivity

Install Steps A1

Settings List A6

Ethernet Speed Setting A2

Enable Internet Services A9

Parallel Port Configuration A7

SNMP Configuration A8

NOS Selection Menu

Changing the Administrator Password A10

file:///C|/0-web/boxster/WorkCentreM24-System-Analyst-Guide/main/NetConnectMenu.htm [9/4/03 8:32:28 AM]
