Xerox VersaLink B7025 User manual

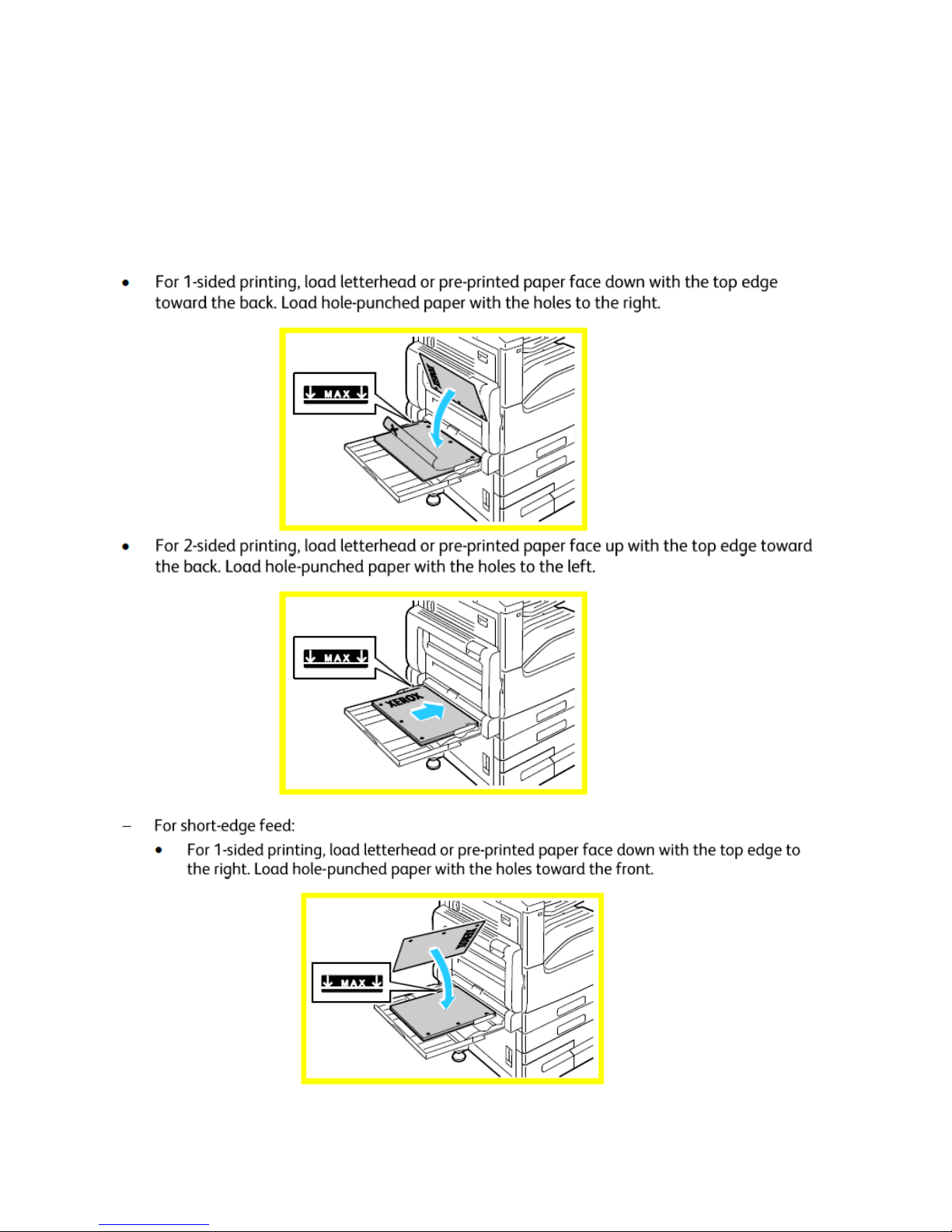

How to Load Special Paper - Bypass Tray B7025/30/35 USdw 2017

Adjust the guides to the edge of your media. Fan the paper before loading and do not fill above

the Max line on any tray or document handler. Do not remove paper from its packaging and

follow any picture guides on the tray for best results. For more detail, see the User Guide or

www.xerox.com/support

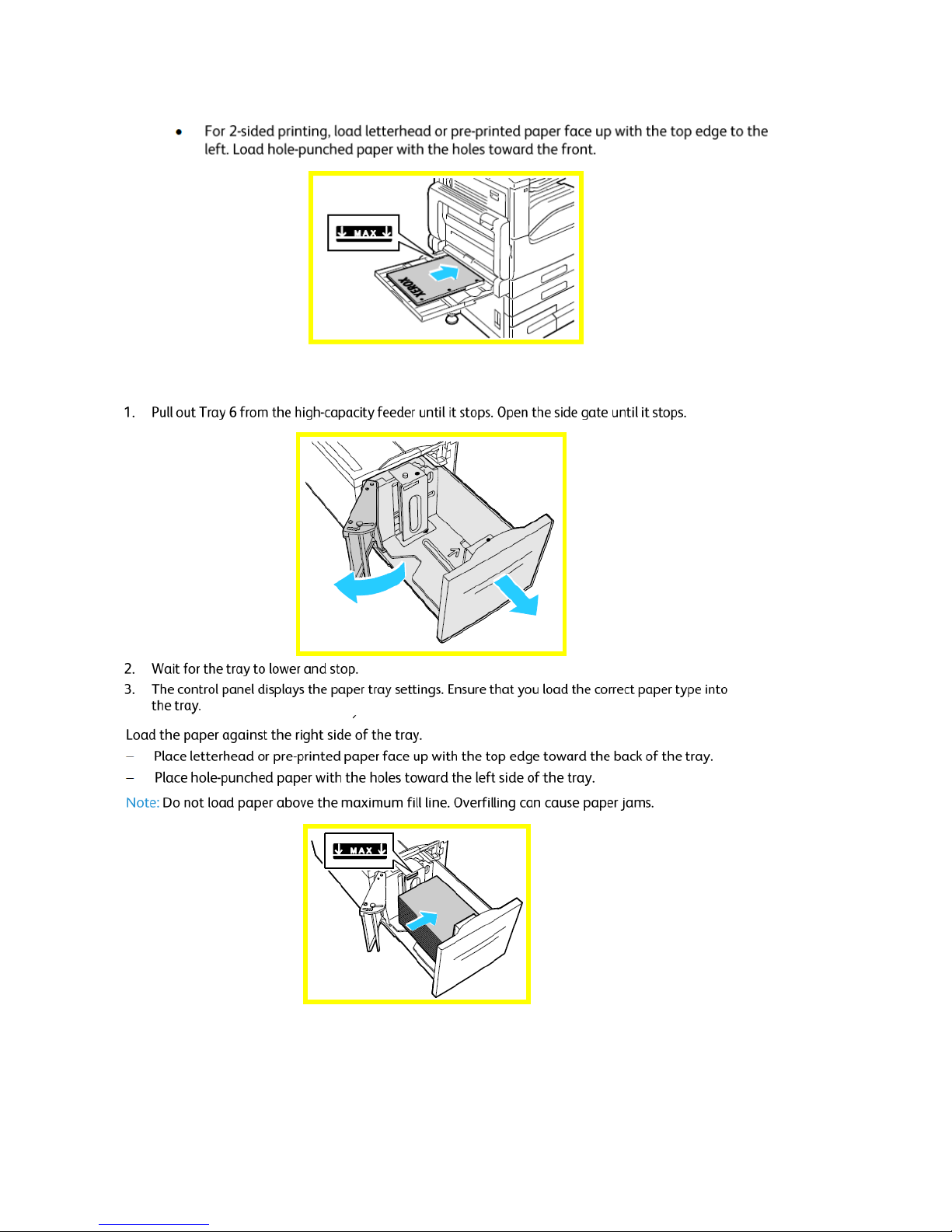

Optional Tray 6 High Capacity –normally used for dedicated plain paper white.

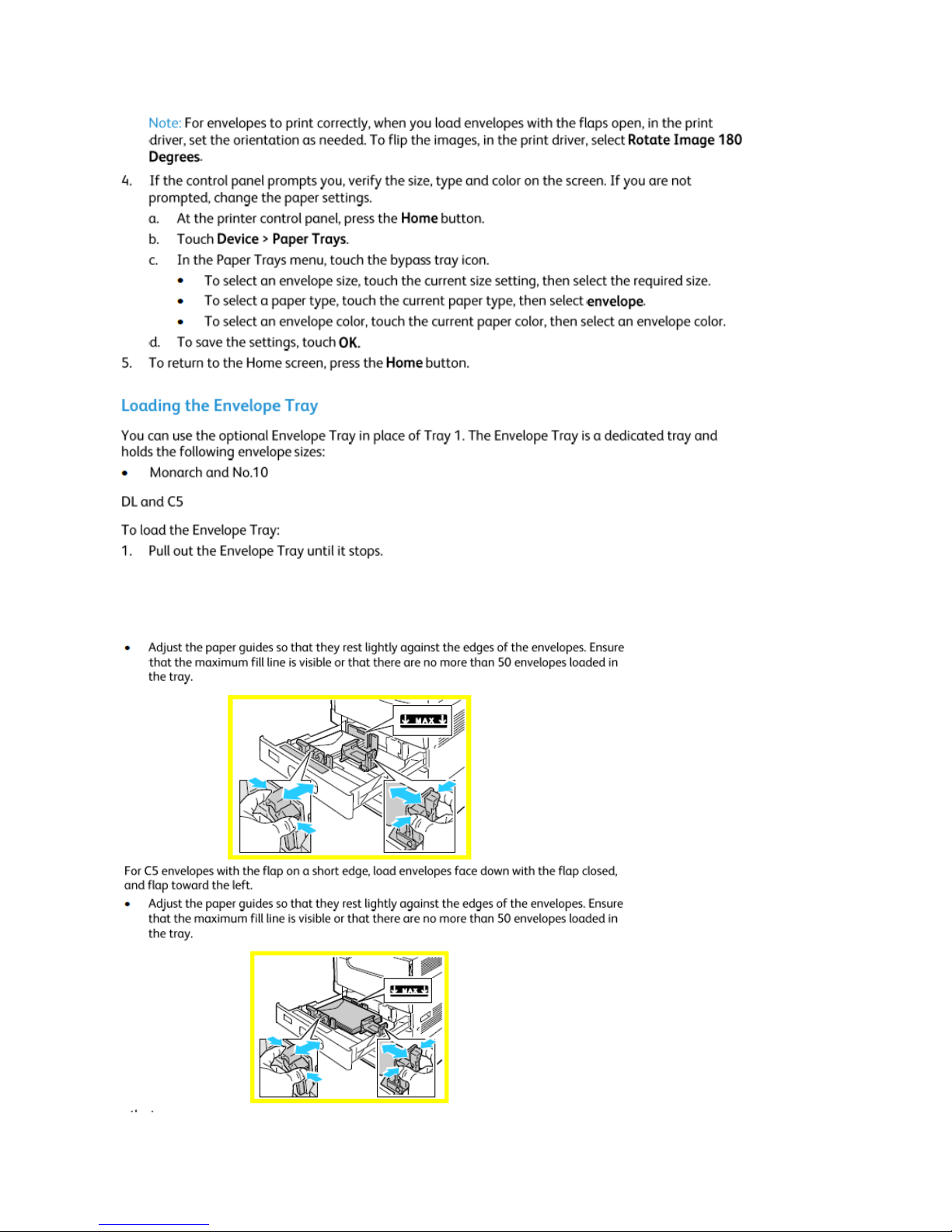

Recommended to use the Envelope Tray for #10 envelopes. (See Tray Specifications.) Bypass tray does

not show #10, it will with the Envelope Tray installed.

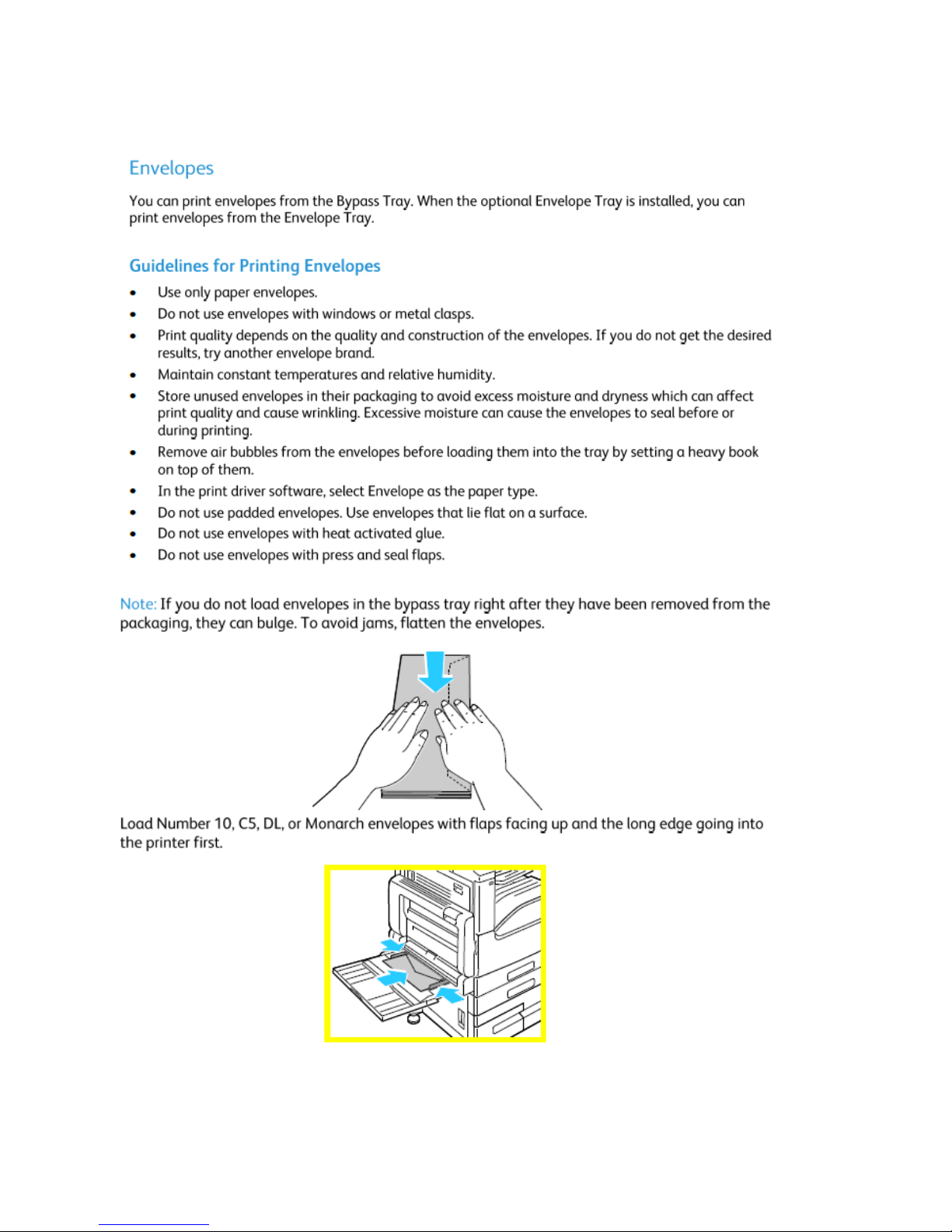

For DL, Monarch, No.10 and C5 envelopes with the flap on a long edge load envelopes face down with

the flaps closed and flaps toward the left.

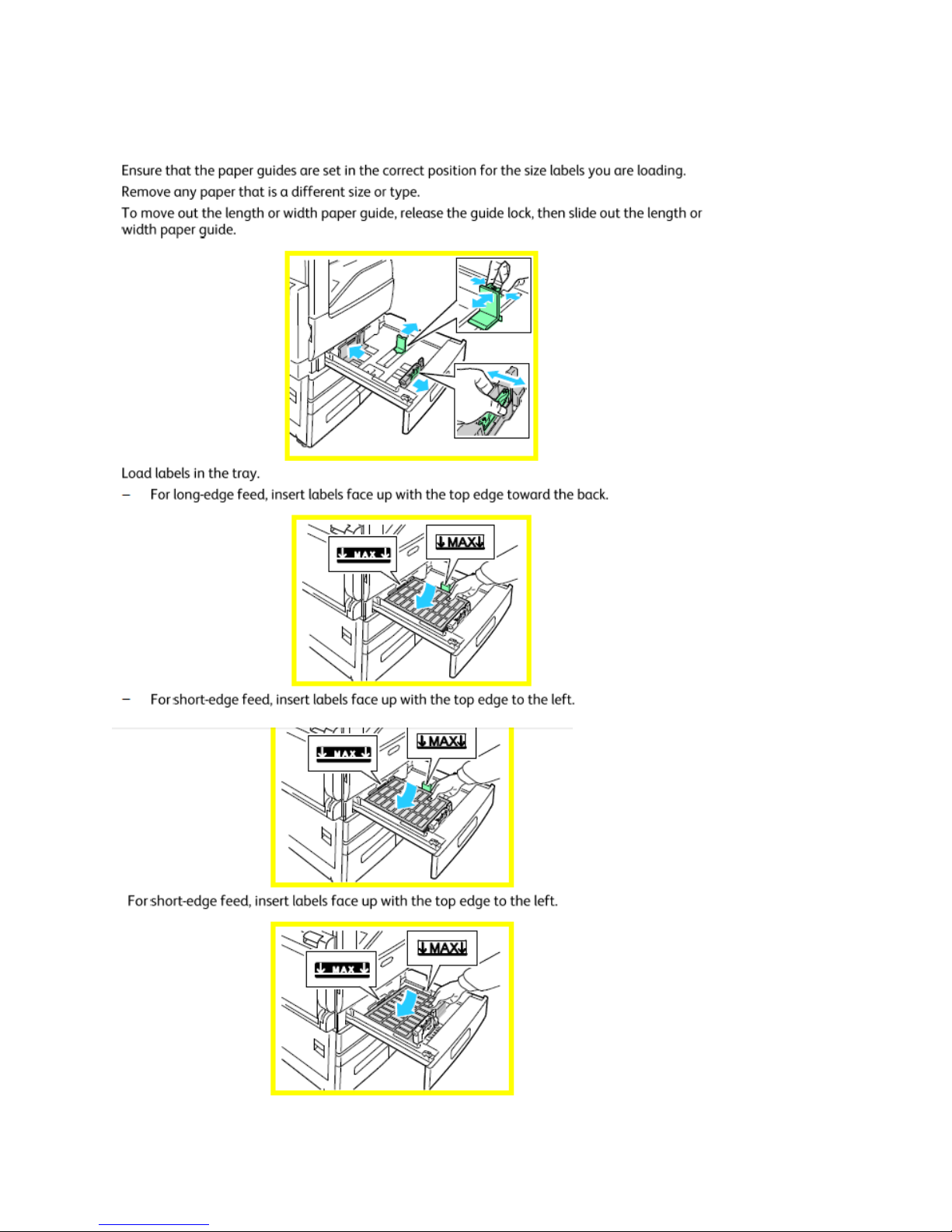

Load labels in Tray 1 -2 (Recommended Bypass Tray).

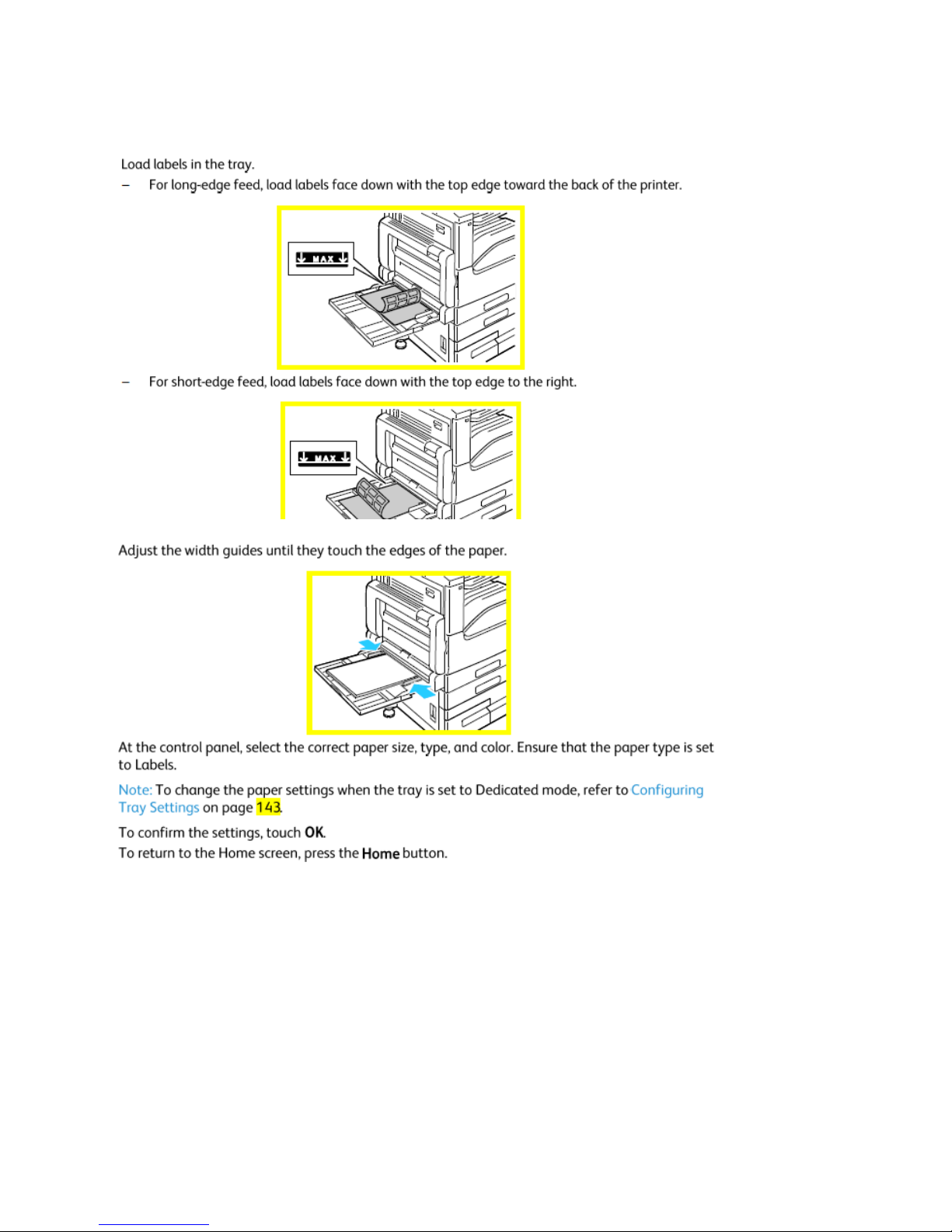

Load labels in the Bypass Tray

See your User Guide at Xerox.com/support for more support detail and the User Guide in the

Documentation Tab.
