Worx WG156 9 Series User manual
P06
P15
P25
2 in 1 Grass Trimmer/Edger
Coupe gazon/Taille-bordure 2 en 1
2 en 1 Cortadora de cesped/Ribeteadora
EN
F
ES
WG156 WG156.9
8
5
6
4
3
2
9
1
7
c
d
a
a
b
17
16
18
15
10
11
12
14
13
G1 G2
A2
F
H
A1
E
I1
D
B1
b
B2
I2 J
KL1 L2
L3
C1 C2
c
d
a
a
b
17
16
18
15
10
11
12
14
13
G1 G2
A2
F
H
A1
E
I1
D
B1
b
B2
I2 J
KL1 L2
L3
C1 C2
76
2 in 1 Grass Trimmer/Edger EN

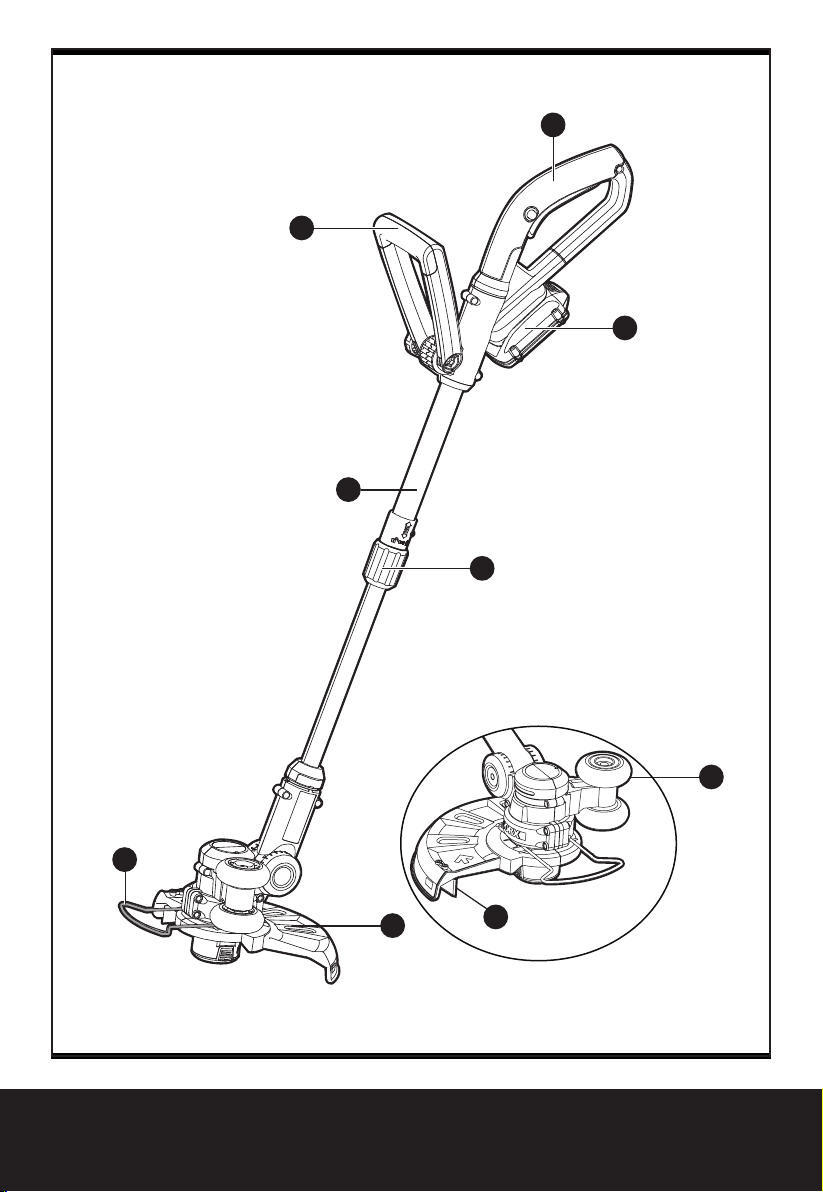

1. REAR HANDLE
2. AUXILIARY HANDLE
3. TELESCOPIC SHAFT
4. LOCKING COLLAR
5. SAFETY GUARD
6. FLOWER GUARD
7. EDGER WHEEL
8. LINE CUTTER
9. BATTERY PACK

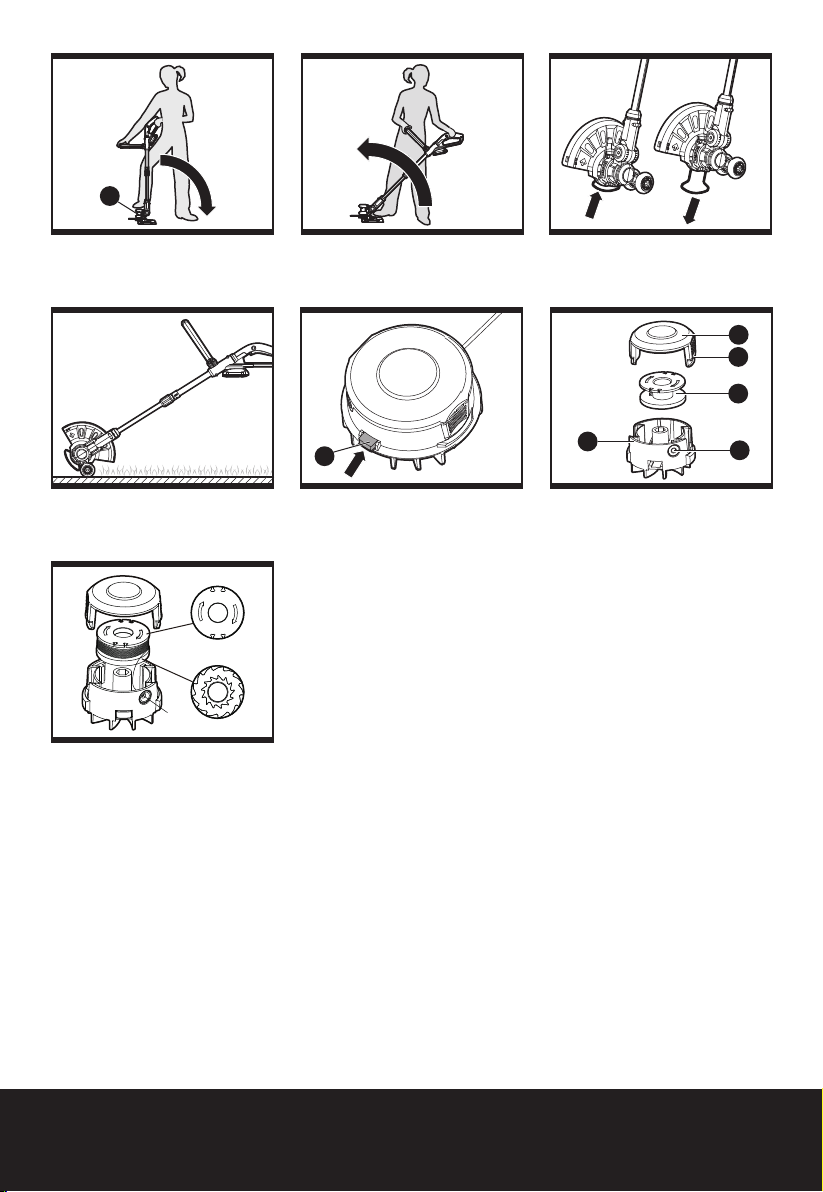

10. TRIMMER HEAD COVER (See Fig. L2)
11. CAP RELEASE LATCH (See Fig. L2)
12. SPOOL (See Fig. L2)
13. TRIMMER HEAD (See Fig. L2)
14. EYELET (See Fig. L2)
15. LINE FEED BUTTON (See Fig. L1)

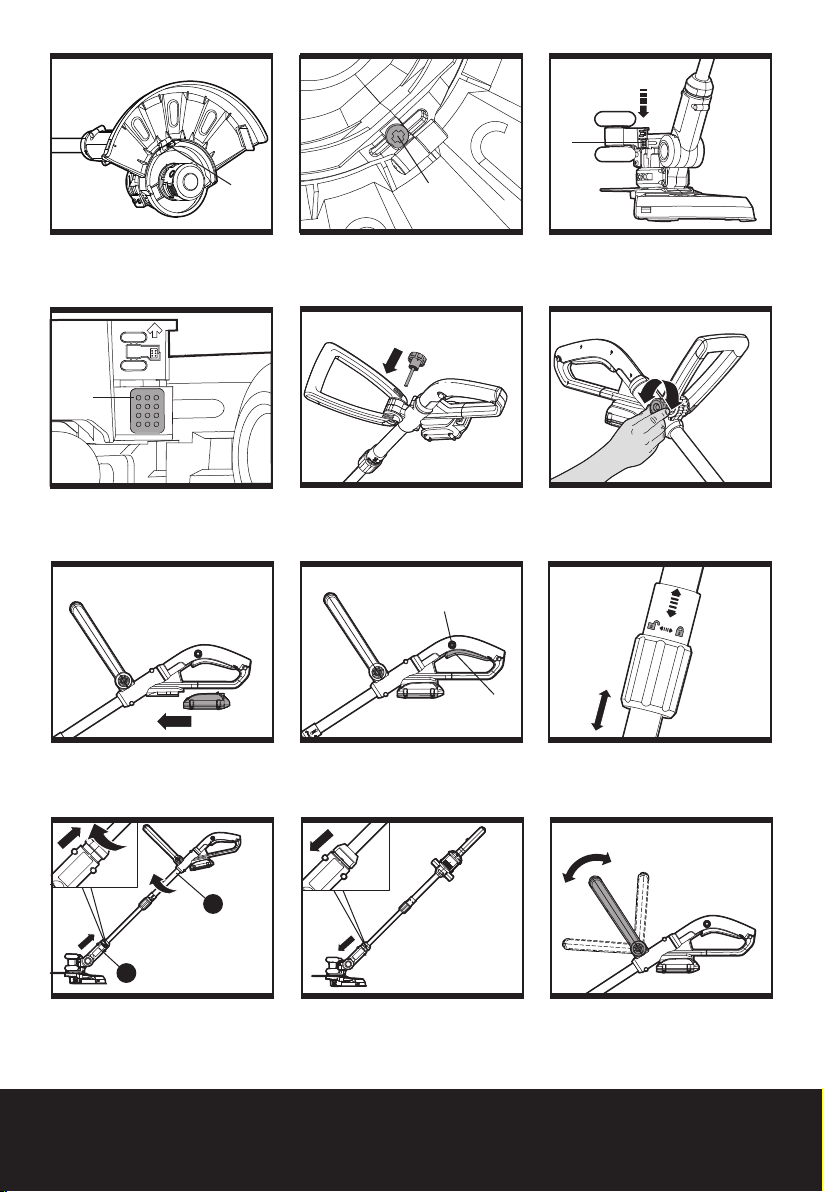

16. LOWER SHAFT COUPLING (See Fig. G1)
17. UPPER SHAFT (See Fig. G1)
18. MOTOR HOUSING OF TRIMMER HEAD (See Fig. I1)
* Not all the accessories illustrated or described are included in standard delivery.
76
2 in 1 Grass Trimmer/Edger EN
TECHNICAL DATA
WG156 WG156.9
Voltage 20V Max*
No load speed 8500/min
Cutting diameter 10”
Line diameter 0.065”
Machine weight 5.2lbs 4.4lbs
*Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts.
Nominal voltage is 18 volts.
ACCESSORIES
WG156 WG156.9
Safety guard 1 1
Charger 1 (WA3732) /
Battery pack 2(WA3520) /
Edger wheel 1 1
Spool 1 1
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according
to the work you intend to undertake. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.
98
2 in 1 Grass Trimmer/Edger EN
GENERAL SAFETY
WARNINGS
Important Safety Instructions
WARNING! When using electric
gardening appliances, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, and
personal injury, including the following:
WARNING: Read all instructions.
WARNING: This product maybe contains
lead, phthalate or other chemicals
known to the State of California to
cause cancer, birth defects and other
reproductive harm. Please wash your
hands after use.
FOR ALL APPLIANCES
1) Avoid Dangerous Environment - Don’t use
appliances in damp or wet locations.
2) Don’t Use In Rain.
3) Keep Children Away - All visitors should be
kept at a distance from work area.
4) Dress Properly - Do not wear loose
clothing or jewelry.They can be caught in
moving parts. Wear protective clothing;
use of rubber gloves, long pants, long
sleeved shirt and substantial footwear is
recommended when working outdoors.
Wear protective hair covering to contain
long hair.
5) Use Safety Glasses - Always use face or
dust mask if operation is dusty.
6) Use Right Appliance - Do not use appliance
for any job except that for which it is
intended.
7) Don’t Force Appliance - It will do the job
better and with less likelihood of a risk of
injury at the rate for which it was designed.
8) Don’t overreach - Keep proper footing and
balance at all times.
9) Stay Alert - Watch what you are doing. Use
common sense. Do not operate appliance
when you are tired.
10)Store Idle Appliances Indoors - When not in
use, appliances should be stored indoors
in dry, and high or locked-up place - out of
reach of children.
11)Maintain Appliance With Care - Keep
cutting edge sharp and clean for best
performance and to reduce the risk of
injury. Follow instructions for lubricating
and changing accessories. Inspect
appliance cord periodically, and if
damaged, have it repaired by an authorized
service facility. Inspect extension cords
periodically and replace if damaged. Keep
handles dry, clean, and free from oil and
grease.
12)Check Damaged Parts - Before further use
of the appliance, a guard or other part that
is damaged should be carefully checked
to determine that it will operate properly
and perform its intended function. Check
for alignment of moving parts, binding of
moving parts, breakage of parts, mounting,
and any other condition that may affect
its operation. A guard or other part that is
damaged should be properly repaired or
replaced by an authorized service center
unless indicated elsewhere in this manual.
SAVE THESE INSTRUCTIONS
INSTRUCTION MANUAL FOR BATTERY –
OPERATED GARDENING APPLIANCES
1.The instruction manual for all battery-
operated gardening appliances shall contain
the following or equivalent instructions:
1) Do not charge appliance in rain, or in wet
locations.
2) Do not use battery-operated appliance in
rain.
3) When replacing batteries, all batteries
should be replaced at the same time.
Mixing fresh and discharged batteries
could increase internal cell pressure and
rupture the discharge battery(ies).
4) When inserting batteries into this product,
the proper polarity or direction must be
observed. Reverse insertion of batteries
can result in leakage or explosion.
Always remove or disconnect
battery pack before adjusting,
cleaning, servicing or transporting the
lawn trimmer.
2.The instruction manual for all battery-
operated products employing a detachable or
separable battery shall contain the following
98
2 in 1 Grass Trimmer/Edger EN
or equivalent instructions:
1) Use only the following type and size
battery(ies): WA3520.
2) Do not dispose of the battery (ies) in a
fire.The cell may explode. Check with
local codes for possible special disposal
instructions or contact Call2Recycle at
1-800-822-8837.
3) Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may
be toxic if swallowed.
4) Exercise care in handling batteries in order
not to short the battery with conducting
materials such as rings, bracelets, and
keys.The battery or conductor may
overheat and cause burns.
3. Avoid Unintentional Starting – Do not insert
battery with finger on switch. Be sure switch is
off when inserting battery.
SAVE THESE INSTRUCTIONS
ADDITIONAL SAFETY RULES FOR LAWN
TRIMMER
1. Keep guards in place and in working order.
2. Do not use this product without the guard
being fitted.
3. Keep hands and feet away from cutting
area.
4. Do not use heavier lines than
recommended in this manual.
5. Do not use line materials of other types –
for example, metal wire, rope, and the like.
SAVE THESE INSTRUCTIONS
GENERAL SAFETY WARNINGS FOR
BATTERY PACK
1) WARNING: Risk of fire and burns. Do
not disassemble, heat above 100°C
(212°F), or incinerate. Do not expose
cells or batteries to heat or fire.
Avoid storage in direct sunlight.
2) Dispose of used batteries promptly
according to local recycling or waste
regulations.
3) Dispose of used battery promptly. do
not dispose of in fire
4) Keep battery out of reach of children and
in original package until ready to use.
5) Never put batteries in mouth. If
swallowed, contact your physician or
local poison control center.
6) CAUTION – The battery used in this
device may present a risk of fire or
chemical burn if mistreated. Replace
battery with (WORX) only. Use of
another battery may present a risk of
fire or explosion
7) Warning: Do not using a visibly
damaged battery pack or appliance
as applicable.
8) Warning: Do not modifying or
attempting to repair the appliance or
the battery pack as applicable.
9) BATTERY MUST BE RECYCLED
10) Recharge only with the charger
specified by the manufacturer. A
charger that is suitable for one type of
battery pack may create a risk of fire when
used with another battery pack.
11)Do not short-circuit a cell or battery.
Do not store cells or batteries
haphazardly in a box or drawer where
they may short-circuit each other
or be short-circuited by conductive
materials.
12)Do not subject cells or batteries to
mechanical shock.
13)Keep cells and batteries clean and
dry. Wipe the cell or battery terminals
with a clean dry cloth if they become dirty.
14)Secondary cells and batteries need to
be charged before use. Always refer
to the cell or battery manufacturer’s
instructions and use the correct
charging procedure.
15)Do not maintain secondary cells and
batteries on charge when not in use.
16)Retain the original cell and battery
literature for future reference.
17)When disposing of secondary cells
or batteries, keep cells or batteries
of different electrochemical systems
separate from each other.
18) Do not remove a cell or battery from its
original packaging until required for use.
19) Do not use any charger other than that
specifically provided for use with the
equipment. Secondary cells and batteries
1110
2 in 1 Grass Trimmer/Edger EN
need to be charged before use. Always
use the correct charger and refer to the
manufacturer’s instructions or equipment
manual for proper charging instructions.
20) Do not use any cell or battery which is not
designed for use with the equipment.
21) Use only the cell or battery in the
application for which it was intended.
22) When possible, remove the battery from
the equipment when not in use.

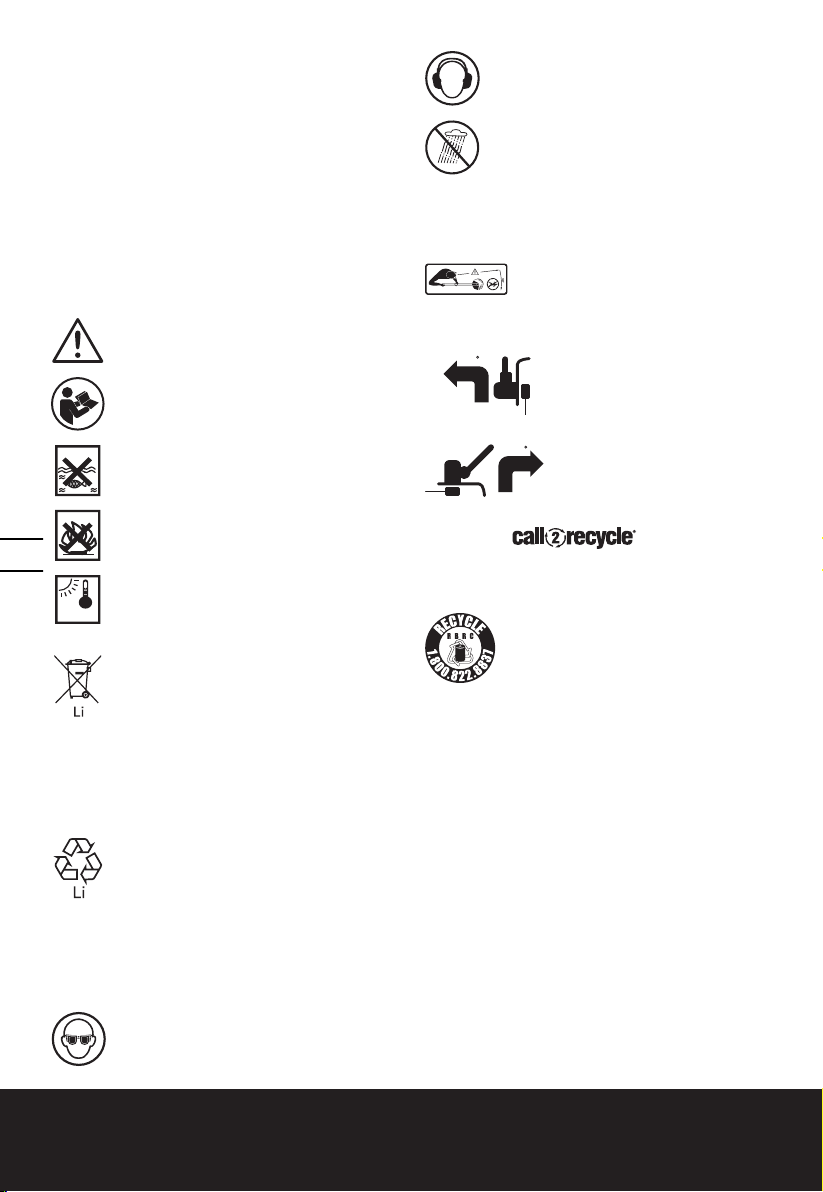

SYMBOLS
Warning
WARNING–To reduce the risk of
injury, user must read instruction
manual
Do not expose to rain or water
Do not burn
Always charge the battery pack
between temperatures 40°F
(4.5°C)-105°F (40.5.°C).
Do not dispose of batteries,
Return exhausted batteries to
your local collection or recycling
point
BATTERY PACK REMOVAL AND
PREPARATION FOR RECYCLING
To preserve natural resources,
please recycle or dispose of
batteries properly.This product
contains lithium-ion batteries.
Local, state or federal laws may
prohibit disposal of lithium-
ion batteries in ordinary trash.
Consult your local waste authority
for information regarding
available recycling and/or
disposal options.
Wear eye protection
Wear ear protection
To avoid possibility of electric
shock, do not use in damp or wet
conditions
Keep all other people,
including children, pets and
bystanders outside the 15
meters hazard zone; stop the
trimmer immediately if you are
approached.
Edging
Trimming
POSITEC Inc. has established
a partnership with the RBRC
Corporation to recycle any
Positec batteries with the
RBRC-call2recycle seal. For
environmental protection, please
do not discard batteries in the
trash. After the batteries’ life
cycle is ended, then please call
1.800-822-8837 for a free service
that will properly dispose of the
battery.
40-105ºF
90
90
This manual suits for next models
1
Table of contents
Languages:
Other Worx Trimmer manuals
Worx
Worx WG151E User manual
Worx
Worx WG186E User manual
Worx
Worx WG163E User manual
Worx
Worx Nitro WG186E.1 Operation instructions
Worx
Worx WG168E User manual
Worx
Worx WG163 User manual
Worx
Worx GT WG160 User manual
Worx
Worx WG216E.X Series Installation manual
Worx
Worx WG250 User manual
Worx
Worx WG160.4 User manual
