Worx WG250 User manual
ASSEMBLY GUIDE
WG250100108
Model No.: WG250
Model Description: 20” 18V Cordless HT Hedge Trimmer
Note: Also included in combo kits; 901 & 901.1
1
REMOVE BATTERY BEFORE SERVICE
COVER BLADE WITH SHEATH BEFORE SERVICE
READ USER MANUAL BEFORE SERVICE
Work with blade away from body
Model WG250 Hedge Trimmer

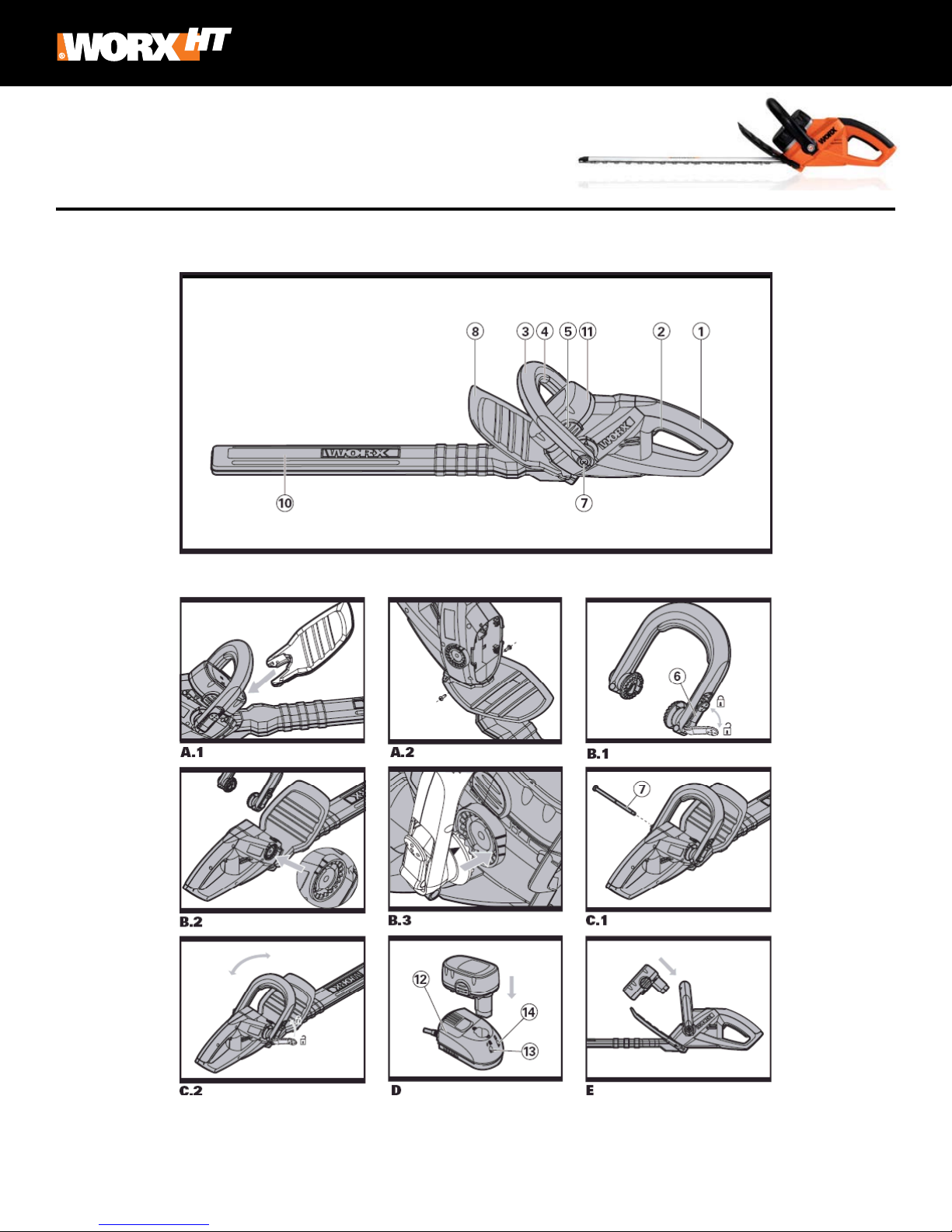

Assembly Procedure
• Place handle in the upright position
• Remove battery
• Loosen screw on left side of the handle
• Depress button to release screw
• Pull screw from handle and housing
• Remove handle assembly
• Hedge trimmer housing (B) and trigger pin (A)
ASSEMBLY GUIDE
WG250100108
Model No.: WG250
Model Description: 20” 18V Cordless HT Hedge Trimmer
Note: Also included in combo kits; 901 & 901.1
2
• Handle assembly (Left to Right)
• Handle assembly connection (Left Side)
• Note: Special notice of clear plastic trigger pin coupler
• Make sure trigger pin ts inside handle connection
• Avoid squeezing the trigger switch on the auxiliary
handle during the handle assembly operation.
ASSEMBLY GUIDE
WG250100108
Model No.: WG250
Model Description: 20” 18V Cordless HT Hedge Trimmer
Note: Also included in combo kits; 901 & 901.1
3
• Assemble with handle in an almost vertical position
that is aligned properly with housing
• Properly align handle arrow with housing line
Finish Reassembly Per
USER MANUAL INSTRUCTIONS
ASSEMBLY GUIDE
WG250100108
Model No.: WG250
Model Description: 20” 18V Cordless HT Hedge Trimmer
Note: Also included in combo kits; 901 & 901.1
4
ASSEMBLY GUIDE
WG250100108
Model No.: WG250
Model Description: 20” 18V Cordless HT Hedge Trimmer
Note: Also included in combo kits; 901 & 901.1
5
ASSEMBLY GUIDE
WG250100108
Model No.: WG250
Model Description: 20” 18V Cordless HT Hedge Trimmer
Note: Also included in combo kits; 901 & 901.1
6
WORX Yard Tools
PO Box 681298
Charlotte, NC 28216
866-354-WORX (9679)
